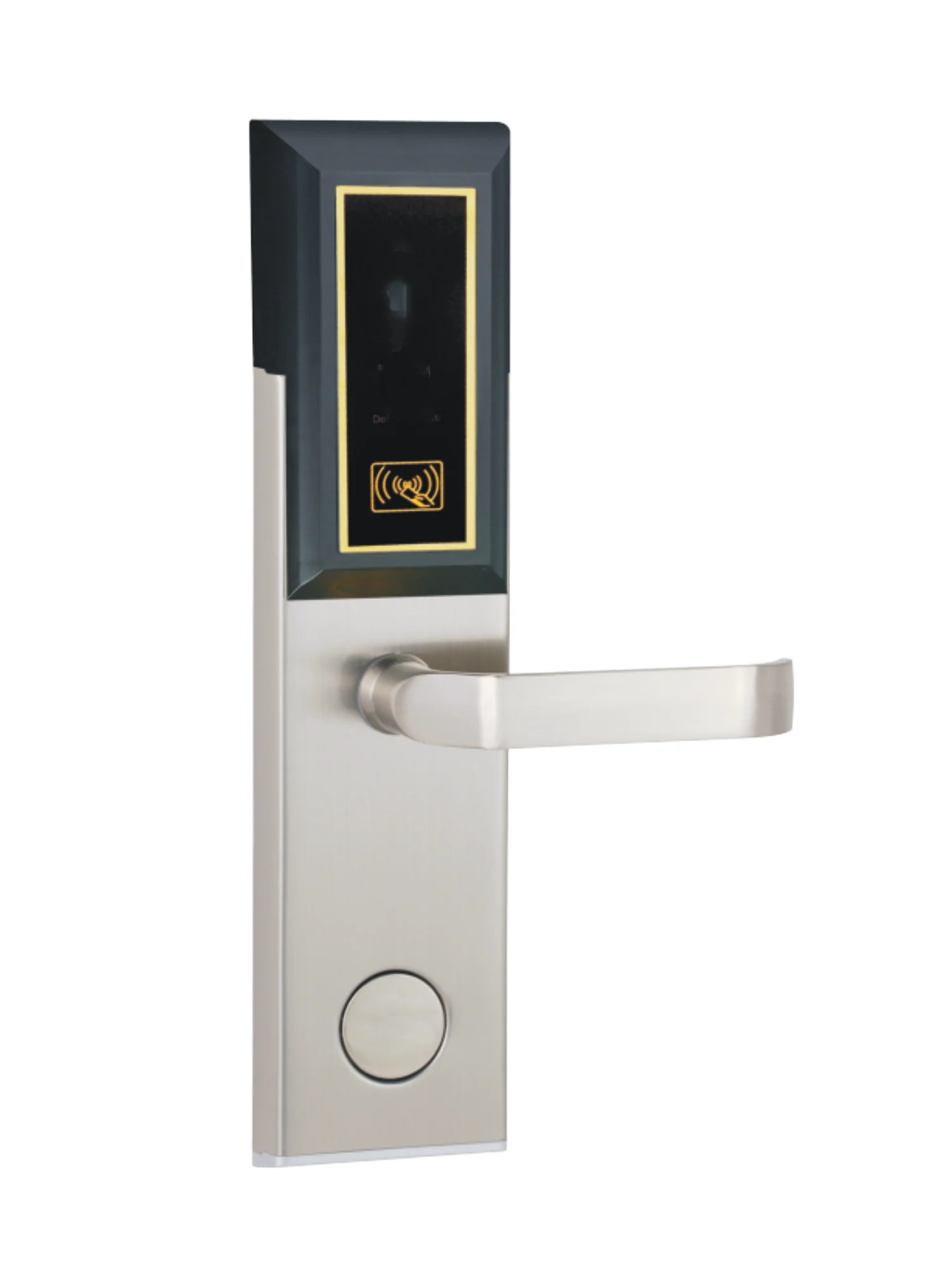

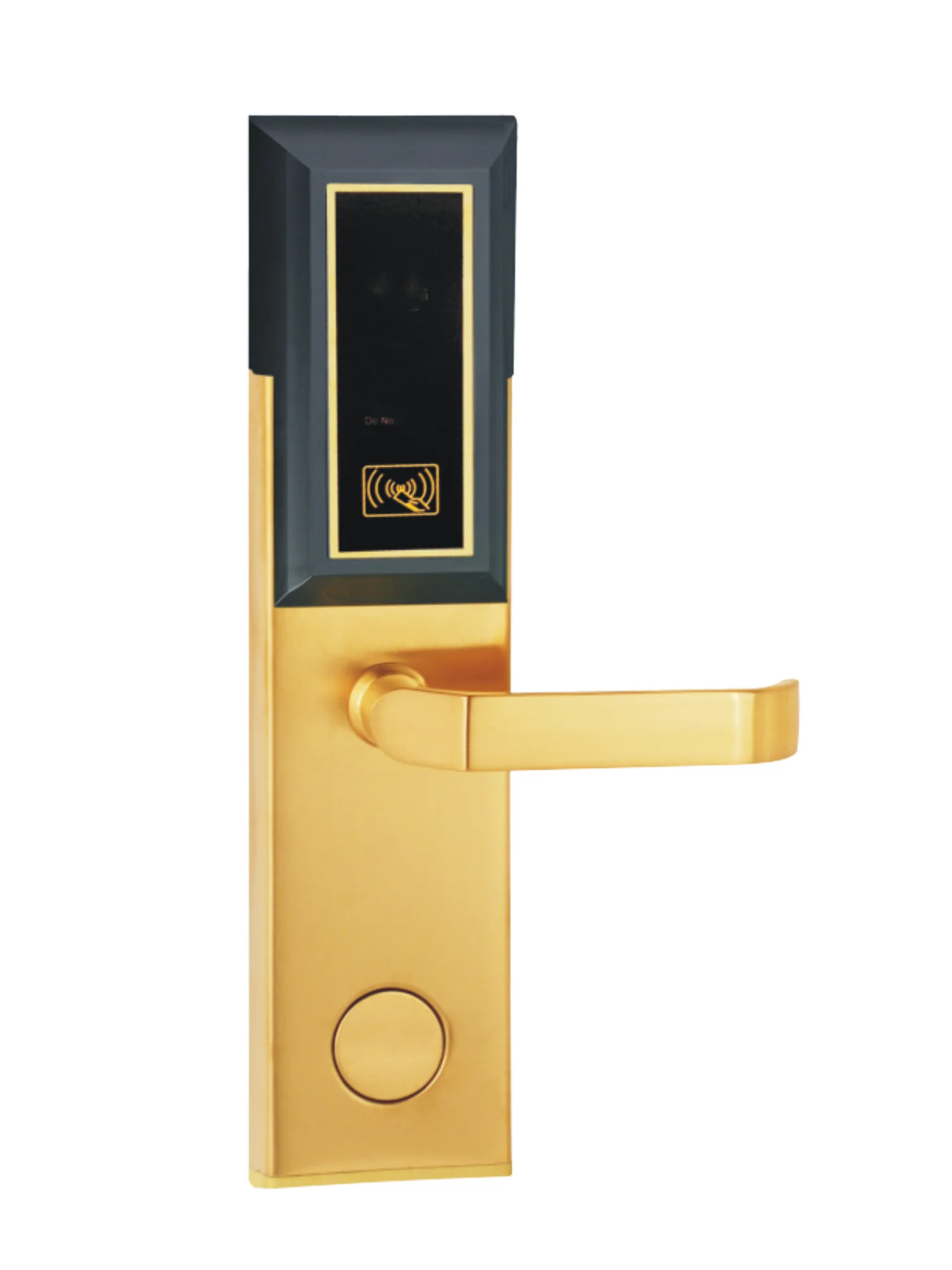

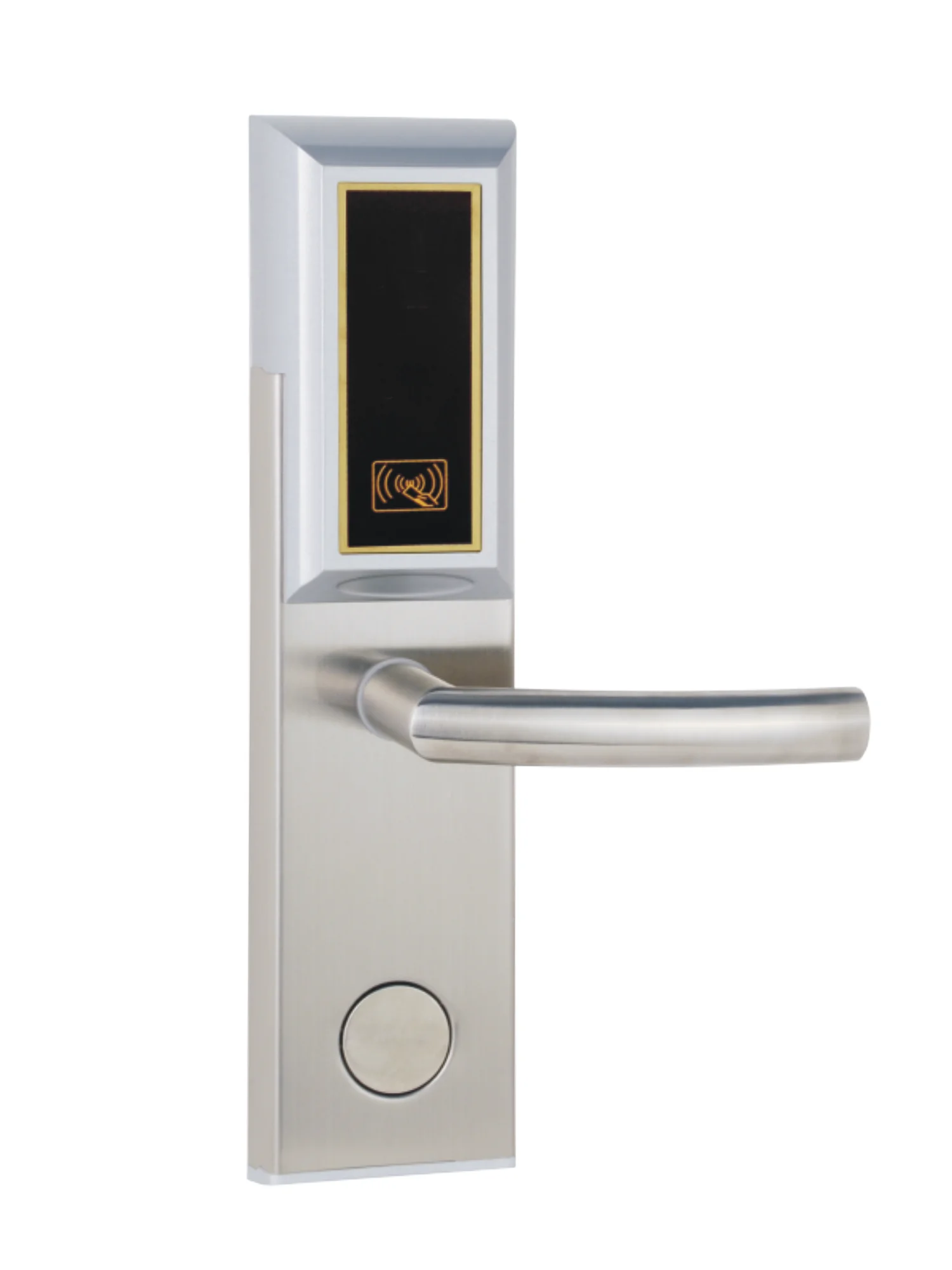

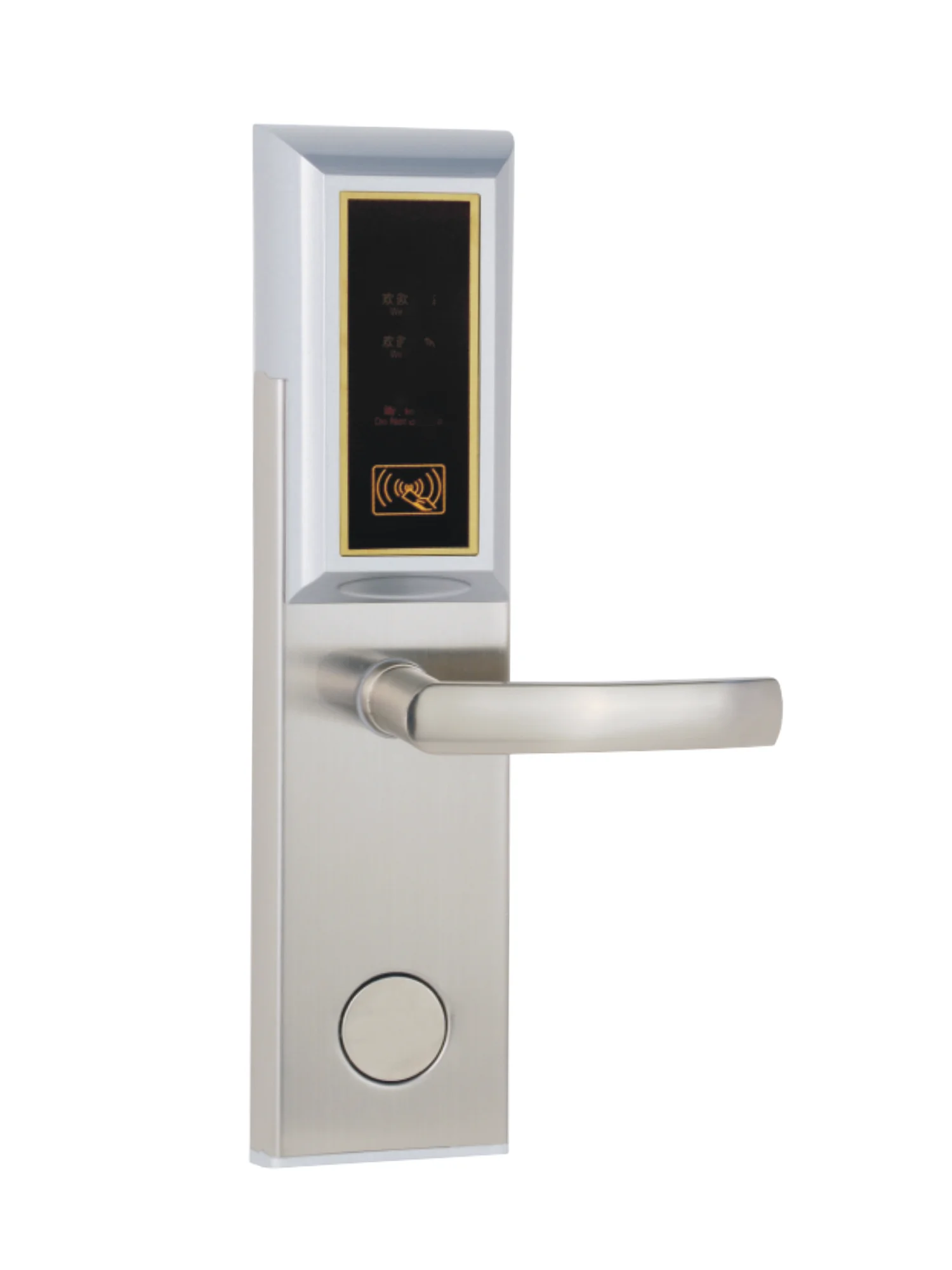

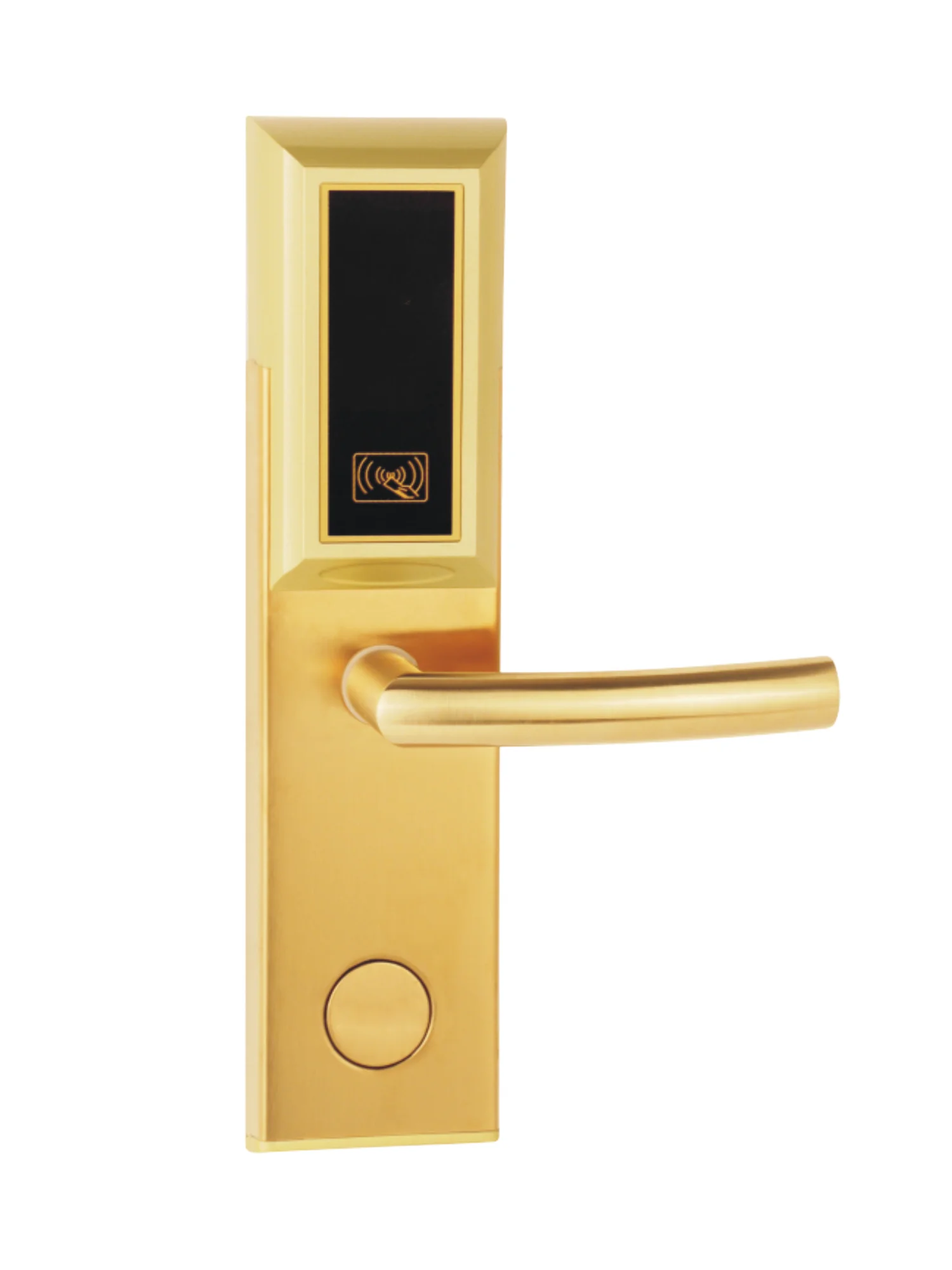

European Mortise Lock

Features
- Modern design, fashion and beautiful, four color available
- European standard five latch lock body
- Sensor card and hidden key, two opening ways
- Imported NXP MCU and main components, humidity-proof SMT process
- Free rotating handle, protect the handle
- Suitable for Residential apartment/ hotels/ dormitory

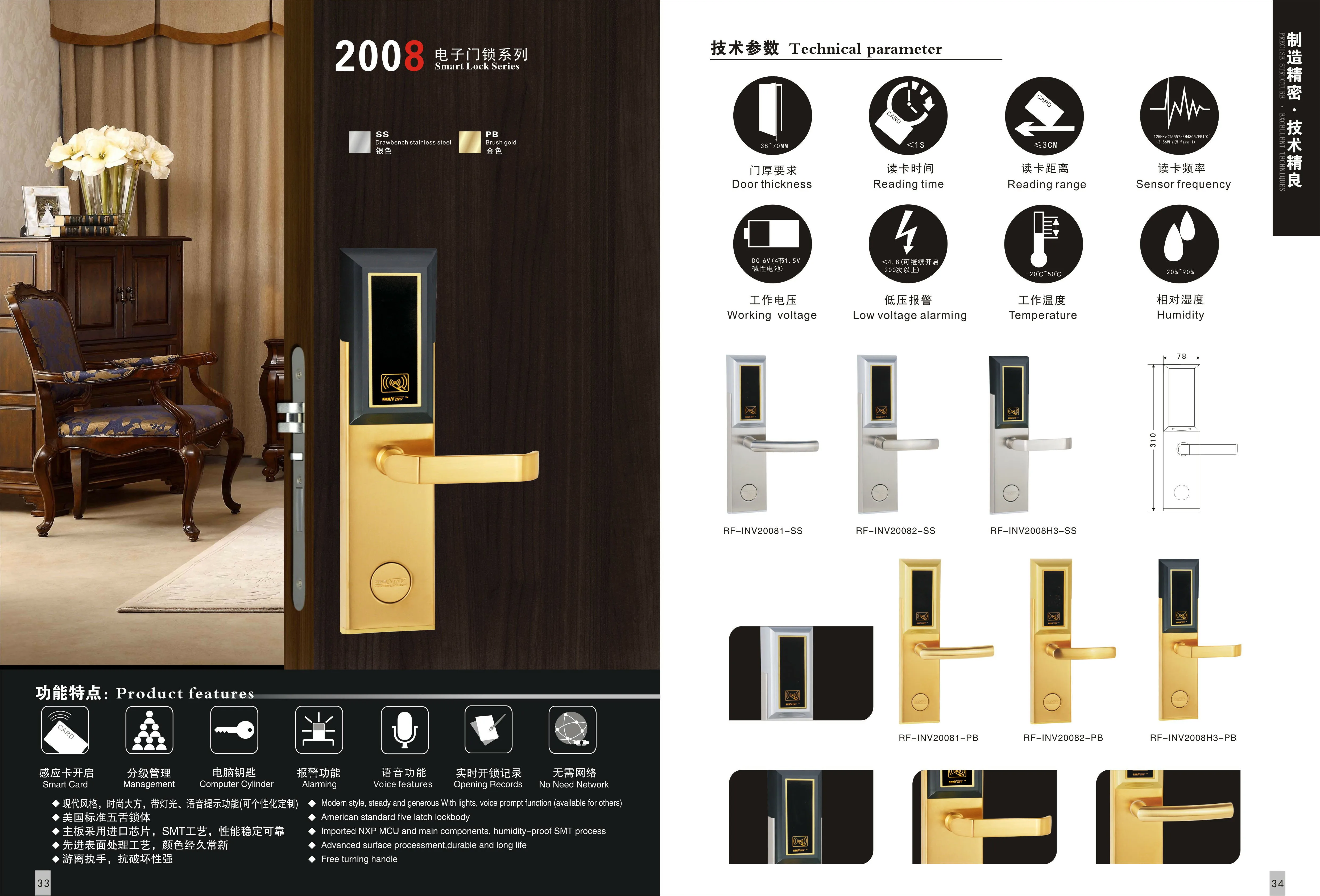

Technical Parameter

Door lock name: RF-INV20081-

Lock Panel Material: Stainless steel

Lock Handle Material: Stainless Steel

Lock Mortise Type: Europen  Standard
Door lock delivery: 15 days after payment

Door lock logo: Customize available

Door Depth: 38~70mm

Lock system : Free ,support multi-computers to work together .

Card Reader: Needed, works with lock management software
Card Limitation: No limitation

Minimum order quantity : 10pcs

Reading Time: <1s
Reading Range: <3cm
Sensor Frequency: 125Khz
Working Voltage: DC 6V, powered by 4pcs 5#AA batteries
Static Current: <15 uA
Dynamic Current: <120 mA
Low Voltage Alarm: <4.8V, can still unlock about 200 times
Working Temperature: -20ºC~50ºC
Working Humidity: 20%~90%
Suitable Door: Wooden Door/ Steel Door

How to Judge the lock whether can be installed on your door?
Measure the thickness of the door ,,then length of the liner ,the width of the liner .
If you are not sure whether it can replace your old lock ,plesae do not be hesitate to connect us and tell us the details of your old locks .thansk .




If for new door ,just let us know the doorthickness ,also you can let me know the direction .

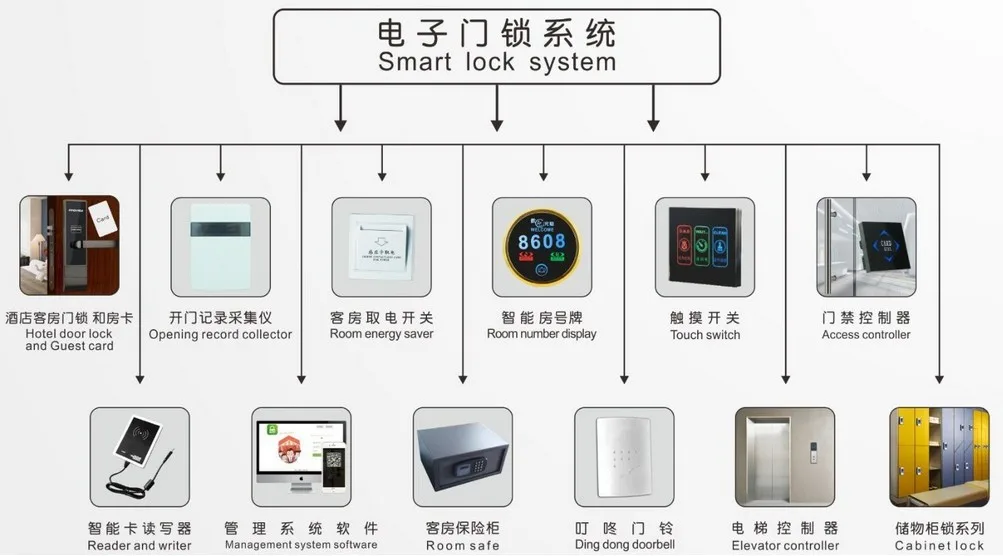

All the above products are provided from INV company:

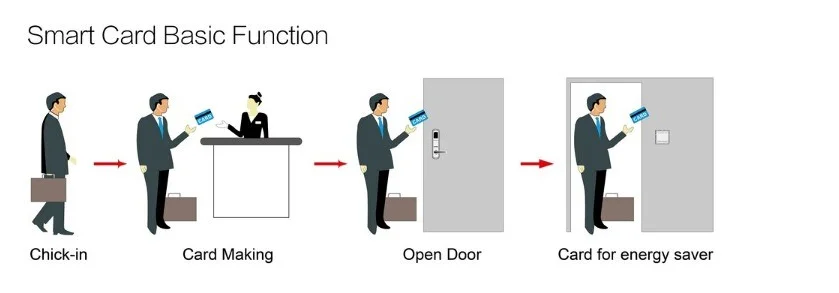

1. hotel Lock (qty = guest room)---For open the door
2. Card Encoder (1pcs per hotel) ---For issuing all kinds of cards
3. Cards -----For open the lock
4. energy Saving Switch (qty = guest room)---To get the power
5. Data collector (1pcs per hotel, optional by customers)--- get open lock record, eg. when,who use which key open lock
6. software system  (1 disk, free of charge)---program the whole hotel system.
7. The door access control system, lift controller and other products are for optional.

Temic (125khz) software

Company Information:
    Shaoguan Innovate Technology Equipment Corporation is a high-tech enterprise in mainland China, which was founded in 2007 and located in Shaoguan city, Guangdong province. It mainly concentrates on smart lock design, development, manufacturing, marketing, training and maintenance. Its main products include QR code lock,RFID card lock, fingerprint password lock, cabinet lock, energy saving switch, room number display, touch screen switch, hotel PMS system and other accessory products. These products are widely used in hotel, guest house, office, apartment, residence, gym and school.

    Covering an area of 4000 square meters, Innovate company has its own hardware workshop, assembly workshop, warehouse, showroom and office. It has a group of professional hardware engineers and software engineers, skilled workers and a rich number of advanced machines like die-casting machine, testing machine, laser printing machine, packing machine and etc. With its strong technical advantage, Innovate Company has the ability to develop and manufacture creative products which are well welcomed by the market. Its products are hot selling both at home and abroad, widely accept by countries like Italy, Netherlands, Saudi Arabia, Malaysia, Korea and etc.

    After 11years development, Innovate is now one of the top ten brands of smart lock in China. So far, it owns more than 20 domestic patents and one international patent. It has passed the "National Testing for Quality of Security & Safety Alarm System Products" and obtained the production of qualified registered certifications, CE, SGS.

    Innovate company is looking forward to establishing long-term business relationship with you. We will give all customers strong support with the most advanced technology and the most sincere service. Please contact us to learn about our global agency recruitment program.

More Details for lock or factory please do not hesitate to connect us  , we will be answer you soon .
