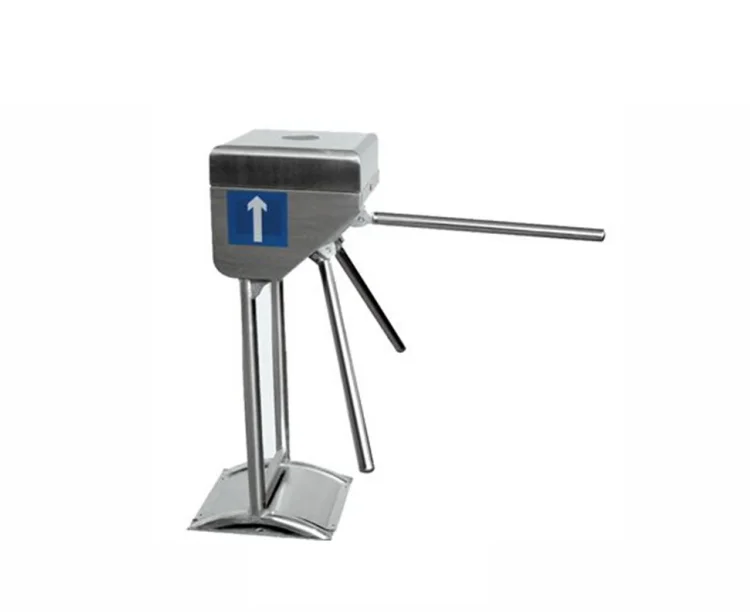

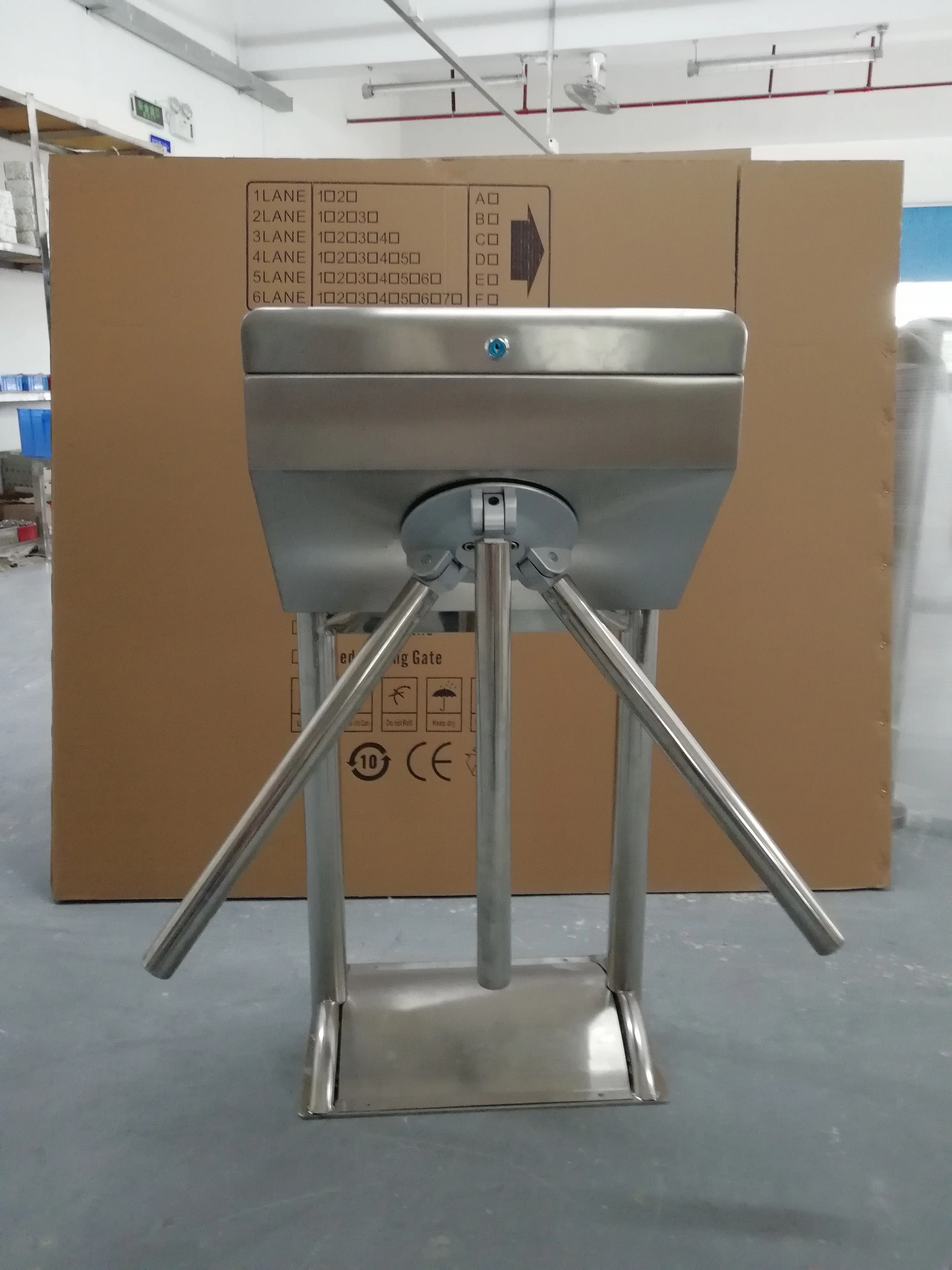

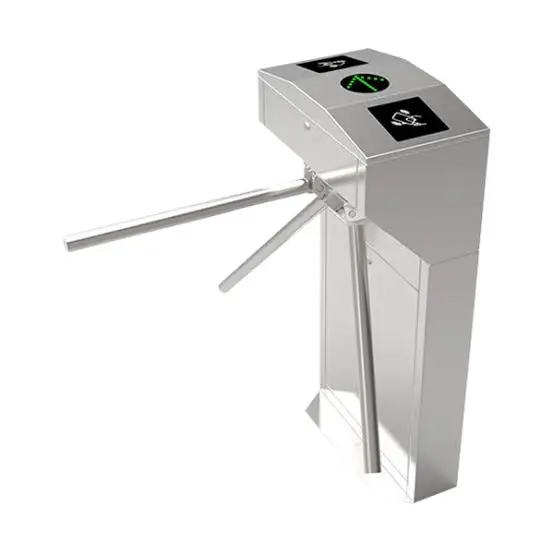

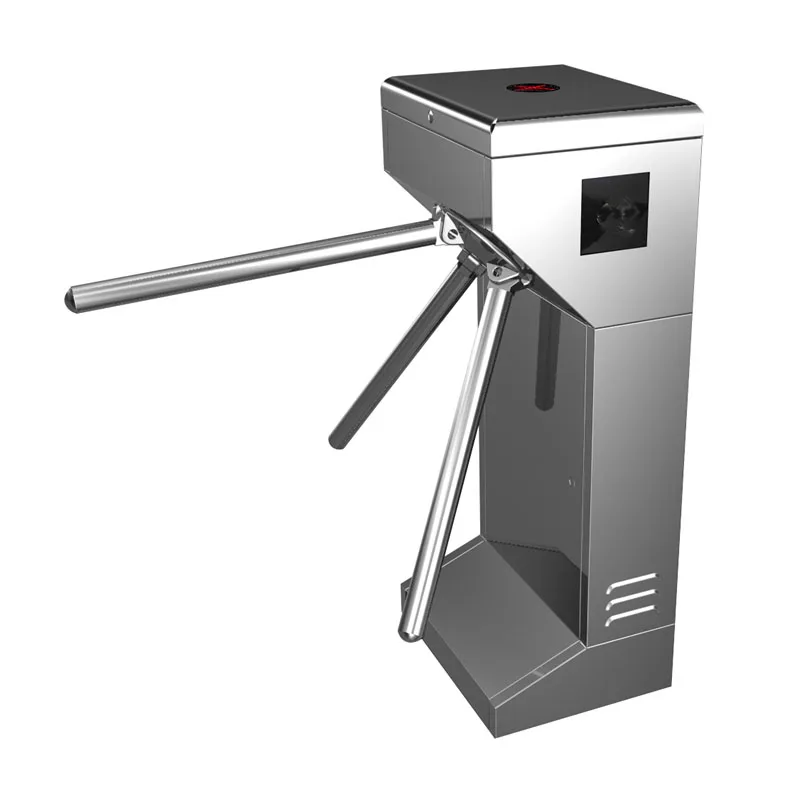

Механический однонаправленный Трипод турникет/Торнель/торникит
- Category: Turnstile >>>
- Supplier: Shenzhen Yuan Mechanical Electronic Co. Ltd.
Share on (293192197):
Product Overview
Description
Product Description
Tripod turnstiles also known as Waist-High Turnstiles. They provide single or bi-directional access control and/or patron counting.
Motorized arm rotation provides a very comfortable passage experience for patrons.
This rugged, multi-purpose electric turnstile provides bi-directional pedestrian access control or counts attendance.
A great turnstile at an economical price.Top reliability and ease of installation.
Proven solutions tested by millions of users.
Motorized arm rotation provides a very comfortable passage experience for patrons.
This rugged, multi-purpose electric turnstile provides bi-directional pedestrian access control or counts attendance.
A great turnstile at an economical price.Top reliability and ease of installation.
Proven solutions tested by millions of users.

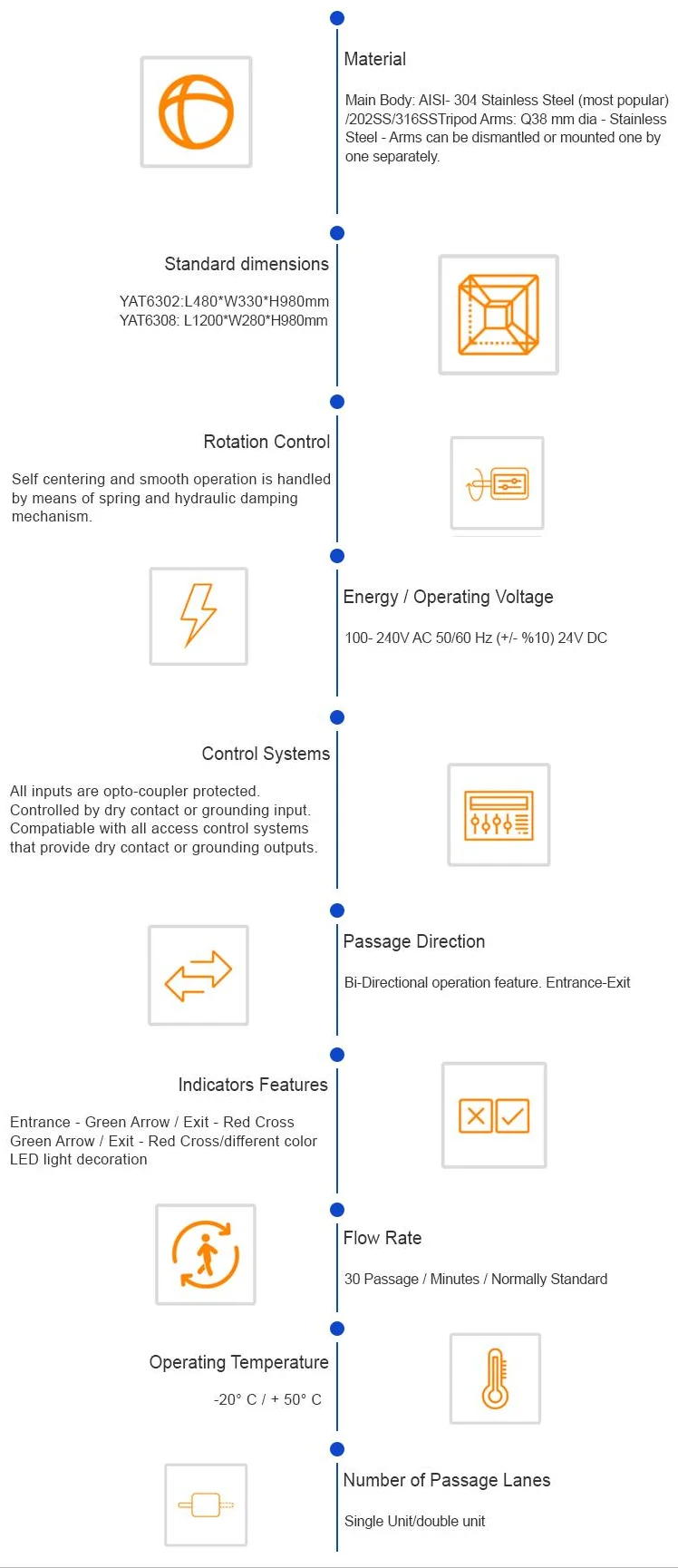

Housing material | 304 stainless steel | |
Housing size | L480*W330*H980(mm) | |
Entrance width | 600mm | |
Arm length | 500mm | |
Net weight | 70Kg/unit | |
Temperature | -10 ℃-50℃ | |
Humidity | ≤90% | |
Opening/closing time | 0.2S | |
Driving Current | ≥10MA | |
Normal life-span | 5-8 million times | |
Operation speed | 25-35person/min | |
Working environment | indoor, outdoor | |
Direction | Single direction/Bi-direction | |
Input interface | Dry contact signal or +12V level signal or RS485 communication signal | |
Communication interface | RS485(distance less than 1200m) | |

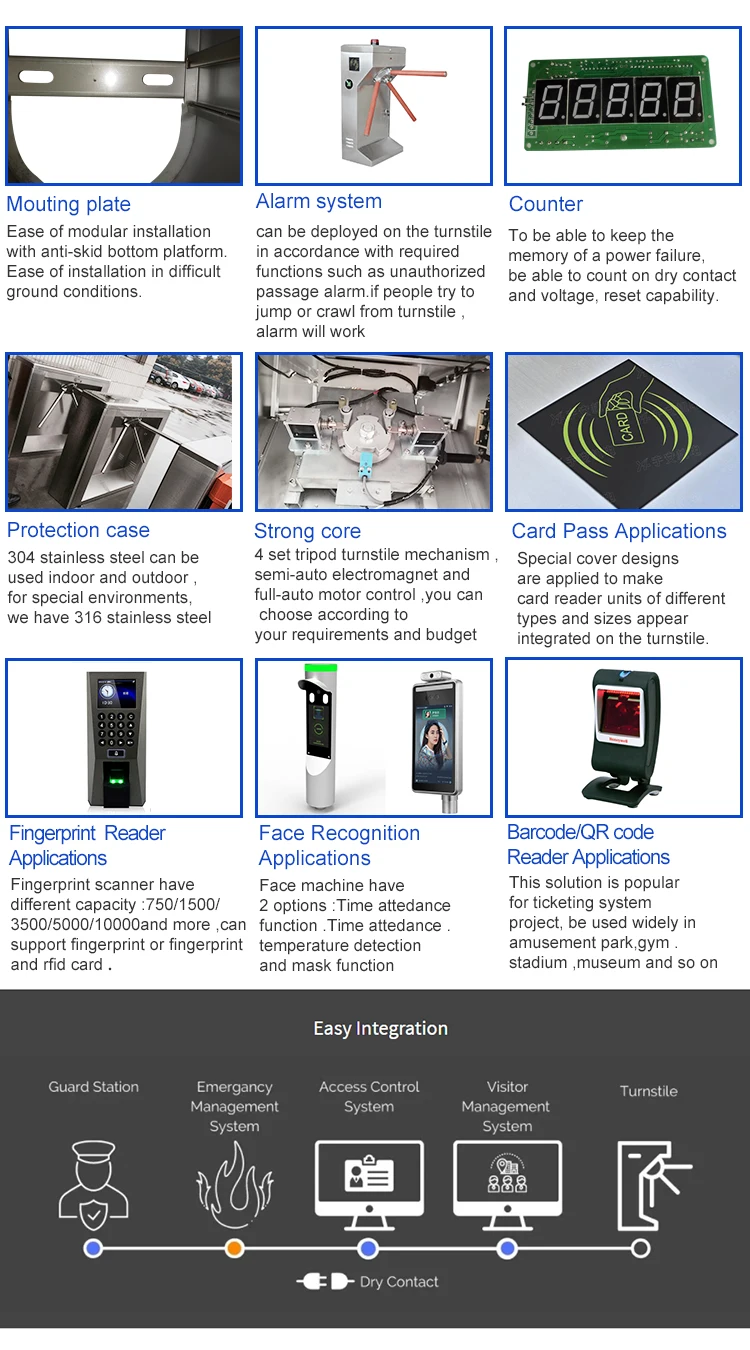

Main Function | ||
1.Optional card reader:Rfid card ,fingerprint scanner ,face machine ,Bar code, QR code ,card collection ,intercom system ,remote control and so on | ||
2. Access control system ,Ticketing system ,consumption system | ||
3. Arm drop automatically after power off | ||
4. Standard/customize housing design (ODM/OEM) | ||
5. Memory function (optional) | ||
6. Several working modes option | ||
7. Brushless motor tripod arm lift automatically | ||
8.Standard semi-auto and simple semi-auto mechanism options | ||
9. It can be directly controlled by remote computer | ||

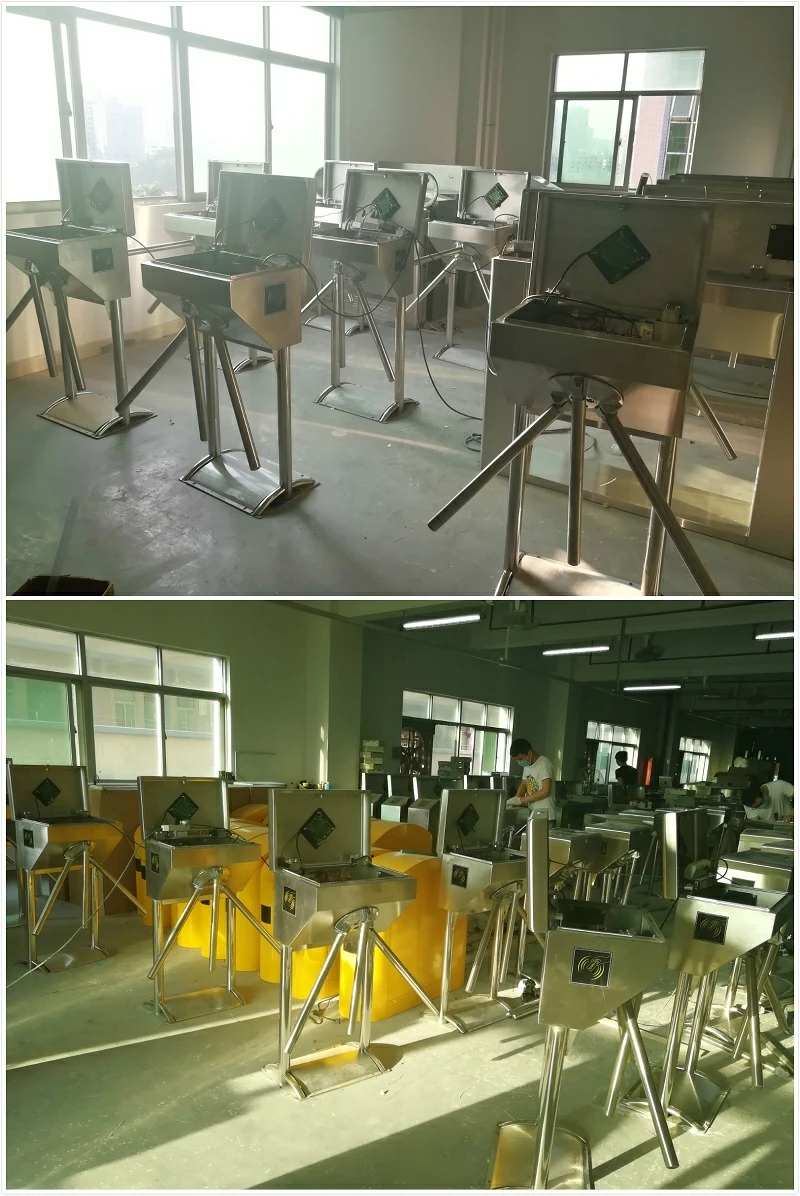

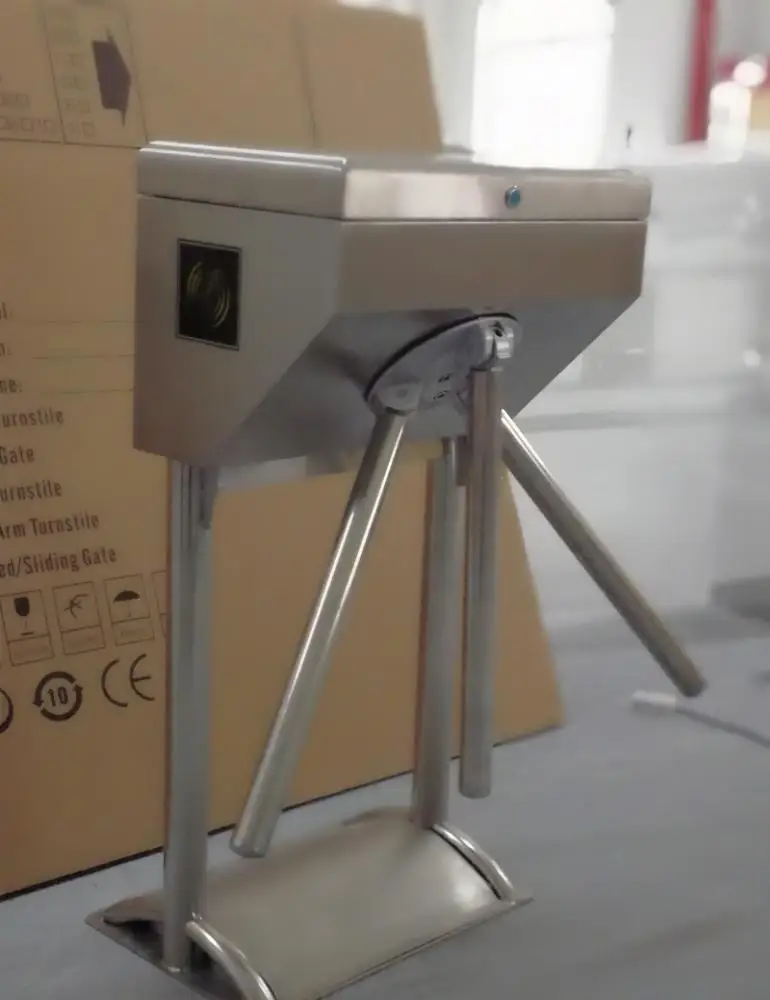

Turnstile YAT6301 in factory

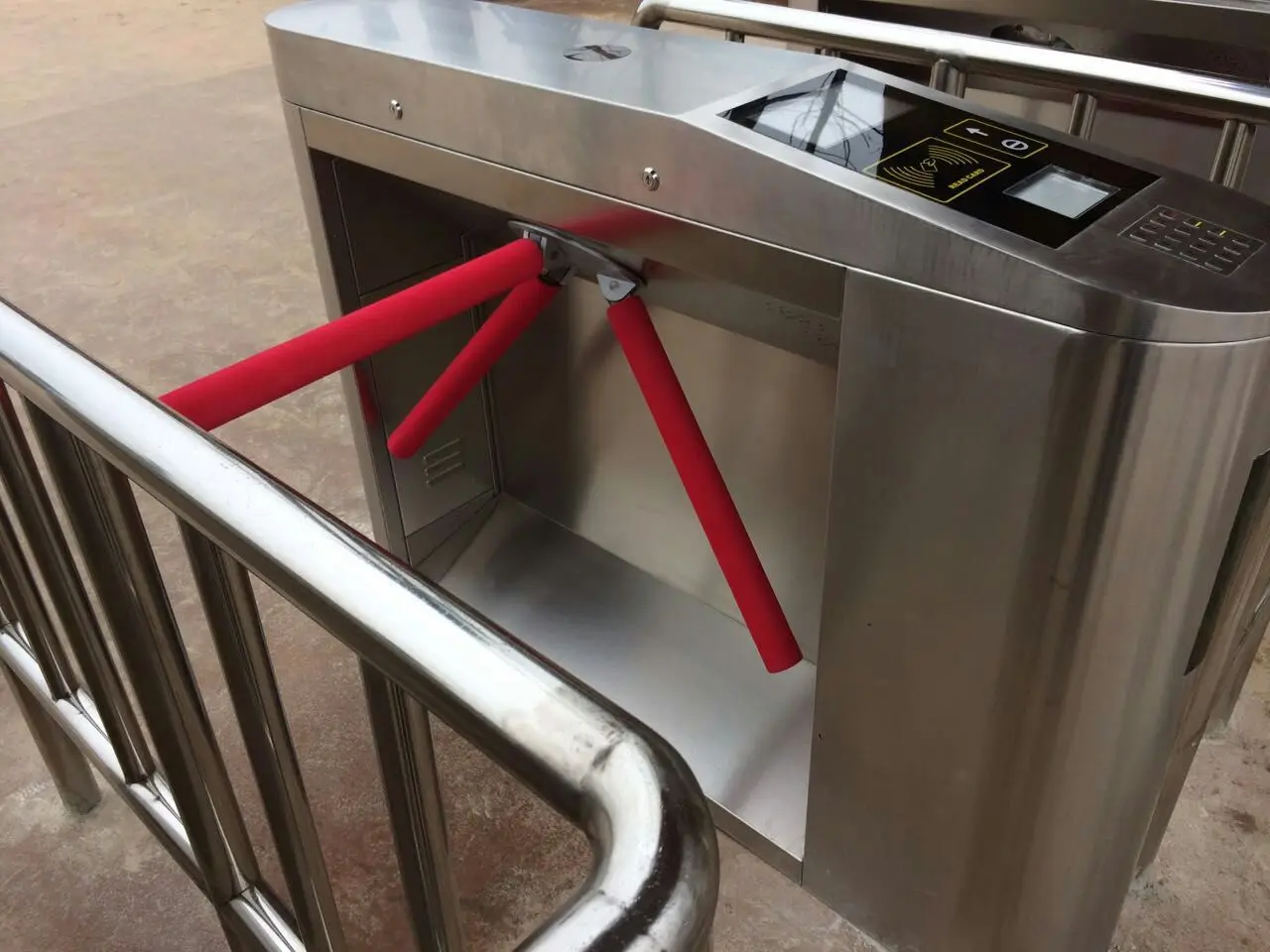

YAT6302 for school apartment

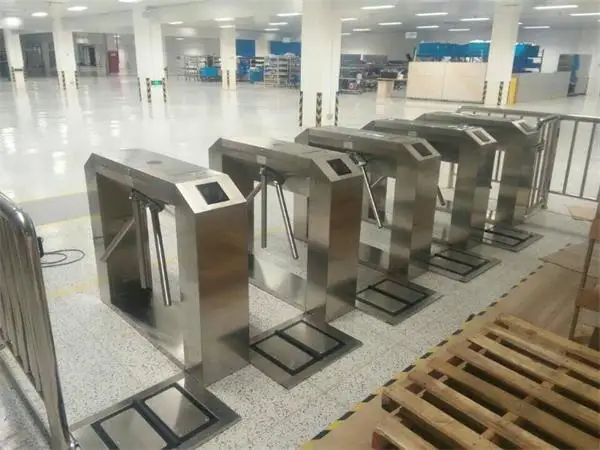

YAT6308 with ESD system for factory

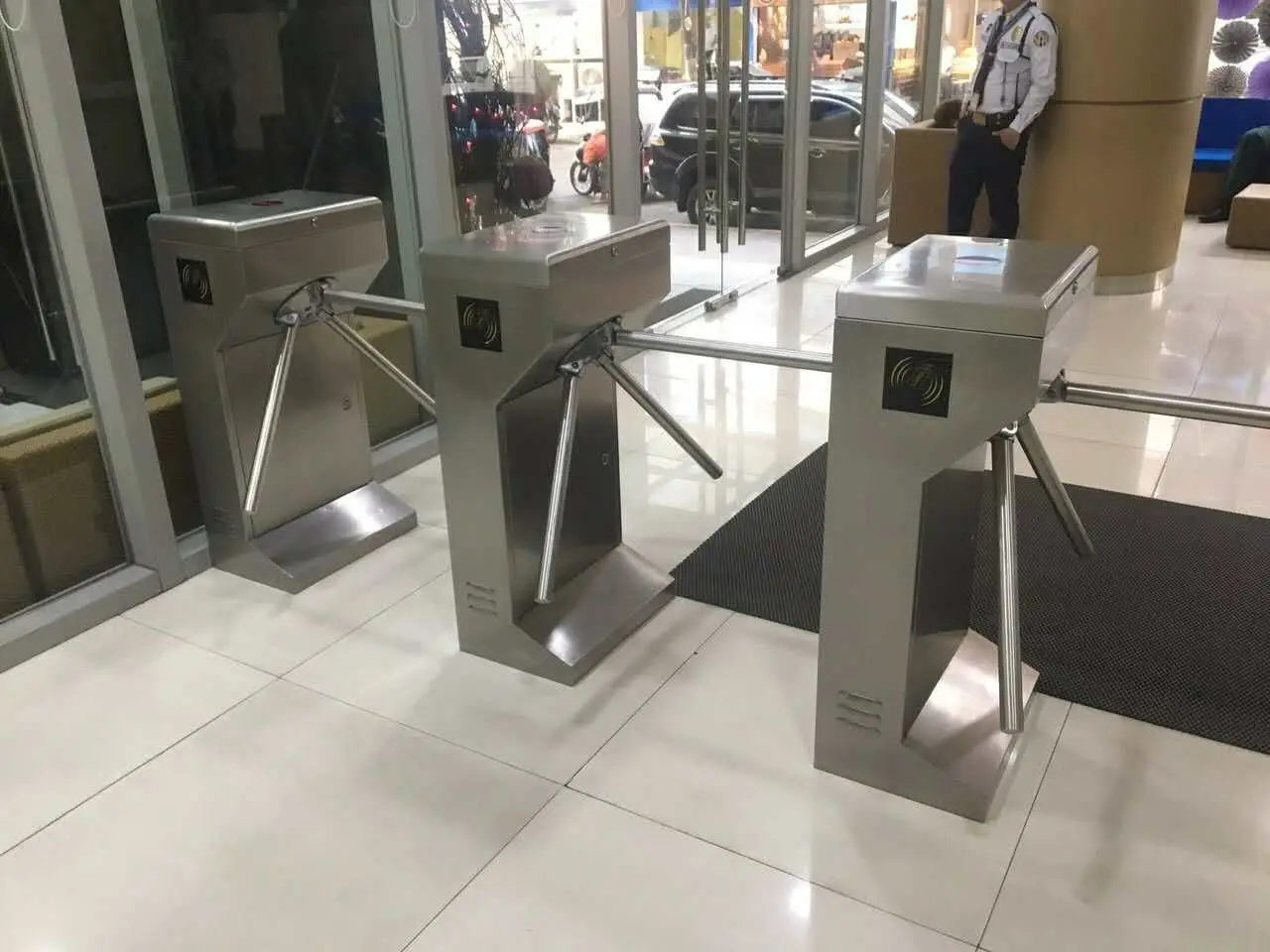

Tripod turnstile YAT6318 with ticketing system
