Product Overview

Description



Exhibition






Product description

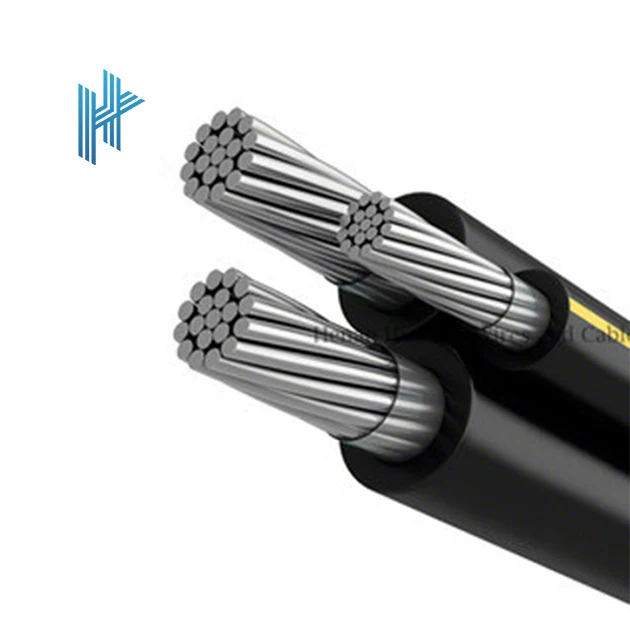

Aerial Bundled Cable
Advantage:
1. Ease of erection and stringing
2. Practically no tree-trimming required;
3. Less maintenance
Construction:
1.Conductor (both phase and Neutral)
The conductors shall be of aluminum 1350 wires and compacted circular stranded ;
2.Insulation:
The conductors shall be extruded with XLPE as insulation ,each phases is marked with numbers and letters ,1 ONE,2 TWO,3 THREE or with one rib,two ribs or three ribs to denote the phases.The neutral core carries equally space ribs right round the circumference.
3.Assembly
The Core shall be laid up with a left hand Lay.
Application :
ABC cables are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. The use of these service drop or secondary distribution cables is limited to circuits, not exceeding 600 volts phase-to-phase or 480 volts phase-to-ground, to a normal temperature rating of the service conductor temperature of 90 °C.



Product Standard






SPEC mm2
conductor structure

Approx.


Phase
Neutral(Bare ACSR)
insulation
insulation
Overall
Approx.
packing
(Compacted AL)
Aluminium
Steel
material
Thickness
Diameter
Weight

(No./mm)
(No./mm)
(No./mm)
(mm)
(mm)
(kg/km)
Drum
1x16+1x16
7/1.72
6/1.72
1/1.72





XLPE
1.2
12.5
121.9
250-4000m
1x25+1x25
7/2.15
6/2.15
1/2.15
1.2
14.9
182.2
250-4000m
1x35+1x35
7/2.54
6/2.54
1/2.54
1.4
17.5
254.7
250-4000m
1x50+1x50
7/2.92
6/2.92
1/2.92
1.4
20.1
333.9
250-3500m
1x70+1x70
19/2.15
12/2.15
17/2.15
1.4
23.6
382.2
250-3000m
1x95+1x95
19/2.54
12/5.24
17/5.24
1.6
27.6
528.2
250-3000m
2x16+1x16
7/1.72
6/1.72
1/1.72









(HDPE)
1.2
14.2
187.6
250-4000m
2x25+1x25
7/2.15
6/2.15
1/2.15
1.2
16.7
273.8
250-3500m
2x35+1x35
7/2.54
6/2.54
1/2.54
1.4
19.7
386.9
250-3500m
2x50+1x50
7/2.92
6/2.92
1/2.92
1.4
22.5
506
250-3000m
2x70+1x70
19/2.15
12/2.15
7/2.15
1.4
26.1
617.2
250-3000m
2x95+1x95
19/2.54
12/5.24
7/5.24
1.6
30.5
850.9
250-3000m
3x16+1x16
7/1.72
6/1.72
1/1.72
1.2
16.3
253.3
250-3500m
3x25+1x25
7/2.15
6/2.15
1/2.15
1.2
19.1
371.9
250-3500m
3x35+1x35
7/2.54
6/2.54
1/2.54
1.4
22.5
519.1
250-3000m
3x50+1x50
7/2.92
6/2.92
1/2.92
1.4
25.7
678.1
250-3000m
3x70+1x70
19/2.15
12/2.15
7/2.15
1.4
29.7
1024.3
250-3000m
2x95+1x95
19/2.54
12/2.54
7/2.54
1.6
34.6
1413.7
250-3000m


Product packaging




Inspection of quality




Certifications




Company Profile


About Huaxing
Henan Huaxing Wire and Cable Co., Ltd. is one of the wire and cable manufacturers of China Electric Power, located in Yongan Industrial zone, Gongyi City. Our company was founded in January 1984 and expanded in 2005, covering an area of 67,000 square meters.
The building area is 28,000 square meters, and the total assets are 360 million YUAN. The company has 180 employees,including 5 senior technical engineers; Nearly 100 middle and junior technicians. The company integrates research and production.
The main products are AAC/AAAC/ACSR/ACAR Conductor, overhead bunched cable (ABC cable), Control cable, concentric cable, low voltage and medium voltage power cable, plastic wire, solar power cable, protection cable, etc.
Contact US
Envelope: [email protected]
Phone: +86 – 371 – 86627929

WhatsApp : +86 – 18738196599

Map-marker: No.27 Commercial Outer Ring of Zhengzhou city, Henan Province, China

Industry: No.12 dingxiang Road, Yongan Industrial Park, Gongyi City, Henan Province, China


FAQ


1. who are we?
We are based in Henan, China, start from 2005,sell to Domestic Market(58.00%),North America(10.00%),Southeast Asia(8.00%),South America(6.00%),Africa(6.00%),Oceania(4.00%),Western Europe(3.00%),Mid East(3.00%),Eastern Asia(1.00%),Northern Europe(1.00%),South Asia(0.00%),Southern Europe(0.00%),Central America(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire; Cable

4. why should you buy from us not from other suppliers?
we have been producing cable more than 20 years

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
