2 wires connection digital LED display small 100v dc volt meter

Share on (293814278):


Price:

Quantity:


Product Overview

Description



Product Description

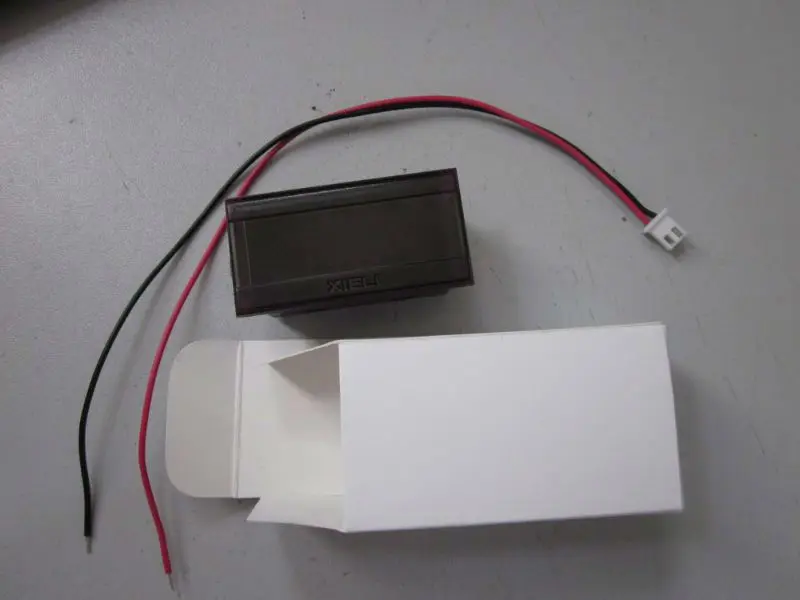

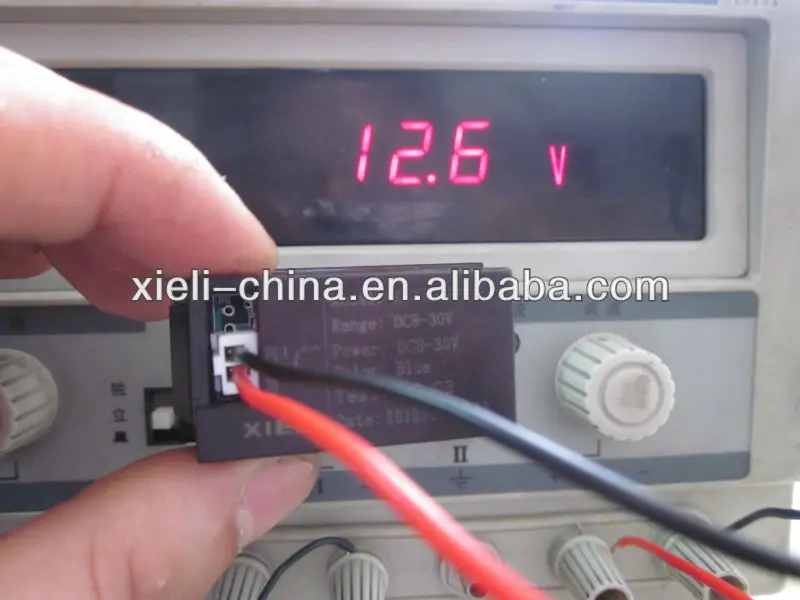

A: 2 wires self-power supplied mini panel meter







MINI voltmeter  Mainly for  battery pack,  boat/vehicle/solar/wind power system




Model No.: XL3DC99V   /XL3DC99VB




Display: 99.9  Ultra-bright Red LED display




Power source : DC8-30V




Measure Range: DC8-30V




Resolution: 0.1V




Dimension: w50mmx h 26mmx 23.5mm




Panel cut out: w 48mm x h 23mm




Mounting method: snap-in




2 wires  connection, self-powered








B:  4 wires  mini panel meter


5V/8-24VDC  powered measure 200VDC meter
5V/8-24VDC  powered measure 99.9VDC meter
Super Mini Design





XL3DC99V Series mini DC voltmeter  3 digit, 0.36” LED display










































Model



Range



Accuracy



Resolution



Impedance



Momentary Max. Input



Power Supply



XL3DC99V



8.0-30.0vdc



±1%



0.1V



100kΩ



±35V



8.0-30.0VDC



XL3DC99V-2



99.9vdc



±1%



100mV



100kΩ



±300V



5v/12vdc, 8-28vdc



XL3DC99V-3



200vdc



±1%



1V



100kΩ



±300V



5v/12vdc, 8-28vdc



* Data transfer display: Input 75mV/5v/10v volt, or 4-20mA, 1A/5A amp signal display appointed value, max. 1999


XL3600, XL3DC99V series Meter Dimension: w50x h26x d23mm


Panel mounting size: w47x h23mm           Mounting method: Snap-in

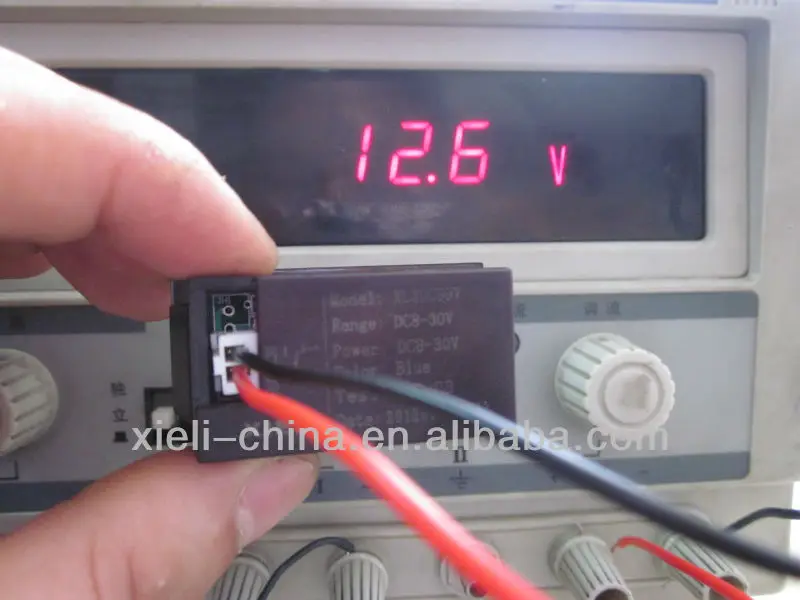

 IMG_5105









Company Information


XIELI Ltd has been founded SINCE 1994, at beginning she is a military products manufactuer, now has developed into a high & new technology enterprise which manufacture various digital panel meters for Civilian instrument & Military.


We have more than 80 employees, and the R&D team have 8 members, include ONE electronic  subject Doctor.





Our Services


We can provide ODM service according to your  equipment/project requirement


Please contact me freely for any query.  Philip
