Круглые вибрирующие экраны для горных работ, заводская цена, высококачественные вибрирующие экраны для гравия на продажу, вибрирующие экраны с сертификатом CE
- Category: >>>
- Supplier: Shanghai Dongmeng Road & Bridge Machinery Co. Ltd.
Share on (293938125):
Product Overview
Description
Mining Circular Vibrating Screens Factory Price High Quality Gravel Vibrating Screens For Sale CE Certificate Vibrating Screens
Vibrating Screen
Brief introduction to Dongmeng Vibrating screen
Vibrating Screens are used to separate materials into various sizes for further processing or for end use.
The material is separated by passing through a vibrating “screen or meshes” which has a number of different sized according to customer’s requirements. The material falls onto attached conveyors which stock pile the end products. The end products can then
be used in the building and construction industries. It has a feature of advanced structure, powerful vibrating forces,
low vibration noise, easy maintenance, high durability and etc.
Application of vibrating screen
The vibrating screen with circular motion is specially designed for quarry to separate crushed stone material into different sizes,
and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.
Special advantages of DongMeng vibrating screen from others
A). Reliable quality certified by CE and reaches European standard.
B). Two types of vibrating screen,
C). Unique and advanced design.
D). Powerful vibrating forces, low vibrating noise
E) Easy to maintain, high durability vibrating screen
Working principle of YK series vibrating screen
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder for vibrating screen
Technical specifications of vibrating screen
Model | Screen | Screen size | Max. feed size | Capacity | Vibrating | Electric motor power(KW) | Weight | Overall |
3YK-1245 | 3 | 1200×4500 | 200 | 15-80 | 16.2 | 11 | 4.807 | 5600×1800×1850 |
2YK-1548 | 2 | 1500×4800 | 200 | 30-180 | 13-16 | 15 | 5.800 | 5906×2100×1600 |
3YK-1548 | 3 | 1500×4800 | 200 | 30-200 | 13-16 | 15 | 6.866 | 5906×2100×1900 |
4YK-1548 | 4 | 1500×4800 | 200 | 30-250 | 13-16 | 18.5 | 7.360 | 5906×2100×2150 |
2YK-1854 | 2 | 1800×5400 | 250 | 50-300 | 16.2 | 18.5 | 6.769 | 6509×2536×1810 |
3YK-1854 | 3 | 1800×5400 | 250 | 50-300 | 16.2 | 22 | 8.285 | 6509×2536×1910 |
4YK-1854 | 4 | 1800×5400 | 250 | 50-300 | 16.2 | 30 | 9.796 | 6509×2536×2250 |
2YK-2160 | 2 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 9.680 | 7150×2670×2120 |
3YK-2160 | 3 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 10.206 | 7150×2670×2270 |
4YK-2160 | 4 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 11.800 | 7150×2670×2650 |
2YK2460 | 2 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 10.200 | 7150×2900×1950 |
3YK-2460 | 3 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 12.350 | 7150×2900×2350 |
DF-1230 | 1 | 1200×3000 | 200 | 20-200 | 16.2 | 5.5 | 15.400 | 3500×1800×1100 |
DF-1548 | 1 | 1500×4800 | 250 | 50-450 | 16.2 | 15 | 3.750 | 5330×2000×1300 |

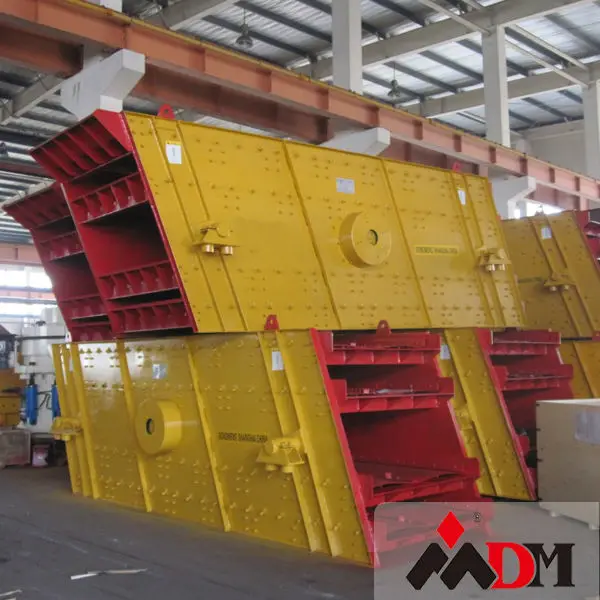

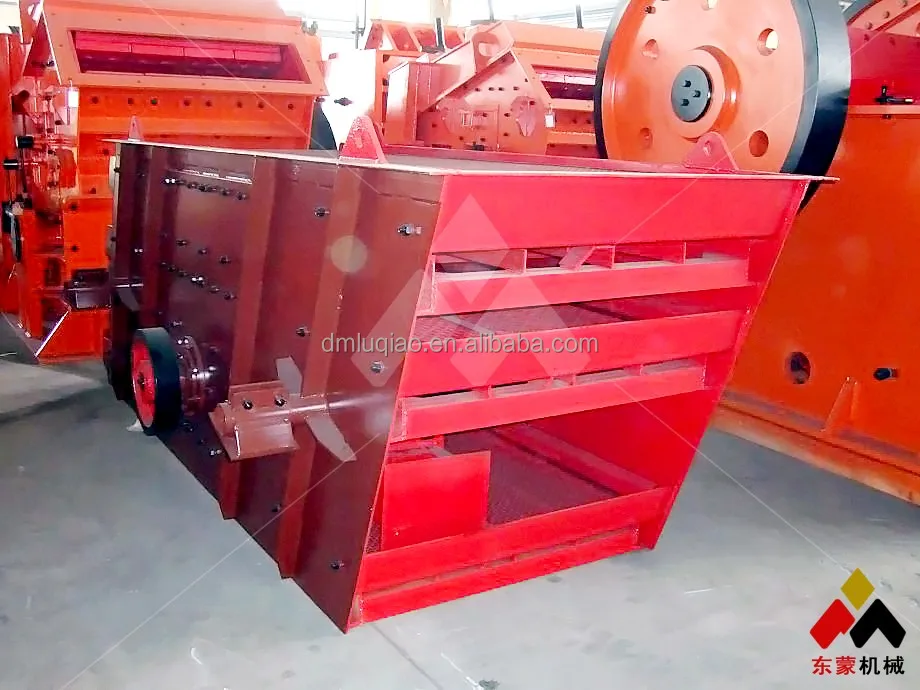

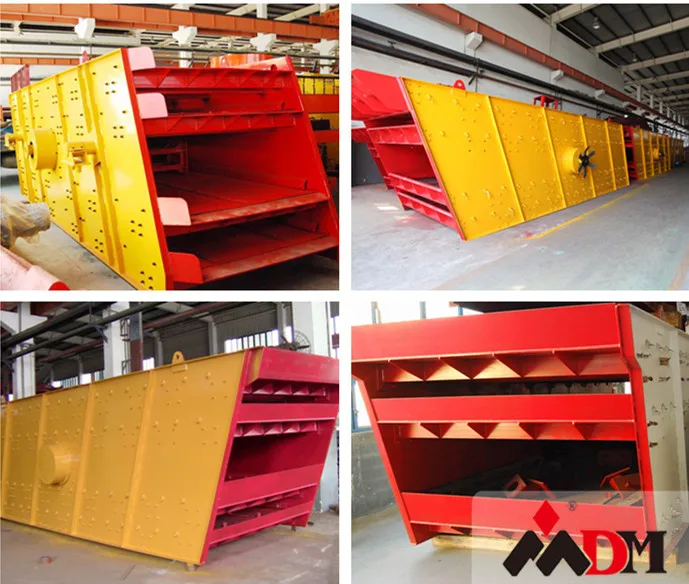

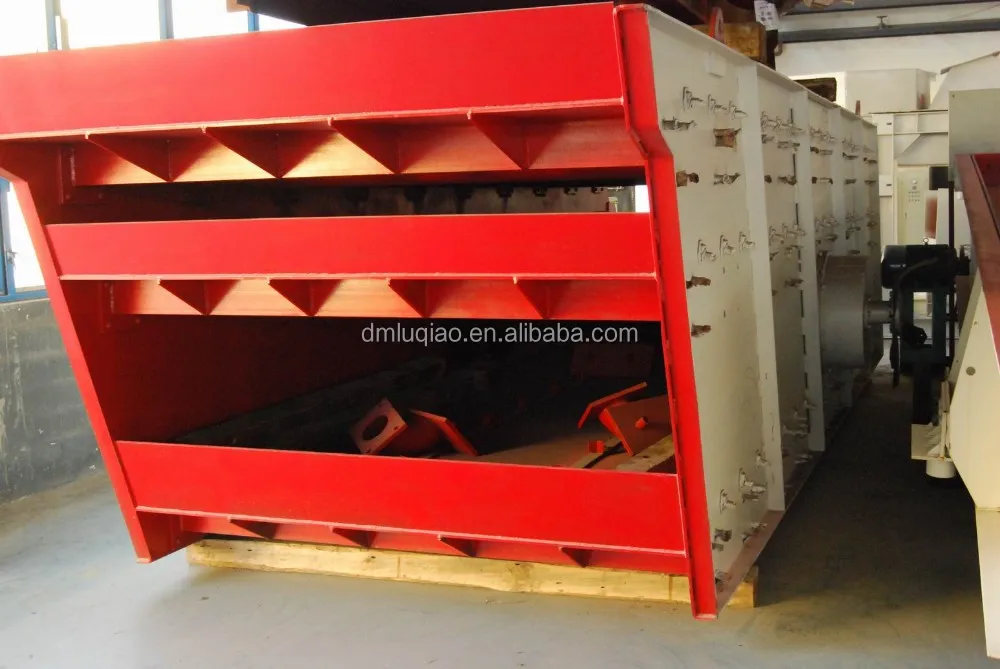

Vibrating Screen photos in our factory

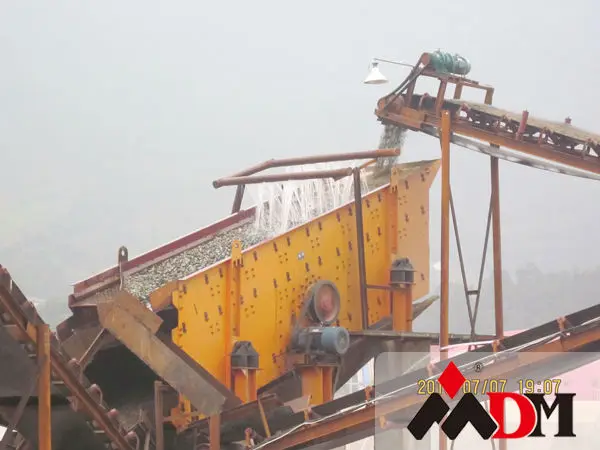

vibrating screen working with water for stone vibrating screen

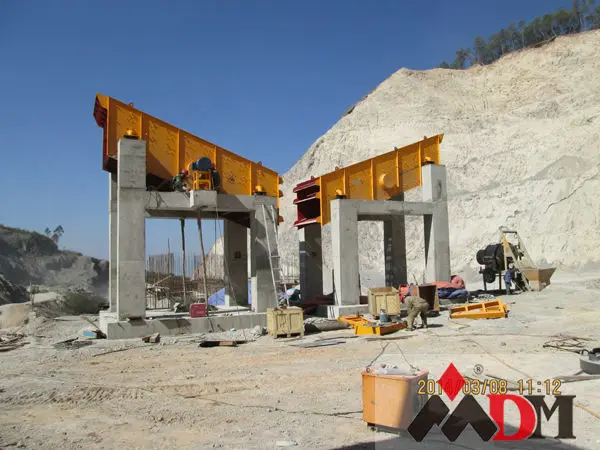

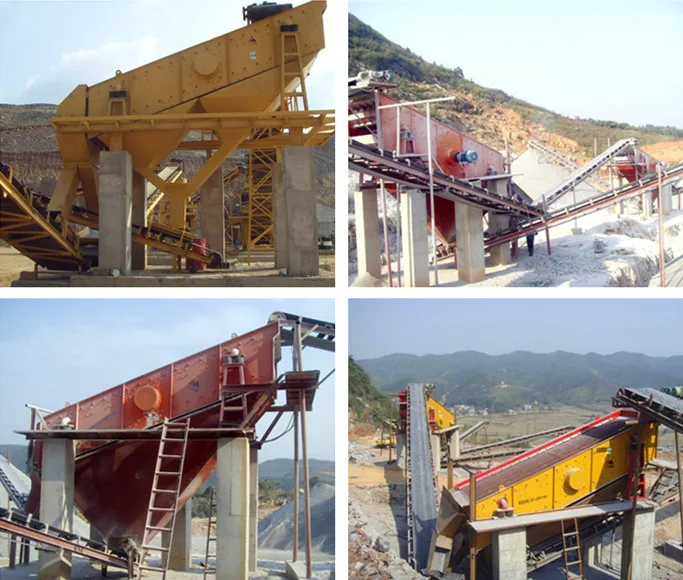

vibrating screen on instalation for stone vibrating screen
Packaging & Shipping
Delivery for Stationary crushing plant
Export standard container 20GP OR 40GP,40HQthe spare parts in wooden case.
Company Information
Shanghai DongMeng Road&Bridge Machinery Co., Ltd. Is a leading professional manufacturer of crushing &screening machinery in China. Shanghai Dongmeng set machinery design, development, production, sales, after-sales service as one. We have more than 200 workers, 30 senior technical staff, with factory area of more than 20,000 square meters.
FAQ
Q:Instalation
A:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and
commissioning of the equipment. Travel and accommodation costs, plus US$50 per day per man to be met by the client.
Q:Payment
A: 30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory for stone vibrating screen
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q: What should we need to do for if we want to get a best quotation?
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
2).output size
3).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on
Q:What's your After sales Service?
A:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any
mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of
notice by the client for circular vibrating screen
Q: Delivery time
A:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit.the mobile crusher plant is 45 days,
