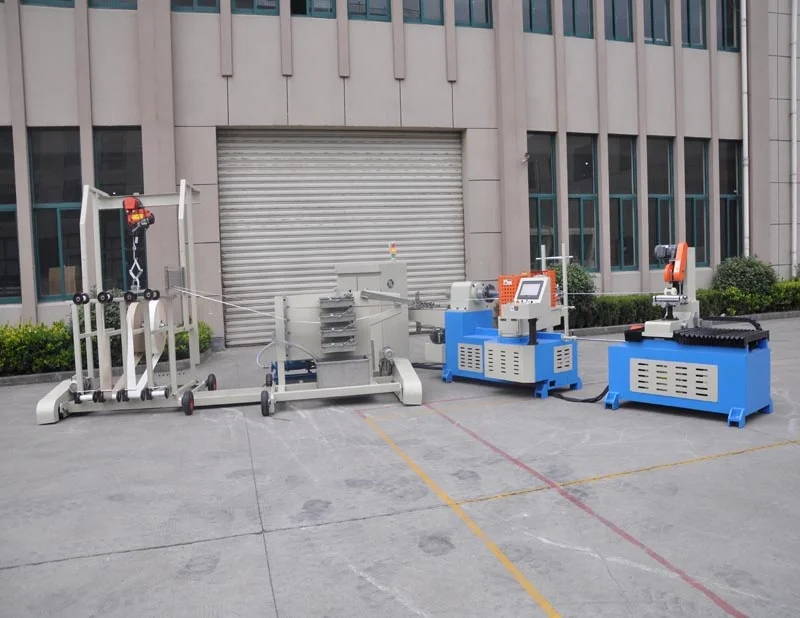

High speed two heads automatic spiral winding paper tube machine for paper product making

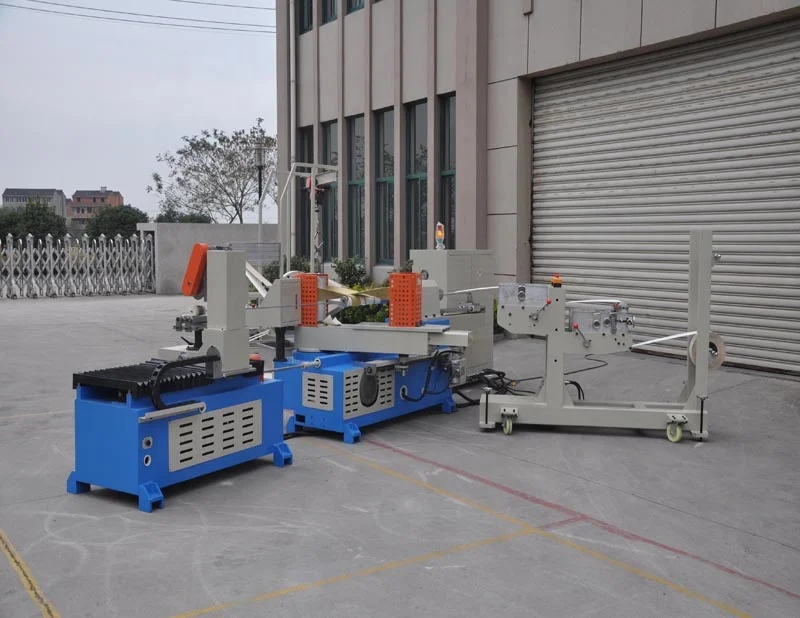

High speed two heads automatic spiral winding paper tube machine for paper product making

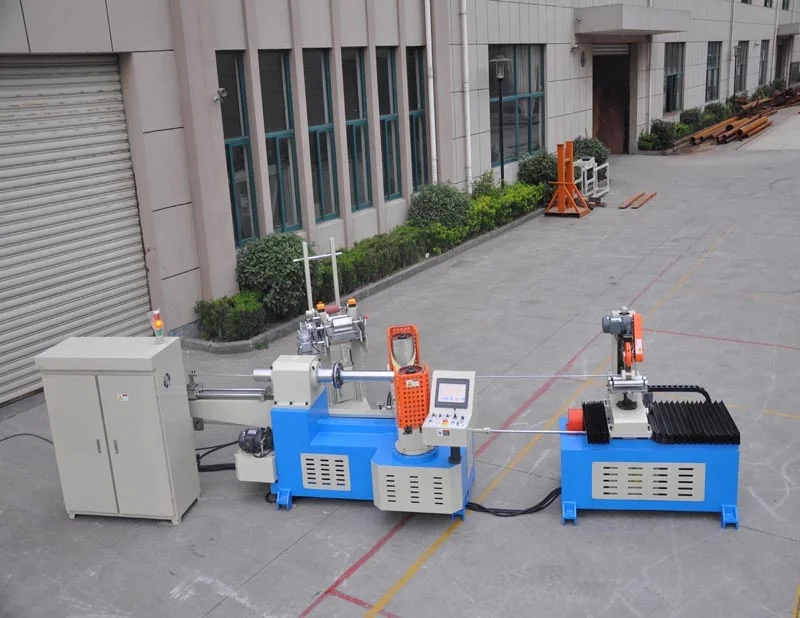

High speed two heads automatic spiral winding paper tube machine for paper product making

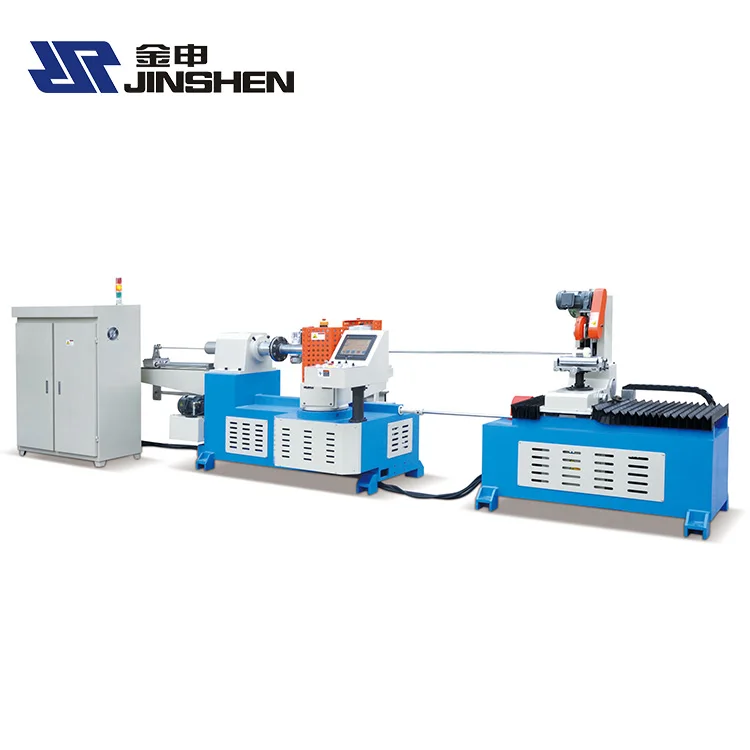

High speed two heads automatic spiral winding paper tube machine for paper product making

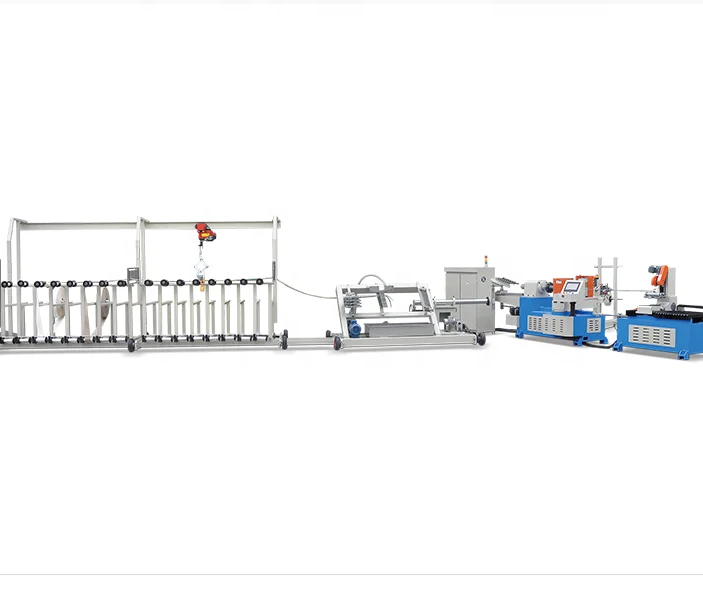

High speed two heads automatic spiral winding paper tube machine for paper product making
High speed two heads automatic spiral winding paper tube machine for paper product making
High speed two heads automatic spiral winding paper tube machine for paper product making

High speed two heads automatic spiral winding paper tube machine for paper product making

Share on (293944287):


Price:

Quantity:


Product Overview

Description





1. Main structure is in thicker steels, much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4.hydraulic device to adjust belt tension
5.synchronous cutting system, high precision ball screw and high performance server motor drive.
6. pulse length fixation control to ensure cutting length
7. double PLC control system, IO output control and functional operation control separately,
8. new control panel and big size colorful main machine touching interface
9. multi functional bottom paper feeding device, will stop once paper break
10. integral paper reel stand, glue stand, paper feeding assembly



"E" series of paper tube machine ,designing idea: simple,compact,stable. Standardly for making paper tube 3”(ID76.5), Max wall thickness under 5MM, biggest tube ID can up to 100MM.
For tube use: Chemical Fiber paper tube,All kinds of packaging paper can, All kinds of small industrial paper core. model can produce spiral paper tube with gluing ,winding, cutting together on.


Number of roll paper
3-8 plies
PLC controller
Delta
tube diameter
15-100mm
Man machine interface
Weinview 6070T colorful touching screen
thickness
1-5mm
Program edition
JS-PTM4.2
Mandrel fixing way
Flange & tightening
Inverter
YASKAWA 5.5KW
Rewind nose
Two noses one belt
Actuator(contactor..)
CHNT
Cutting way
Single round cutter
Signal component
YASKAWA
Gluing way
Double sides / single side
Pneumatic component
AIRTAC
Operator
1-2person
Angle adjusting motor
JIACHENG
Production speed
3-30M/Min
Synchronism control
YASKAWA SERVO 1.3kw
Speed control
Inverter
Fixing length way
Encoder
Input power
Custom
Synchronism following cutting system
YASKAWA SERVO Synchronism following cutting


Mainframe power
7.5KW WANNAN
Auto falling tube holder
Have
Mainframe rotating speed
1400r/min
Belt angle
Electric
Max rotating speed of wheel hub
96r/min
Belt adjust
Manual
Wheel hub output torque
3000N.m
Way of glue scrape
Independent glue tank/polyurethane scraper
Reductor model
WPO155 JIACHENG
Stop when paper run out
Bottom ply stop automatically
Wheel hub drive
2 wheels
Auto glue giving
Screw pump 1.5KW
Cutting motor
YASKAWA SERVO
Auto lubrication giving
Auto
Bearing
HRB


mainframe
bottom paper stand
whole machine
