stainless steel flanged gate valve jis 10k cast iron gate valve cs gate valve

Product Overview

Description

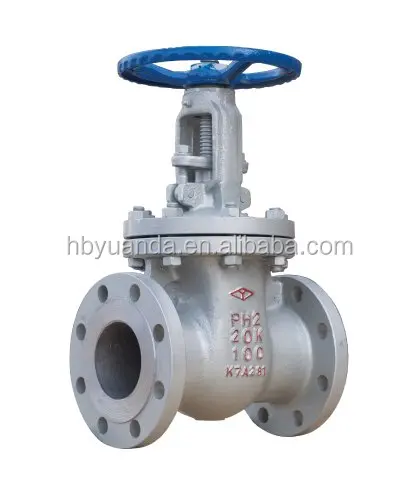

JIS flange type OS&Y carbon steel gate valve/SCPH2



Usage:It has been widely used in the fields of Petro-chem, Pharmacy and power, etc.

It functions by the way of open and close on the pipes of steam, water and oil, etc, under the pressure of 1.6MPa.



Flange Std.:JIS B2220



Nominal pressure:10K/20K



Strength testing(MPa):2.1/5.3



Enclose testing(MPa):1.6/3.9



Certificates:



ISO9001    14001



API6D



CE



Function description:



Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.



Advantages of gate valve:



1.Small fluid resistance

2.The torque for opening and closing is small, so it is easy to open and close.

3.The medium flowing direction is not restricted, and it doesn't disturb flowing and reducethe pressure of pipeline.

4. Short length structure

5. Good sealing performance

6. Simple shape, good casting process, widely used

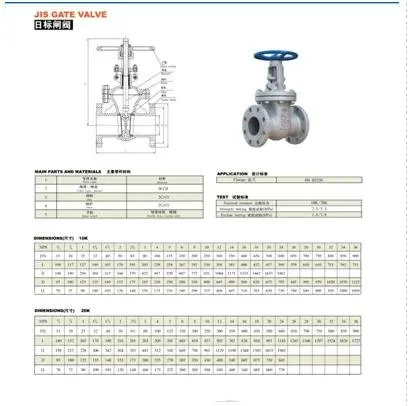

  Cast Steel Flanged JIS Gate Valve 10K 20K



1). Size: 15A - 600A

2). Material: SCS13, SCS14, SCS16, 304, 316, WCB

3). Class: 10K, 20K, 40K

4). Suitable medium: water, oil, air and some corrosive liquid

5). Temperature range: -20°C- 425°C

6). Design and Manufacture: JIS B2073; B2083

7). Face-to-face: JIS B2002

8). Flange dimension: JIS B2212; B2214

9). Inspection & Test: JIS B2003
