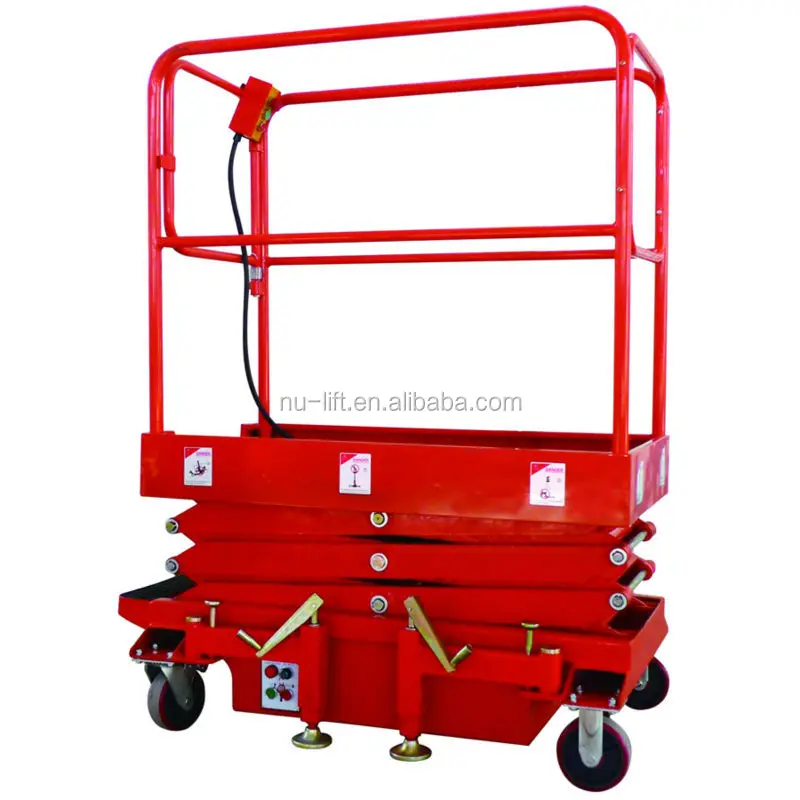

Рабочая платформа типа мини ножниц

Product Overview

Description

With Built-in Charger
Battery charge indicator
Safety brackets
Emergency stop button





Model		JY317	JY330	JY339
Type		Double-Scissor	Three -Scissor	Four -Scissor
Lift Capacity	kg	300	300	300
Max. Platform Height(H)	mm	1700	3000	3900
Min. Platform Height(H1)	mm	520	630	700
Platform Size(a x b)	mm	1170x600
Lifting Time	s	10	33	33
Decending Time	s	7	30	30
Lifing Motor	V/Kw	12/0.8	12/0.8	12/0.8
Charger	V/A	12/15A	12/15A	12/15A
Overall Length(A)	mm	1300	1300	1300
Overall Width(B)	mm	740	740	740
Overall Height(h)	mm	1620	1650	1750
Net Weight	kg	280	360	420
