Product Overview
Description
JDMS-4X
Match use with the converter, do not need to install sensor 0-50V DC pressure output by frequency will be within 0-9999 range, the display value and line speed or rotating valuecan be adjusted directly and corrected, with the change of output pressure by frequency, the display value will become direct ratio change with the hange of pressure.

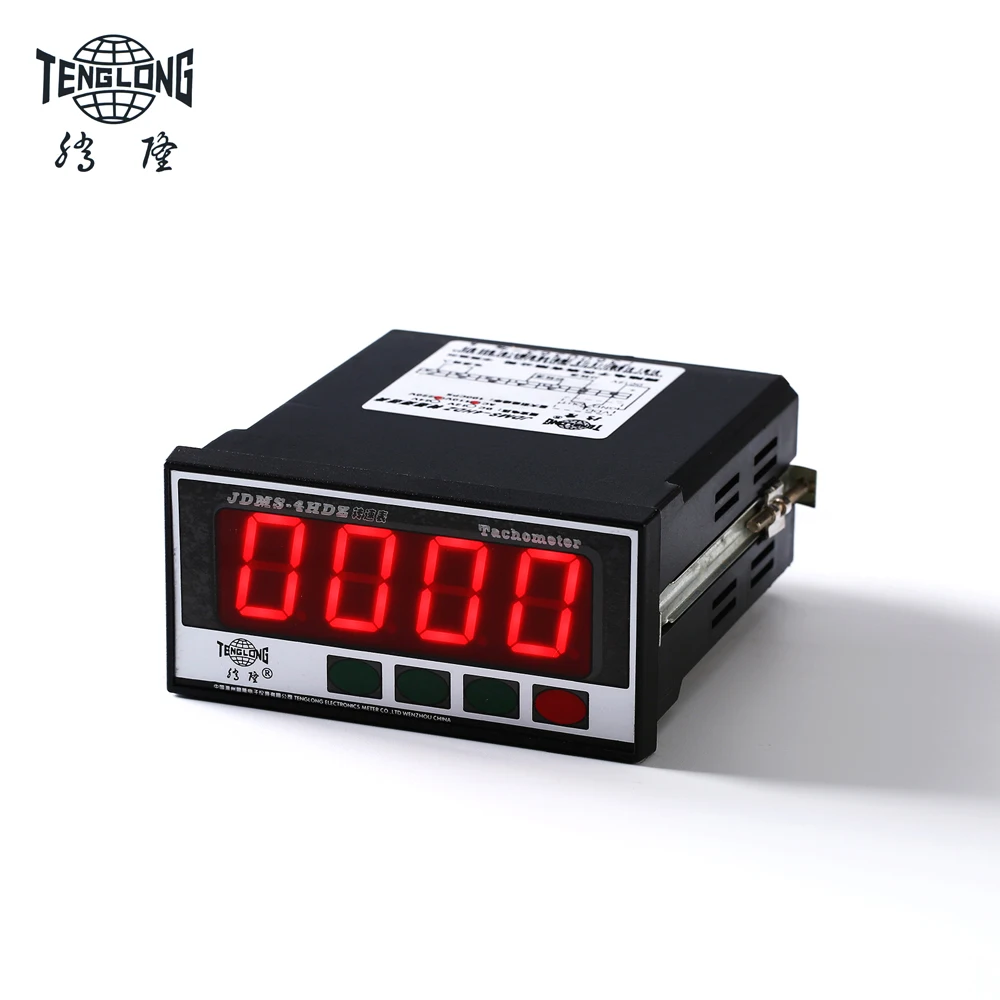

JDMS-4HDX
The pulse signal input which can be used to measure speed under various conditions without converter. The meter is equipped with 60 times frequency circuit, which can easily measure the speed per minute or per second
JDMS-4XM
Input signal is pulse signal, can be connected to the sensor, digital signal, with speed setting and percentage setting, with the relay contact output and 0-10V, 0-5V analog output.
JDM11-6SRL
Input signal is pulse signal, which can be connected to sensor, switch signal, upper and lower limit two groups of preset control, double normally open and double normally closed contact independent output, relay greater than the upper limit value, less than the lower limit value respectively action.
JDM72-5SX
Two groups of 5 bit LED, the upper line show count value, the down line show revolving speed or line speed. Working with encoder, photoelectric switch sensor, proximity switch, hall switch.
Match use with the converter, do not need to install sensor 0-50V DC pressure output by frequency will be within 0-9999 range, the display value and line speed or rotating valuecan be adjusted directly and corrected, with the change of output pressure by frequency, the display value will become direct ratio change with the hange of pressure.
JDMS-4HDX
The pulse signal input which can be used to measure speed under various conditions without converter. The meter is equipped with 60 times frequency circuit, which can easily measure the speed per minute or per second
JDMS-4XM
Input signal is pulse signal, can be connected to the sensor, digital signal, with speed setting and percentage setting, with the relay contact output and 0-10V, 0-5V analog output.
JDM11-6SRL
Input signal is pulse signal, which can be connected to sensor, switch signal, upper and lower limit two groups of preset control, double normally open and double normally closed contact independent output, relay greater than the upper limit value, less than the lower limit value respectively action.
JDM72-5SX
Two groups of 5 bit LED, the upper line show count value, the down line show revolving speed or line speed. Working with encoder, photoelectric switch sensor, proximity switch, hall switch.
Item\\Model | JDMS-4X | JDMS-4HDX | JDMS-4XM | JDM11-6SRL | JDM72-5SX | ||||
Display | 4 digits 0.8" LED | 4 digits 0.8" LED | 4 digits0.8"LED | 6 digits 0.56"LED | 6 digits 0.56"LED | ||||
Rated voltage | AC 110~240V、AC24V,50/60HZ、DC24V，85~110% rated voltage | ||||||||
Frequency | ≤300 times/sec | 5,30,200,3000 times/sec available | |||||||
Count manner | add count | ||||||||
Signal input | 0-50VDC | photoswitch input(NPN) | |||||||
Counting range | 1-9999 | 1-999999 | 1-99999 | ||||||
Multiple ration | 1-99999 | 0.00001-9.99999 | 0.0001-9.9999 | ||||||
Speed measuring range | 60-19999 R.P.M | 180000 R.P.M | 18000R.P.M | ||||||
Control output | relay contact output 0-10V,0-5V | relay contact output | |||||||
Reset mode | panel reset | ||||||||
