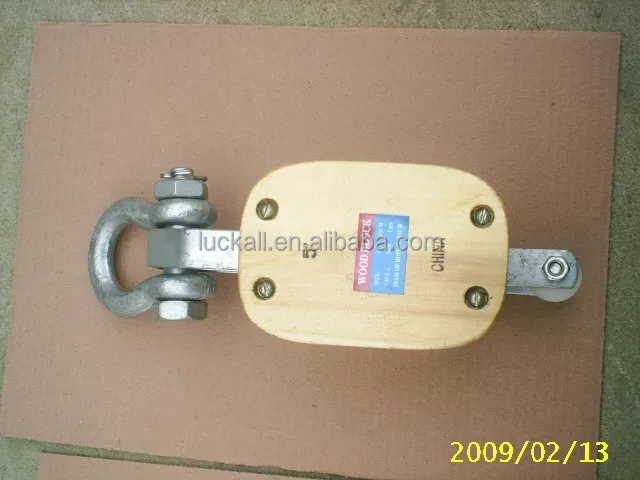

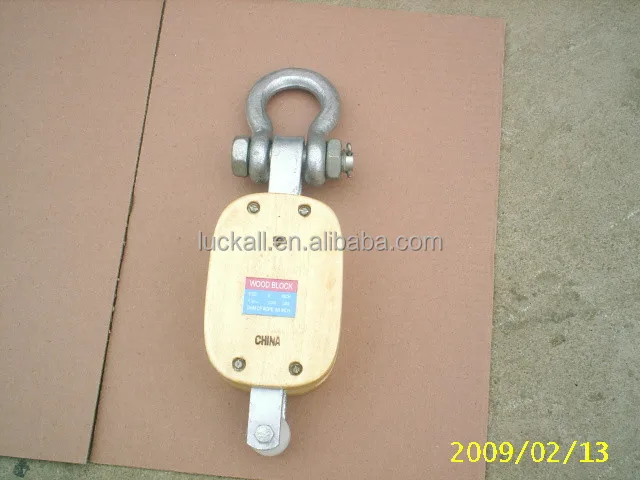

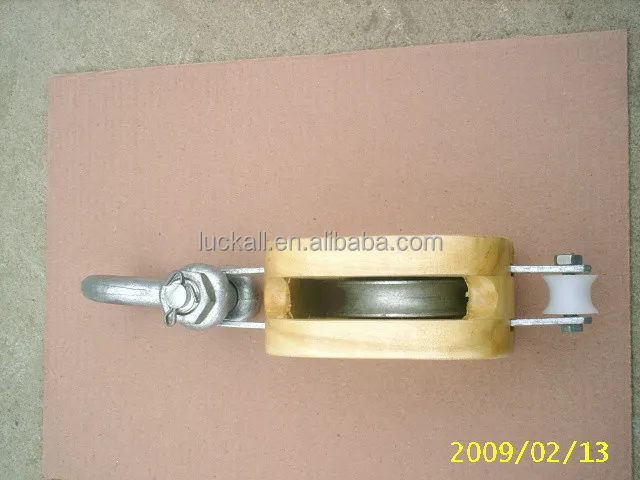

Regular Wooden Block Single Sheave Triple Sheave Double Sheave With SHACKLE PULLEY
- Category: >>>
- Supplier: Qingdao Luckall Hardware Co. Ltd.
Share on (297323986):
Product Overview
Description
ITEM:Regular Wooden Block Single Sheave Triple Sheave Double Sheave With SHACKLE PULLEY
single sheave
| size-inch | W.L.L-LBS | DIAM OF ROPE-INCH | NET WEIGHT-kgs |
| 3 | 500 | 3/8" | 0.55 |
| 4 | 1000 | 1/2" | 0.9 |
| 5 | 1200 | 5/8" | 1.9 |
| 6 | 1800 | 3/4" | 2.75 |
| 8 | 2800 | 1" | 6.1 |
| 10 | 5000 | 1-1/8" | 8.35 |
| 12 | 6800 | 1-1/4" | 14.6 |
| 14 | 9600 | 1-3/4" | 21.7 |
| 16 | 12000 | 2" | 31 |

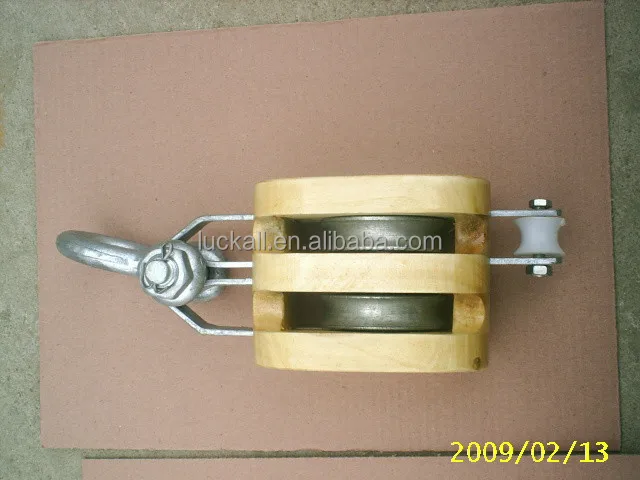

Double sheave
| size-inch | W.L.L-LBS | DIAM OF ROPE-INCH | NET WEIGHT-KGS |
| 3 | 800 | 3/8" | 1.1 |
| 4 | 1400 | 1/2" | 1.56 |
| 5 | 1800 | 5/8" | 2.75 |
| 6 | 2500 | 3/4" | 4.6 |
| 8 | 3800 | 1" | 9.6 |
| 10 | 7700 | 1-1/8" | 14.5 |
| 12 | 10600 | 1-1/4" | 24.5 |
| 14 | 15000 | 1-3/4" | 35.6 |
| 16 | 19000 | 2 | 46 |

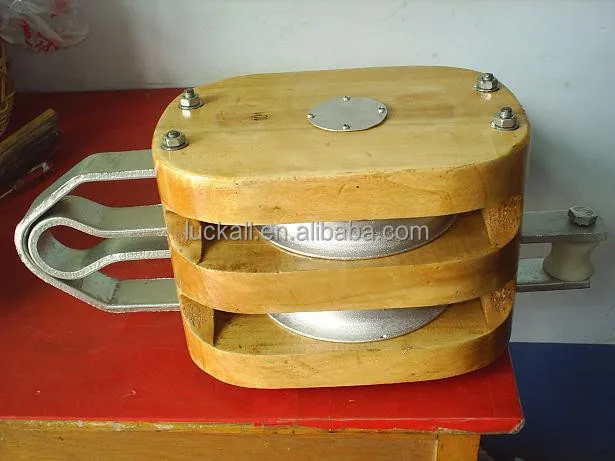

Triple Sheave
| size-inch | W.L.L-LBS | DIAM OF ROPE-INCH | NET WEIGHT-KGS |
| 3 | 1200 | 3/8" | 1.3 |
| 4 | 1800 | 1/2" | 2.25 |
| 5 | 2400 | 5/8" | 3.4 |
| 6 | 3200 | 3/4" | 6 |
| 8 | 4800 | 1" | 10 |
| 10 | 8000 | 1-1/8" | 16 |
| 12 | 10000 | 1-1/4" | 25 |
| 14 | 19000 | 1-3/4" | 50 |
| 16 | 25000 | 2 | 62 |
FAQ:
Q:Are you trading company or manufacture?
A: We are factory.
Q:How long for your delivery time?
A:Normally 30days after you confirm the order. But if you need urgent, we will do our best to meet your requirement.
Q:Do you provide sample? Is it free or extra charge?
A:Yes, we can provide the sample for free. But we need you pay for dhl, tnt or ups charge. After you confirm the order with us, we will return the charge to you.
Q:What is your payment terms?
A: 30% pay in advance, others against the copy of BILL OF LOADING.
If you have another questions, please feel free to contact us.
