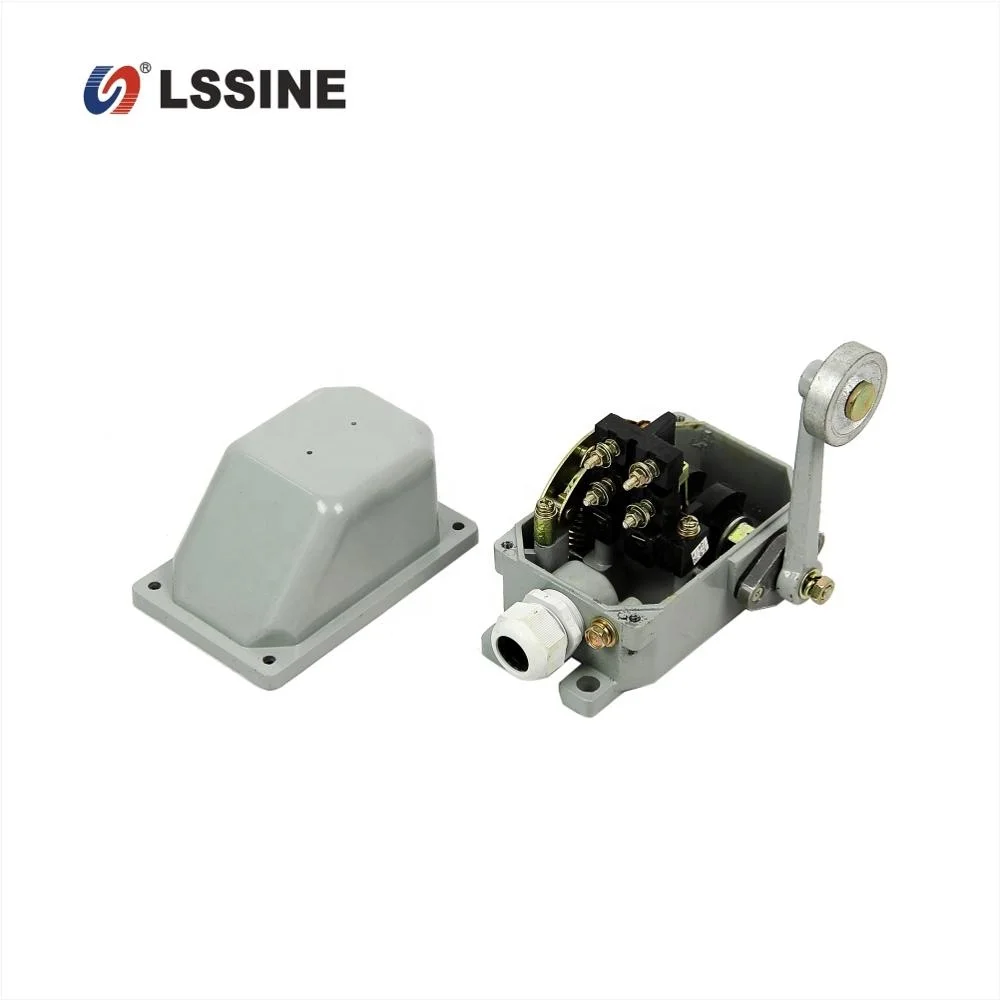

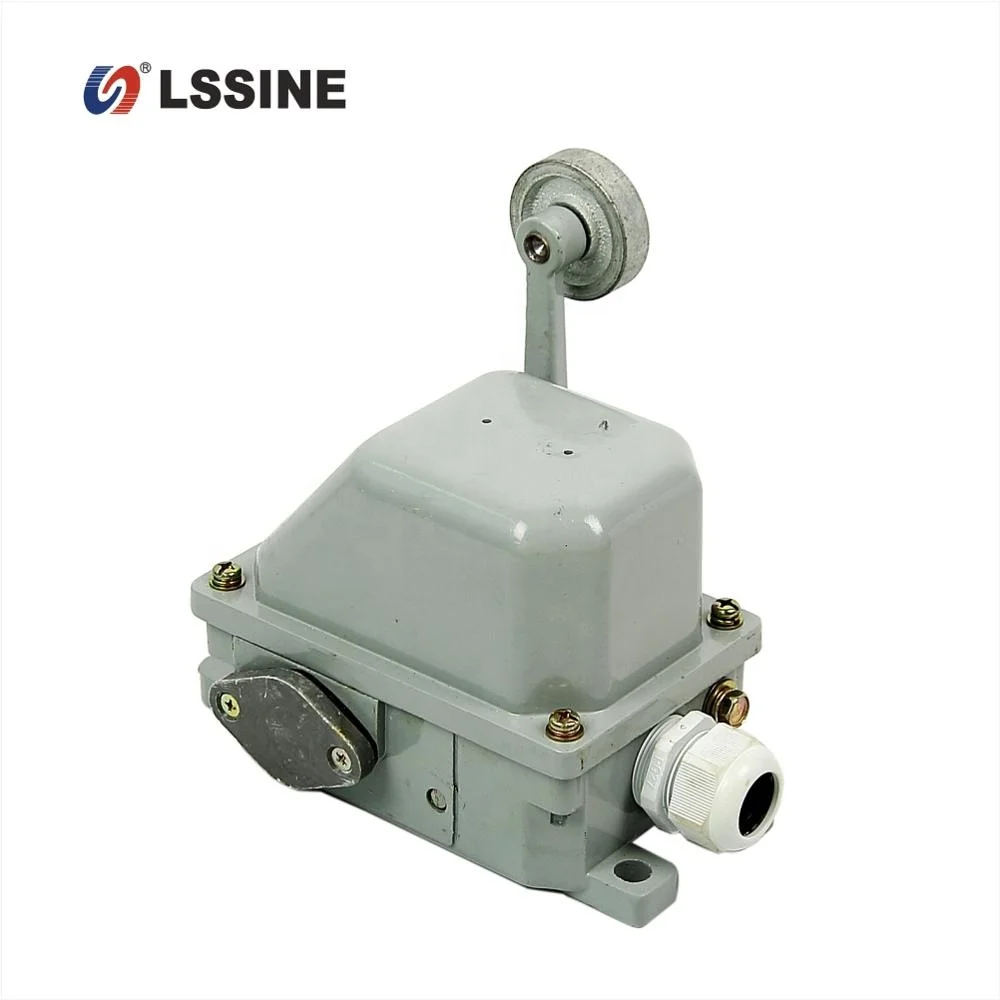

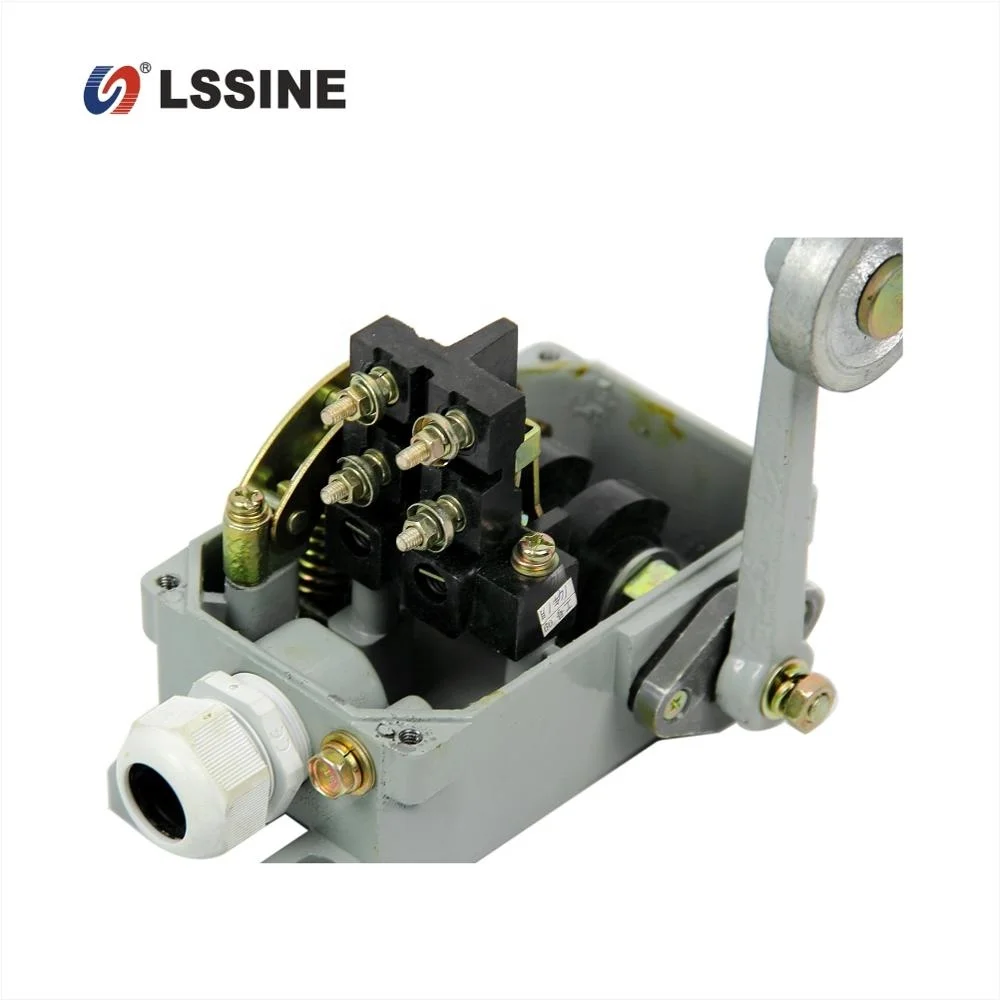

Limit switch KU 701
- Category: Limit Switches >>>
- Supplier: Zhejiang Lixin Hoist Switch Factory
Share on (298266952):
Product Overview
Description
- SPECIFICATIONS.
The main parameters and characteristics of switches are shown in Table 1.
Table 1
continuous operating current A | Voltage not less than 500 V , switch off AC current A | Voltage 110, 220, 440 V, switch off DC current A | voltage not less than 500 V, Switchable AC current A | voltage 110, 220, 440 V, Switchable DC current A |
10 | 50 | 25 | 10 | 2,0/1,5/0,5 |
Classification of the drive switches is given in Table 2.
Table 2.
Type | Number of work positions | Type of drive | Fixation | Maximum speed drive, m / min |
KU-701 | 3 | Lever with roller | self-recovery lever | 150 |
KU-703 | 2 | Weigh with counterweight | Fixation in the outermost positions | not limited |
KU-704 | 3 | The lever plate W-shaped | Fixation at each position
| 100 |
KU-706 | 2 | Two lever with rollers | Fixation in the outermost positions | 300 |
1.1 Operating position of switches - in any position;
1.2 Protection Degree of switches - IP44;
1.3 Maximum frequency of switches - 600 per hour
1.4 The force required to drive switches - 100 N (switch-type KU -704 - 200 N);
1.5 Mechanical durability of switches - at least 106 cycles of on-off;
1.6 The weight of switch - 2,7 kg.
