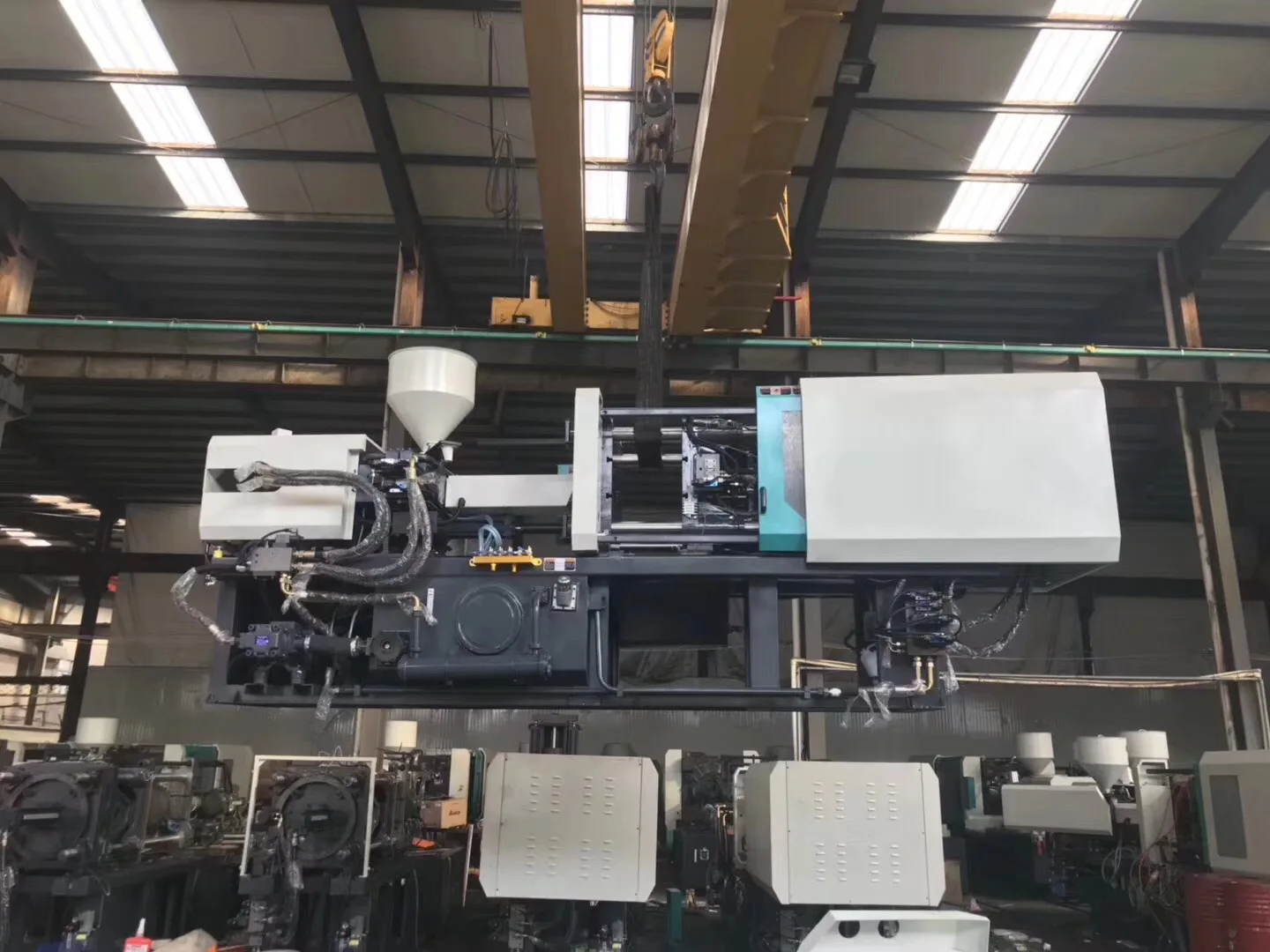

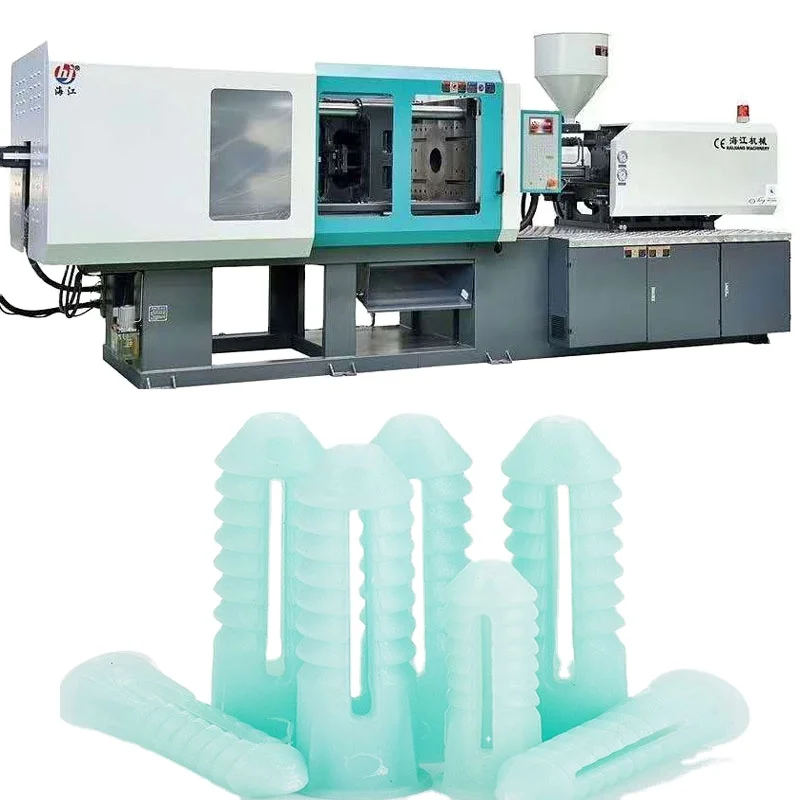

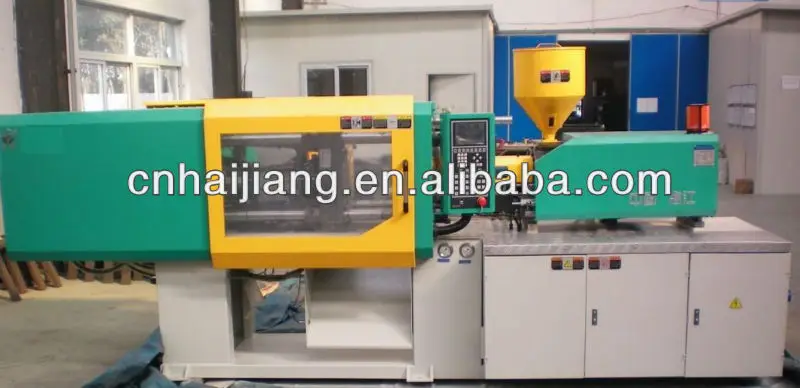

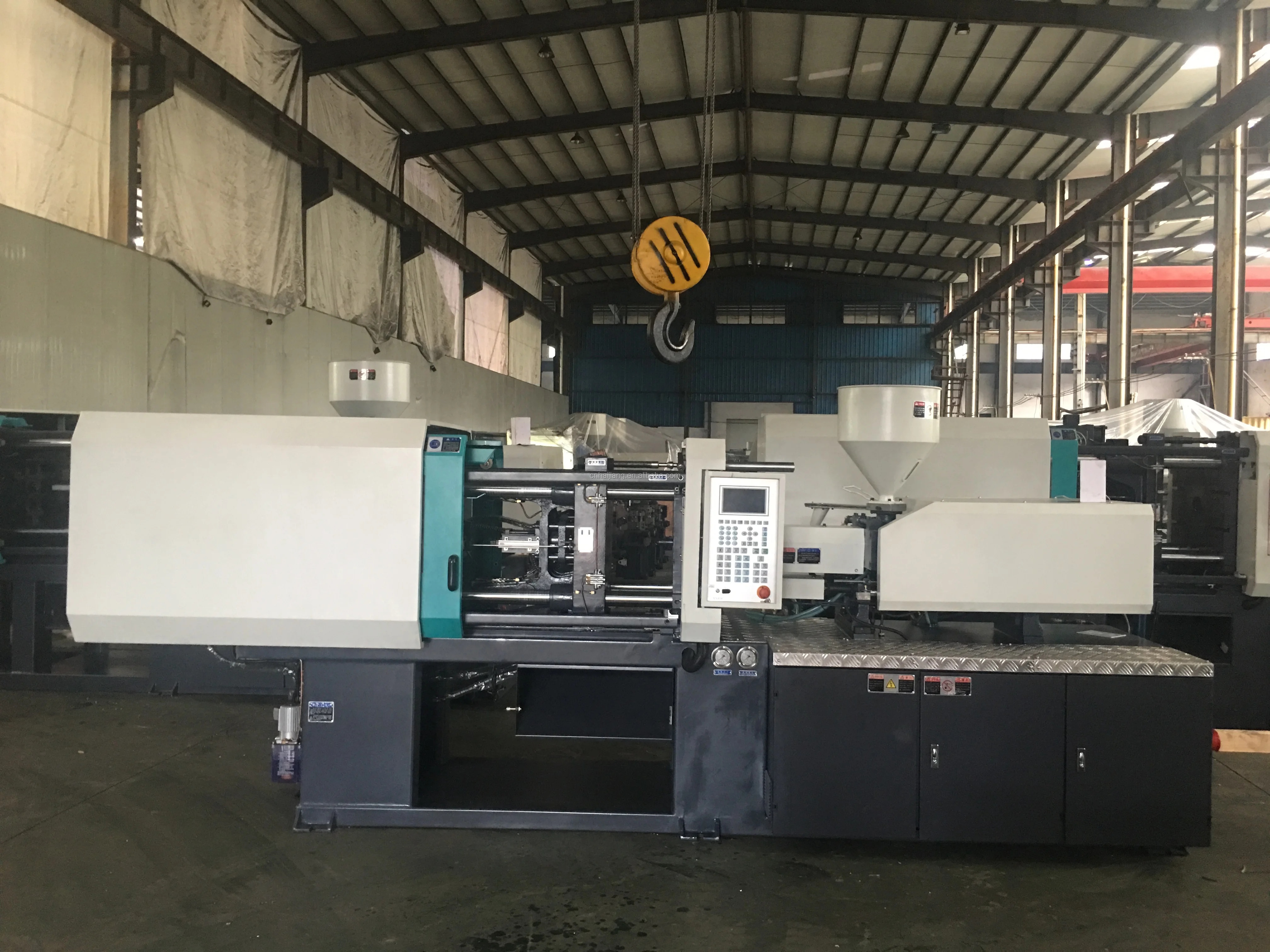

Energy saving 118T injection molding machine

Product Overview

Description

Energy saving 118T injection molding machine

We supply different types of plastic injection molding machines such as double color injection machine, PET preform injection machine, high speed plastic machine, servo motor plastic machine and variable pump plastic machine,PVC fitting injection molding machine, parameters of HJF118 is as below;



Parameter	Unit	HJF118
Screw diameter	mm	A	B	C
		35	38	40
Screw I/D ratio	L/D	23.9	22	20.9
shot volumn (theoretical)	Cm3	154	181	201
injection weight(PS)	g	141	165	183
injection rate	g/s	80	95	105
injection pressure	Mpa	219	186	167
screw speed	r/min	0~220
clamp force	KN	1180
opening stroke	mm	340
space between tie bars (W*H)	mm	370*370
max mould height	mm	400
min mould height	mm	150
ejector stroke	mm	100
ejector force	KN	33
max pump pressure	Mpa	16
pump motor power	KW	11
heating power	KW	6.5
machine dimension	M	4.2*1.25*1.8
machine weight	T	3.5
oil tank capacity	L	210

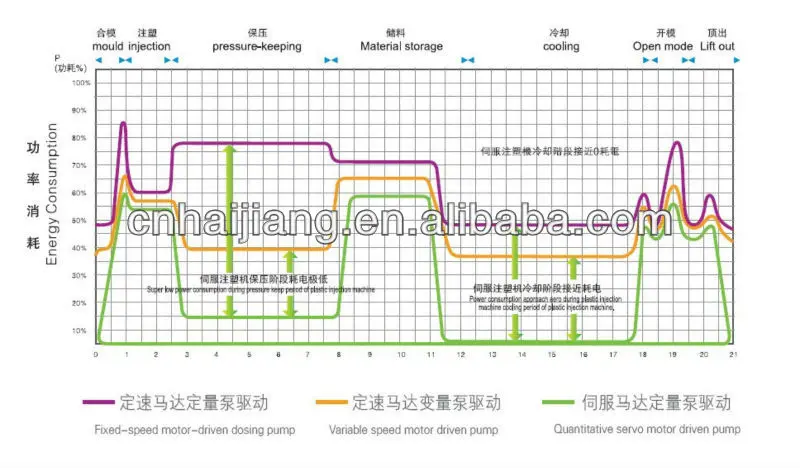

Energy saving chart compared with fixed and variable pump injection molding machine;

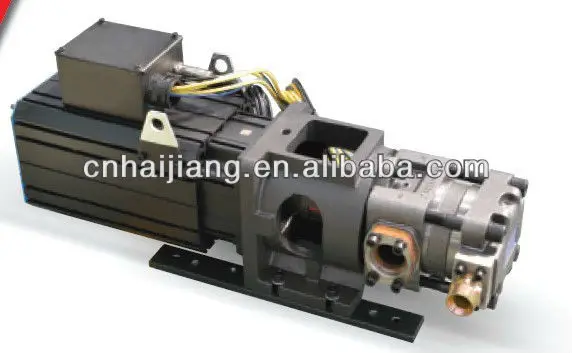

 Imported phase servo motor;
