Automatic Key Cutting Machine for Aluminum Profile
- Category: >>>
- Supplier: Jinan Dega Machine Co. Ltd.
Share on (299739626):
Product Overview
Description

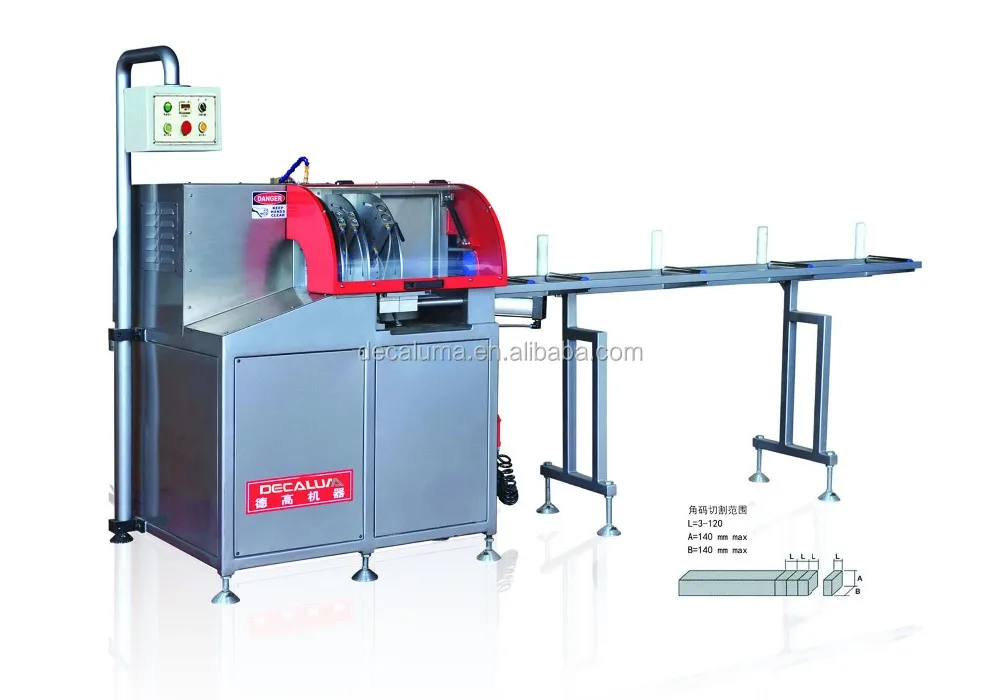

Automatic Key Cutting Machine for Aluminum Profile
LJJZ-500
![~PI)$PQP[IMP5P{P]GR}5](http://sc02.alicdn.com/kf/HTB12bvmOVXXXXXUXXXXq6xXFXXXX/200400028/HTB12bvmOVXXXXXUXXXXq6xXFXXXX.jpg)
Main Functions:
1.It is used for aluminum corner profile cutting into right peices and the 90° aluminum and curtain-wall profile cutting
2.With Micro PC CNC Control System,Man-Machine interface operation.
3.Touch Screen input and control,convenient set the data and perform the order.
4.Linear bearing, running in lower resistance and high processing accuracy.
5.Auto profile feeding system
6.Automatic feeding/cutting after loading profile, convenient cooperation, safety reliable.
7.Setting cutting quantity in advance and digital display the cutting length and quantity.
8.Suitable for the batch production of corner key for aluminum window.
Technical Parameter:
Power supply | Made to order |
Motor power | 3KW |
Motor rotary speed | 2840r/min |
Operation air pressure | 0.5~0.8Mpa |
Air consumption | 80L/min |
auto-feeding length | 3~200mm |
Cutting length | Non limited when manual cutting |
Cutting width | MAX. 125mm |
Cutting height | MAX.140 mm |
Feeding speed | stepless timing 0~3m/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Cutting height | 140 mm |
Dimension | 5530mm×1770mm×1840mm |
Weight | 800kg |
Video
pls log in YOUTUBE , then search the our brand " DECALUMA" then you will find much machine videos there .
If you make Aluminum window and door, you need the following basic machines
1).double head cutting saw,model:LJZ2-500*4200A

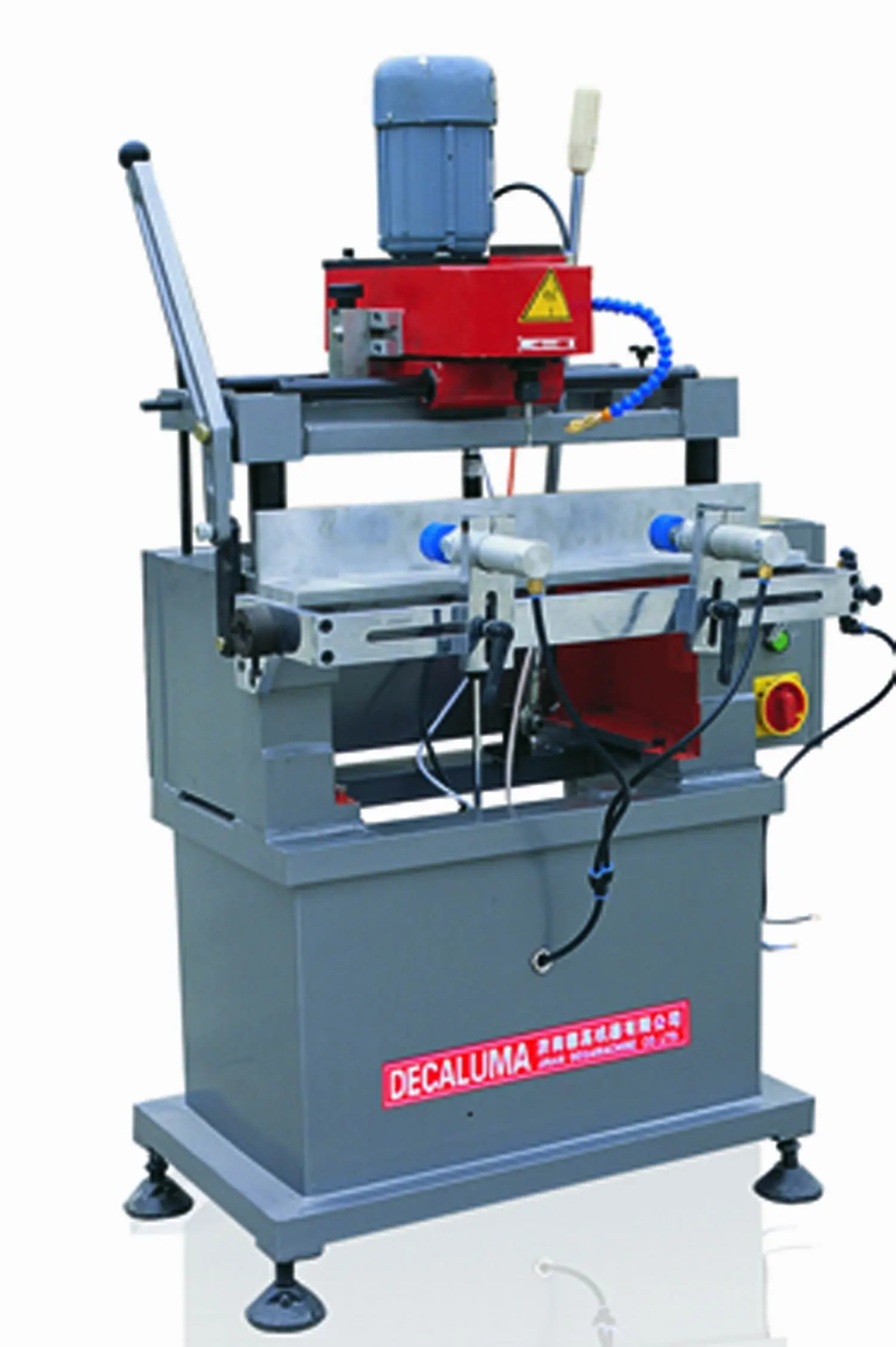

(2).Lock hole copy milling machine,model:LXF-300*100
3).End milling machine,model:LXD-200

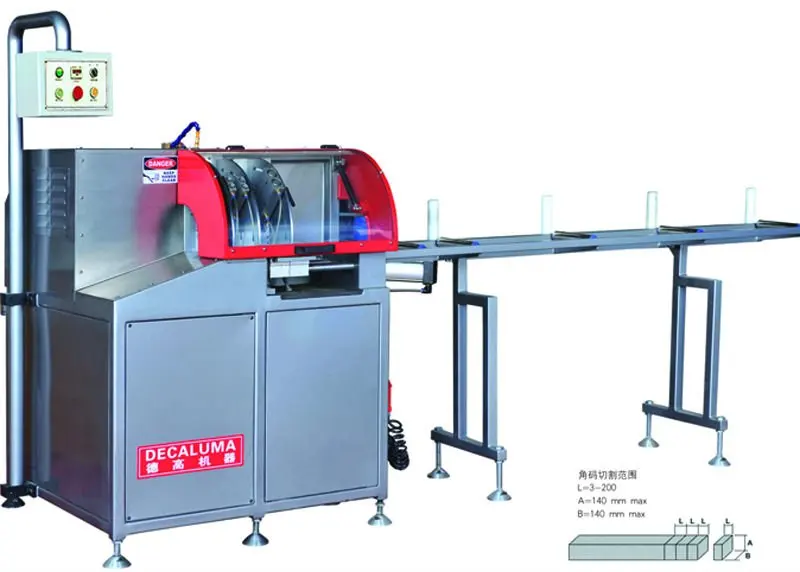

4).Automatic Corner connector automatic cutting saw,model:LJJZ-500
5).Single head Corner combining machine,model:LZJ-120C
Kindly note
These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge
Our Services
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
Company Information

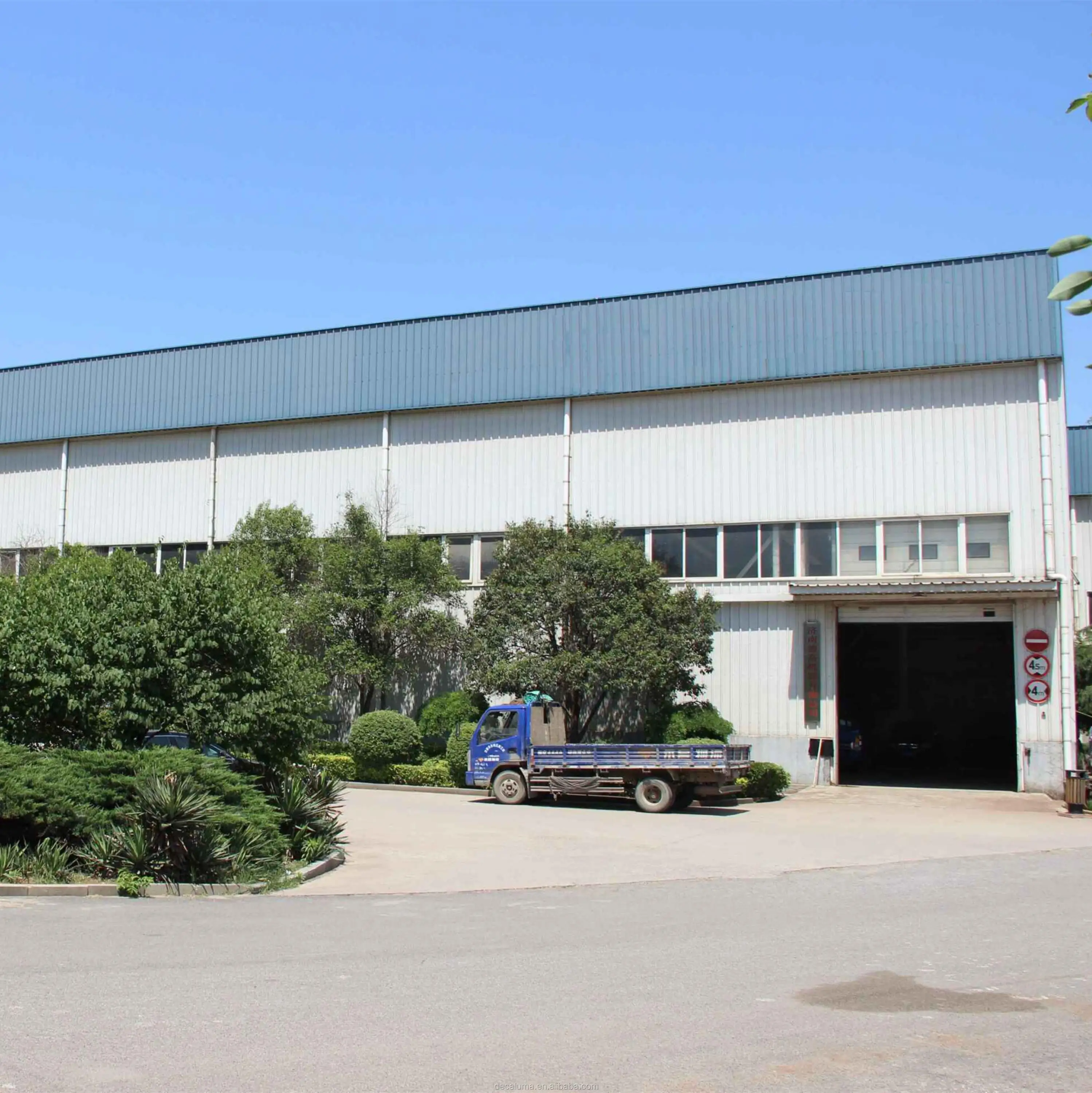

JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
![Y%2}]TU{H$WQK]RC]{Z8MWI](http://sc01.alicdn.com/kf/HTB1jv2nOVXXXXbfXXXXq6xXFXXXF/200400028/HTB1jv2nOVXXXXbfXXXXq6xXFXXXF.jpg)
FAQ
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
