ophthalmometer Manual LED Keratometer BL 8003 BOLAN

Product Overview

Description

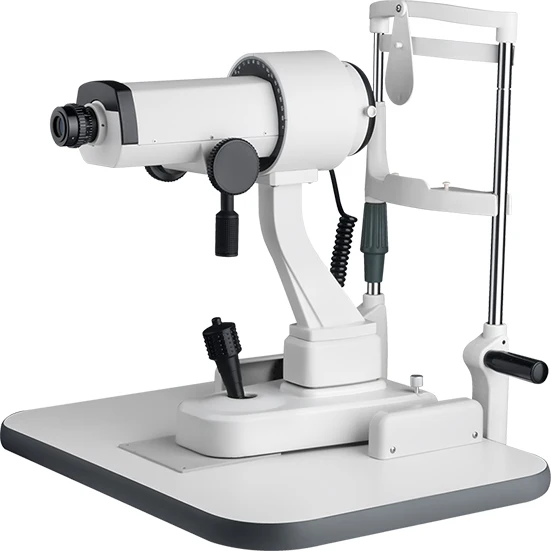

Keratometer BL-8003



Feature



Internal Scale Readings

The BL-8003 features easy to align mire images with:

All readings are thus placed in one field of view, greatly simplifying and speeding up measurements. (Example: The diagrams on the right show mire images in perfect focus and without astigmatism, with radius of curvature 8.0mm and vertex (V) and horizontal (H) axes).

Contact lens measurement

Replace the chin-rest with the supporting column and place the contact lens holder, with the contact lens attached to it, on top of the column. It will be possible to measure the radius of curvature of the concave or convex face, depending on which faces the instrument, in the same manner as when measuring the cornea.

LED LAMP

Applied which have long-life time,save energy and no heat.



Specification



Scale	Corneal radius of curvature	5.5-12mm
	Minimum reading	0.01mm
	Corneal refractive power	28D-60D
	Minimum reading	0.125D
	Axis of corneal astigmatism	0 – 180 °
	Minimum reading	1°
	Diopter adjusting scale	0- ±5dptr.
Voltage/frequency		AC 110v/60Hz or 220v/50Hz
Dimensions		330(L) ×280(W)×430(H)mm
Weight		15KG
