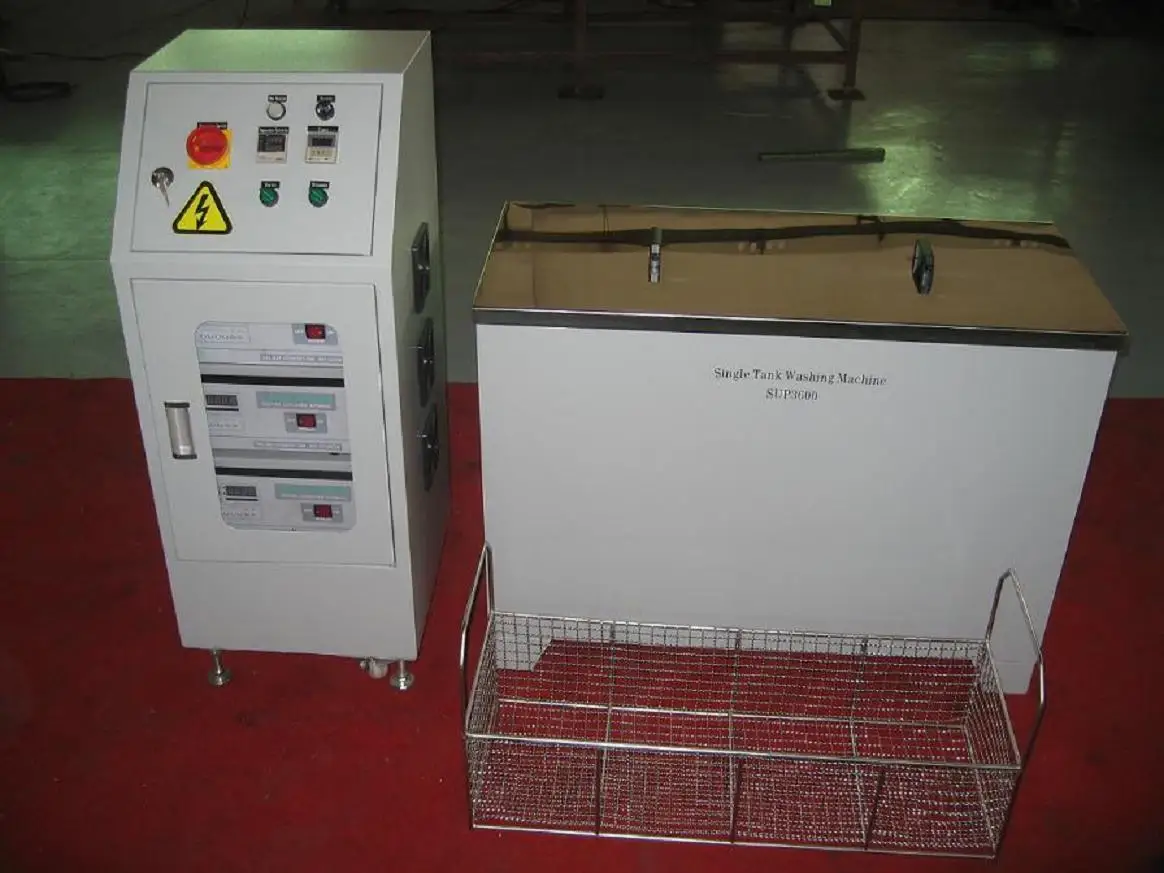

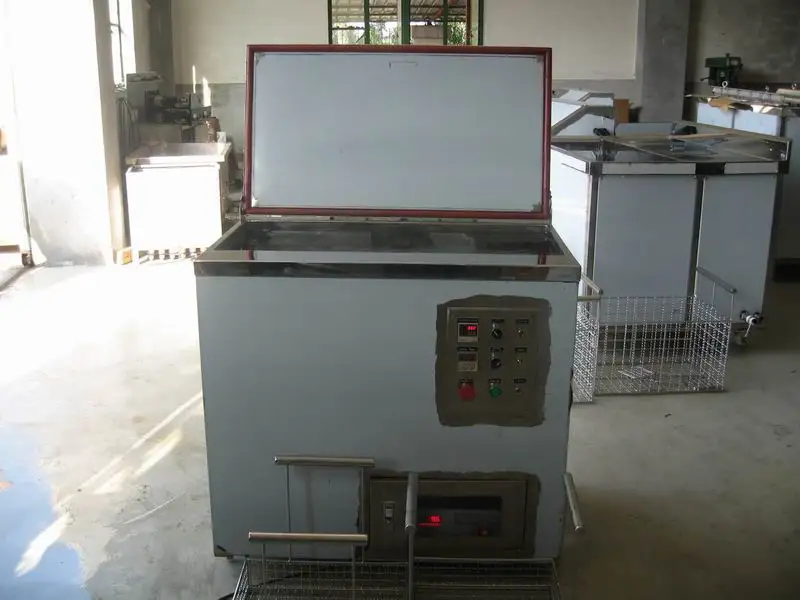

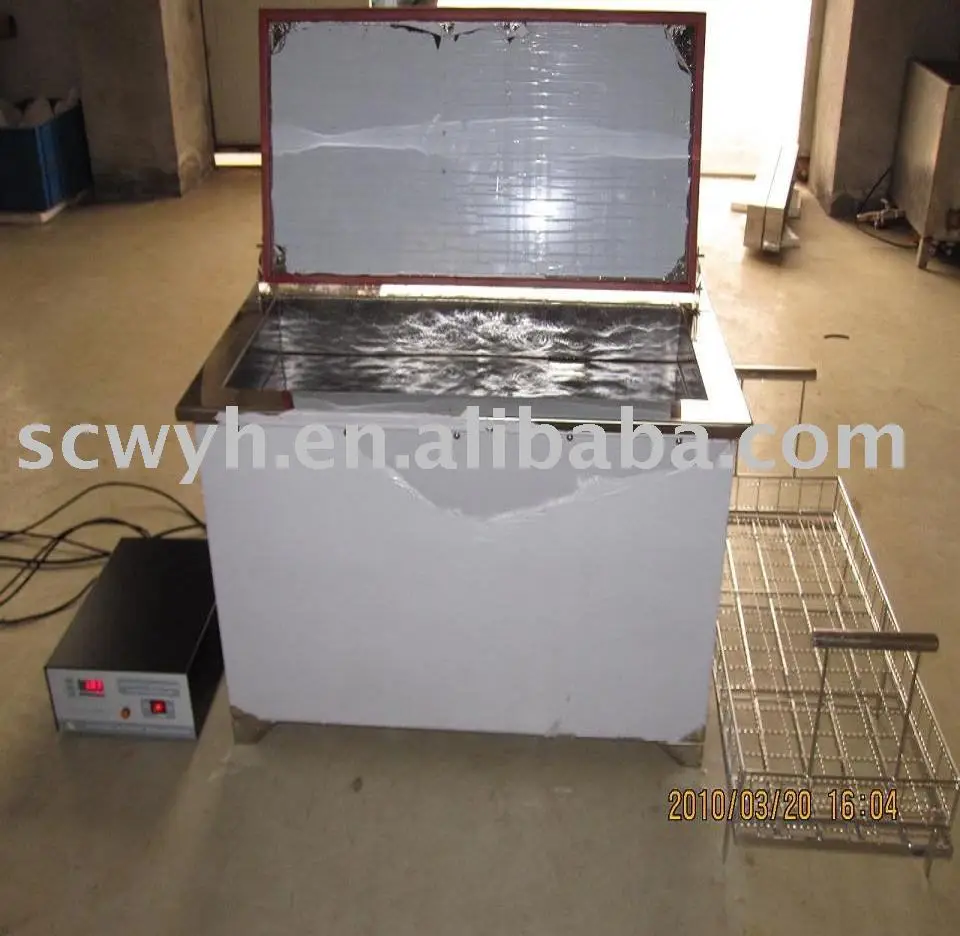

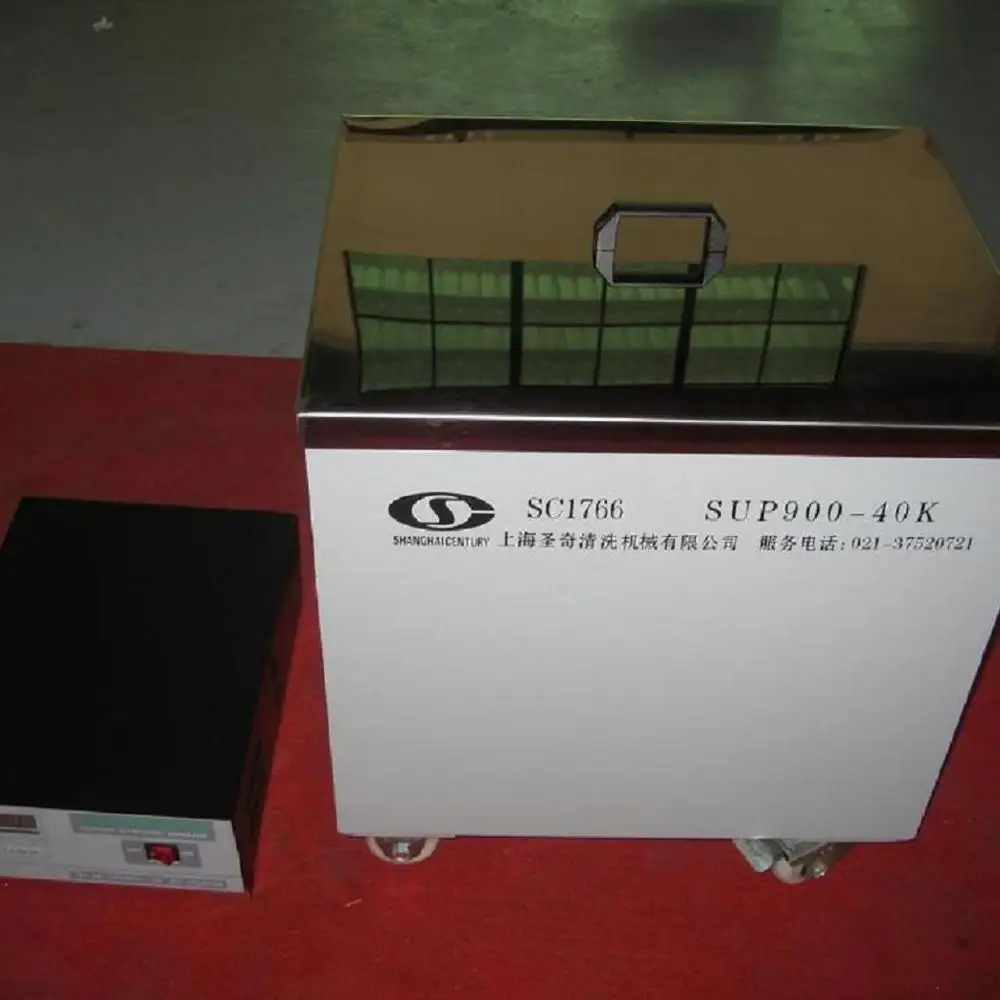

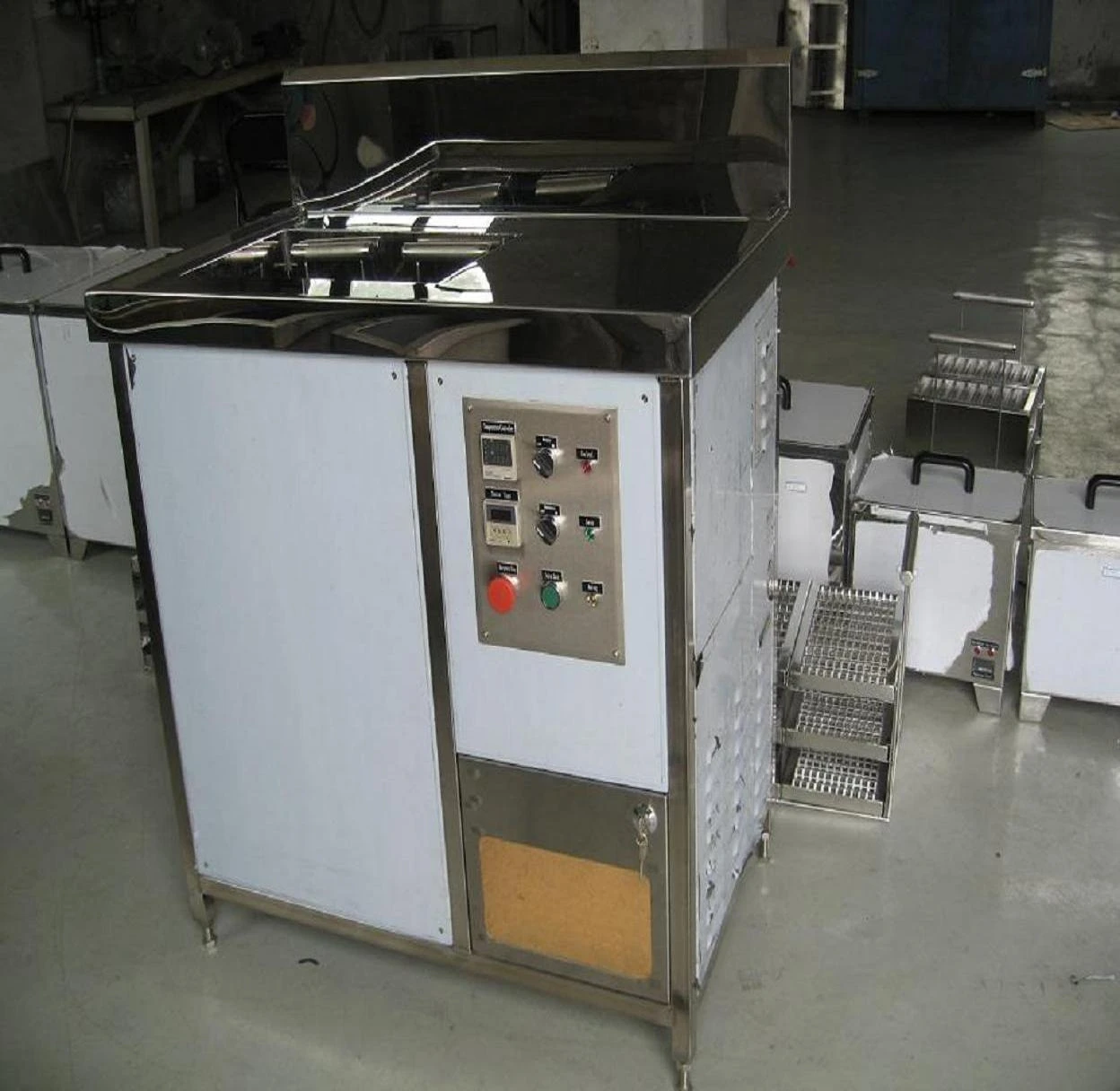

Single Tank Ultrasonic Cleaning Machine

Product Overview

Description

Single Tank Ultrasonic Cleaning Machine

Product Description

1.Model: SC-SUP 1528

2.Cleaning agent: water based , enviroment friendly

3.Application: Hardwares, cars, motor parts, optics, medical apparatus, Lab Oil Mixing, Engineering Process, Electrics etc.

4.External dimension: (length×width×height): 650mm×550mm×550mm

5.Features:

Heating Power:     2KW  220-240V

 Ultrasonic units:    200V-240V     1.5KW 28KHz/40KHZ  Power adjustable

Mounted temperature controller, water level sensor, digital timer.

Ultrasonic generator: digital display, sweep mode, pulse mode

Immersible or BLT  transducer .



6. Various size and ultrasonic power optional .

     Ultrasonic frequency optional from 20KHz ~120KHz based on the parts to be washed.



Packing &Shipping

plywood packing for export (vaccum packing available).

Shipping by sea





Our Service

One year warranty .

Provide free charge parts, online service, phone service during warranty time.

If still not resolved, we provide  site service .

Remote control function available.





Company  Information

Located in Fengxian Wuxing Industrial Zone, Shanghai Century Washing Machinery has been developing and manufacturing industrial washing machinery since 1999. We are one of the earliest industrial washing machinery ,optical lens manufacturing machinery makers in China and with an experienced designing and manufacturing engineering team. our machines have been widely-sold to around 40 countries and regions in the world.



Our main products are industrial washing machines for automotive, optics, electronics, medical, aerospace, and surface treatment industries. For the automotive industry, we supply ultrasonic and spray washers to remove oil and chips on different washing parts. The machines can be fully automatic that integrates with the current production line, or they can be semi-automatic or manual as a budget-tight option. Various machine configurations are customizable based on the washing part characteristics such as length, width, shape, and the location of holes. Different washing processes that involves spray washing, ultrasonic washing, rinsing, blow or vacuum drying can also be designed based on the parts. Water or hydrocarbon-based washing machines are available. The whole washing process is fully controlled by PLCs, and integration with Industrial PCs or SCADA systems is also possible.

For optical industry ,we supply optical basic lens casting line(automatic lens cleaning machine, automatic molds cleaning machine, chemical mixing machine, programmable polymerization oven, curing oven etc.), optical lens hard coating/Anti-fog line . The process is controlled by PLC, and intelligent remote control is available.

We also provide automatic conveyor line, automatic intelligent assembly line with Kuka Robot loading and unloading.



Our current and past clients include: Komatsu Japan Group (Japan Indonesia and China), SIAC, Hyundai Beijing, BWI Group, SKF China, Shiloh China, KUKA Robot China, FUNAC Robot China, Parker Hannifin China,, VCST Changzhou HOYA Lens, ROSOMZ Russia, YDS Turkey,  Conant Optical,  Chemilens China and Vietnam, Vision Ease Indonesia, etc.



Our certificates: ISO9001:2015, CE
