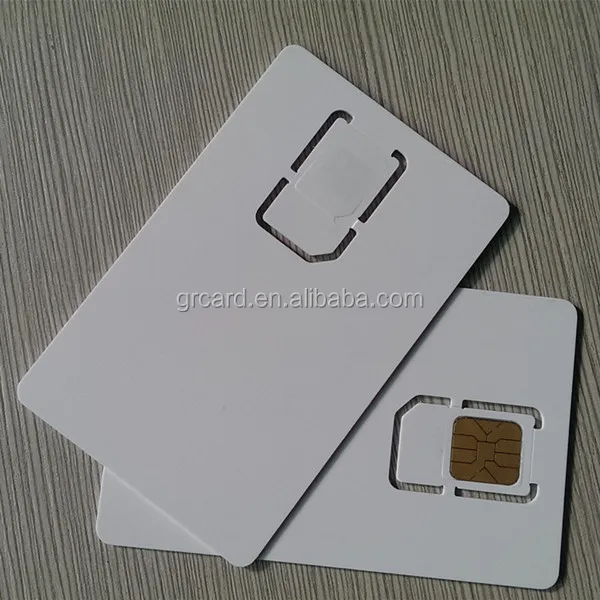

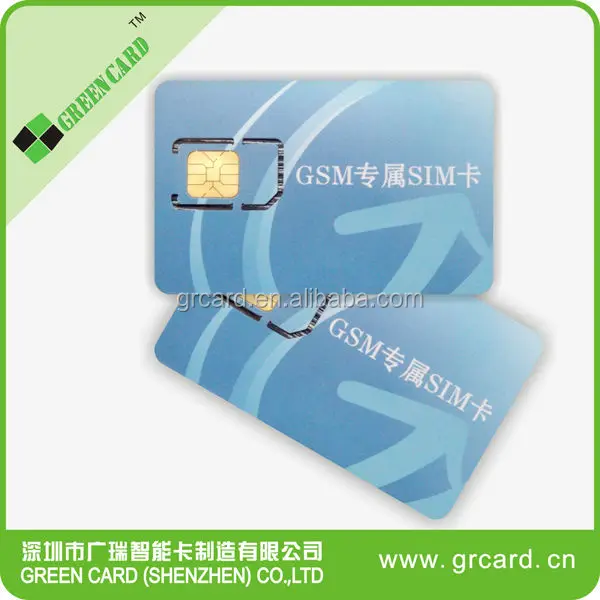

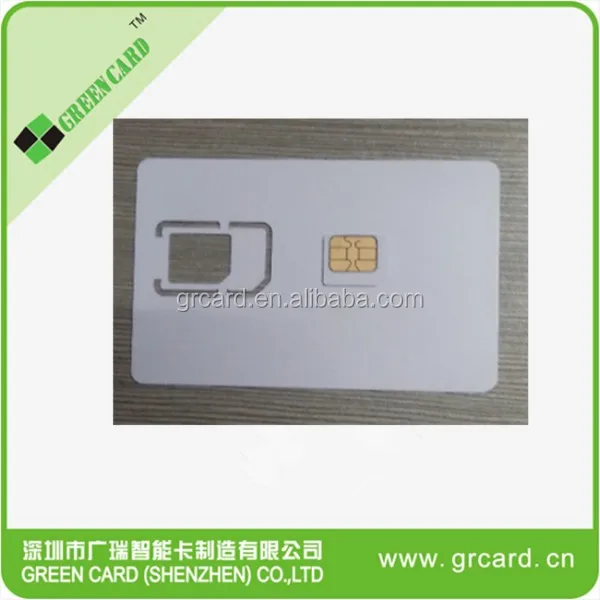

CR80 standard credit card size Blank gsm sim card

Product Overview

Description

CR80 standard credit card size Blank gsm sim card

1. OS: Native and Java
2. IC: 32Kb - 512Kb
3. Network compatibility: GSM, CDMA 2000, USIM, ISIM, RUIM
4. Browser: WIB, Celltick
5. PUK,ICCID ,SID, ESN ,KI,PIN and PRL programable

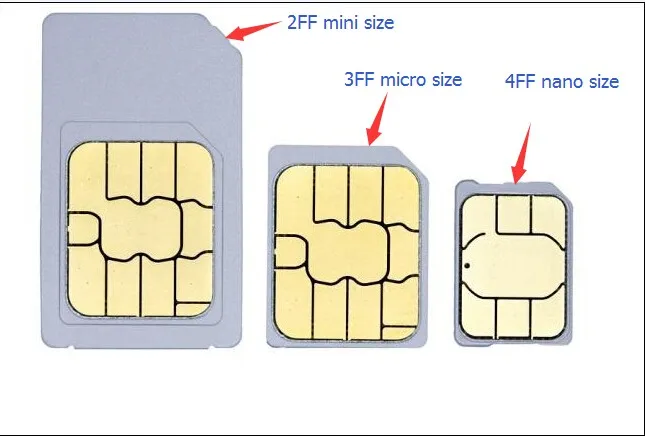

6. Plug-in:2FF, 3FF, 4FF

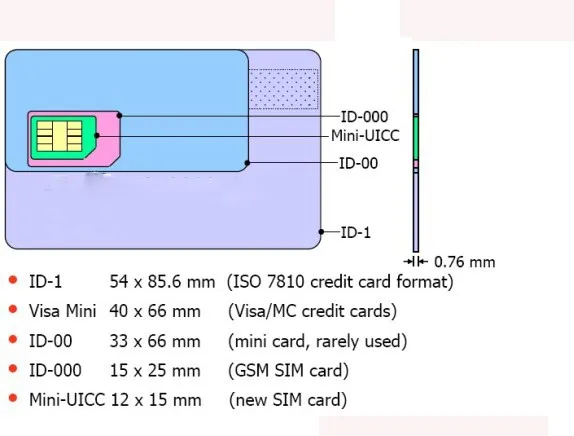

7. Form Factor: ISO, half SIM, Quarter SIM
8. Contact:6 or 8 pin
9. In-house apps development



Size 85.5mm*54 mm ISO CR-80 Standard
Customized Available
Thickness 0.76mm
Customized Available
Form & Shape ISO CR-80 Card, Clamshell , Hang Tag , Key Fob Optional
Customized Available
Artwork design Any Artwork Design (We Offer Free Artwork Design service)
Black White No Printing
Printing Method Offset printing,Silk-screen printing,UV printing
Gold/Silver Background,Glitering Effect
Glossy/Matt/Frosted Finishing
Others ,Customized Available.



Specification :

1. SIM card have GSM SIM card and CDMA UIM card (1x and EVDO )

2. Can write IMSI and ICCID ,ESN , SID , NID,AKEY , PIN ,PUK , PRL ,  SPN , SMSC  into card .

3. mainly for telecom operator and Mobile factory

SIM Card Introduction
2.1 Structure and type
SIM card is a smart card with a microprocessor and it consists of the following modules:



--- CPU
--- Program memory (ROM)
--- Working memory (RAM)
--- Data memory (EPROM or E2PROM)
--- Serial communication module
These five modules must be integrated into an Integrated Circuit (IC), otherwise their safety would be threatened. This is because the chip connections may become illegal access and misappropriation of SIM cards important clues.
In practice, there are two different forms of SIM cards with the same functions:
(A) Full-size SIM card (commonly known as big card), this form of SIM cards with the IC cards of the ISO 7816 Standard [ISO7816], similar to IC card. The card has since been shrunk to the standard size of 25mm × 15mm.
(B) Embedded SIM card (commonly known as small card), the size of only 25 mm × 15 mm, is a semi-permanent packed to the cards in the mobile station equipment.
Two cards have installed waterproof, wear-resistant, anti-static contact with high accuracy and reliability characteristics.
2.2 Cryptographic algorithm and secret key in SIM card
The most sensitive information of SIM card is the cryptographic algorithm A3, A8, secret Ki, PIN, PUK and Kc. A3, A8 algorithm were written into the SIM card in the producing process, and most people could not read A3, A8 algorithm. HN code could be settled by the phone owners. PUK code is held by the operator. Kc was derived in the process of encryption from Ki.
5
PIN and PUK:
--- PIN –Personal Identification Number
--- 2 PINs exist (PIN 1 and PIN2)
--- Limited attempts on PIN access
--- PUK –PIN Unblocking Code
--- Resetting PUK, resets PIN and the attempt counter
--- Too many attempts on PUK blocks use permanently



--- CPU
--- Program memory (ROM)
--- Working memory (RAM)
--- Data memory (EPROM or E2PROM)
--- Serial communication module
These five modules must be integrated into an Integrated Circuit (IC), otherwise their safety would be threatened. This is because the chip connections may become illegal access and misappropriation of SIM cards important clues.
In practice, there are two different forms of SIM cards with the same functions:
(A) Full-size SIM card (commonly known as big card), this form of SIM cards with the IC cards of the ISO 7816 Standard [ISO7816], similar to IC card. The card has since been shrunk to the standard size of 25mm × 15mm.
(B) Embedded SIM card (commonly known as small card), the size of only 25 mm × 15 mm, is a semi-permanent packed to the cards in the mobile station equipment.
Two cards have installed waterproof, wear-resistant, anti-static contact with high accuracy and reliability characteristics.
2.2 Cryptographic algorithm and secret key in SIM card
The most sensitive information of SIM card is the cryptographic algorithm A3, A8, secret Ki, PIN, PUK and Kc. A3, A8 algorithm were written into the SIM card in the producing process, and most people could not read A3, A8 algorithm. HN code could be settled by the phone owners. PUK code is held by the operator. Kc was derived in the process of encryption from Ki.
5
PIN and PUK:
--- PIN –Personal Identification Number
--- 2 PINs exist (PIN 1 and PIN2)
--- Limited attempts on PIN access
--- PUK –PIN Unblocking Code
--- Resetting PUK, resets PIN and the attempt counter
--- Too many attempts on PUK blocks use permanently

The following tables describe the two Phases of SIM card in GSM:
(1) Phase 1
 GSM system parameters
Table 2-1 system parameter data options in phase 1
Identifier
Name
Length
6FAD
Administrative
3
6F38
Service Table
4
6F07
IMSI
9
6F7B
Forbidden PLMN
12
6F7E
TMSI LAI
11
6F20
Kc, n
9
6F30
PLMN Selector
24
6F74
BCCH Information
16
6F78
Access Control
2
Service 1: PIN Disabling
Service 2: Abbreviated Dialling Numbers
Service 4: Short Message Storage
Service 6: Capability Configuration Parameters
Service 7: PLMN Selector
 Telecommunication business parameters
Table 2-2 Telecommunication business options in phase 1
Identifier
Name
Length
6F3A
Abbreviated Dialling Numbers
50*22
6F3D
Capability Config Parameters
1*14
6F3CShort Message Storage
5*176
6F39
Carging Counter
2
(2) Phase 2
8
 GSM system parameters
Table 2-3 system parameter data options in phase 2
Identifier
Name
Length
6F05
Language Preferernce
4
6F07
IMSI
9
6F20
Kc,n
9
6F30
PLMN Selector
42
6F31
HPLMN Search
1
6F38
Service Table
4
6F45
Cell Broad Message ID
8
6F74
BCCH Information
16
6F78
Access Control
2
6F7B
Forbidden PLMN
12
6F7E
TMSI LAI
11
6FAD
Admin Data
3
6FAE
Phase Ident
2
Service 9: MSISDN
Service 10: Extension 1 file
Service 12: SMS parameters
Service 13: Last Number Dialled
Service 14: cell Broadcasting Message Identifier file
 telecommunication business parameters
Table 2-4 Telecommunication business options in phase 2
Identifier
Name
6F3A
Abbreviated Dialling
6F3C
Short Message Storage
6F3D
Capability Configuration
6F40
MSISDN
6F42
SMS Paramters
6F43
SMS Status
6F44
Last Number Dialled
6F4A
Extension 1 file
9
Short Message Storage
5*176
6F39
Carging Counter
2
(2) Phase 2
8



Packing details:

Carton size available :
200pcs per box, or 250 pcs per boxes

1000 pcs per carton,weight :7kg
1000 pcs per carton, Carton size: 25*22*19cm

2000 pcs per carton , Carton size: 49*24*15cm
3000 pcs per carton , Cartonsize: 49*23*20cm
4000 pcs per carton , Carton size: 49*24*26cm
5000 pcs per carton , Carton size: 48*24*31cm
6000 pcs per carton , Carton size: 46*27*40 cm
