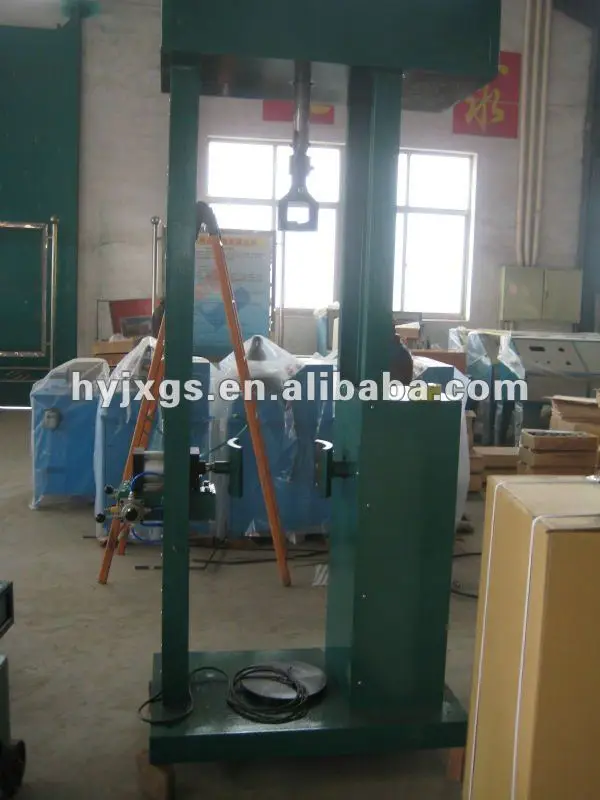

valve tighting machine/valve tight equipment/valving and devalving machine

Product Overview

Description

valve tighting machine/valve tight equipment/valving and devalving machine

The performance parameters

1.  The rational water test pressure              P1=22.5MPa

2. The valve automatic control wrest moment on the spindle       M1=300N·m

3. The maximal wrest moment on the spindle gas valve            M2=450N·m

4. The returning water angle                     R=145^O

5. The drive motor

      The model           Y90S-4

      The power           1.1KW

      The rotation speed           1390r/min

6. The power source     380V/50HZ

7. The gas source     P=0.7-0.8Mpaa safety gas

8. The top & bottom stroke of the spindle          S1=530mm

9. The stroke of the steel bottle clamping machine      S2=100mm

10. The outer sizelength×width×height

            a. The main body size1000×600×3000

b. The electric operation station600×450×1150

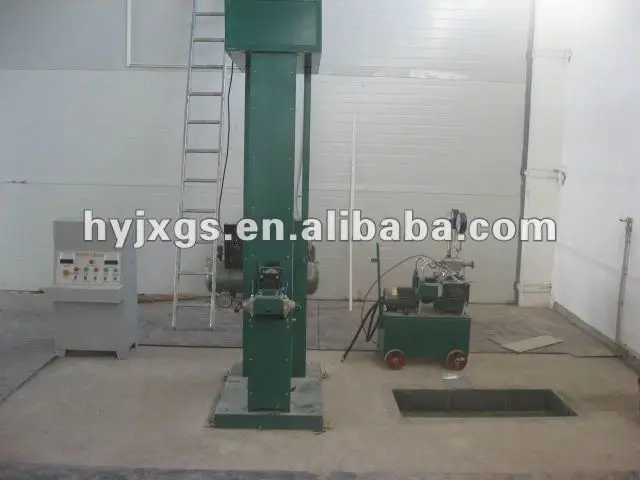

The electric box without the test pressure pump is installed on the main body of the equipment

c. The electric test pressure pump 655×480×1055

11. The weight the main body 750Kg

12. The specification of the measured steel bottleThe diameter    Φ210Φ220

    The height     H=1200-1600mm
