Product Overview
Description

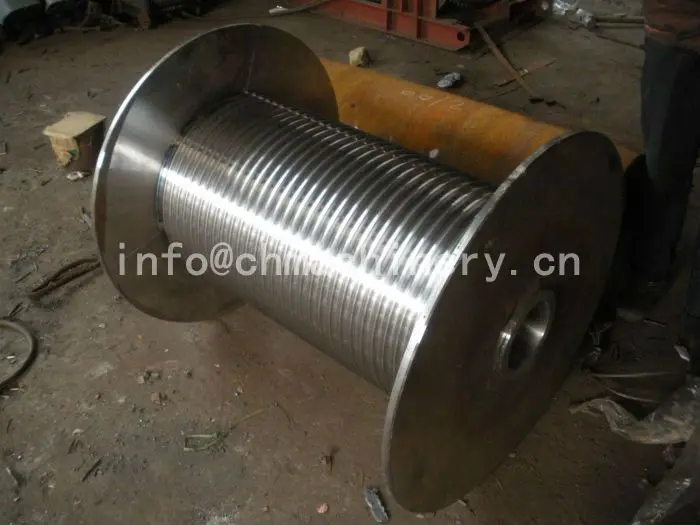

steel wire rope drum mainly for winch.
we can make the drum as customer drawing.
The drum made of welded steel plate.

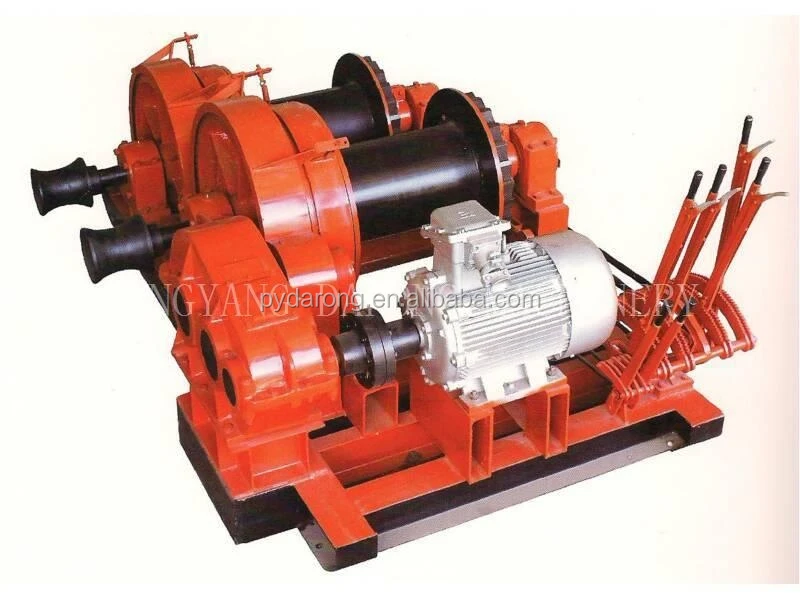

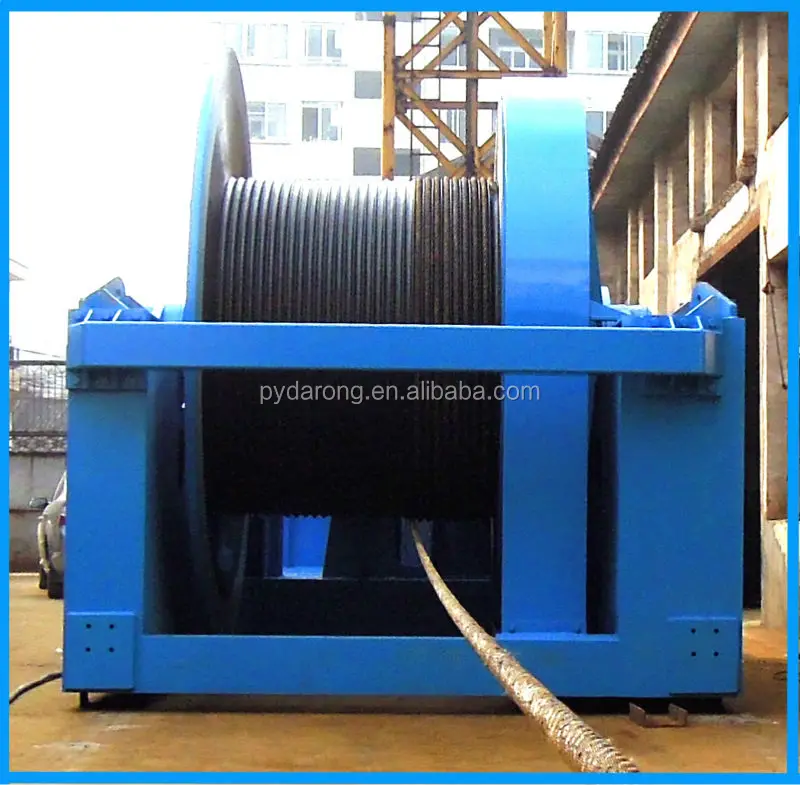

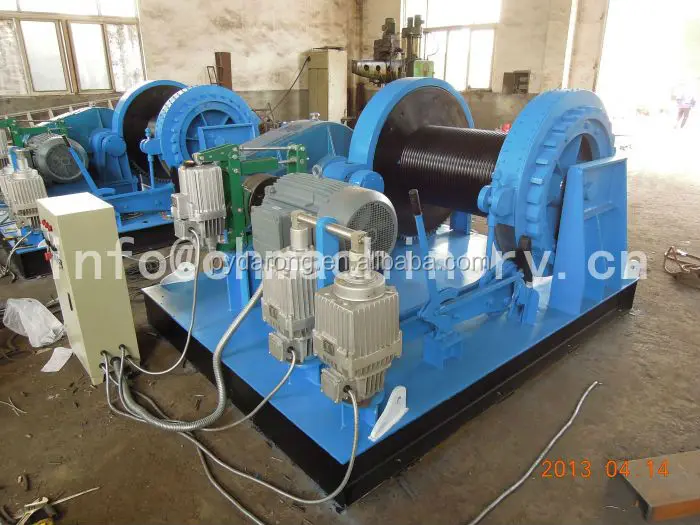

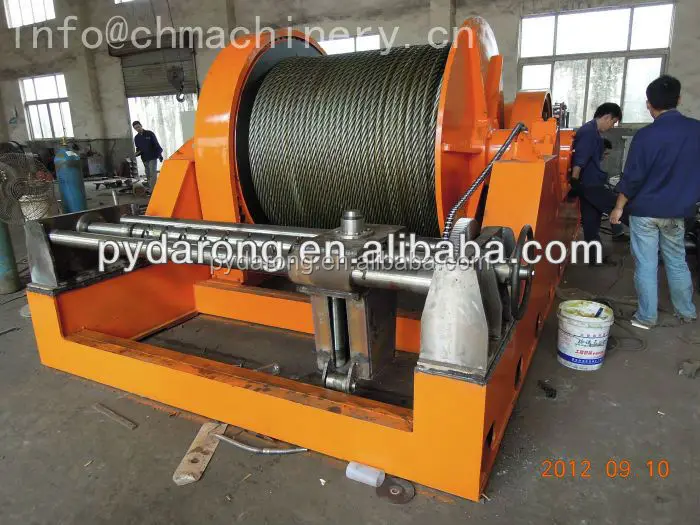

The follow is our winch detail
Model | JM2 | JM3 | JM5 | JM8 | JM10 | |
Line pull capacity (kg) | 2000 | 3000 | 5000 | 8000 | 10000 | |
average speed (m/min) | 12 | 10 | 10 | 10 | 9 | |
Wire rope(mm): | 12.5 | 15.5 | 21.5 | 26 | 30 | |
Reduction box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
Drum (mm) | Diameter(mm) | 273 | 325 | 406 | 500 | 550 |
Length | 480 | 520 | 645 | 900 | 1000 | |
Capacity(m) | 150 | 180 | 250 | 300 | 450 | |
motor | Type | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | YZR225M-8 | YZR250M1-8 |
Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 | |
Rotate speed(r/min) | 948 | 948 | 953 | 720 | 720 | |
Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-300/45 | YWZ-300 | |
Equipment Dimension (mm) | 1060x1500x750 | 1600x1100x820 | 1400x1910x950 | 2050x1640x1000 | 2470x2280x1180 | |
Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 | |

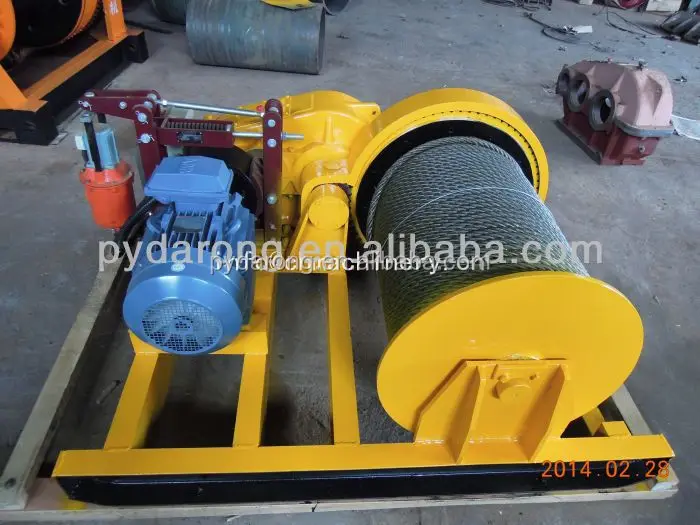

The JM-3T picture as follow
