Water Turbine/ Power Plant/ Generator/Turbina/ EPC project

Product Overview

Description

 WATER TURBINE/ POWER PLANT/ GENERATOR/ TURBINA/ EPC PROJECT

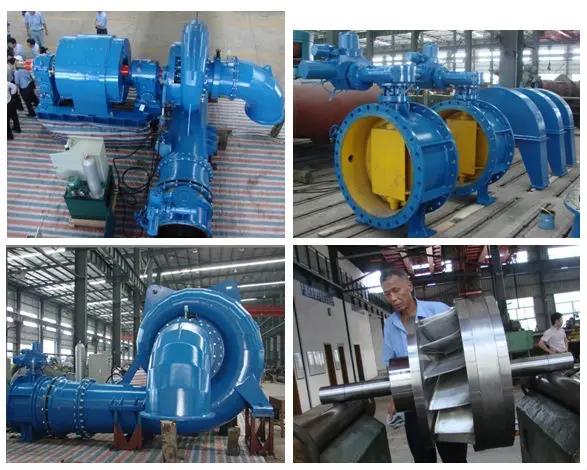

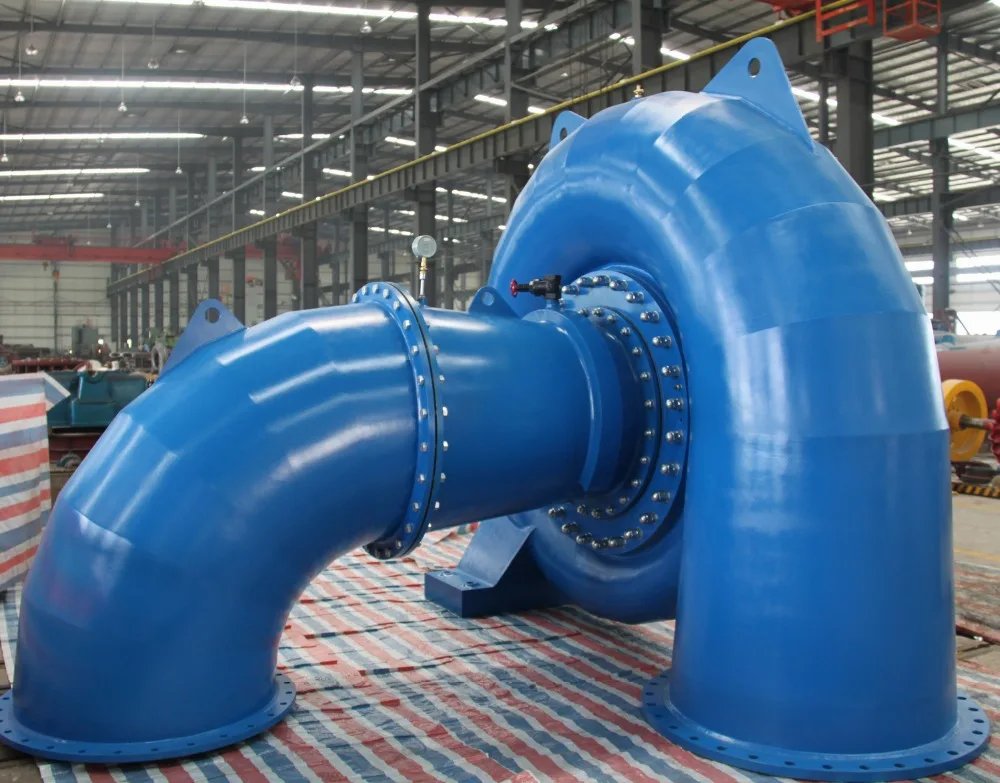

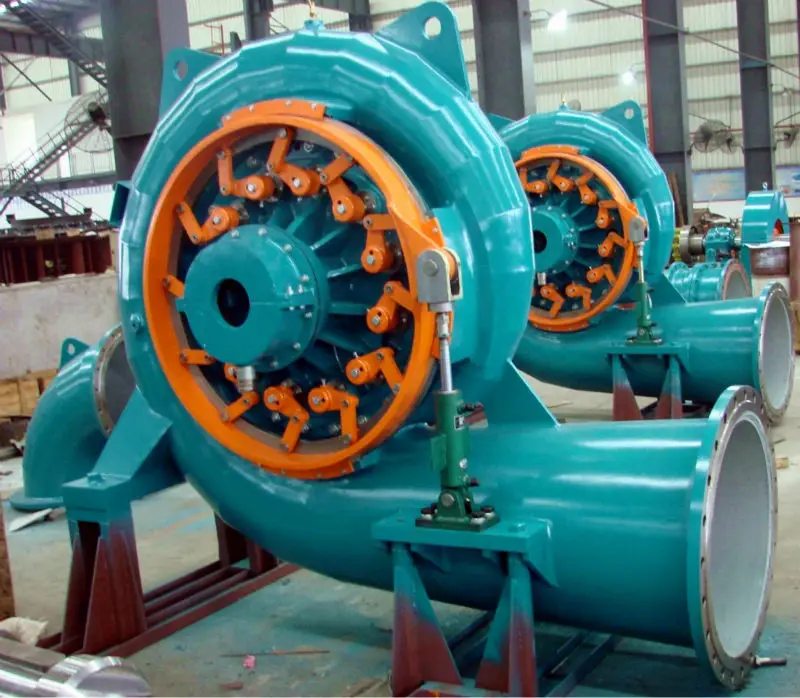

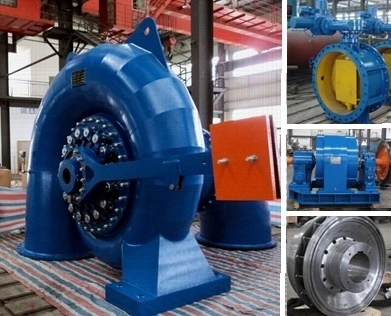

 FRANCIS



 The Francis turbine is designed for stations with a water head of 20 to 300m and a relative flow. Coming in vertical and  horizontal builds, the type is advantaged in its high efficiency, compact size and enhanced structure. With 2 or 3  supports which are at the same level, the horizontal Francis turbine offers you smooth experience in operation and  maintenance with such a neatly structured equipment. With a metal or concrete spiral case, adjustable guide vanes  and  a stay ring etc., the vertical Francis boasts of a runner  diameter over 1000mm. We have the best choice you need.



 Water head                  : 20-300m

 Output                          : 50KW -50MW

 Runner diameter      : 35cm -250cm

 Runner material       : stainless steel

 Build                             : vertical/horizontal

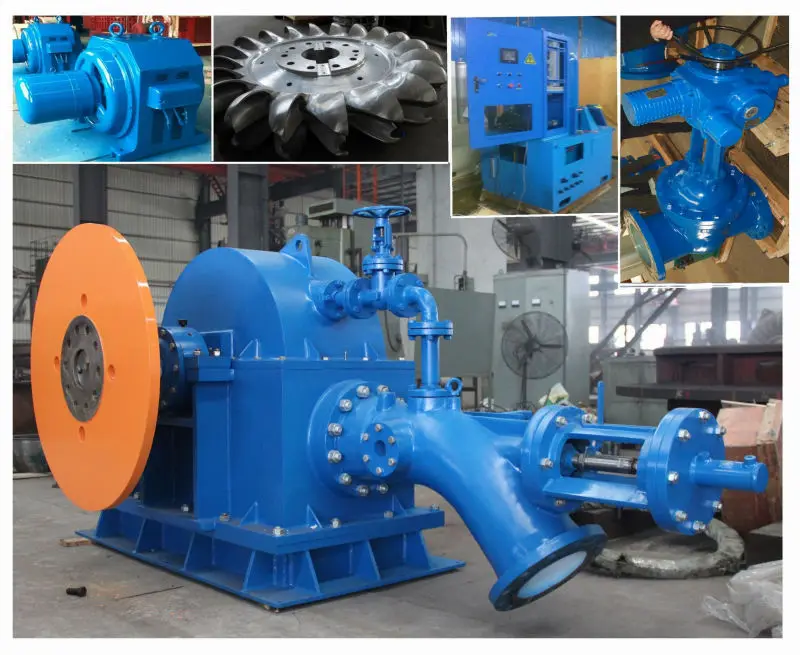

 PELTON



 Up from 10% of the rated flow at booting, the Pelton turbine is for a water head of 100 to 1000m and a small flow.  Coming in vertical and horizontal builds, and 1 to 6 nozzles, the highly-efficient Pelton can be seen in stations in wide  flow areas. Horizontal Peltons have 1 or 2 nozzles while vertical ones have more. Popularized in stations in mountains all  over the world, the Pelton is welcomed for its neat structure, low cost, high efficiency and a long life span.



 Water head                : 80-1000m

 Output                         : 50KW -20MW

 Runner diameter      : 55cm -230cm

 Runner material       : cast or forged stainless steel

 Build                            : vertical and horizontal

 No. of Nozzles           : 1-6



 As the Pelton runner is being greatly enhanced, it could be wholly casted or forged stainless and then shaped and  polished by numerical control machine. The Pelton produced in Fuchun is powerful, highly efficient, with a longer life  span. The turbines go through static and  dynamic balance test, UT test etc.



 KAPLAN



 The Kaplan turbine is designed for stations with a low water head(3-45 meters) but massive flows. Variations of the  Kaplan type differ in the blades:fixed and adjustable. Main components of a Kaplan are: runner, draft cone, water  chamber, guide vane, bearing and main shaft. The spiral case could be either steel or concrete. We produce runner with  a diameter of 60cm to 4 m, and a rated output of 50KW up to 20MW. The Kaplan turbine usaully comes with a vertical  shaft while the orientation of the generator shaft may differ, the turbine and the generator rotate at the same rate. An  additional speed-enhancing gear may be installed between the turbine and the generator, thus decreasing the  generator  size.



 Water head                  : 3-45m

 Output                          : 100KW -30MW

 Runner diameter       : 80cm -400cm

 Runner material       : stainless steel

 Build                             : vertical



 TURGO



 The Turgo turbine is a type of impulse turbine and it needs less water head than Pelton. It transfers the kinetic energy  through the nozzle, impacts on the runner and then drive the generator to produce electricity. The major difference  between a Turgo and a Pelton is the angle of runner center line and center line. The Turgo turbine takes water heads  from 30m to 400m, and water flows from 30L/s to 2000L/s. It outputs power from 10KW to 3200KW. Designed as  horizontal, the turbine is neatly structured, cost-efficient, and wear-resistant, with a diameter from 32cm to 80cm.



 Water head                   : 30-400m

 Output                            : 10KW -3,200KW

 Runner diameter         : 32cm -800cm

 Runner material           : cast/welded stainless steel

 Build                               : Horizontal

 Nozzle numbers          : 1-2



 TUBULAR



 The tubular turbine comes in Bulb tubular and shaft extension tubular. Coming with fixed blades or adjustable ones,  the turbine takes low water heads (2m to 25m) and a big flow. Main components of the turbine are: runner, draft cone,  water chamber, guide vane, bearing and main shaft. Its spiral case could be in steel or concrete and the runner  diameter  may be from 80cm to 5.8m, with a rated output from 200KW to 16MW. The turbine usually comes in  horizontal type, with variations sharing the same rotating speed. A speed gear, if needed,  should be installed between  the turbine and generator to decrease the unit size.



 Water head                  : 2-25m

 Output                           : 200KW -16MW

 Runner diameter        : 80cm -560cm

 Runner material         : stainless steel

 Build                             : Horizontal



 GENERATOR



 The hydro turbine generator is driven directly or indirectly by the hydro turbine. Coming in horizontal and vertical  builds, it rotates at a speed lower than 1400r/min, with brushless excitation and static silicon. Components of the  generator are: stator, rotor, base frame, bearing, excitation motor or collecting ring. The output voltage is 400V to  13.8KV, frequency 50Hz to 60Hz and output 50KW to 50MW. Our generators are highly efficient and tested under IEC  standards.



 Frequency                 : 50 or 60Hz

 Voltage                       : 0.38-13.8KV

 Build                           : vertical and horizontal

 Speed                          : 93.75-1500r/m

 Power factor             : 0.8 - 1

 Insulation                 : F/F

 Output                       : 50KW- 50MW
