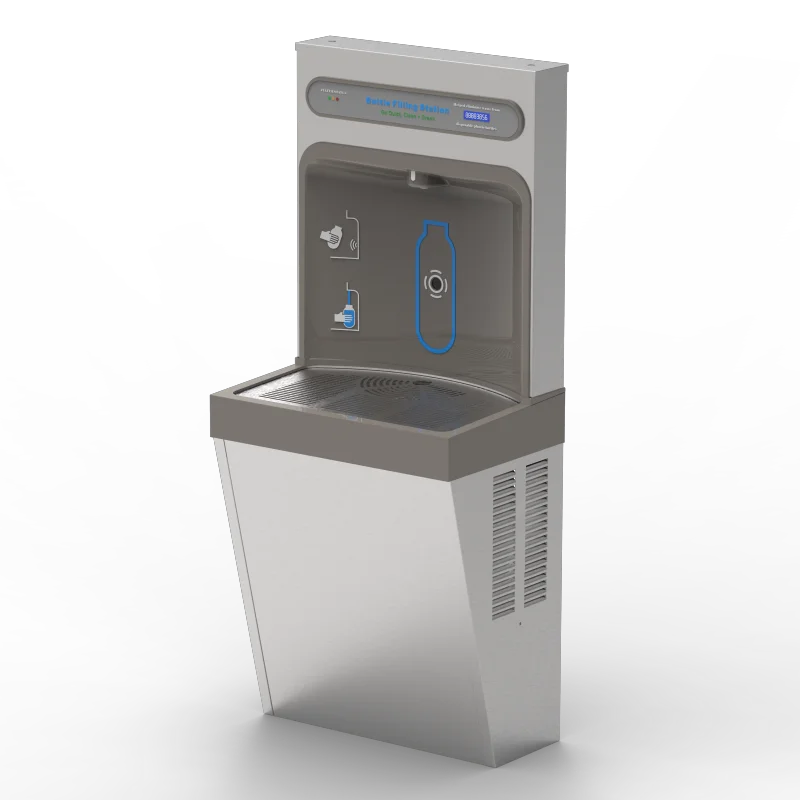

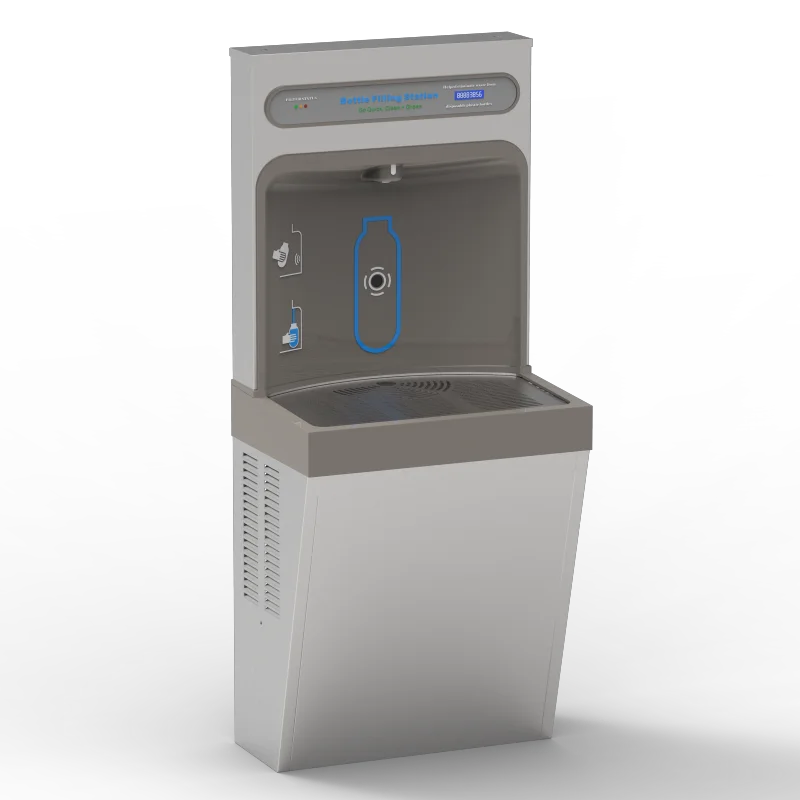

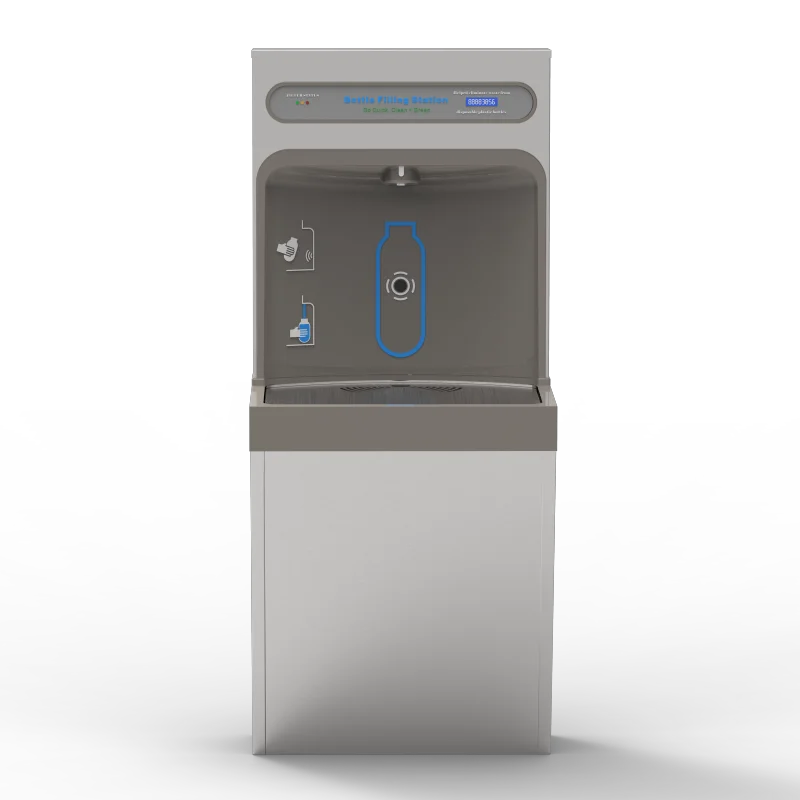

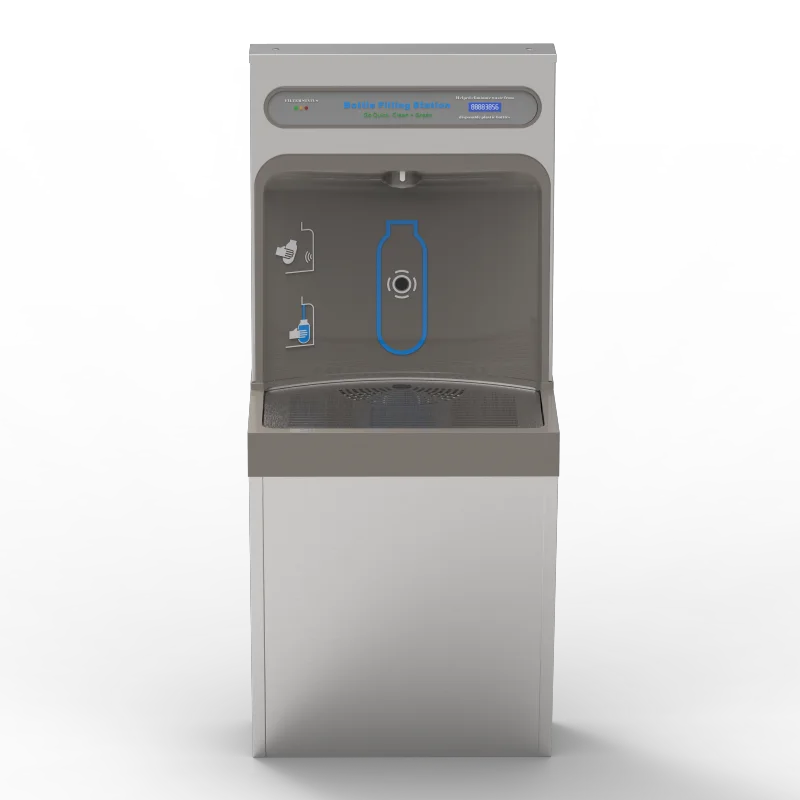

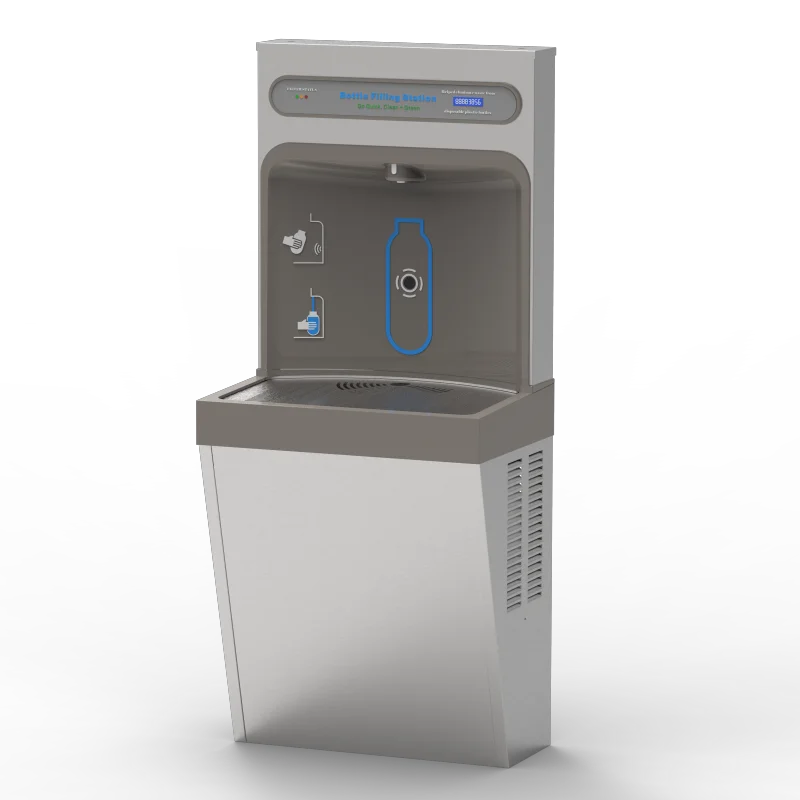

The Moerdeng TB45-2CV wall-mount refrigerated surface mount bottle filler delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. The modern, innovative design is tailored to meld with office spaces, universities and airports, ideal for installations with limited space. Sensor activated bottle filler allows for hands free operation. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Touchless, Hygienic hands-free sensor activation operation for easy use.
12" (305 mm) wall projection instead of 18" (457 mm)
Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
Stainless steel grate for convenient hands-free filling; grate is removable for easy cleaning of the basin.
Real drain system eliminates standing water.
Visual filter monitor with LED filter status indicator for when filter change is necessary.
The Counter informs user of number of 20 oz. plastic water bottles saved from waste.
Front access panel for easy maintenanced and filter replacement.
Surface-mounted for easy install
The filter is for lead, Class 1 particulate, chlorine, taste and odor reduction.
Rated for indoor use.
Item | Specification |
Model | TB45-2CV |
Features | Filtered Hands Free Laminar Flow Real Drain Visual Filter Monitor |
Number of Stations | 1 |
Included with Pruduct | Bottle Filler;Water Cooler;Filter(optional) |
Material | SUS304 Stainless Steel |
Dimensions | L:454mm,W:302mm,H:1048mm |
Power | 220/50Hz or 115V/60Hz ,Optional |
Chilling Capacity | 30L/H(8GPH) |
Mounting Option | Wall Mount(On Wall) |
Bubbler Style | No Bubbler |
Inlet | 1/4” O.D. Tubing |
Outlet | Φ25mm tube outlet |
Installation Location | Indoor |
ADA | Yes |
Filtered | Yes,Optional |
