One line automatic Cotton Bud Machine with dry and packing

Product Overview

Description

*Introduction of the machines

This machine makes usage of the compputer PLC procedure, and dry by red sunlight, drying during the production. And through getting into the machine for packing part, then reach open, cotton feeding, molding , drying and packing, then save the production time and save staffs. Then increase the production efficiency, not in need of quantity inaccuracy and not clear conditions. The machine is suitable for packing by cartons of different pcs, and by pe bags. sticking sticks, paper sticks, wooden sticks, and single head cotton buds and baby cotton buds are can be made by that machine.



* Machine function

Drying Power	9kw (by infrared)		Production capacity	1200-1500pcs/minute
Total power	13kw,380v 3phase		Model No.	HD-ACSM01
weight of machine	2000KGS		Suitable stick	plastic stick, paper stick wooden stick bamboo stick
Size of machine	10x1.0x1.4m		Suitable Stick size	length 72mm(±1mm) diameter:2.3—2.4mm        weight:15g
Shape of cotton buds	single head ,double head.		Suitable Cotton strip/sliver	1.5gsm
manner of packing	zip-lock bag cylindric box square box cardboard box		Machine Speed in different stick	Plastic stick max can be 1500pcs/min Others around 1200pcs/min



 *Vedio link : //v.youku.com/v_show/id_XMjE2NDA5MjUy.html

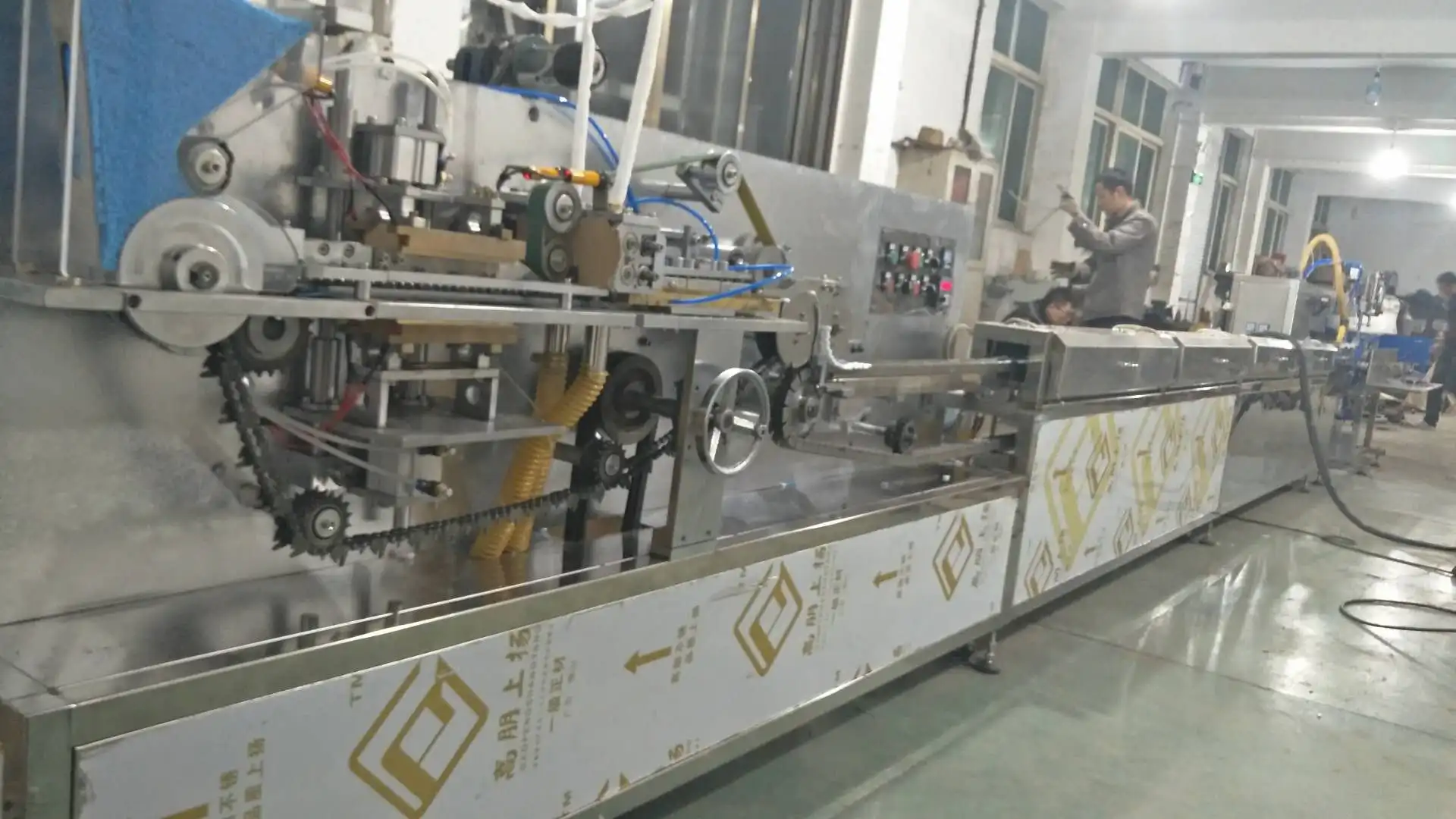

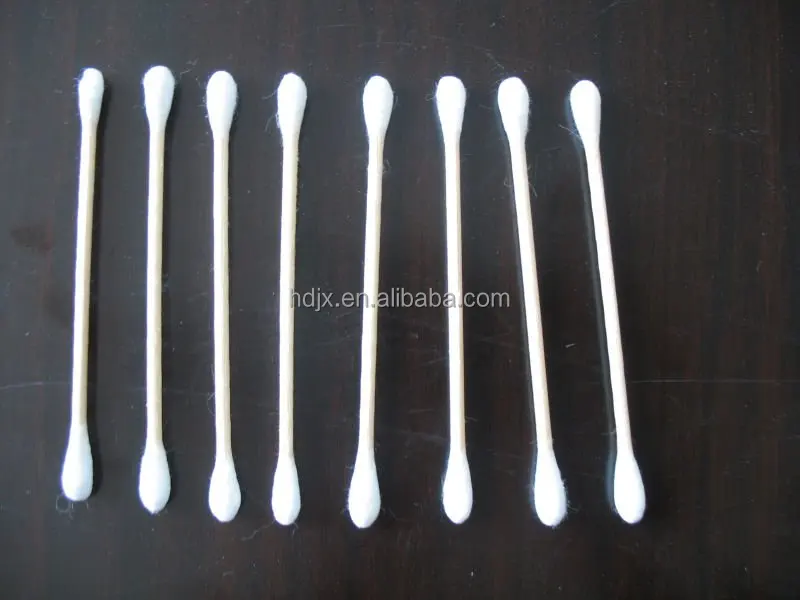

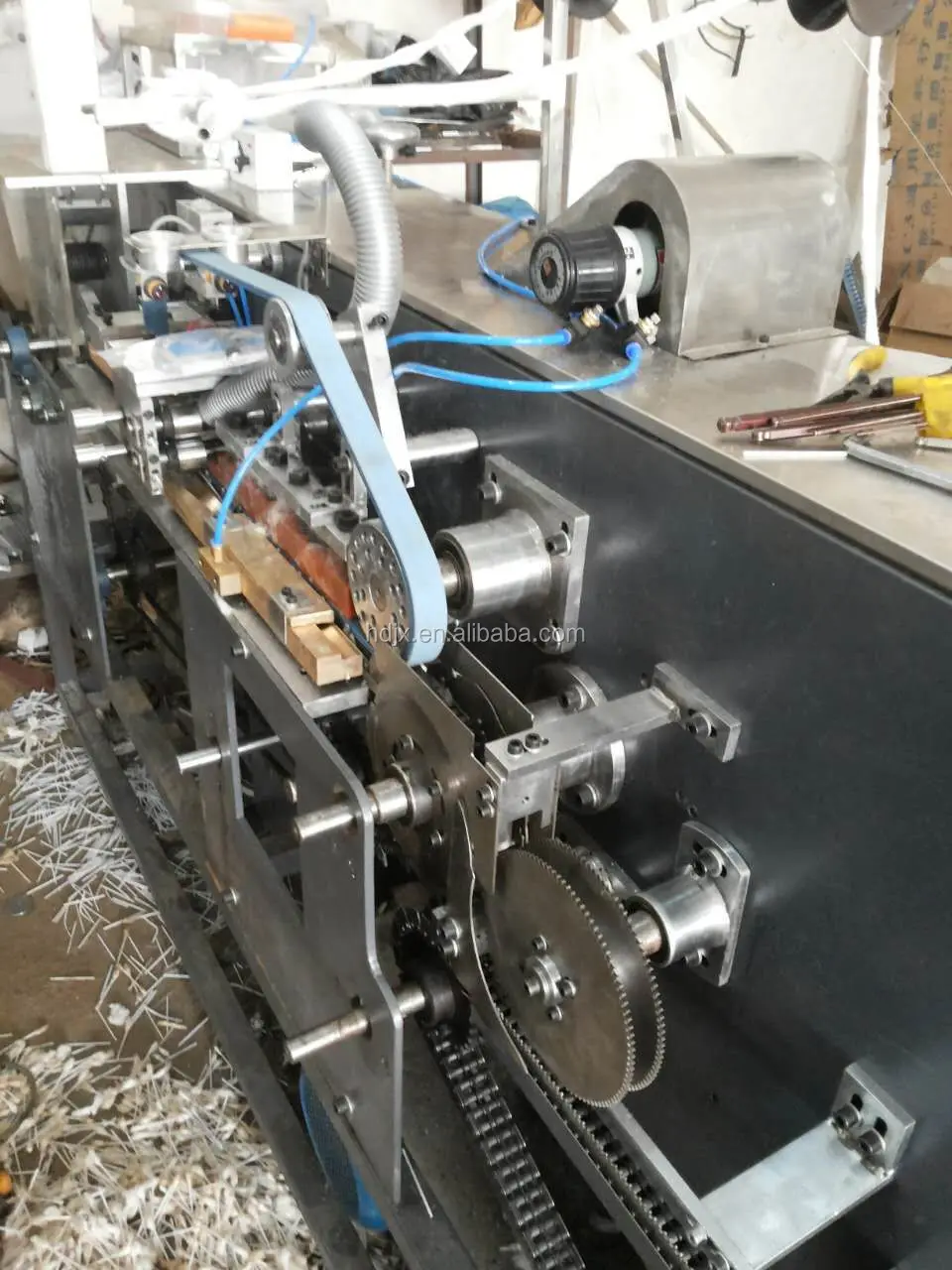

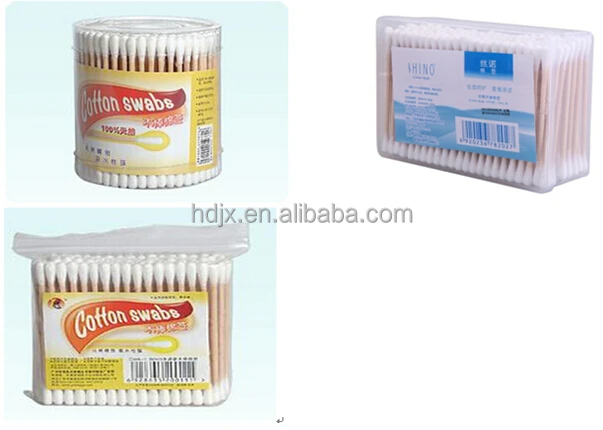

*Photo of the machine and packing types
