Product Overview
Description
Product Description

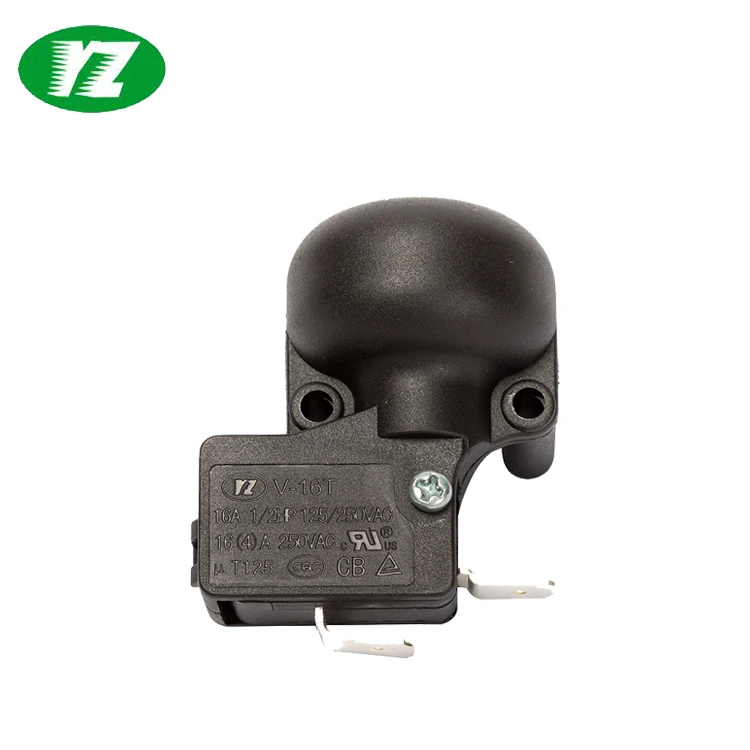

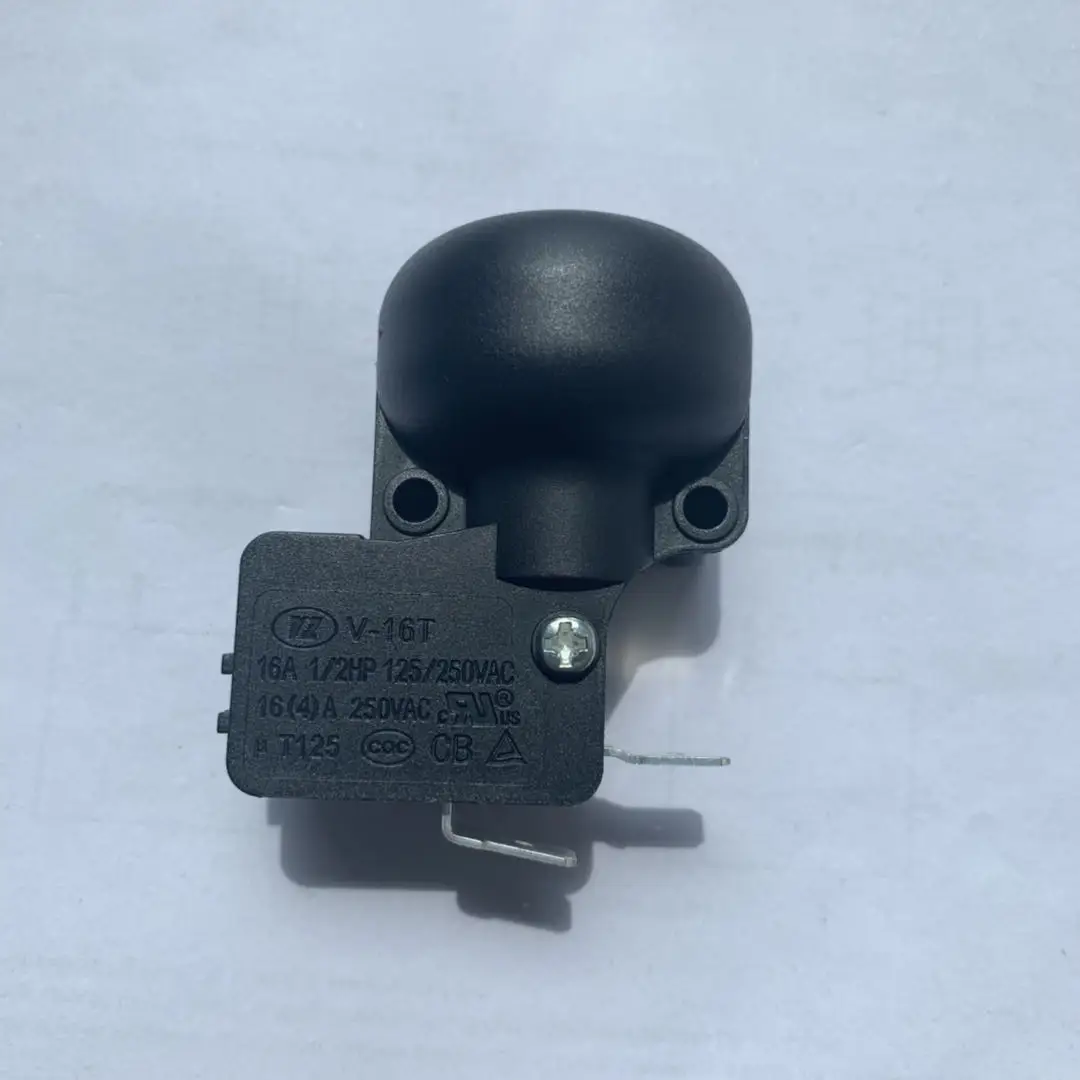

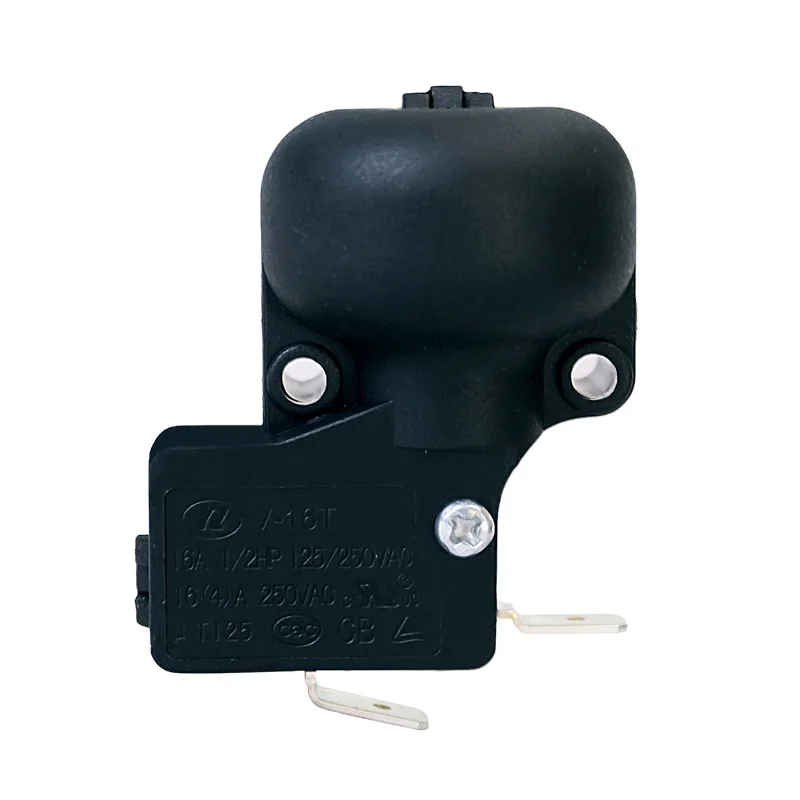

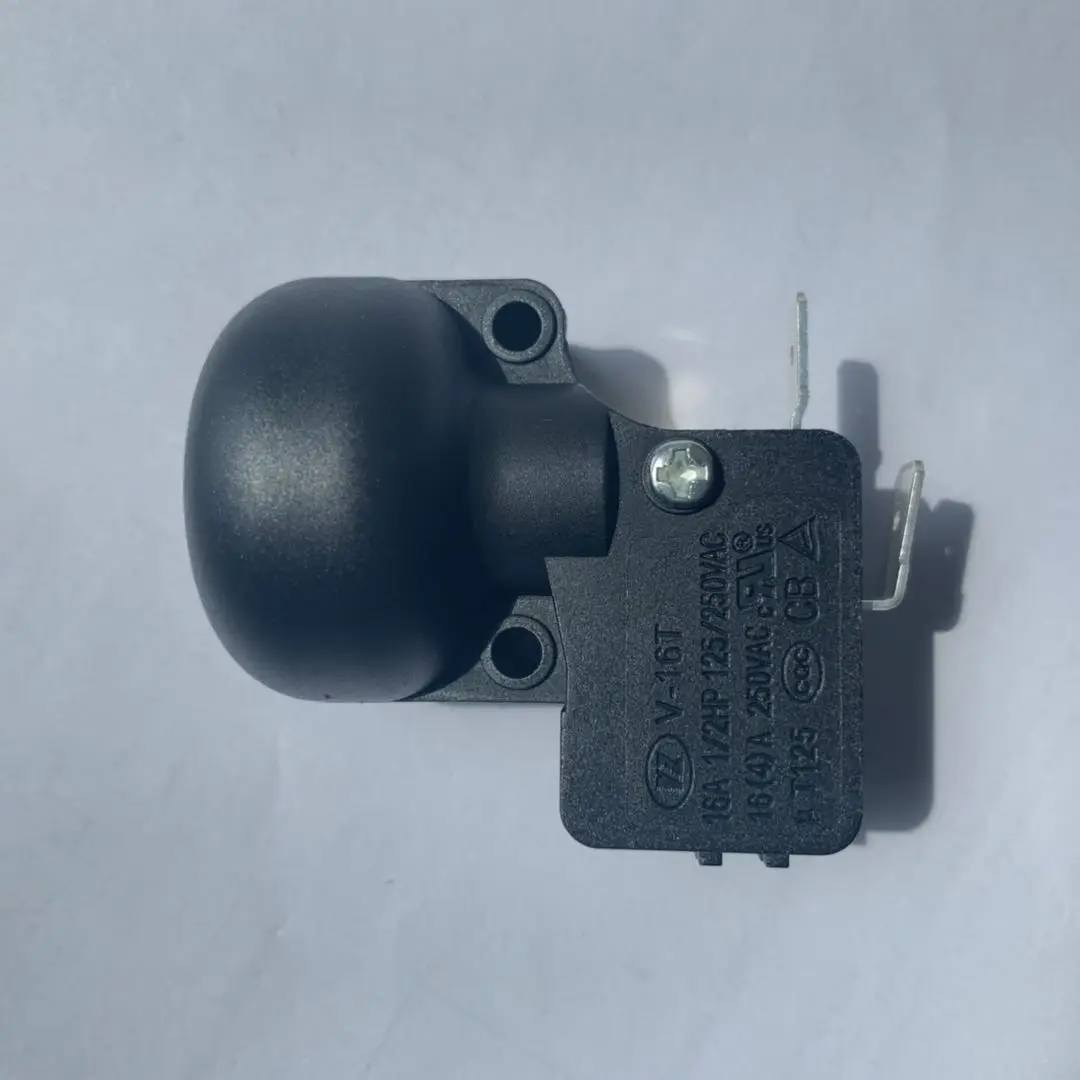

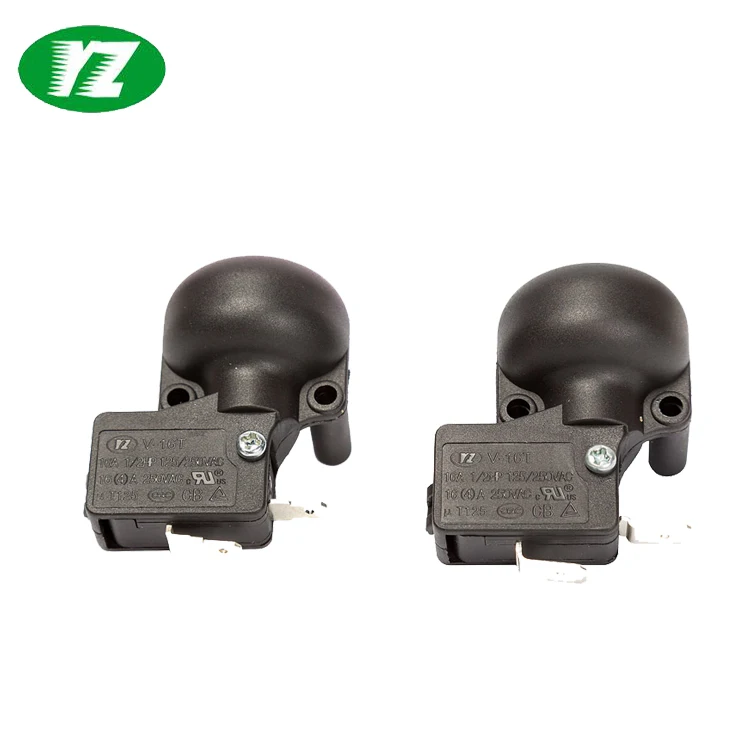

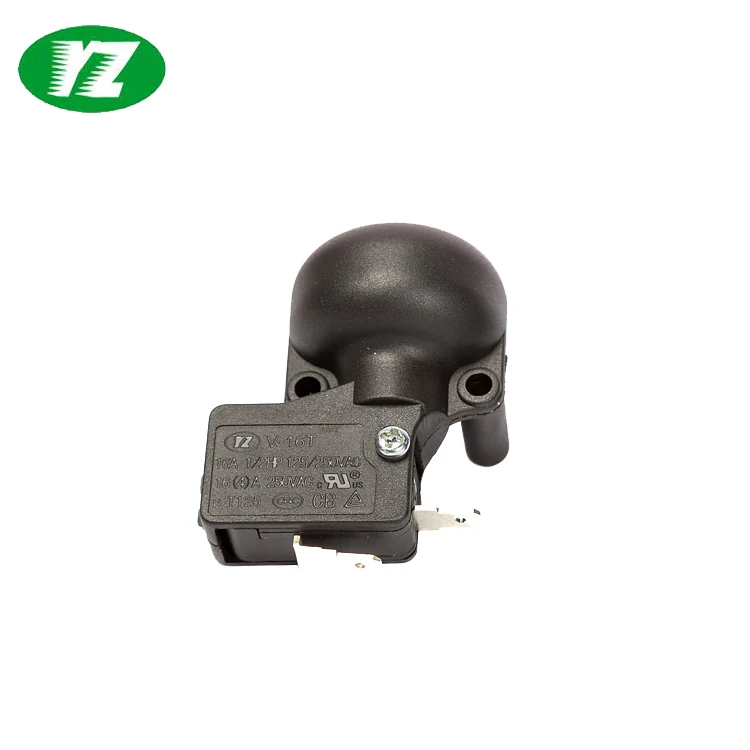

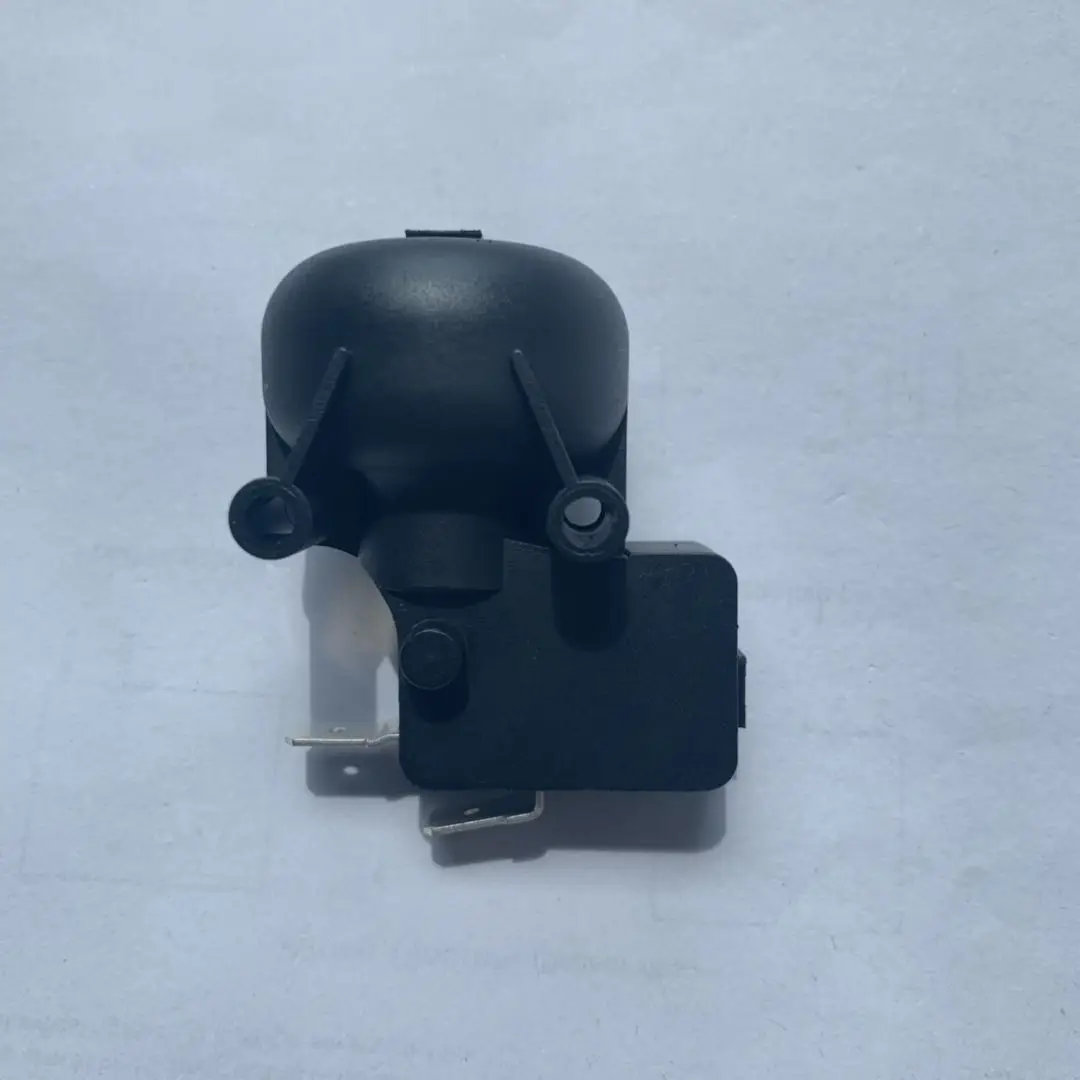

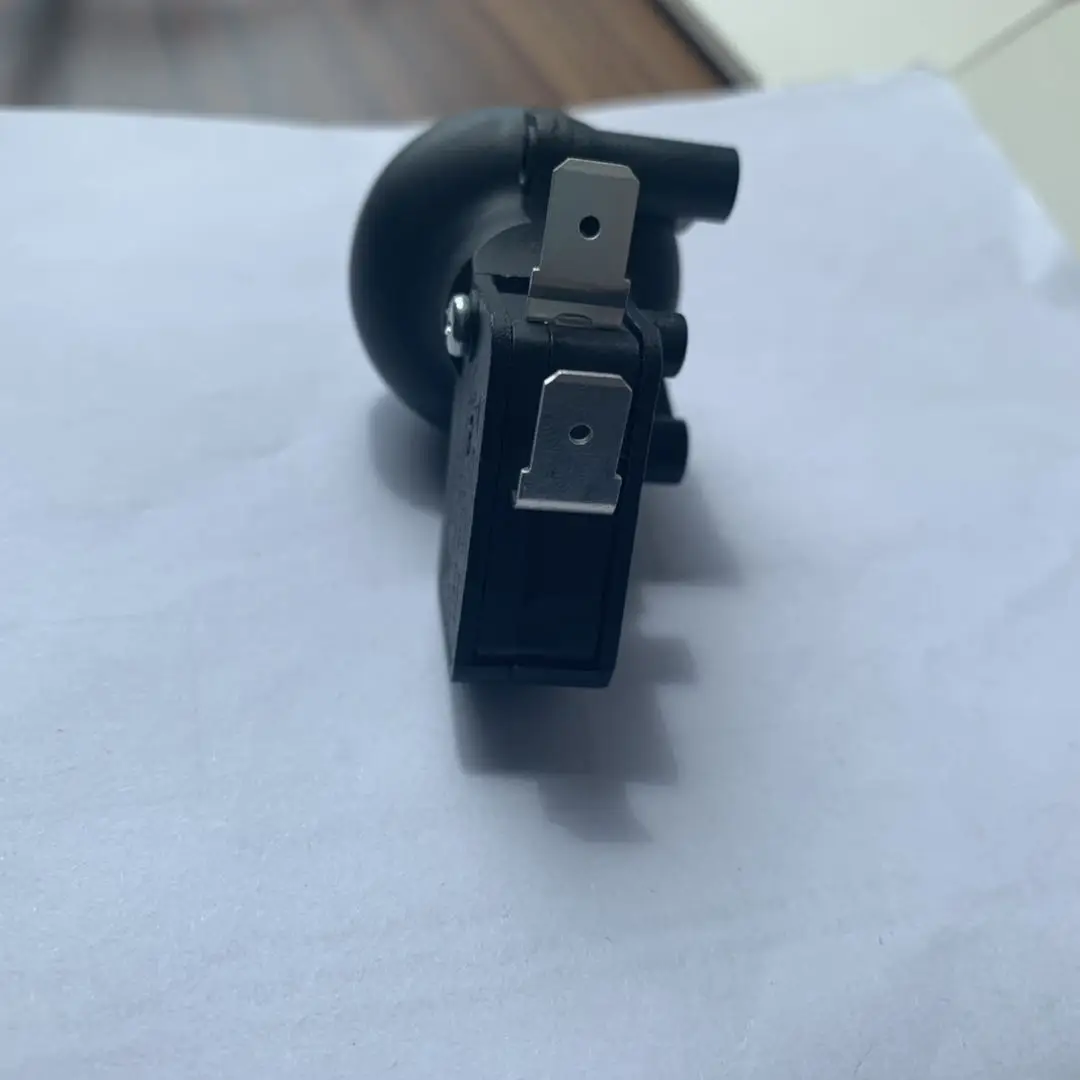

Electronic Safety Tilt Switch for Heaters
household appliances safety switch / safety tip over switch / heater safety switch tip over switch / dump switch for heater, Fall Protective Micro Switch&Heater Tilt Switch,Safety dumping tip over switch
Ball Tilt Switch For Fan Heater Characteristic:
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Long life, high reliability.
*Variety of contact terminals.
*Apply to Electric Warmer, Electrical fan home appliance, Electronic equipment.

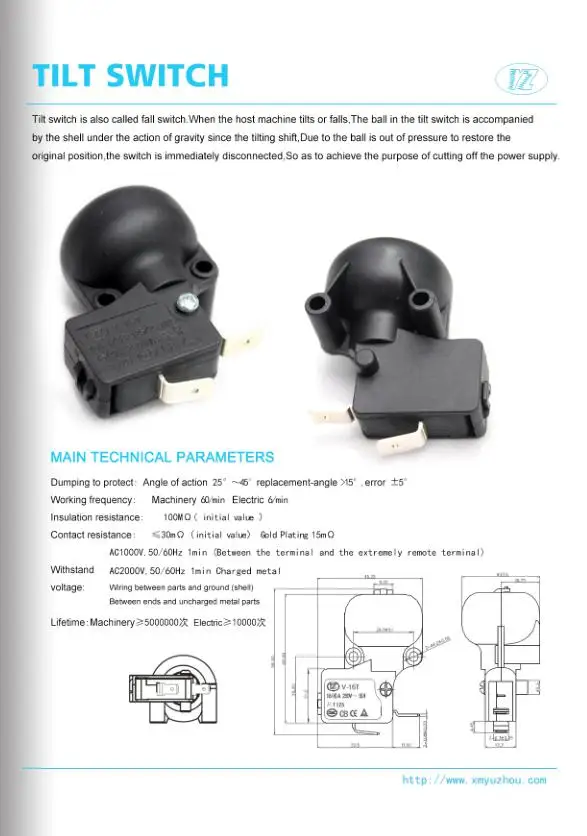

Working Principle:
As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.

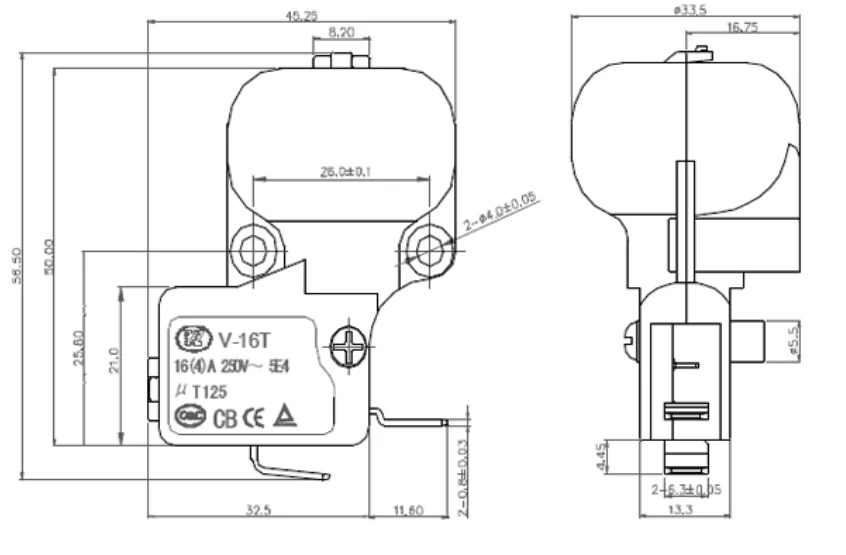

Parameter of 16A 250V Oven Dump Switch:
| Item | Value | |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 30 cycles/min | |
| Insulation Resistance | >=100 MΩ(500VDC) | |
| Contact resistance | <=30mΩ(Initial value) | |
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
| Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts | AC3750V,50/60Hz,1min | |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | |
| Shork Resistance | Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max | |
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=50000 cycles | |
| Degree of protection | IEC IP67 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | 125Degree60%RH below(No ice and dew) | |
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) | |
| Weight | Approx.5.95g(No lever) | |
Company Information
Xiamen Universal Electronic Co., Ltd is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.

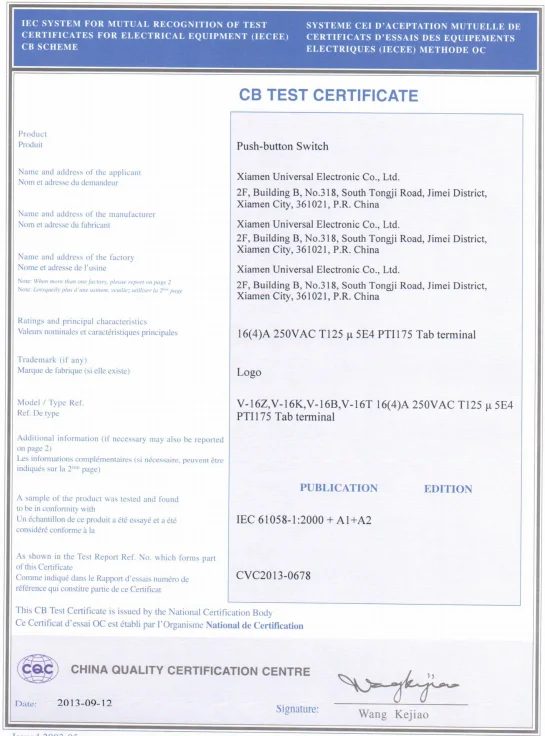

Certificates:
