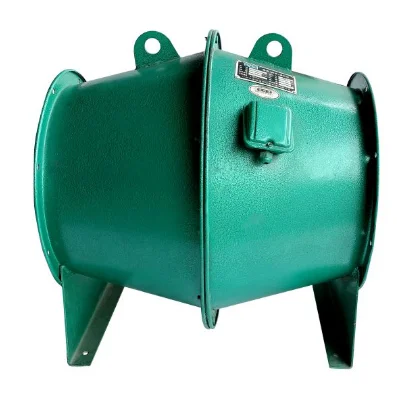

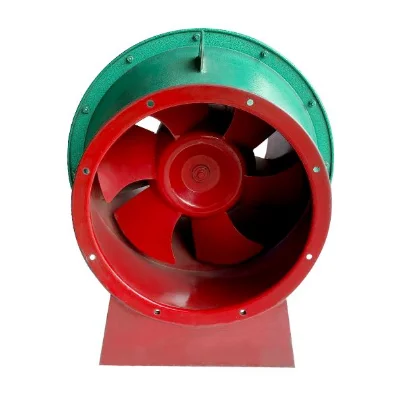

STG series high efficiency and low noise oblique flow fan widely used with air-conditioning for ventilation in civil construction or other industry fields, replaces low pressure fan, save investment and space with simple design and easy to install. Suitable to used in the duct ventilation place where the pressure of fan can not meets the needs. The temperature of transmitted is between -20°C to 80°C, the humidity is below 90%, dust containing index is below 150mg/m3
Technical Parameter
Model No.
Power
(kw)
Revolution
(rpm)
Wind Flow
(m3/h)
Pressure
(Pa)
3.0F
0.25
1400
864-2592
179-125
3.5S
0.18
910
908-2725
107-75
3.5F
0.37
1400
1372-4116
243-170
4.0S
0.25
910
1356-4068
139-97
4.0F
0.75
1400
2048-5163
318-222
4.5S
0.37
910
1931-4862
177-131
4.5F
1.1
1400
2916-5832
403-308
5.0S
0.75
910
2648-6676
218-152
5.0F
2.2
1420
4000-10084
498-347
6.0S
1.5
960
4576
312-233
6.0F
5.5
1450
11441
717-500
7.0S
3
960
6912-17425
427-318
80.S
7.5
960
10846-21697
558-427
Composition: steel plate, cast iron blades and 100% copper motor.
