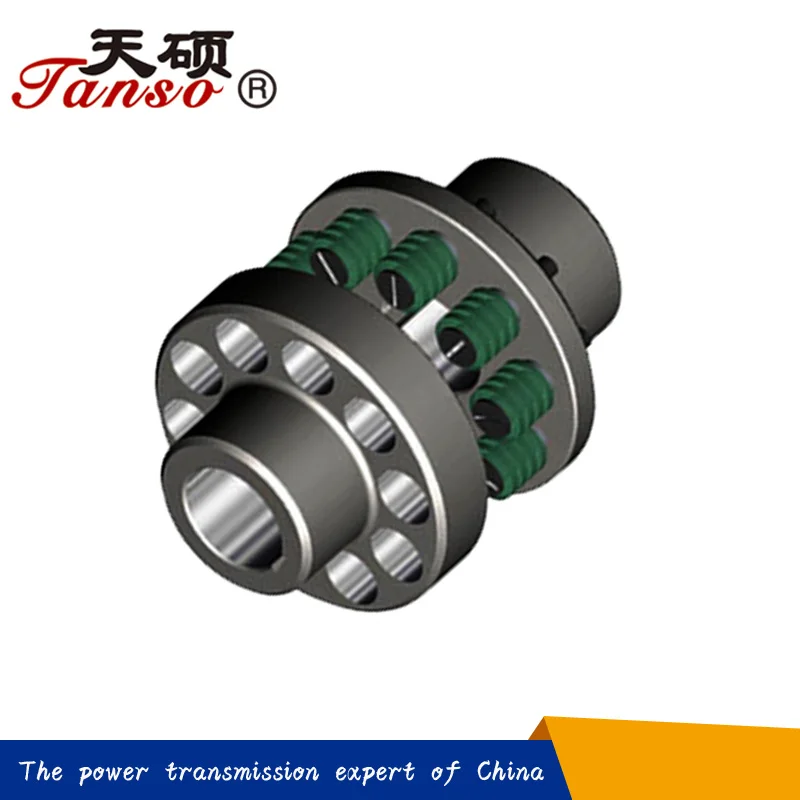

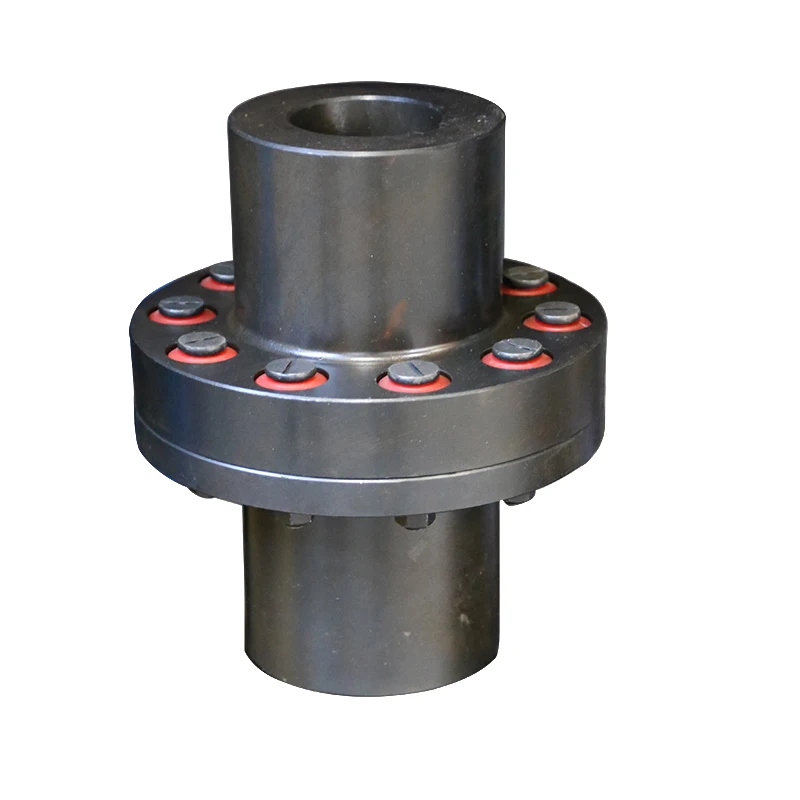

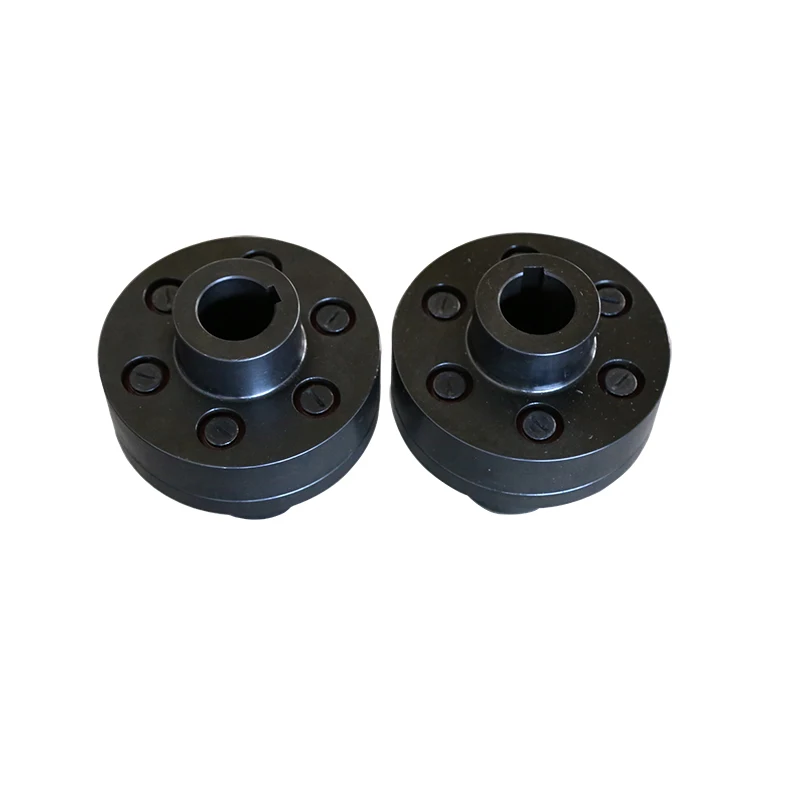

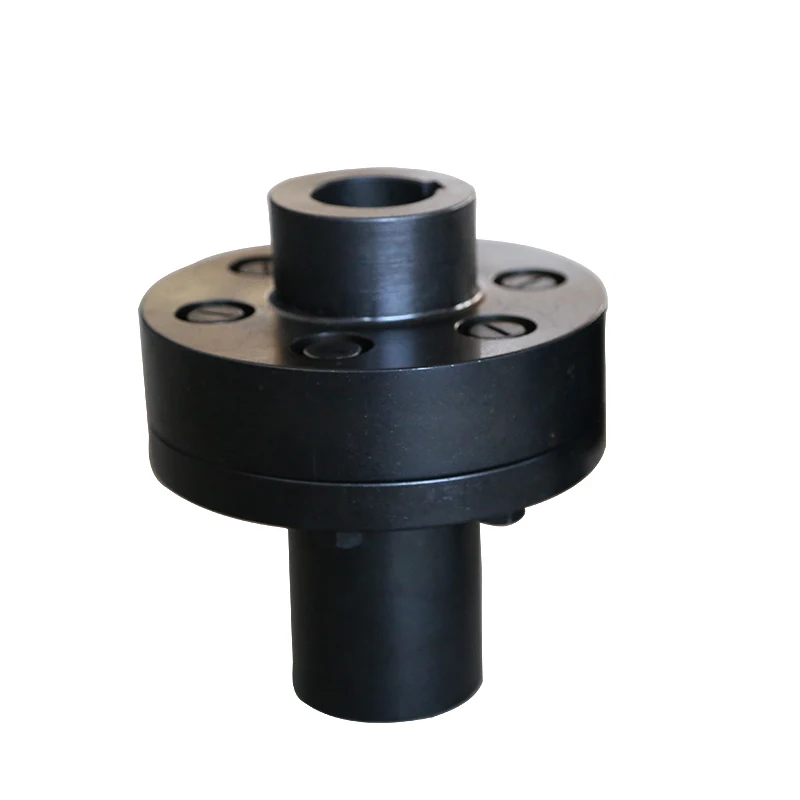

TL flexible pin & bush coupling
- Category: Shaft Couplings >>>
- Supplier: Cangzhou Tanso Coupling Co. Ltd.
Share on (304373524):
Product Overview
Description
The coupling consists of two hubs:one pin hub with the corresponding pins and a bush hub.The torque is transmitted via the steel pins with their taper elastomer rings and the corresponding bores in the bush hub.
As a result all kinds of shaft misalignment,for example caused by inaccurate alignment of the driving or driven elements,is compensated for reliably and vibrations and shocks are compensated for excellently.
The coupling is maintenance-free and is used in general engineering and the pump industy,conveyor technology,etc.For an optimum adjustment to the different applications,14-off size are available covering torques up to 29100Nm.Apart from the standard programme customized solutions are available.
Features of Tl series pin & bush coupling
- Torsinally flexible, matintenace free
- Vibration-reducing
- Tadial assembly/disassembly
- Axial plug-in,failsafe
- Good dynamical features
- Short design
- Ptotected surfaces
- Elastomer made of NBR
Type | Nominal torque Tn N.m | Max speed [n] r/min | Bore diameter d,d1,dz | Bore length | Dimension | Mass kg | |||
Y | J,J1,Z | D | S | A | |||||
L | L1 | ||||||||
TL1 | 6.3 | 8800 | 9~14 | 20~32 | 14~20 | 71 | 3 | 18 | 1.2 |
TL2 | 16 | 7600 | 12~19 | 32~42 | 20~42 | 80 | 3 | 18 | 1.8 |
TL3 | 31.5 | 6300 | 16~25 | 42~62 | 30~62 | 95 | 4 | 35 | 2.0 |
TL4 | 63 | 5700 | 20~32 | 52~82 | 38~82 | 106 | 4 | 35 | 2.4 |
TL5 | 125 | 4600 | 25~40 | 62~112 | 44~112 | 130 | 5 | 45 | 8.5 |
TL6 | 250 | 3800 | 32~50 | 82~112 | 60~112 | 160 | 5 | 45 | 11 |
TL7 | 500 | 3600 | 40~65 | 112~142 | 84~142 | 190 | 5 | 45 | 16 |
TL8 | 710 | 3000 | 45~80 | 112~172 | 84~172 | 224 | 6 | 65 | 26 |
TL9 | 1000 | 2850 | 50~85 | 112~172 | 84~172 | 250 | 6 | 65 | 32 |
TL10 | 2000 | 2300 | 63~120 | 142~212 | 107~212 | 315 | 8 | 80 | 68 |
TL11 | 4000 | 1800 | 80~140 | 172~252 | 132~252 | 400 | 10 | 100 | 125 |
TL12 | 8000 | 1450 | 100~180 | 212~302 | 167~302 | 475 | 12 | 130 | 220 |
TL13 | 16000 | 1150 | 120~220 | 212~352 | 167~352 | 600 | 14 | 180 | 430 |
