Chemical ore inorganic fertilizer powder mechanical pressure dry double roller hydraulic agglomerating briquettes making machine

Product Overview

Description

Briquettes making machine operating principle:

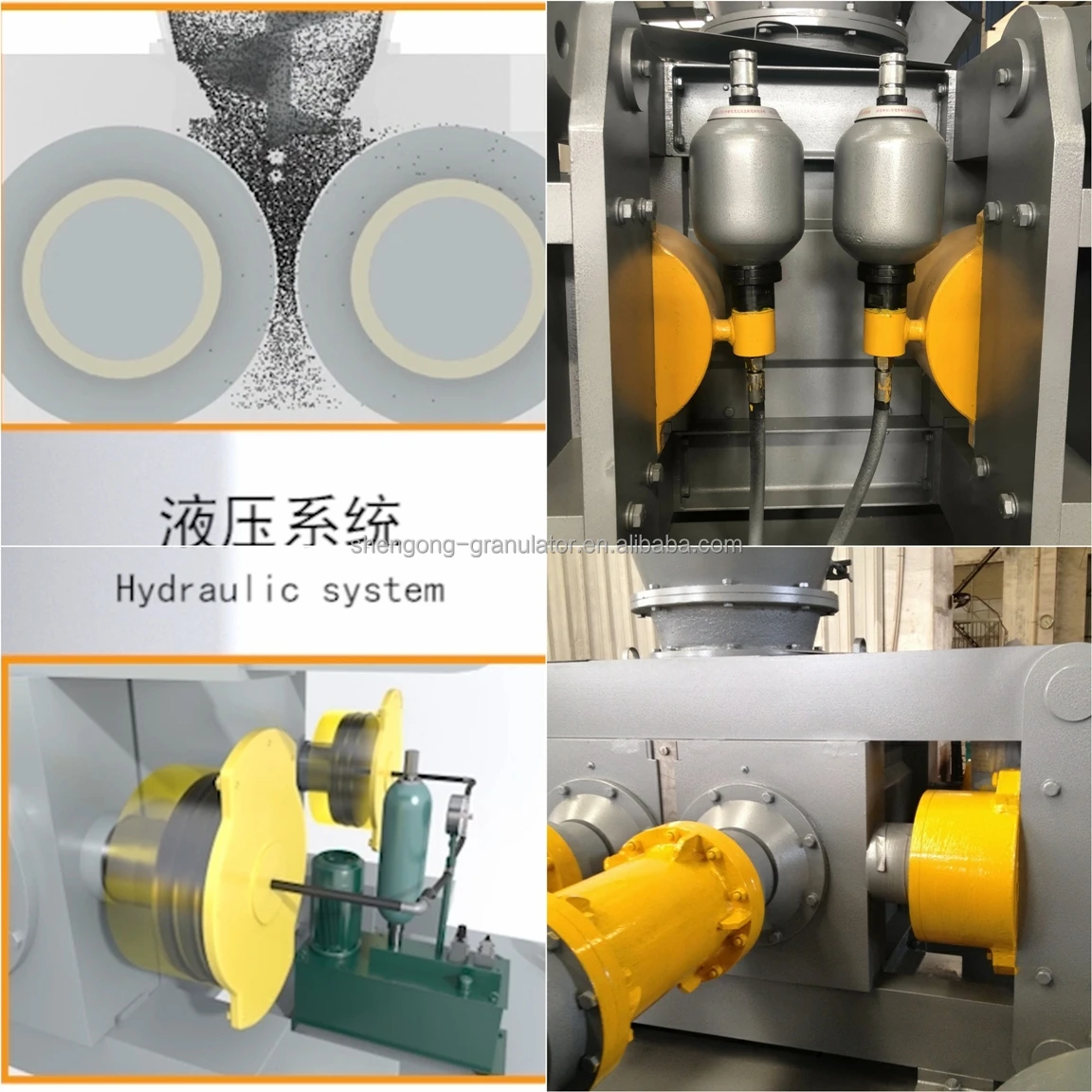

The dry briquette making machine adopts two rollers compaction. Between 2 rollers, there is a gap. One roller is fixed and the other is floating. With the support of hydraulic pistons, the floating roller is pushed close to the other and the hydraulic system can has the action of compensation and protection. In the surface of the roller, it is profiled with plenty of die holes of "Eggs" shape. Feedstock (powders) is fed into the gap between two rollers by screw. With rotating in reverse of two rollers, powder are compacted into Final product directly.

Briquettes making machine technical parameter:

a).roller diameter: 504         roller width: 300mm

b).roller speed:14-20rpm.

c).screw feeder: 11kw motor with VFD

d).accumulator pre-pressurization: 6-10Mpa

e).linear pressure: 55kN/cm

f). briquettes size: 41×28×22

g).power of compactor: 75kw

h).installed capacity: about 88kw

i).dim (L×W×H) : 3650×2250×2500mm

j).wt: abt 18t

k).output:6-8t/h

l). briquettes shape: oval/oblate/almond/square

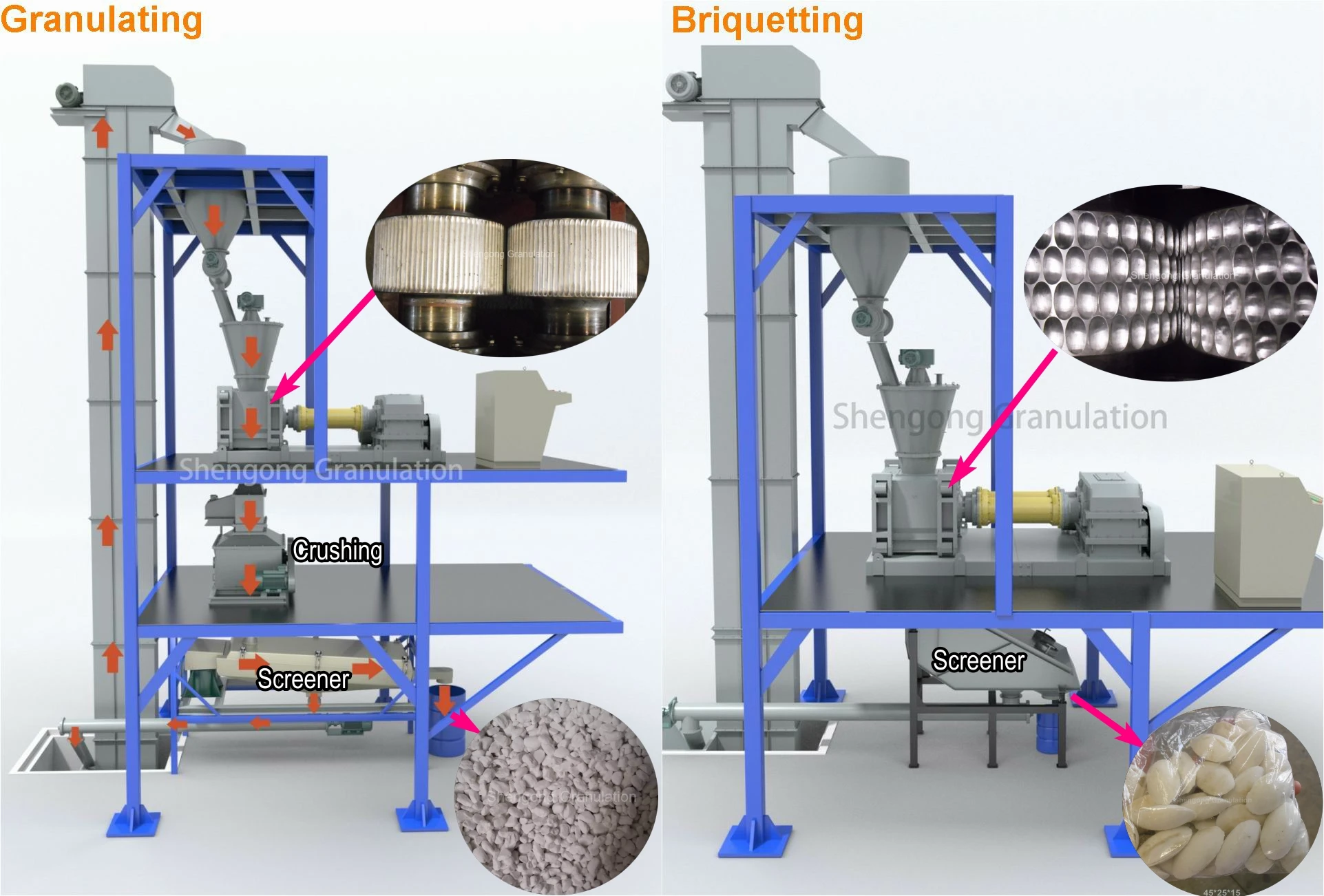

Briquette making machine line components:

Briquettes making machineapplications:

1.fertilizer:

Potassium Sulfate(SOP), potassium chloride, Russia red potassium, potassium nitrate, ammonium chloride, Ammonium Phosphate Monobasic, Diammonium phosphate(DAP), NPK compound fertilizer, import Russia Potassium Sulfate(SOP), ground phosphorite, NH4SO4, concentrated superphosphate, humic acid etc.

2.powder material

 zinc oxide, lead oxide, calcium chloride, calcium phosphate, high test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

3.chemical material

4.FGD gypsum

Note: It takes FGD gypsum for example, vary in accordance with the material to be briquetted.

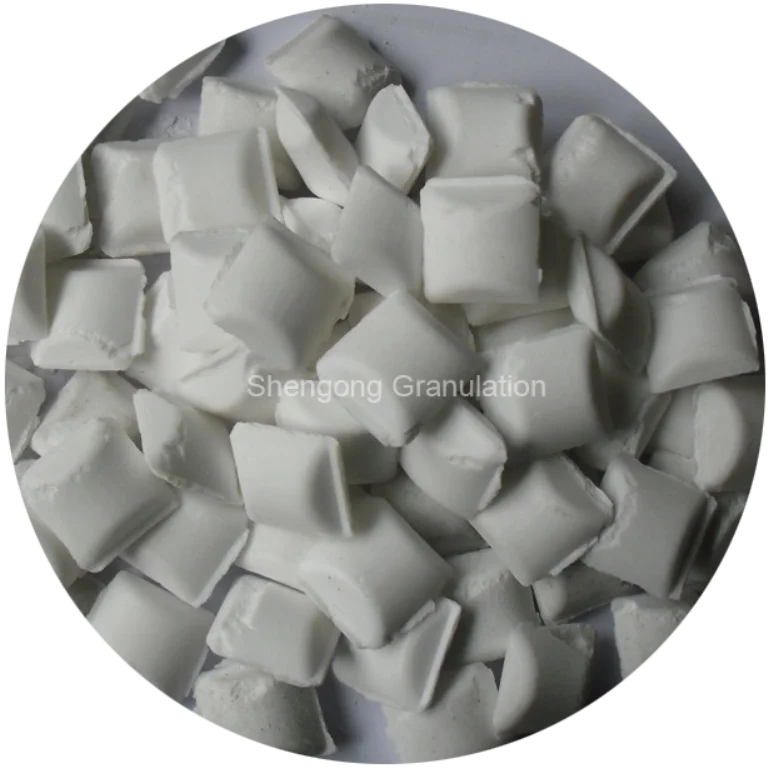

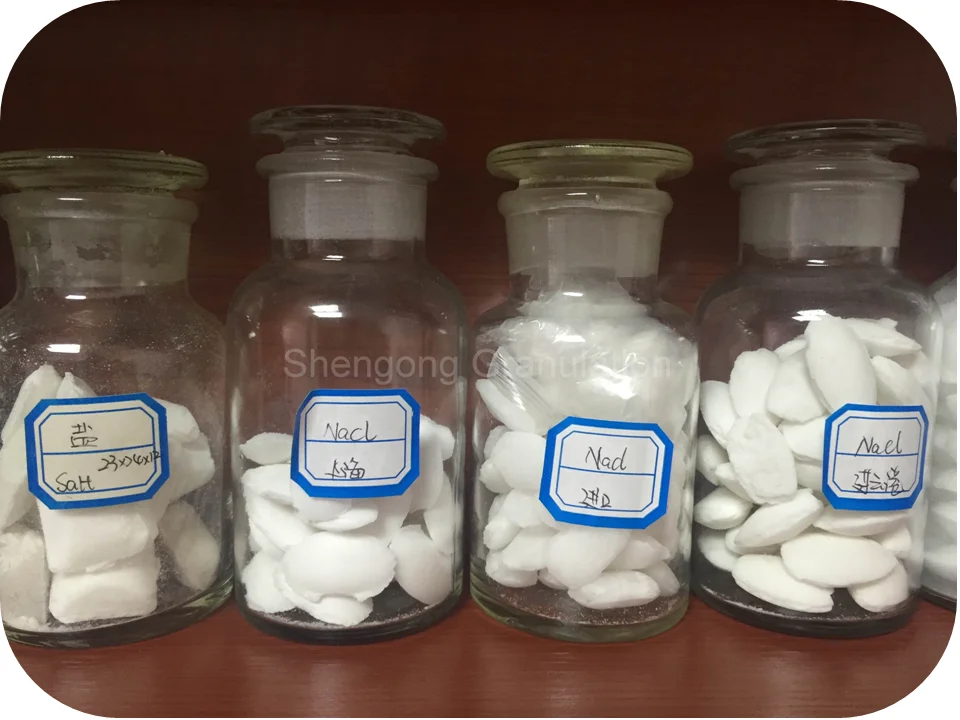

Sodium chloride briquettes

Difference of Briquettes making machine type A and type B.

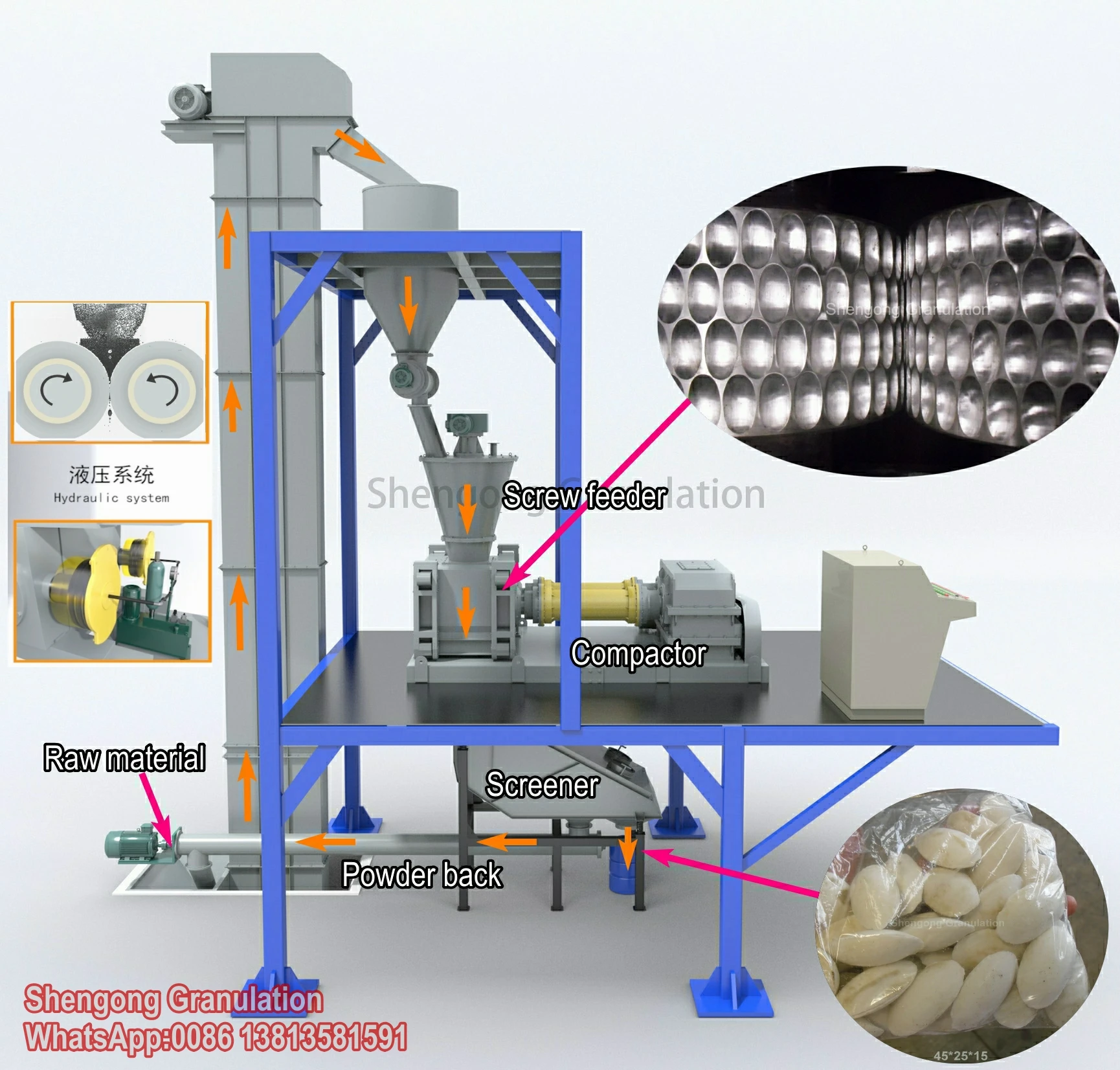

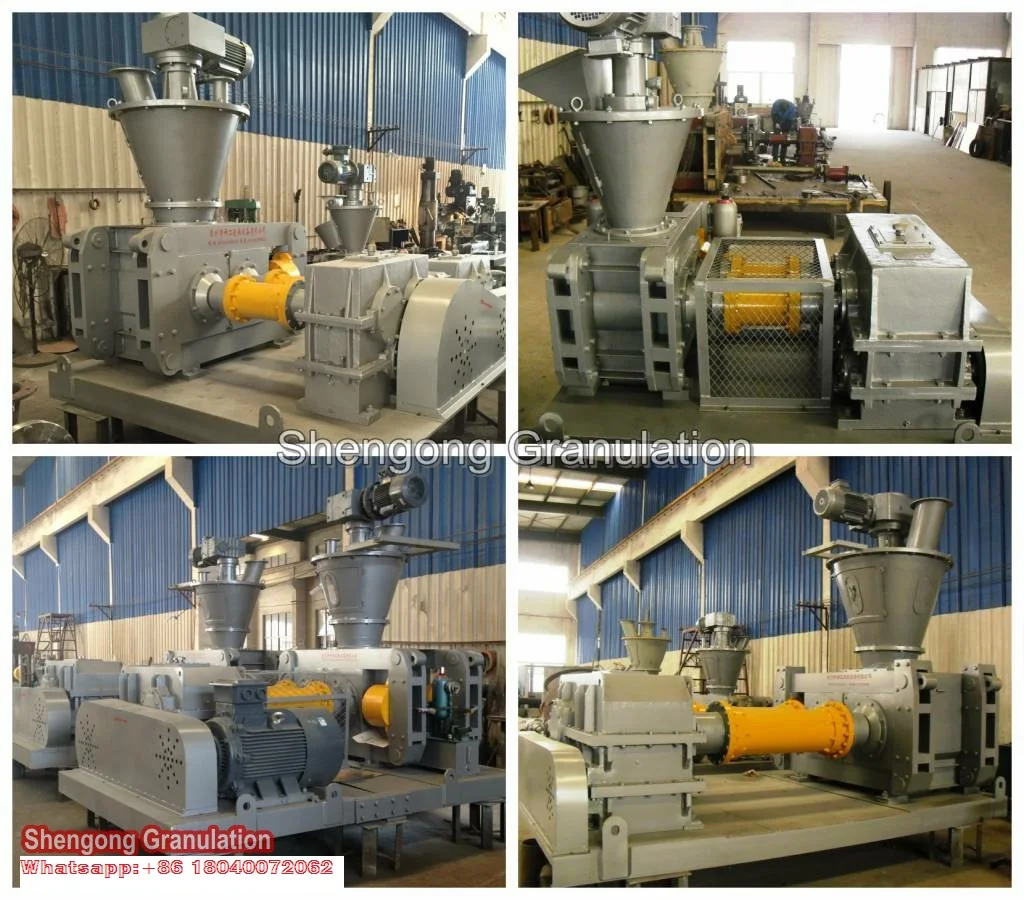

Briquettes making machine consists of screw feeder (upper taper) and double roller compactor

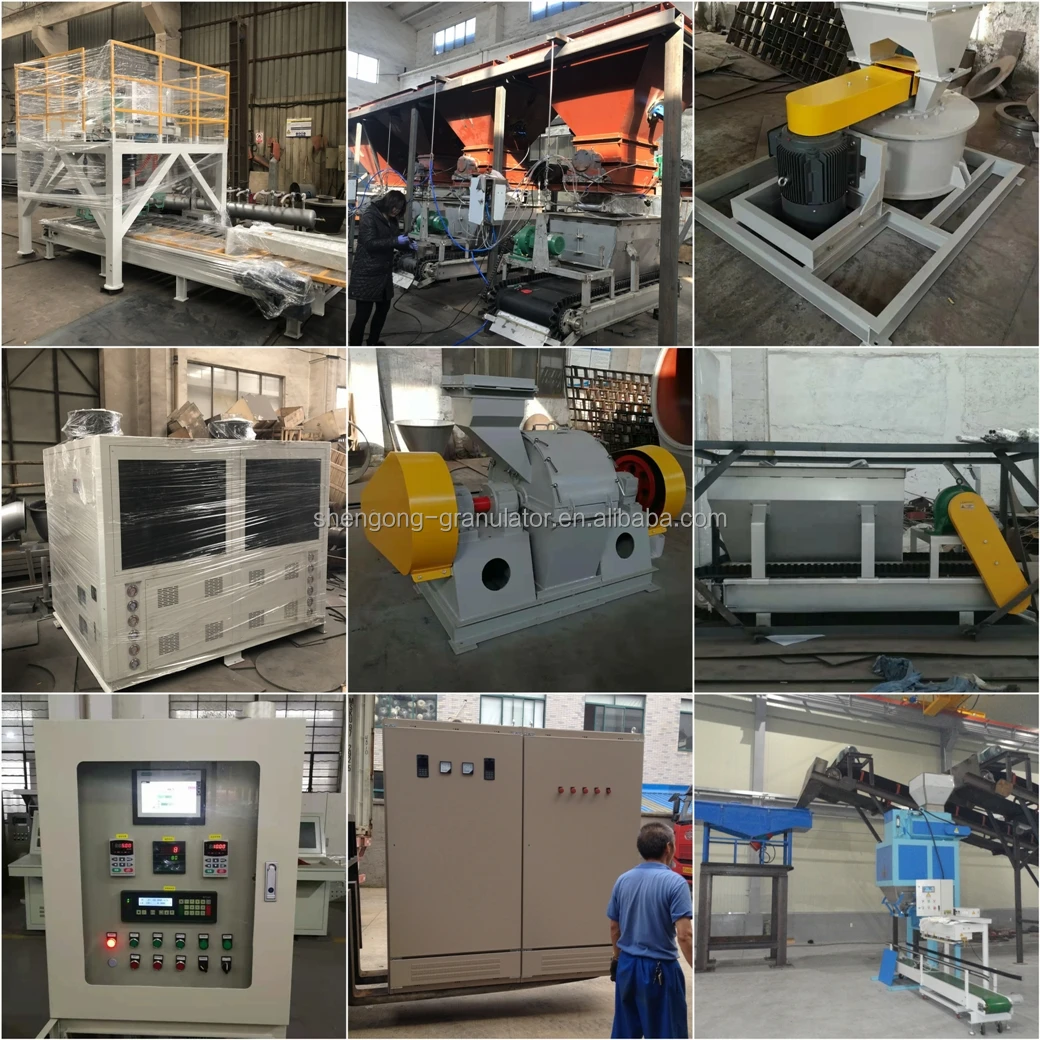

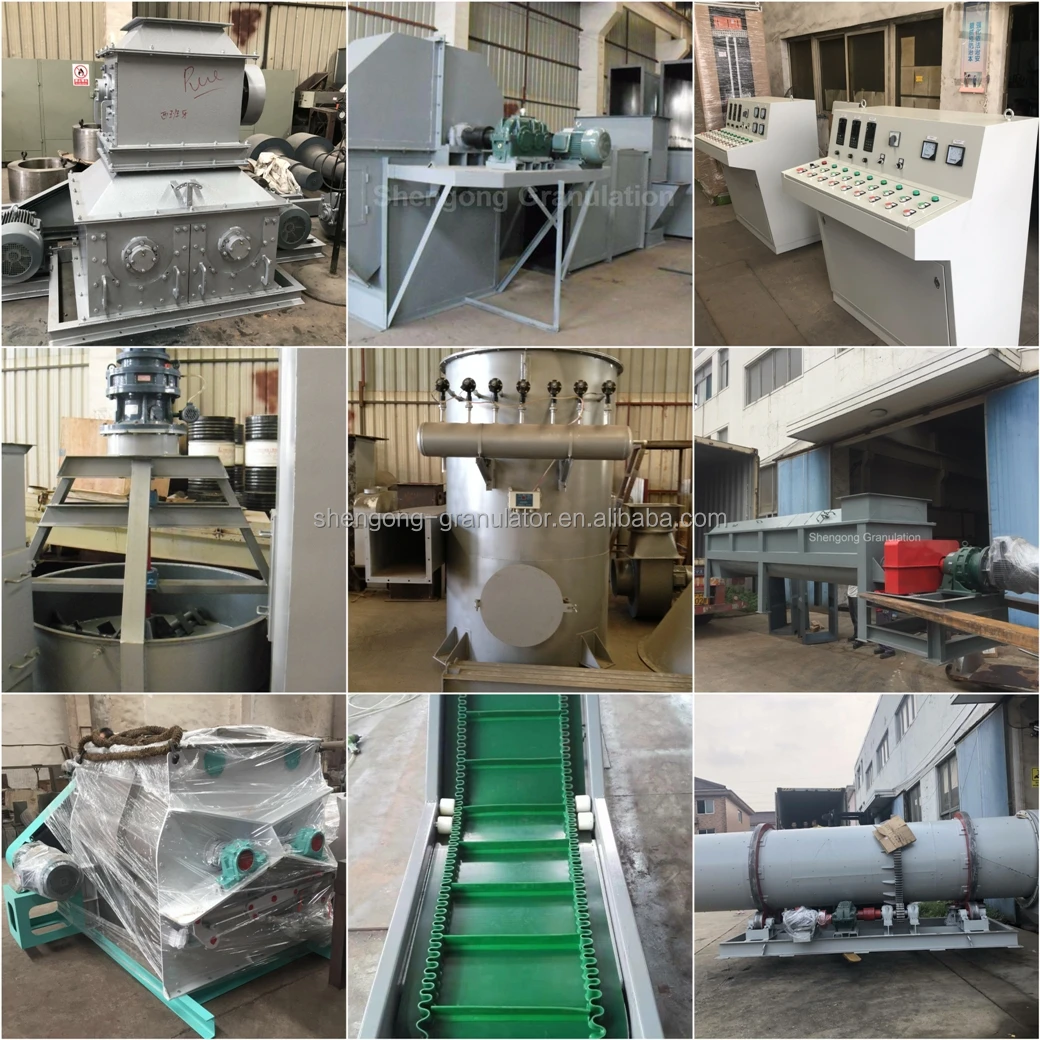

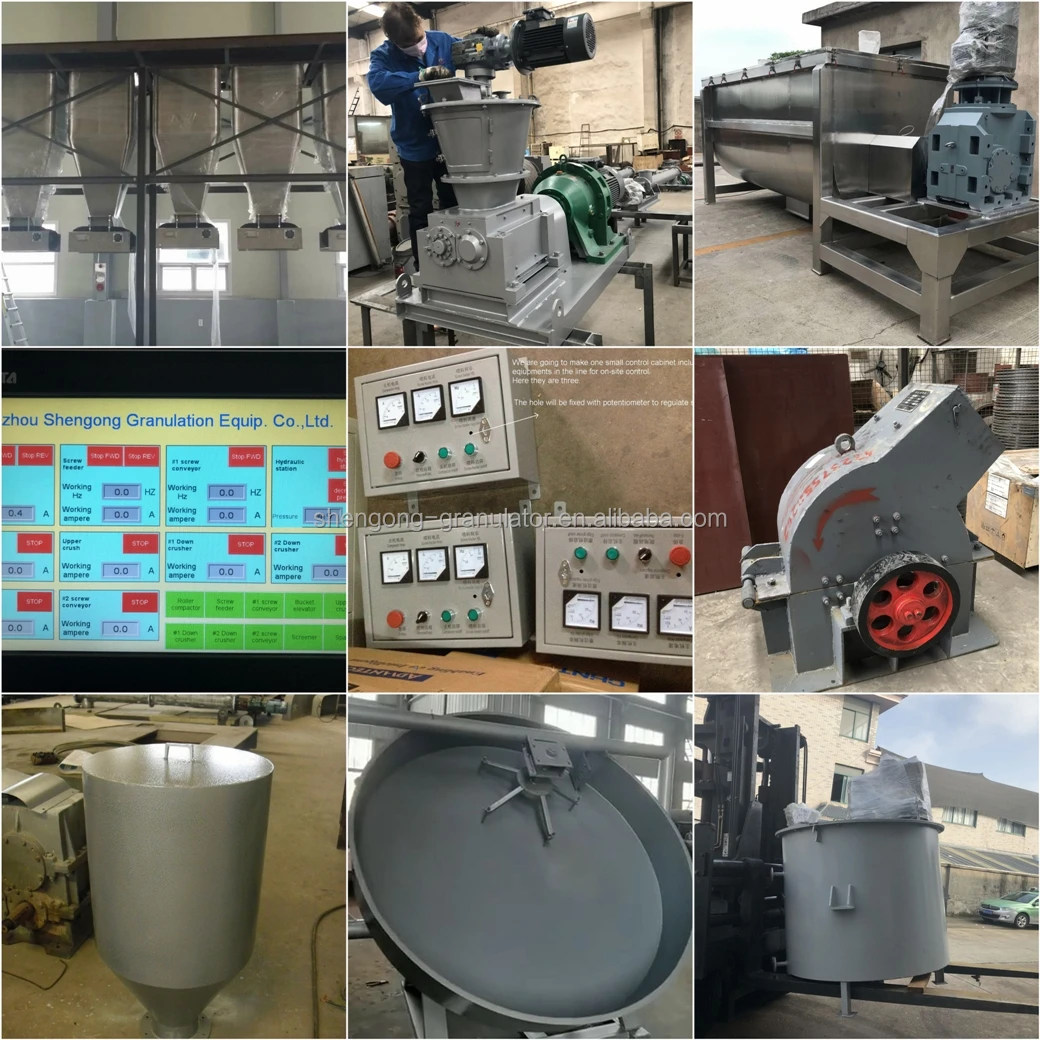

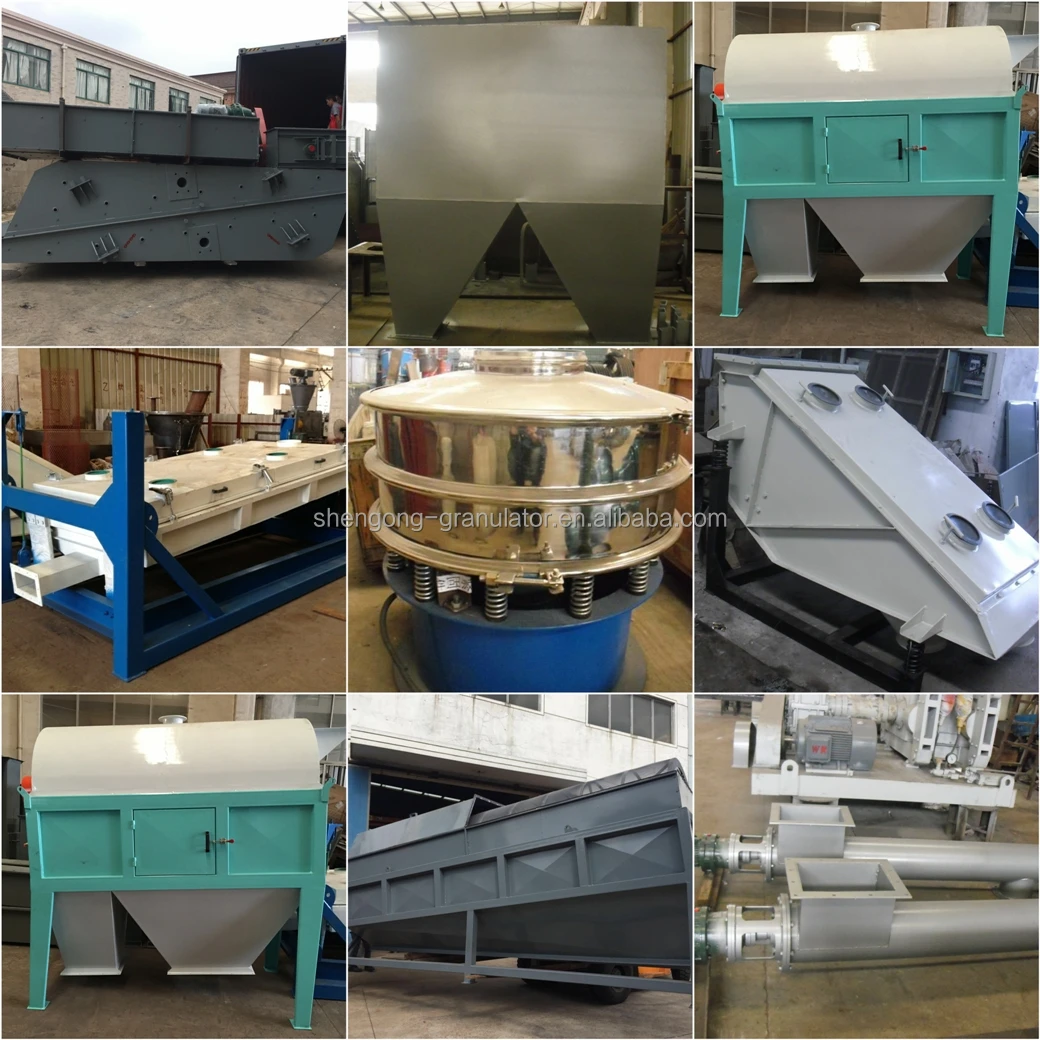

Briquettes making machine peripheral equipments

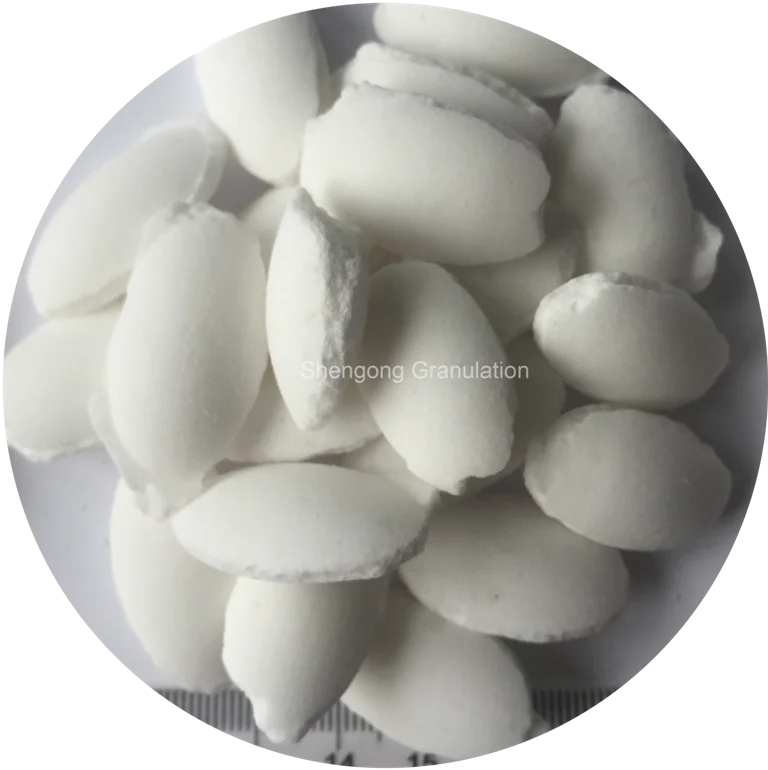

Briquette vairable shape

Briquette and its rollers

Briquettes making machine and its peripheral equipments are being loaded in one 40ft. container
