8PJ450(177J) Ribbed v belt
- Category: Rubber Belts >>>
- Supplier: Zhejiang,Guangzheng,Rubber,Co.,Ltd.
Share on:
Product Overview
Description

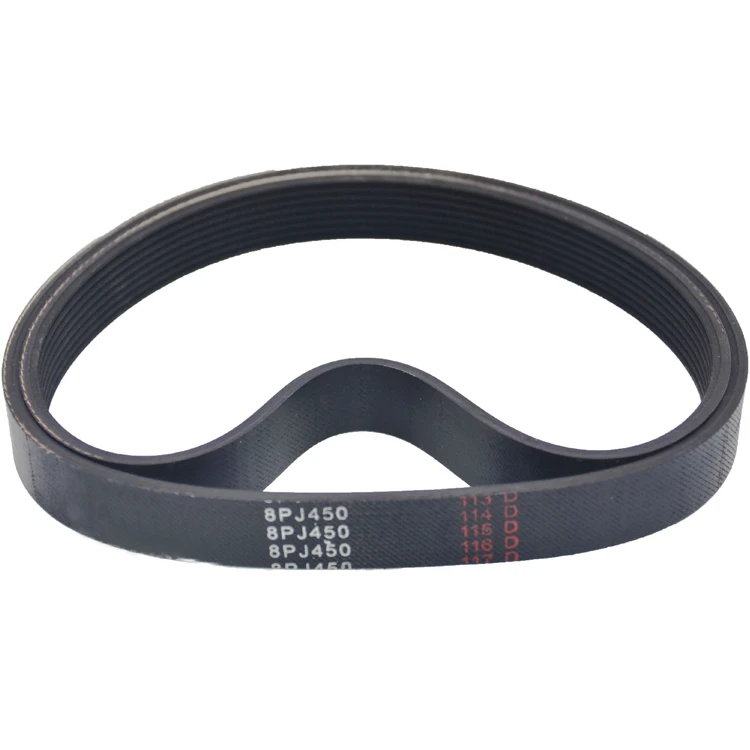

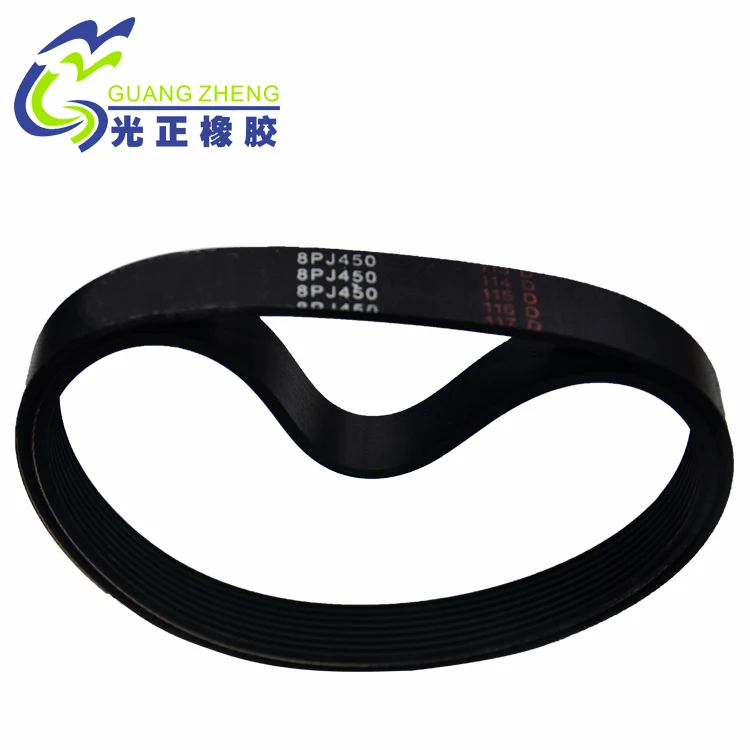

8PJ450 Ribbed v-belt
PRODUCT DESCRIPTION
Belt using the import high quality neoprene or ethylene-propylene diene copolymer, and matches in a variety of different uses of
rubber materials; Skeleton material for the imported high quality polyester cord; Belt back light Angle cloth to do protection.
Most products for grinding production, in view of the batch larger PJ products, can be a one-time molding.
Neoprene has certain cold resistant and heat resistant properties, its resistance to bend torsion properties and resistance
to aging ozone resistance than general unsaturated rubber is good, have good oil resistance to solvents and chemical stability.
EPDM in resistance to ozone aging weather resistance heat aging is good, and its electrical insulating performance resistance
to chemical corrosion impact elasticity is good (in low temperature elastic keep good performance).
APPLICATION
The poly V-belt can replace several traditional belts and reduce operating costs considerably. The belt also distinguishes themselves
by their light and vibration free operation and long life. The low cross section of the multi-rib belt makes it very flexible and permits
it to be used in serpentine drives.
TYPE | Rib section | Thickness | Rib numbers | Angle of rib | Length range |
PH | 1.6 | 3 | 3-54 | 40 | 540-1270 |
PJ | 2.34 | 4 | 3-36 | 40 | 615-2500 |
PK | 3.56 | 4-6 | 3-25 | 40 | 600-2665 |
PL | 4.7 | 10 | 3-16 | 40 | 900-3000 |
PM | 9.4 | 17 | 3-8 | 40 | 1500-3000 |
