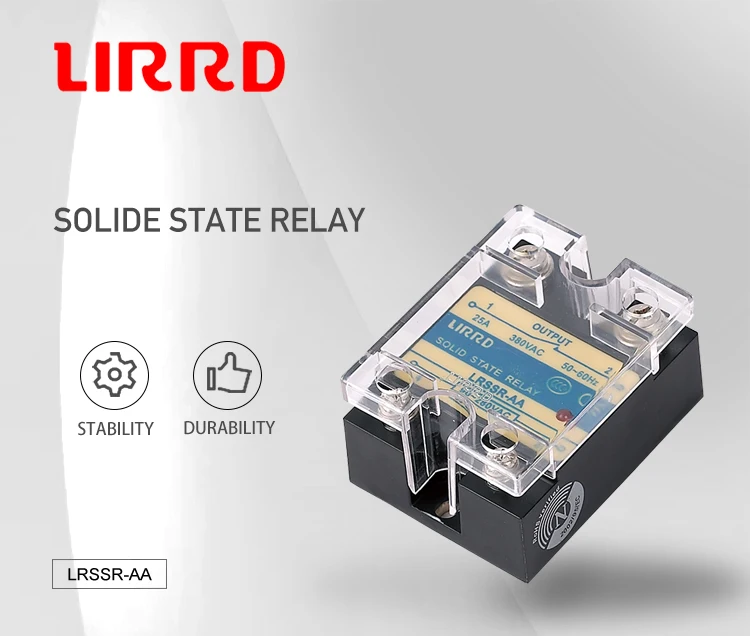

Single Phase Solid State Relay AA 10A

Share on (306119405):


Price:

Quantity:


Product Overview

Description



Application

ssr application.jpg

General Specifications
.jpg
ClassificationAC Solid State SeriesDC Solid State SeriesLRSSVR
ModelLRSSR-AALRSSR-DALRSSR-DDLRSSRVR
Load Voltage(V)28~285, 36~53028~285, 36~530, 48~66050, 100, 300, 40050, 600700, 800, 90040~250, 80~380
Load Current(A)5, 10, 20, 30, 40, 50, 60, 80, 1005, 10, 20, 30, 40, 50, 60, 80, 1005, 10, 20, 30, 405, 10, 205, 10, 20, 30, 40
Dielectric Strength(Vac)2500
Insulation Resistance(MΩ)100
Control Voltage(Vdc)90-2653-323-32
Control Current(mA)≤103-355-20
On Voltage Drop(V)≤10≤1.5≤2.5
Off Leakage Current(mA)≤4≤2≤1
Frequency Range(Hz)47~63
on-off Time(ms)≤10≤0.8
Action State IndicationLED
Ambient Temperature-30℃~+75℃
Mounting MethodBolt Fixation
Same ReferenceSSR, G3NA-420B, LSAP3810A, LSAP2210ASSR, JGX-1572F, JGX-1554F, JGX-1598F, JG53FA, JGX-54FA
DirectionsLoad Current Resistance above DC 5A Must Be Set Radiator
Connection Diagram

ssr Connection Diagram.jpg

Dimension


Equipped Radiator


Symbol of Solid State Relay
