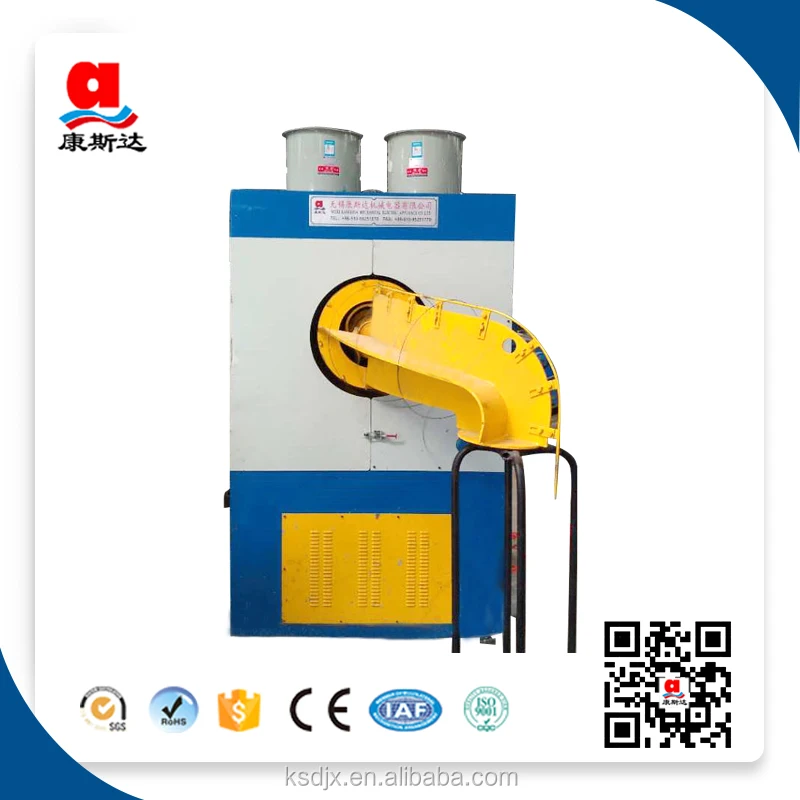

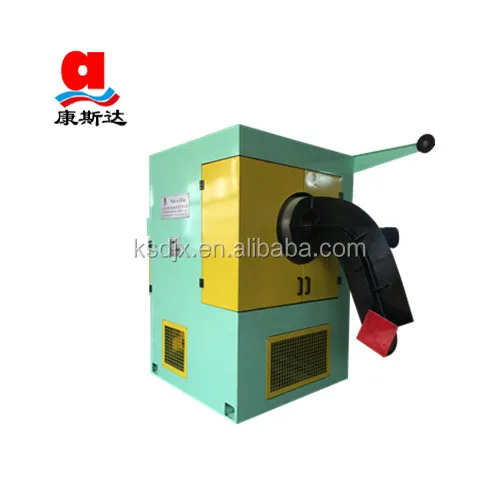

High Low middle carbon Finished metal wire Coiler Take up machine
- Category: Metal Take-up Machines >>>
- Supplier: Wuxi Kangsida Mechanical Electric Appliance Co. Ltd.
Share on (306715930):
Product Overview
Description
Company Information
Product Description
![]()
![]()

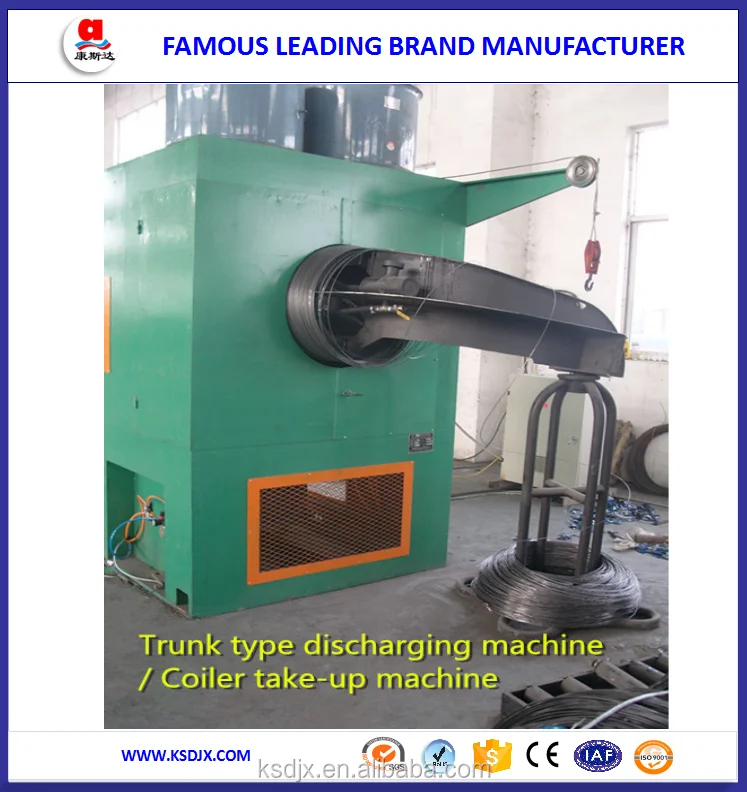

The trunk-type take-up machine improved by our company is used for the heavy wet wire drawing machine and straight line wire drawing machine in order to discharge wires with a big weight of coll.It is suitable to discharge the big weight of coll which high-strength spring steel wires has a high request in flatness . The machine can discharge any weight wires in 1000kg at any time without stopping.Because we add the correction mold and the air & water cooling system,the quality of steel wires is improved.
The machine is also suitable for the fine drawing after the heat treatment,which meets users’ requirement of discharging wires in a big weight of coll.
|
Model |
Coiler350 |
Coiler450 |
Coiler600 |
Coiler760 |
|
Capstan diameter |
Φ350mm |
Φ450mm |
Φ600mm |
Φ760mm |
|
Applicable wires dia |
Φ0.8-1.2mm |
Φ1.4-1.7mm |
Φ1.8-3.5mm |
Φ3.8-5.5mm |
|
Take-up speed |
Optional by the user |
|||
|
Motor power |
7.5-11KW |
11-15KW |
15-30KW |
30-45KW |
|
Note |
The mechanical speed ratio and the drum diameter are optional via the user |
|||
