Wire Mesh Fence for Garden Pvc Coated Fencing, Trellis & Gates Used in Industry Fence

Product Overview

Description

Wire mesh fence/ Temporary Fence / Euro Fence / Garden Fence / Residence fence/ Railway defend fence/Railway Side Fence/ Airport Fence/ Highway fence/ Wire Mesh Fence

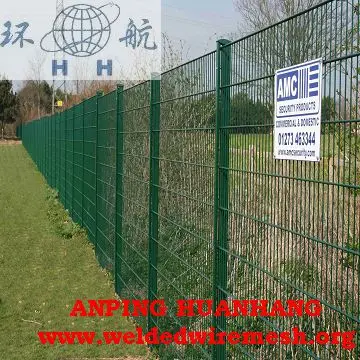

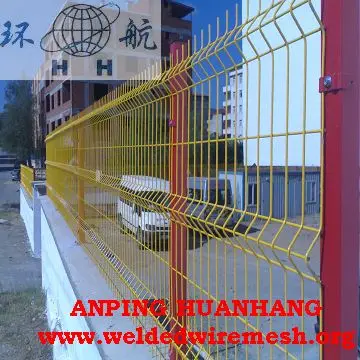

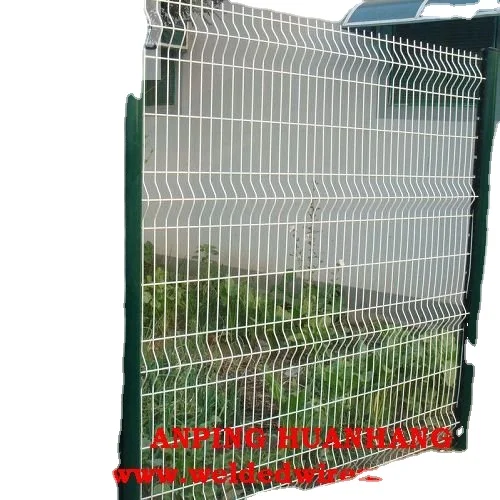

I. Residence fence

Product advantages:

1. The fence has comparatively high overall strength and very apparent decorative effect;

2. The welding spots are firm enough against cutting;

3. High grade plastic dipping with ten years guarantee rust resistance;

4. To install and disassemble easily.Can be reused. Can be adjusted according to the fencing needs;

5. Environmentally friendly products. Can be ultimately recyclable.

Main application:

It is used as living area fence,campus barrier,garden fence and shopping malls isolation fencing.

Mesh Size	Wire Diameter	Coating Colors	Finished	Height	Length	Crimped	Weight
50mmx200mm (Other sizes on request )	4.0mm/5.0mm (Galvanized wire is 4.0mm and after PVC coated is 5.0mm)(Other Diameter on request )		Galvanized and PVC coated	0.63m	2.00m	2	3.76kg
		RAL 6005 Green		0.83m	2.00m	2	4.85kg
		RAL 6020 Green		1.03m	2.00m	2	5.95kg
		RAL 9010 White		1.23m	2.00m	2	7.05kg
		RAL 9005 Black		1.43m	2.00m	2	8.15kg
		RAL 7035 Grey		1.63m	2.50m	3	11.67kg
		RAL 7030 Grey		1.83m	2.50m	3	13.04kg
		RAL 5011 Blue		2.03m	2.50m	4	14.51kg
		(Other RAL colours on request)		2.23m	2.50m	4	15.88kg
				2.43m	2.50m	4	17.18kg
1. For the finish coating ,we can do electric dipped galvanized and PVC coated ,hot dipped galvanized and PVC coated, PVC coated without galvanizing. The customer can also choose PVC painted finish treating.
2.Other heights and length on request .

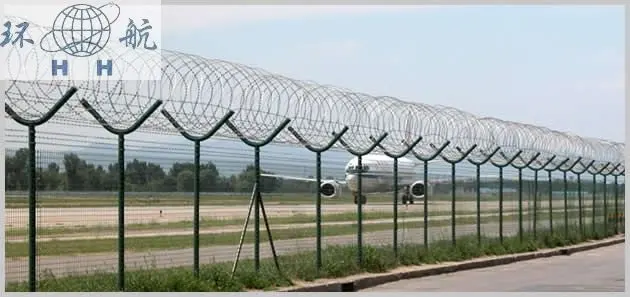

II.Airport Fence

Airport fence is made with low carbon steel wire welded panel,post,barbed wire or razor wire and other accessories.

Features: Corrosion resistance,nice appearance,easy maintenance,anti-intruding.

Uses: Mainly used for barrier and security around the airpost and anti-climbing projects.



diameter	mesh hole	line post	height	center distance between post
5.0-5.5mm	5.0x100mm	60x2mm	2.0m-3.0m	2.5m-2m with razor wire on the top



III.Highway fence

Highway fence has simple structure,good outlook and easy installation. It is suitable for fencing of mountain land,slope,bending area and various land situations.

Specifications:

A. Wire diameter coated: 4.5-5.5mm

B. Mesh opening 60mmX60mm, double edge wires

C. Maximum size:2300mmX3000mm

D. Post: 60mm/2mm;Steel pipes plastic coated

E. Frame: non

F. Accessories: Rain proof cap,joint clips and screws.

G. Jointing style: clips



Advantages:

1.Simple structure.Beautiful and practical.

2.Easy for transport. Simple installation in various land situations.

3.Especially suitable for fencing in mountains,slopes and bending areas.

4.Economic cost. Suitable for volume using.



Main Uses:

Railway fencing,highway fencing and site fencing.
