dc brushless motor driver BLDC motor Drive 10/50DPW15BL

Product Overviews



This produce has three manners of working: speed control, current control and open-loop control.
Control functions of braking, direction, enable, first-magnification, dual speed setting, etc. can be realized.
Maximum current limit can be adjusted
0-5V signal control mode for external potentiometer, interior potentiometer and external analog quantity and soft start function.
Time setting function for soft start
Overcurrent protection function and locked-rotor protection
High-speed control, which has a full speed of one pole pair motor can reach 120000RPM.

 dc brushless motor driver BLDC motor Drive

Features List



Power supply voltage VCC10-55vdc
Maximum output voltageVout=0.95 VCC
Maximum output current15A
Switching frequency39KHz
Maximum speed (one pole pair motor)120,000rpm
Hall power supply voltage range7—12VDC   Maximum output current is 30mA
Locked-rotor protection time1.5 seconds
Ambient temperature-10-- +60C
Analog quantity output0-- +5VDC
Soft start time20ms—10S
Regulation voltage of external potentiometer0--+5V potentiometer (10KΩ/2W)
Overall dimension122*35*72mm.
Weight300g

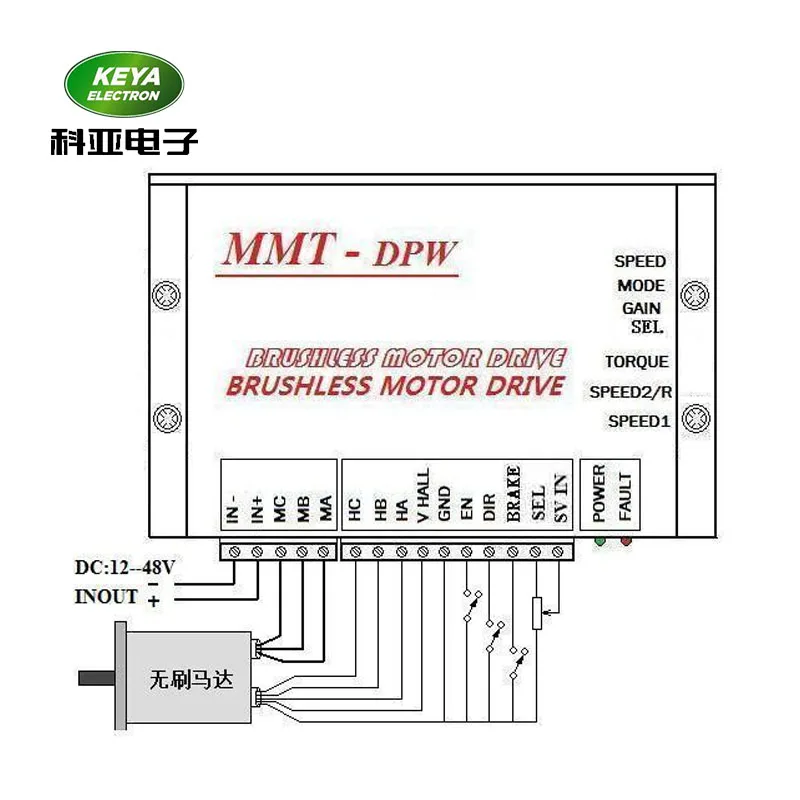

Wiring

 DPW15BL-CONNECT

dc brushless motor driver BLDC motor Drive
