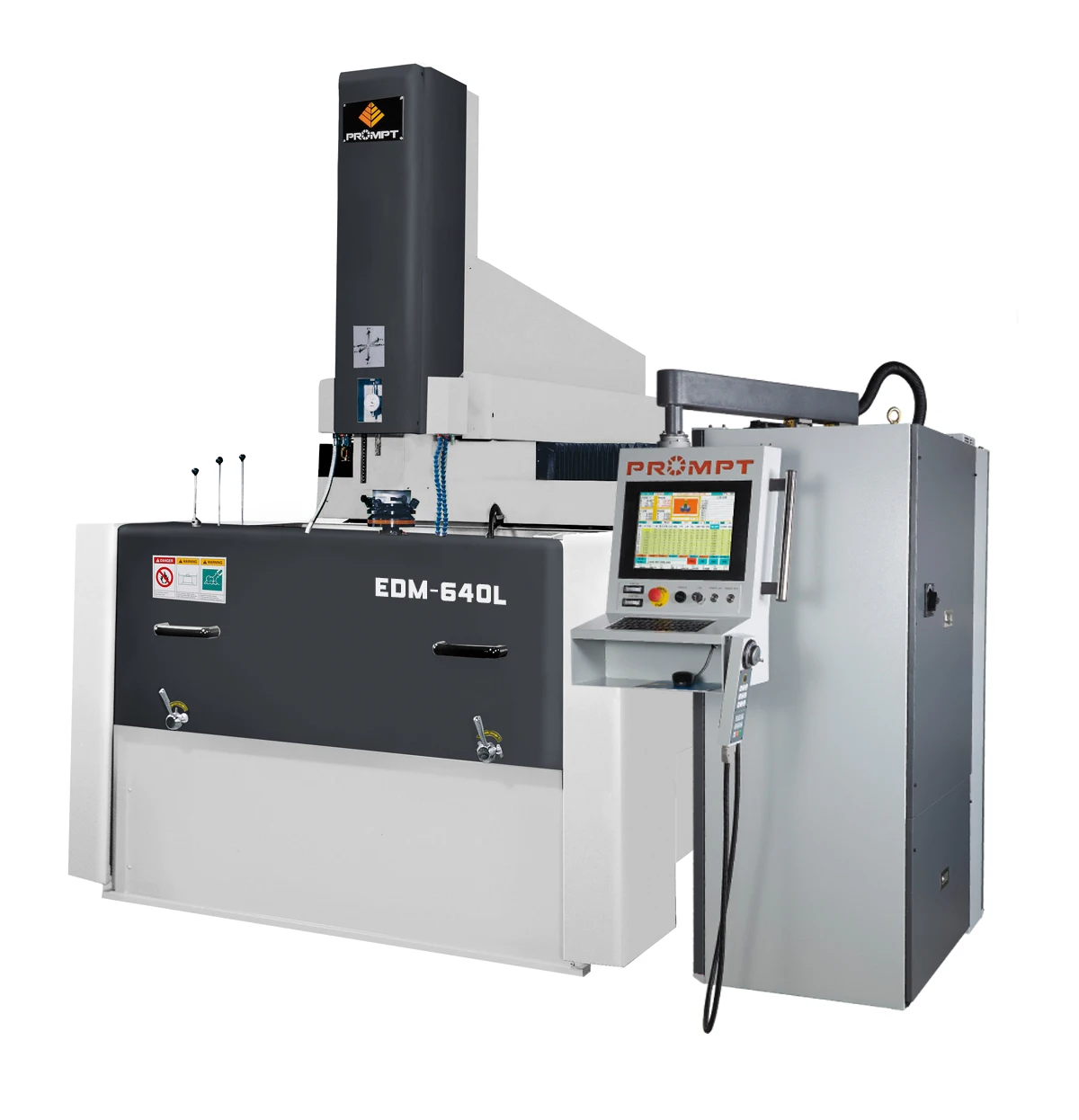

Taiwan CNC EDM Machine For Sale

Electrical Discharge Machine

Features:

1. The system adopts Windows CE controller
2. Six-axis programmable control, XYZ+ABC (can be replaced by XYZ+ABW or XYZ+ACW)
3. ATC system and A, B, C axis and spindle tilt option are available to increase machine functionally
4. Column movable master by linear slideway on X/Y/Z
5. Automatic lubrication
6. USB port
7. Use a 15-inch LCD touch screen, mouse, and standard keyboard
8. Presented in a dialog window with 3D stereo graphic description
9. Machining path and graphic display
10. Close-loop and feedback circuit design of 0.001mm resolution numerical linear scale is adopted on the 3 axis of the machine. Such design could get precise position setting, and increase the machining precision and efficiency of ORBIT-CUT
11. Dialogue programming editor that provides variety of hole enlargement modes (including function of edge search, center search, reference point search)
12. Automatic multi-step machining is available
13. Automatic home search function
14. ARC automatic arcing adjustment
15. Automatic center search and offset which could search the center and the deepest point of the hole
16. Movement of axis linear (3 axis), arc (2 axis), spiral (3 axis) and offset
17. Switch function: Language switch (Chinese/English) and unit system switch (Metric/Inch)
18. Single side sparking of 3 axis and 6 directions (plane rotation)
19. Automatic programming edition function: According to the material, area, initial current and wear rate do proper adjustment

Specifications:

Standard Accessories:

Optional Accessories:

*If you have any further discussion or information, please feel free to contact us directly. Thank you.
