Defrost Timer M8308 110V

Product Overview

Description

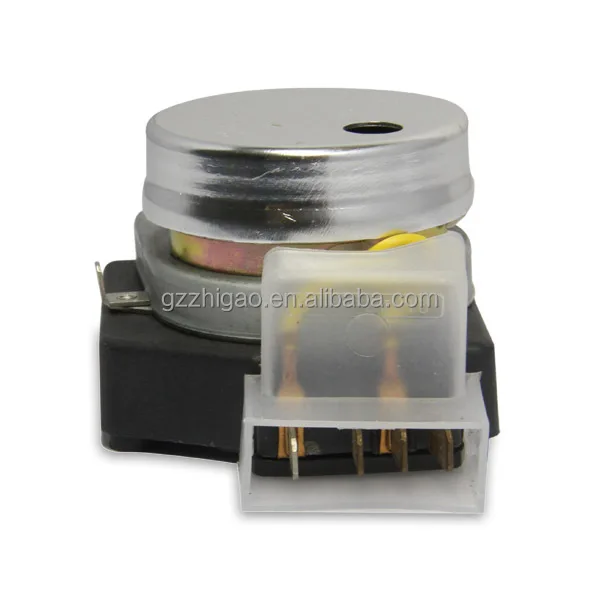

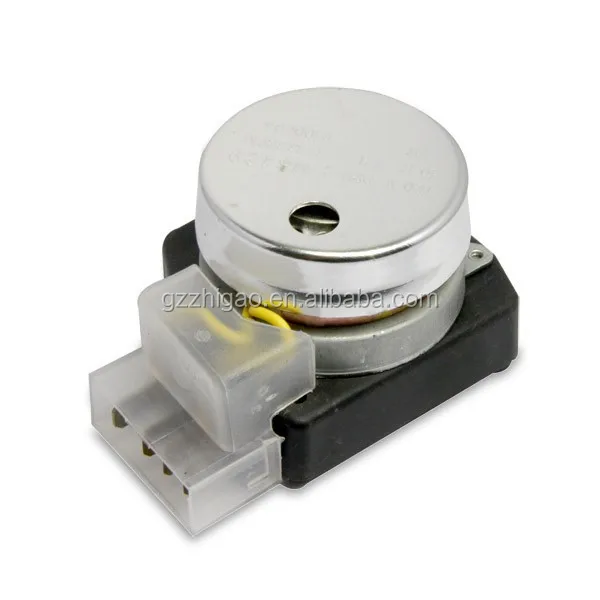

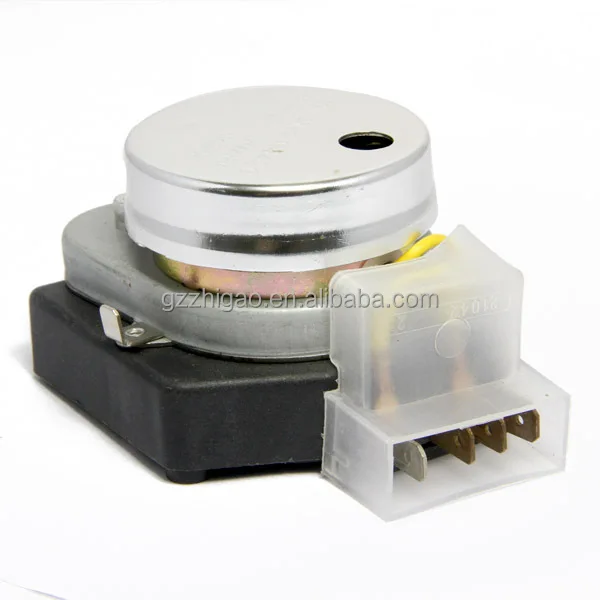

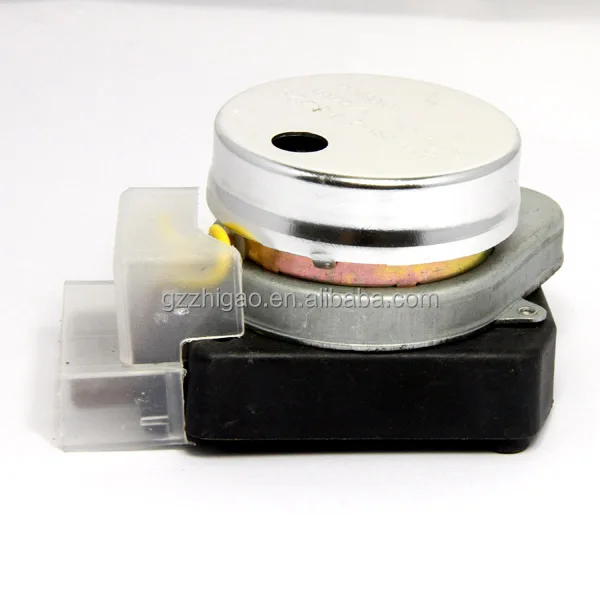

Defrost Timer M8308



M8308 DRV-2
110V/50HZ
1/96RPM



freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.

_{freezer defrost timer,refrigerator timer is  designed to control the defrosting time for freezing system device application.}

_{Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside}

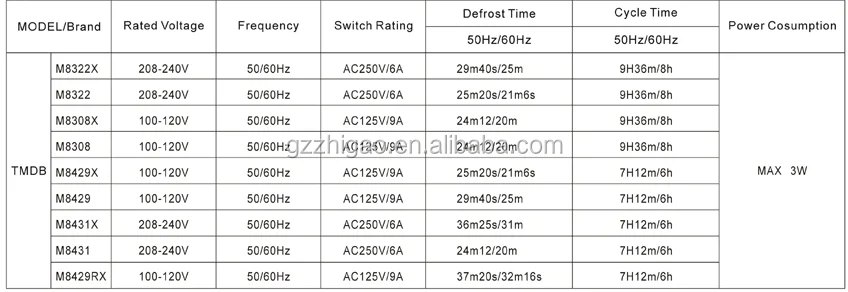

_{refrigerator defrost Timer parameters}



Specification:
Rated Voltage:100-120V
Frequency:50/60hz
Switch Rating:AC125V/9A
Defrost Time:24m/12/20m
Cycle time:9h36m/8h
Power Cosumption:Max 3w
