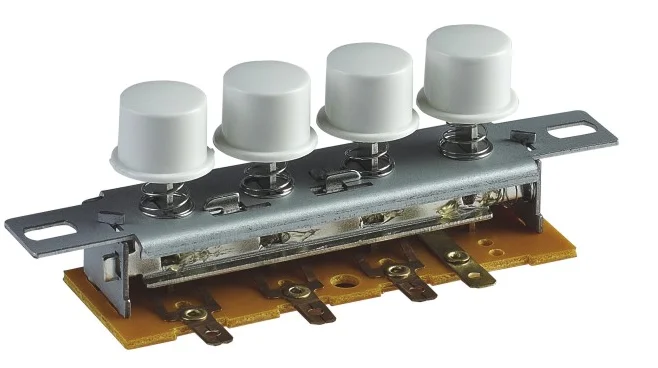

SC713B 4 position switch
SC713B 4 position switch

SC713B 4 position switch

Share on (310990003):


Price:

Quantity:


Product Overview

Description

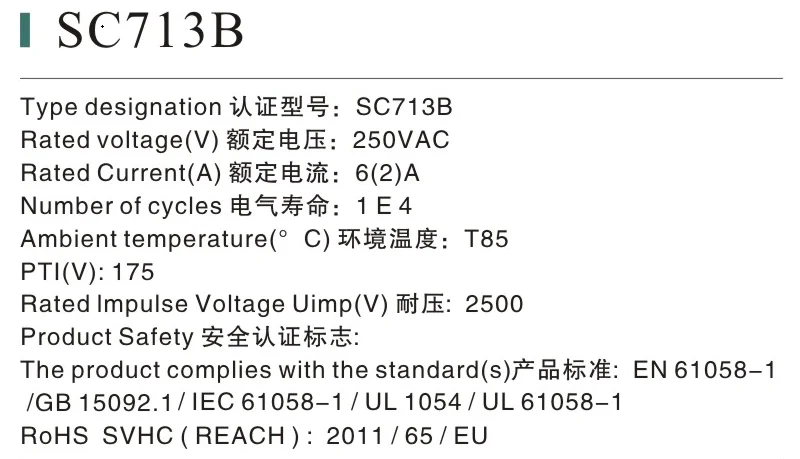

Specification:





Model: SC713B 4 position switch


Rating: 6A 250VAC 3A 250Vc


Current resistance: ≤20MΩ


Insulation resistance: ≥100MΩ at 500VDC


Dielectric strength: 1000VAC-1min


Electrical life: ≥6000 times


Temperature range: 0-85°C
