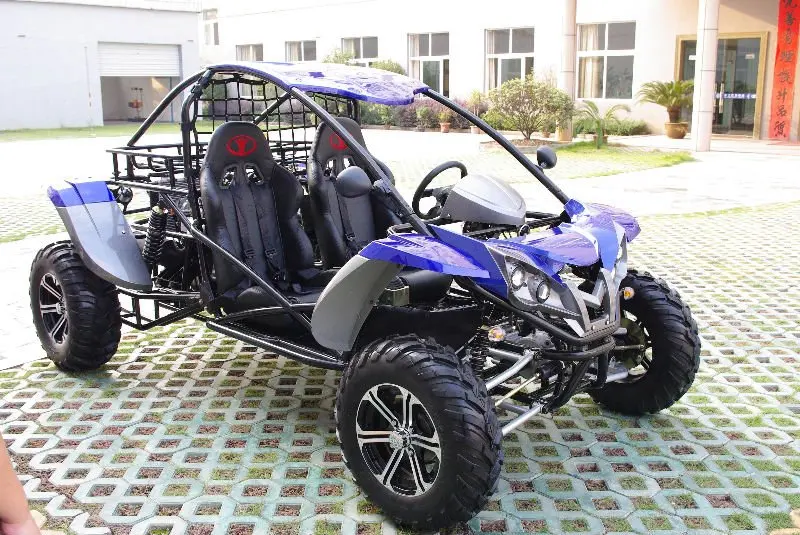

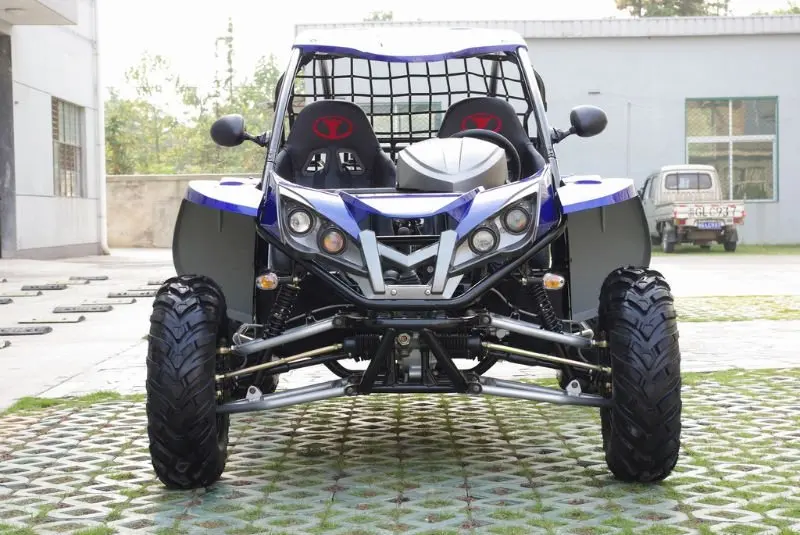

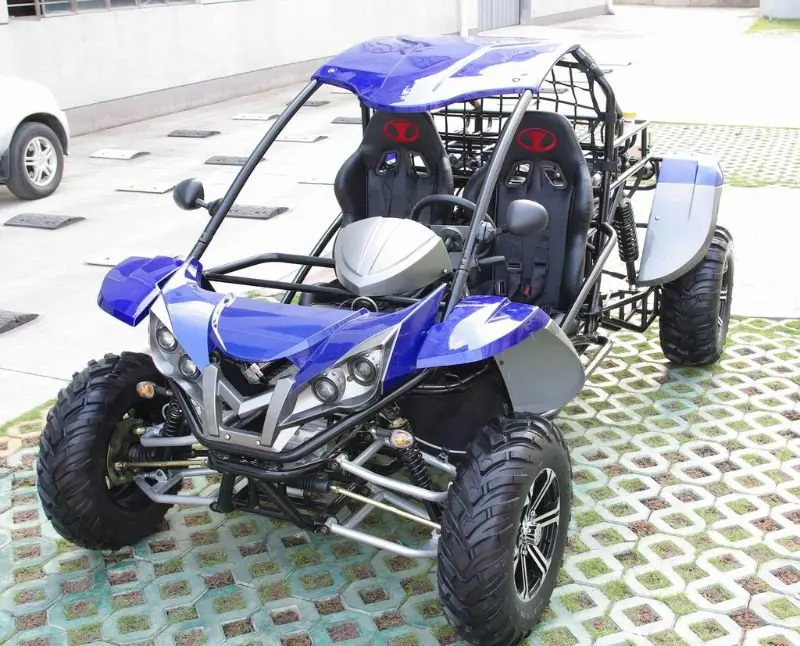

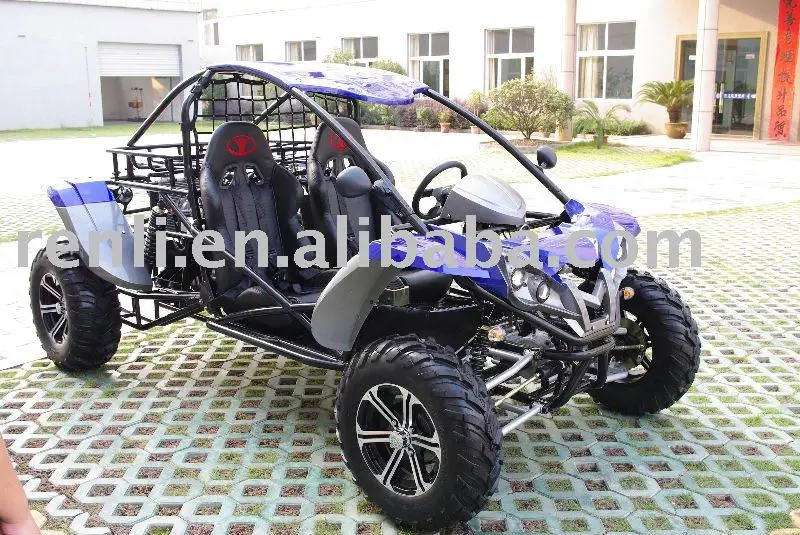

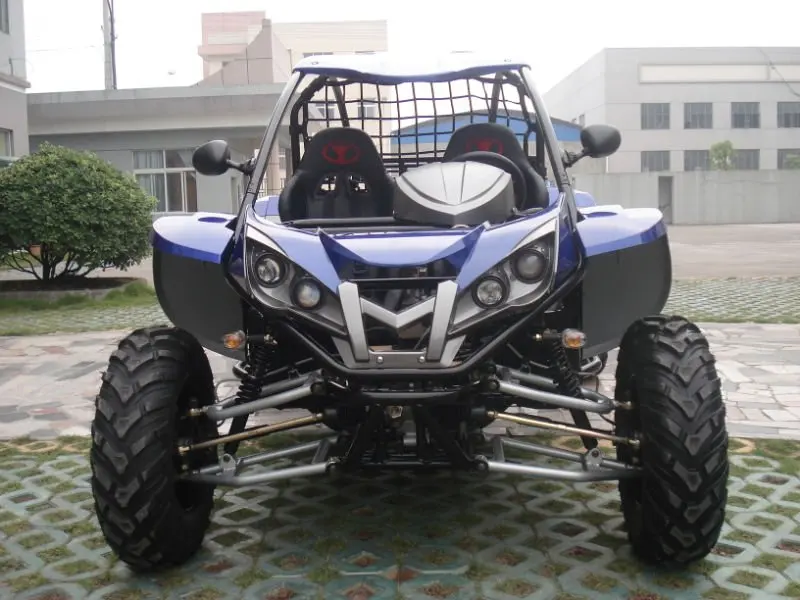

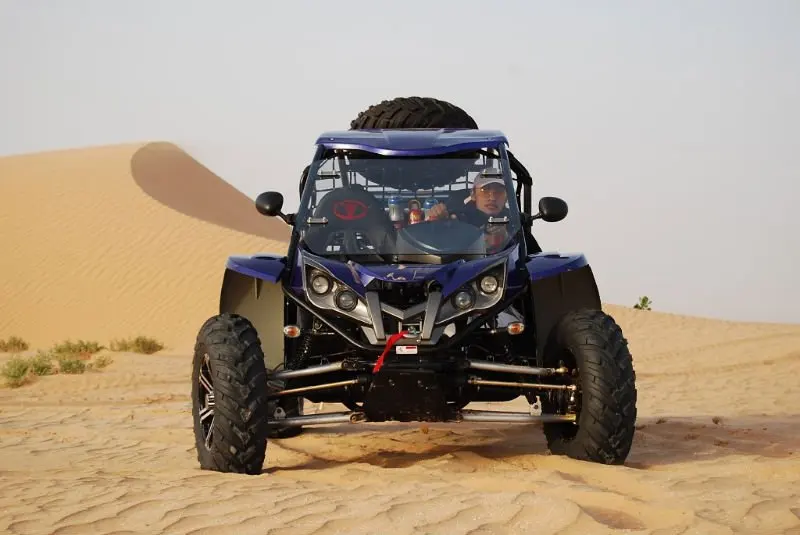

1100CC 4X4 Chery engine DUNE BUGGY /ATV / TWO SEAT BUGGY

Product Overview

Description

beach buggy 4x4

PERFORMANCES

Length×Width×Height --------3140×1850×1580mm

Wheelbase ---------------------2450mm

Front /Rear Track -------------1375/1570mm

Ground Clearance --------------310mm

Top speed ---------------------- 120km/h

Battery ------------------------- 12V35Ah

Front, Rear brake ---------------Hydraulic disc, right foot control

Front /Rear tire ---------------- 27×8-14/27×11-14

Driven -------------------------- shaft driven4WD

Fuel tank -------------------------30L



ENGINE

Type ----------------------------------4Cylinder,4-Strokes,water cooled3Cylinder,4-Strokes,water cooled

Displacement -------------------------1083mL/812mL

Standard Power ----------------------50KW/6000rpm37KW/6000rpm

Maximum Torque ------------90 Nm /3500-4000rp70Nm /35004000rpm

Starting -------------------------------Electric

Ignition ------------------------------- Electronic fuel injection

Transmission ------------------------- Manual clutch,5 shift/Reverse



CONVEYANCE

N.W /G.W -------------610/700598/680kg

Container quantity-----20GP:4Units. 40HQ:12Units

Carton dimiensions-----29300 mm×1770mm×850mm
