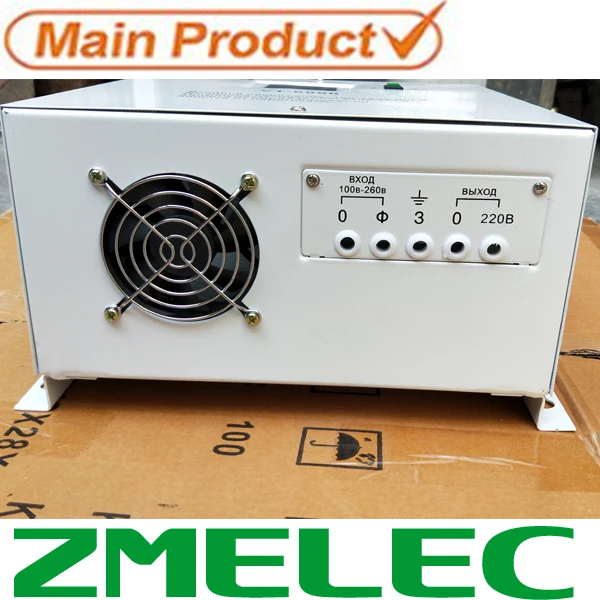

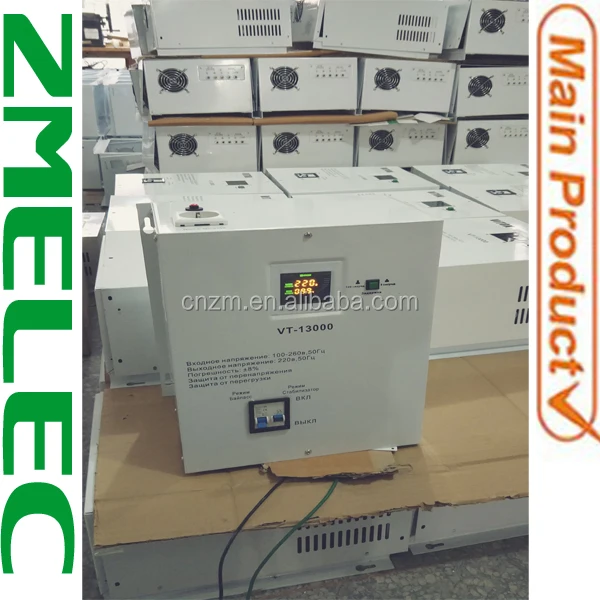

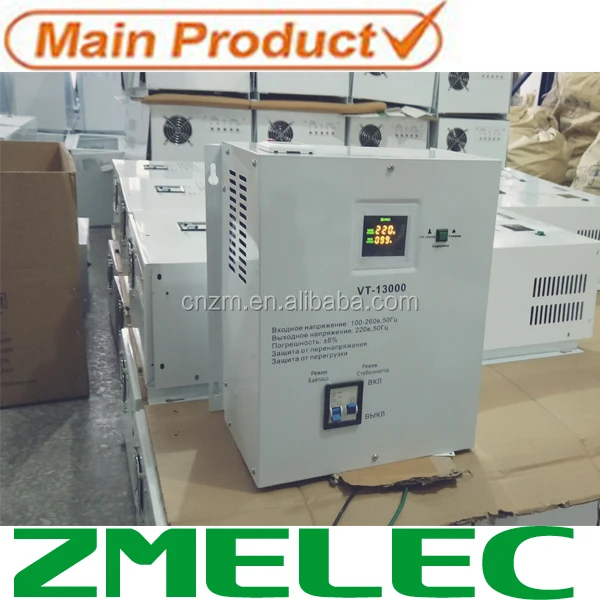

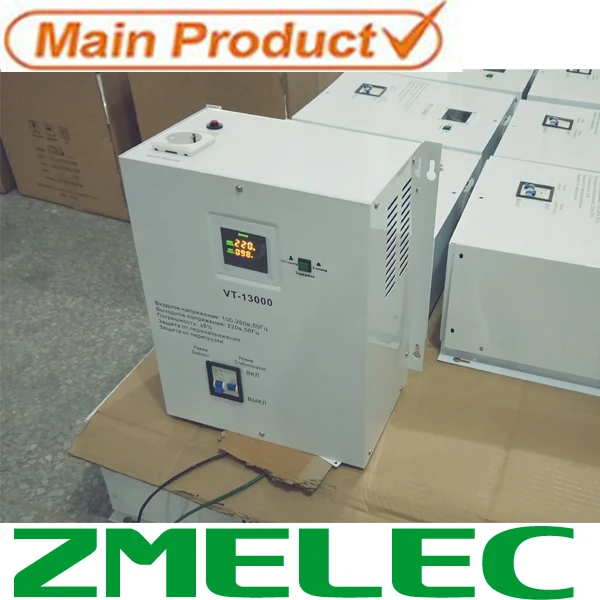

TM Series voltage stabilizer,which has no waveform distortion,small body,light weight,high efficiency,available and convenient use, and long time operation ECT.inside structure used good material PCB and 3 or 4 or 5 Relay control the output precision and good panel design for LED indication show stabilizer situation, and many protection function according to customer requirement.also can be used for many home appliance and is one of more ideal voltage stabilizer.
Detail spec:
1.Input: AC 110V-270V
2.Output: AC 220V±8%(205V-235V)
3.Frequency:50/60Hz
4.Output Delay time Choice:Long Delay 3 Minuter/short delay 3-5 second
5.Power Factor:0.8
6.Duty Cycle:24-hours continuous.
7.Correction Speed:1500V/Min
8.Efficiency:AC-AC Better Than 98%
9.Max. Ambient Temperature:From-5 Degree to 50 degree
10.Max. Temperature rise:As per ICE Standard
Protect function:
a.Input(280V) and Output(250V) Over-voltage protect.
b.Output over-load(over current) protect.by NTC part.when arrived 50 degree fan first working.when temperature arrived 120 degree power off relay coil voltage stop supply.
c.Short Circuit Protect
d. Temperature Rise Protect
e.Over-load arm System like UPS or Computer system
f.Build-in Rounding transformer or EI transformer
g.Surge.Spike and Lighting,harmonic filter protect
h.Delay function by front side panel one Push-Button Switch For Control Long or Short time delay
i.Four LED Indication,Normal working(Green color LED),Over-Voltage(Red Color LED),Under-voltage(Yellow color LED),Delay time(White color LED).over-load by alarm system.

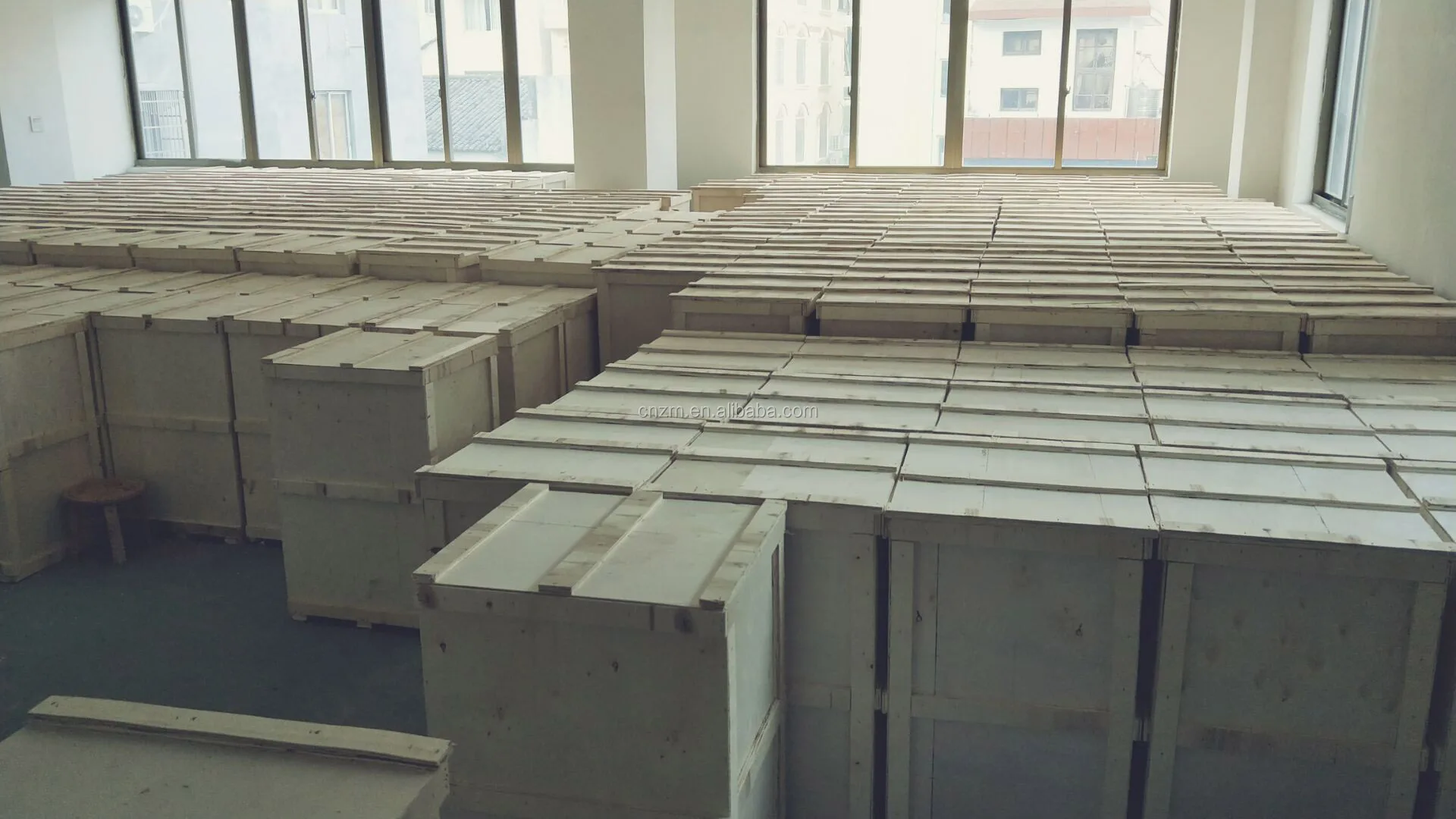

Eeach one voltage stabilizer one wooden case packing box.inside we first used one plastic plastic bag.then used 4pcs foam by 3.5mm thinkness protect door meter and switch.

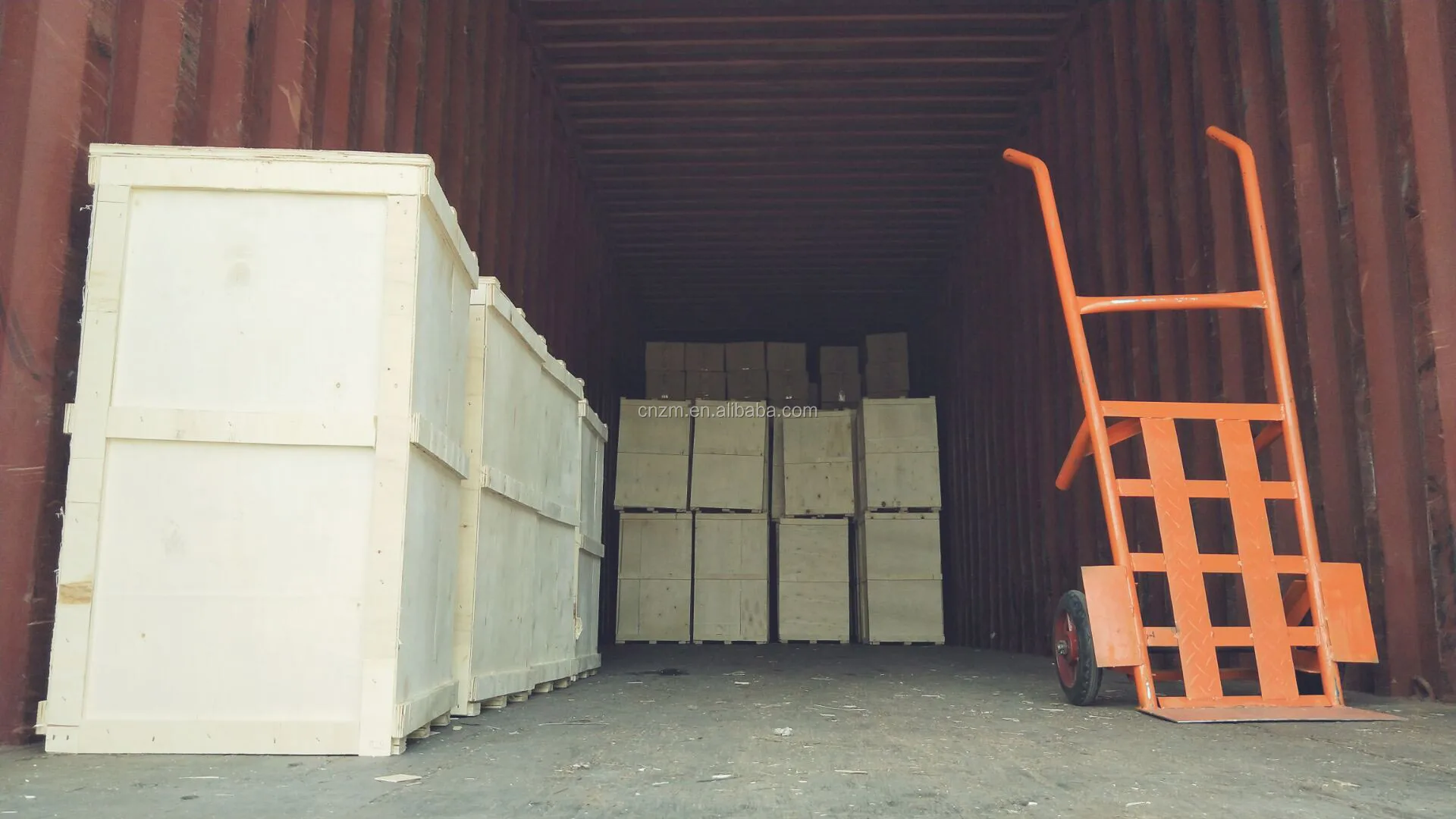

General we shipping to NingBO or Shanghai sea port.we can do FOB or CIF of CNF price.
Our Services
1.Quality control

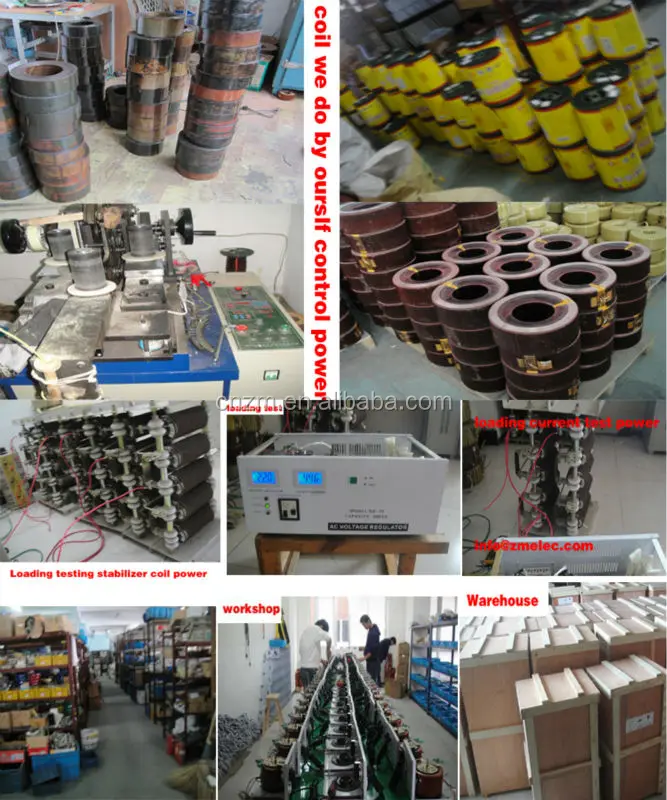

voltage regulator /Voltage stabilizer quality control for very customer very important.we control quality from very one spare part.especally coil power and PCB board. see picture below.if you want to know more information how about our how to keep stabilizer quality good.pls contact our email.
2. voltage regulator Quality Guarantee

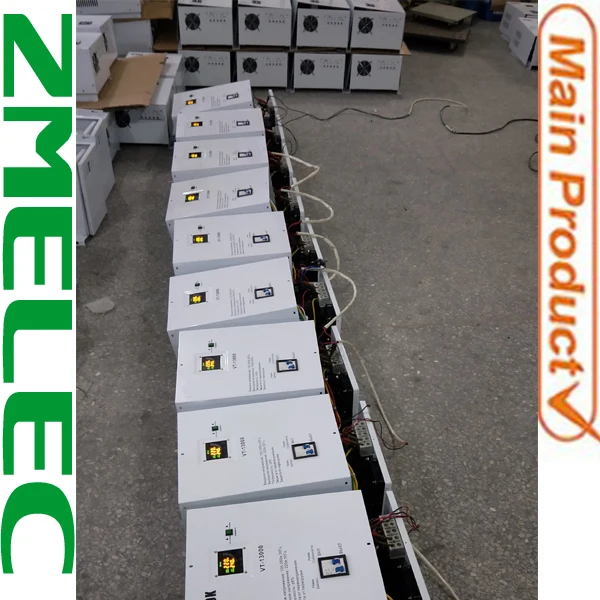

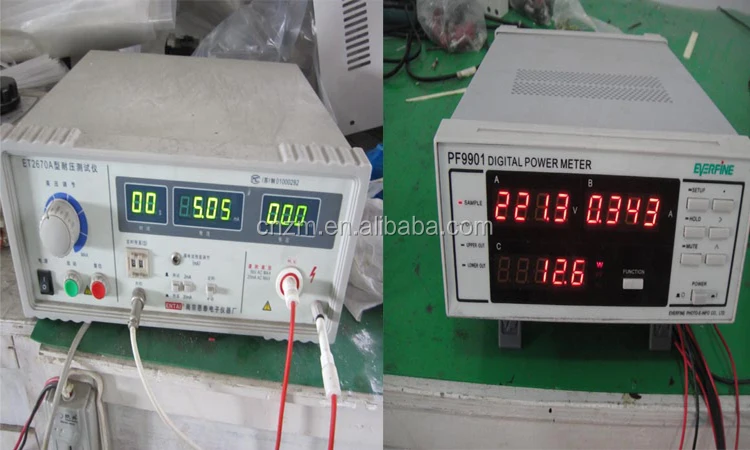

we give our customer voltage regulator/voltage stabilizer quality guarantee period 2 years if proper loading we give customer 5 years and adopt our techniciansuggestion(AT 5 years period if input voltage often fluctuation only change carbon brush ).every voltage stabilizer we first testing part quality then assmbel finished testing output and loading testing.after testing finished we make dynamic testing.after packing we testing again.see below our testing equipment
3.If voltage regulator/voltage stabilizer get any problem or have any specially design stabilizer inquiry.we will reply customer within 24 hours.bcos our sale person is technician.

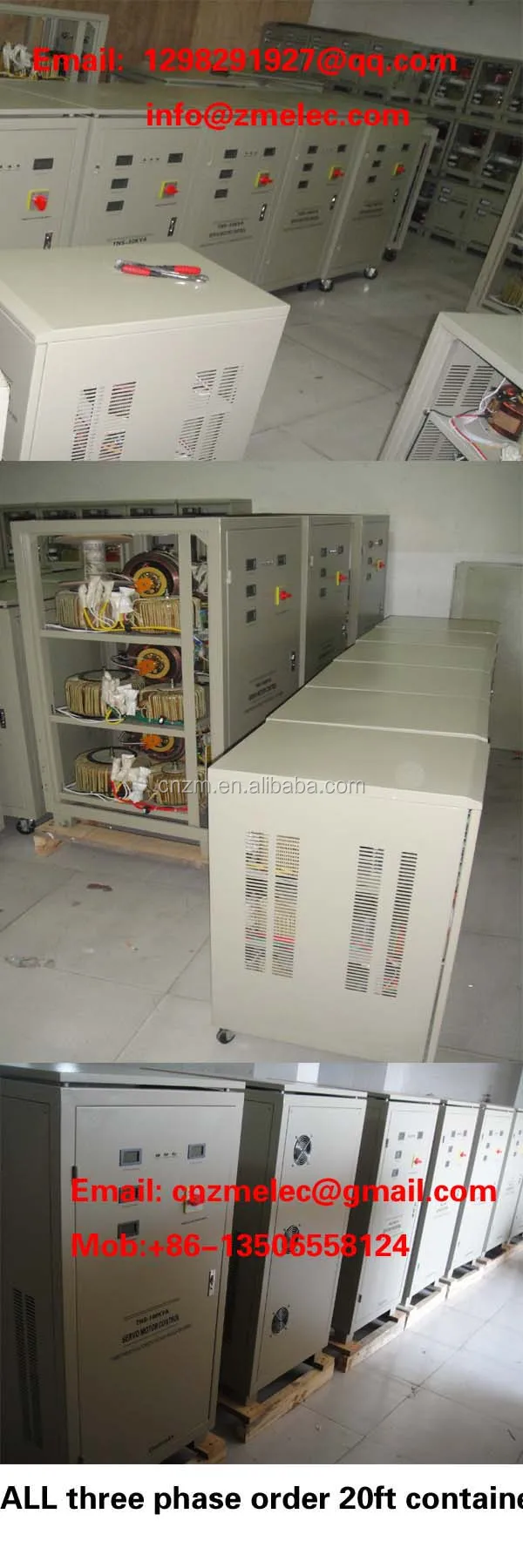

like three phase voltage regulator/voltage stabilizer output need 220V.general is 380V.surge protect and over-loading protect.full power loading design.silicon area and winding wire size design specally.
see below picture with isolation transformer control
4.OEM/ODM available for voltage regulator and transformer products
we accpet customer OEM or ODM.customer send to our your logo and company name and packing box design.if no have design.we can design for customer.then printing voltage stabilizer panel logo and company name.samll power carbon box we printing customer logo and company too
5.we accpect voltage regulator sample order testing our quality.
at make sample before we confirm all specification no problem.first we will testing by our sale person.after we testing finished.we will send to customer check quality.small power sample we give customer sample for free.customer pay shipping cost.
Company Information
YUEQING ZHONGMING ELECTRIC CO.,LTD located at chaoyang industrial Zone, Liushi,yueqing,Wenzhou, Zhejiang, China. Our company main products is voltage regulator/voltage stabilizer. variable transformer(contact regulator) and isolation transformer. We ensure Best quality, Competitive Price and Strong Life Time After Sales Service.our born in 2009 years.and our engineer and boss workring stabilizer factory already have 15 years.
FAQ
1.About Our Voltage Regulator/Voltage stabilizer how to make quality no any problem.

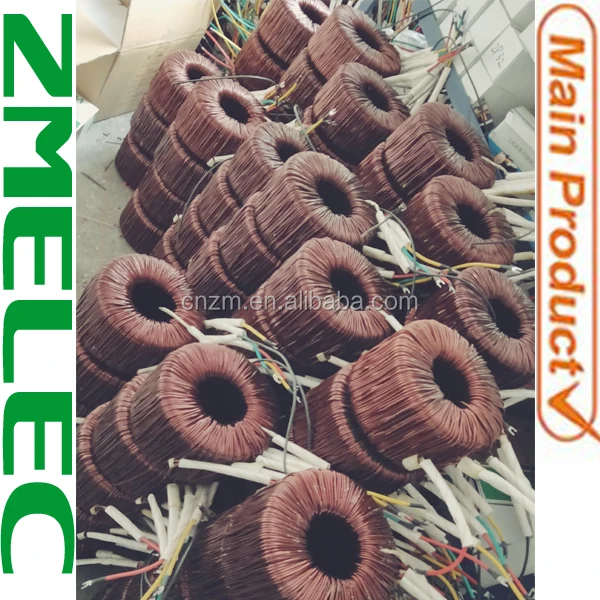

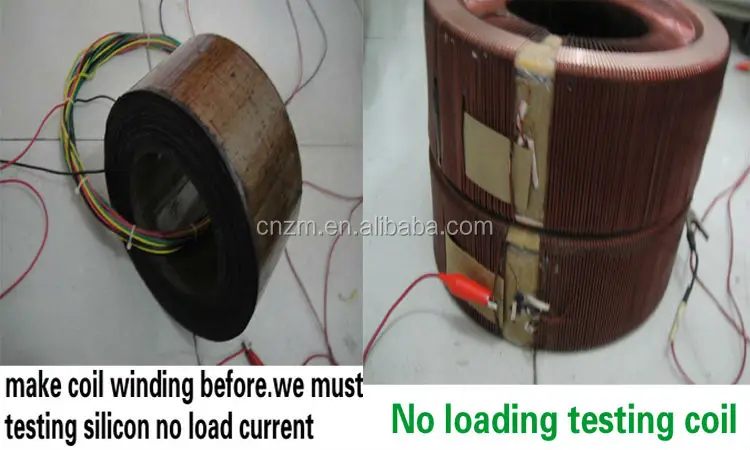

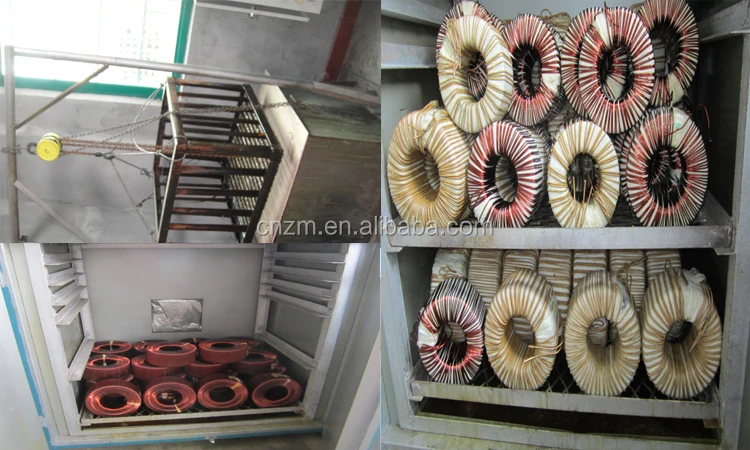

first we do voltage stabilizer inside main part PCB board and coil.we have winding machine and Dipping paint(immerse machine).silicon testing no loading current machine.
only we receive customer we first will be send to detail spec of coil size and weight and silicon area and copper wire size for our customer reference.after custome confirm okay.then we do one sample testing.after testing okay we will begining make all production order.bcos our boss working stabilizer factory already have 10 years experience.
2.About How Control Voltage Regulator/Voltage stabilizer no any problem.
our company worker 80% is from company parter.not like other factory worker wage from do working how many pcs assmble.no assmble stabilizer no wage.we difference.if control worker how to working that mean will be easy control quality. Voltage Regulator/voltage stabilizer 60% quality problem from worker.20% quality problem from material and 20% coil size.we make all customer voltage stabilizer keep quality is NO.1 bcos our company boss is coil design engineer.if want to know detail.pls email us discussing.we are is one professional voltage stabilizer.
3.About Voltage Regulator/Voltage stabilizer power.some customer call efficience
in our city liushi 90% factory do power at most 80%.some time some factory only do
70% power or 60% power.new customer search and send to many inquiry to many factory.get very difference price.some sale person tell to customer we power have 90% or 100%.so how to

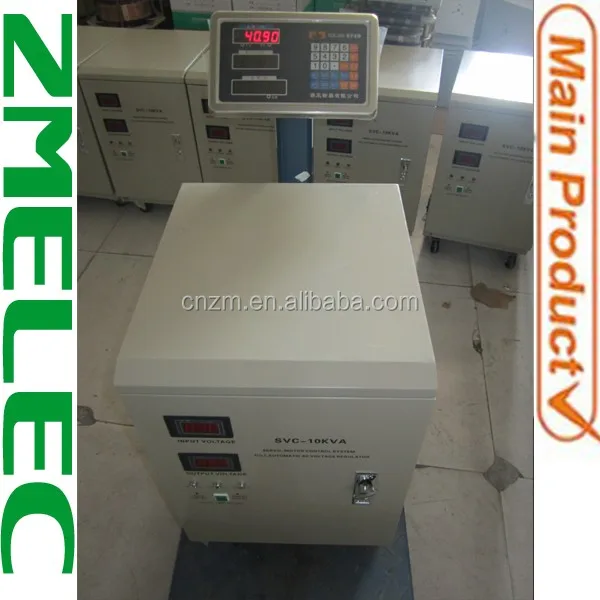

get 90% and 100%.from stabilizer weight.light weight impossible get high quality power.for exsample 10kva two coil.gernal to do net weight only have 35kg around.this weight design.
silicon area at 36.4 and wire size 1.68.compention coil silicon area 38.7 and inside aluminum wire is 2.5mm/outside wire is 4.3.if less this weight maybe only have 70% power.another deisng is used one biggestion coil.weight around 28kg around.
4.About Payment Terms:
General we do with customer 30% T/T deposite and 70% balance after loading
container see BL copy. also we do bangladesh by 100% LC.sample order shipping
cost by West Union or Customer shipping account No.also we accpet Paypal Escrow
