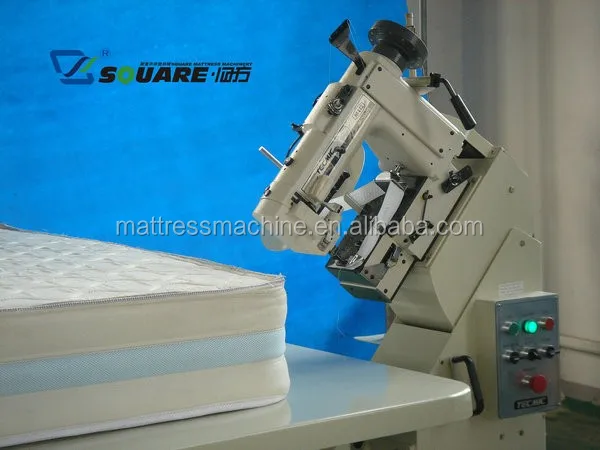

MS T601 TAPE EDGE MACHINE
- Category: Furniture Making Machines >>>
- Supplier: Nanjing Square Mattress Machinery Co. Ltd.
Share on (312502991):
Product Overview
Description
Product Description
It integrates the first-rate technology of MATSUSHITA INDUSTRY CO., (a well known high technology Japanese company in the bedding machine business) and the experienced manufacturing of NANJING SQUARE MATTRESS MACHINERY CO.LTD (a Chinese mattress machinery manufacturing company with more than 20 years experience).
Its features are as follows:
1.The pillar plus cross-shaped support table firmly, raiser and lower table by four screw rods at each corner stable.

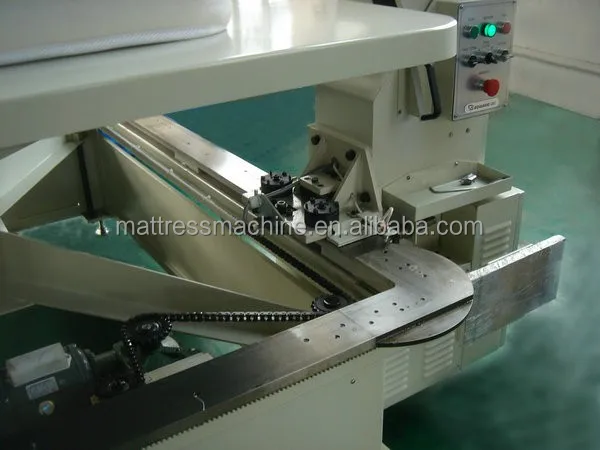

2.With a precise & durable guide rail, make the carriage movement more smooth and the motion track control more accurate.Tecmic 300 is the pioneer for tape edge usage. And with the new Tecmic-300US double chain sewing head made in Japan, it makes the sewing of heavy-weight materials more easily, and stitches more beautifully.
3.Just some of the features are the adjusting carriage travel speed and sewing rotate speed by inverter respectively.
4.Wider range for height of mattress, the electric & knee pushing device controlling the carriage movement, makes the operation easier and achieve higher production efficiency.
5.Electronic adjustments for the sewing head tilt and working table height, inching the needle breadth wise, using the magnetic clutch to control travelling.
6.The total quality can be advanced by paying attention to the improved details and its appearance.
Technical data:
Sewing head type | Chain stitch |
Sewing head lifting range | 0-200mm |
Sewing head motor rotary speed | Max 3065r/min |
Carriage speed: | 13.6(m/min) |
Tilting angle of sewing head: | 35°~ 55° |
Sewing mattress thickness: | 50~500mm |
Table lifting range: | 0~400(mm) |
Carriage clutching mode | Electromagnet clutching |
Working table size: | 2000×1600(mm), 2000×1800(mm) |
Productivity | 10-20pcs/h |
Motor power: | 1.65(kw) |
Packaging & Shipping
Our Services
1. After-sale service:
1) Installation & Commissioning: The seller can provide the installation, commissioning
and training service in buyer's factory, while the buyer needs to pay for VISA application,
air ticket, accommodation, USD100/day/person as commissioning fee, and (if necessary)
interpreting fee for seller’s technician.
2) After one year, the buyer needs to pay USD200/day/person as service charge, as well
as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting
fee for seller’s technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the
moment the seller dispatches the machines. For the detailed guarantee period of each
part, please refer to the operation manual.Wearing parts,consumption material and the
damage incurred by the buyer's incorrect operation are out of warranty range.
Company Information
Nanjing Square Mattress Machinery Co., Ltd. (also named Nanjing Sifang Mattress
Machinery Factory) was established in 1990. We are a specialized manufacturer of
complete line mattress & sofa spring equipment. Our present products cover 10 series
and more than 60 models. Our present factory covers an area of 35,000sqm with a
14,000-square-meter workshop.
Presently, our company is running strictly in terms of ISO90001:2000 quality system. Our
products sell well not only in China but also far in Europe, South America, North America,
Australia, the Middle East, Asia, Africa, and other countries and regions all over the world.
Our products make us win customers' trust and recognition widely. Our annual export
volume is increasing rapidly. Any of your contacts or visits is sincerely welcomed. We look
forward to making cooperation with you in the near future!
FAQ
1.Voltage: Please pay attention to your country's voltage, China is 220v 1phase 50Hz / 380v 3phase 60Hz
2.payment item: TT30% in advance, 70% was paid off before delivery
