Pu injection mould for making soles and shoes

Product Overview

Description

Pu injection mould for making soles and shoes

pu shoe mould is made of aluminum, it is composed with 3 parts which depend on sole samples, the up mould, mid mould and the bottom mould.

It is used on the PU rotary mould machine, such as Italy gusi, BGM, Main group and Chinese PU Rotary machine.

The structure of the mould is according to the sole sample and mould machine, the size usually is 350mm*150mm*120mm.



Our service for you:

1. We can make all kinds of pu injection moulds according to customers’ drawing or samples.

2. We specialize in the design, drawing, prototypes, injection moulds according to customer’s requirement.

3. We own a professional technique team, advanced equipment.

4. Please provide 2D/3D drawing or samples for the exact quote; please feel free to contact us.

5. Our products will save your time and money; we guarantee high quality moulds and do our best to satisfy you.



Step	solution
Received Inquiry	Analyze Customer requirement and drawing with specification immediately
Quote within 24 hours	Include payment and mould material product material, warranty delivery time, shipment ect.
Send customer Schedule	Get customer order ,Make the plan and arrange to do, then send the schedule to client
Confirm drawing	Clients confirm the mould drawing, once get reply will doing soon.
Prepare material	According mould drawing to prepare mould base, inserts and pins.
Making	Machining mould base, cavity insets and core insets, even slide block by CNC, EDM, wire cutting, surface polish and other treatment, finally assemble.
First sample and dimension	Make samples and measure all dimension according drawing, make the dimension report, if all the dimension within tolerance, will send dimension report to customer with samples.
Customer confirm samples	Approve the samples
Delivery	Shipment to customer
After sale	Ready to help customers solve any possible problem

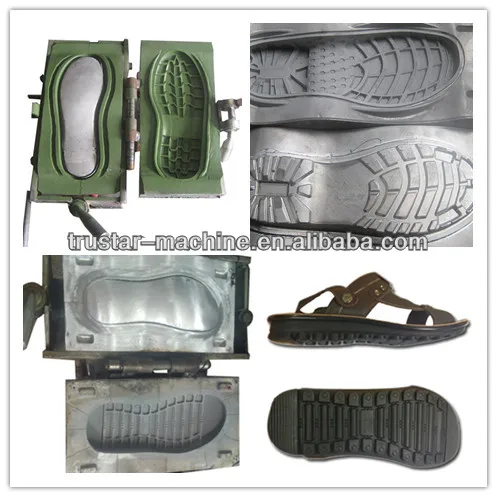

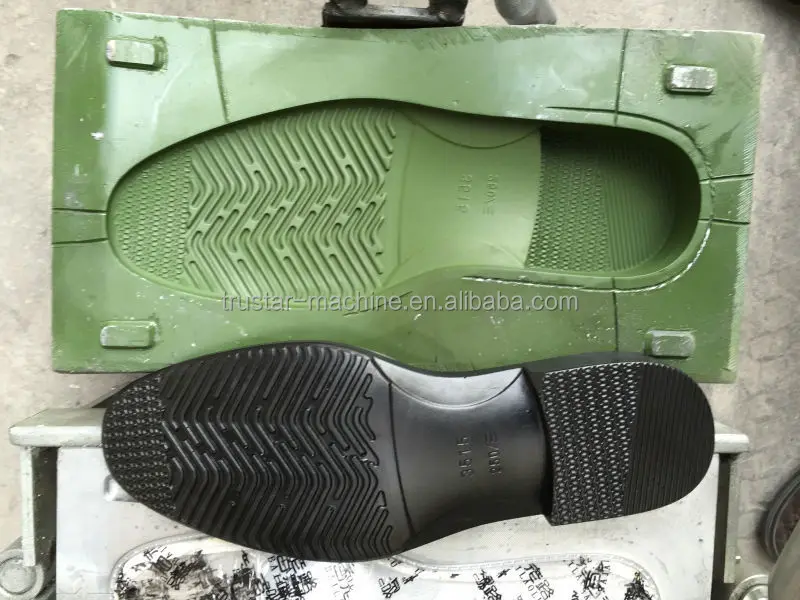

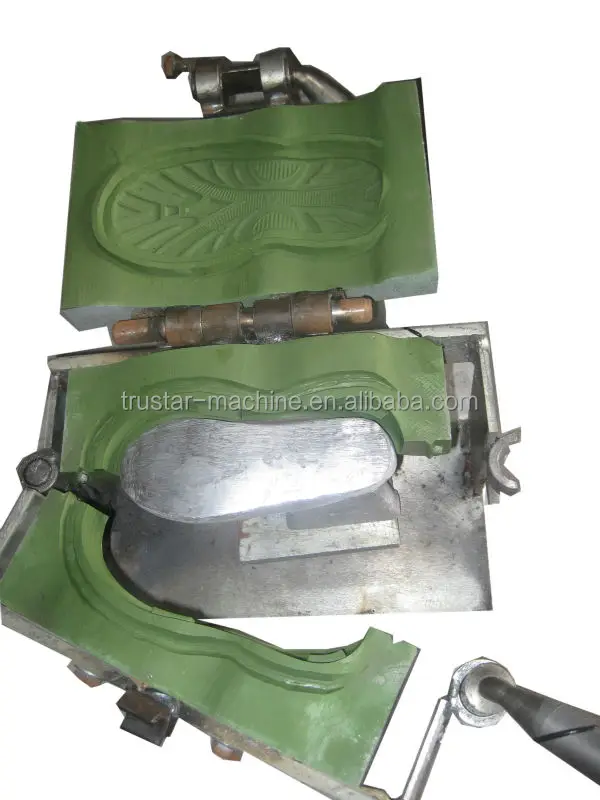

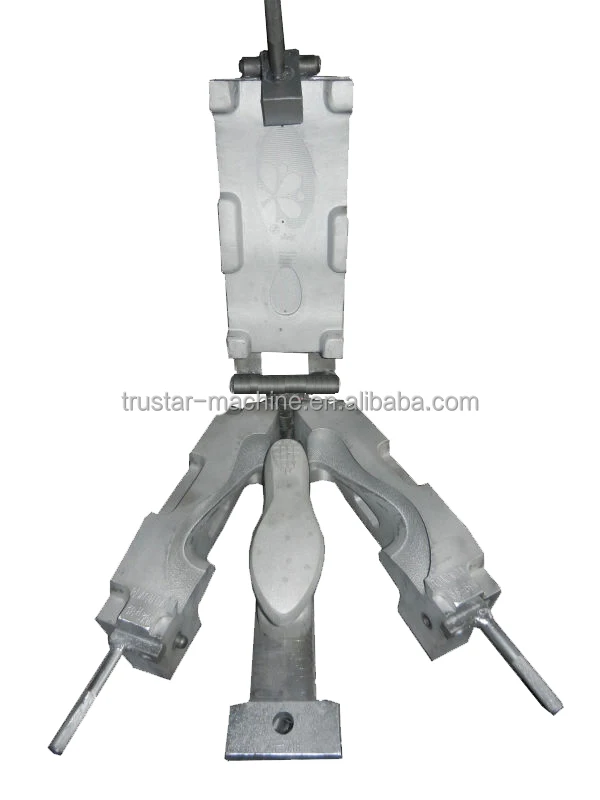

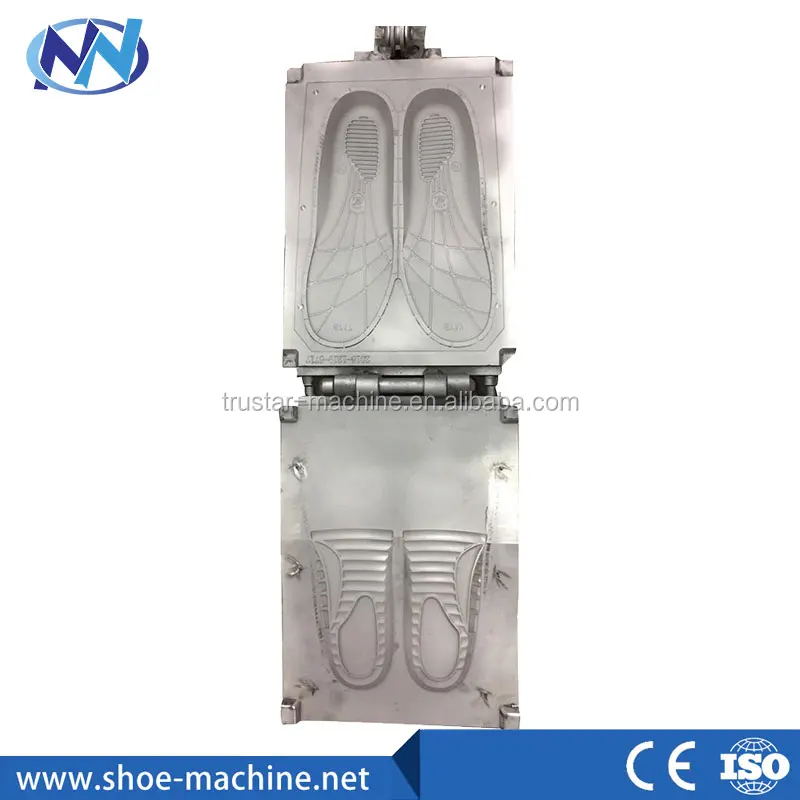

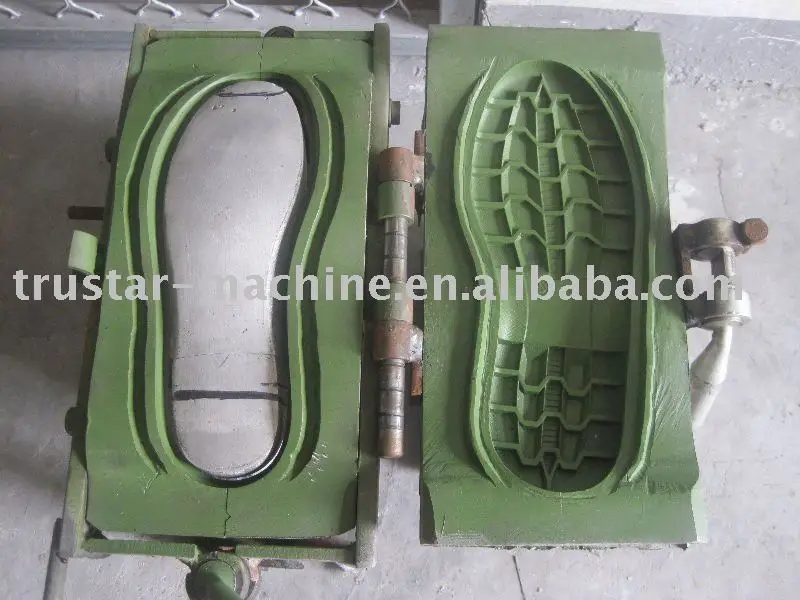

Mould picture sample:

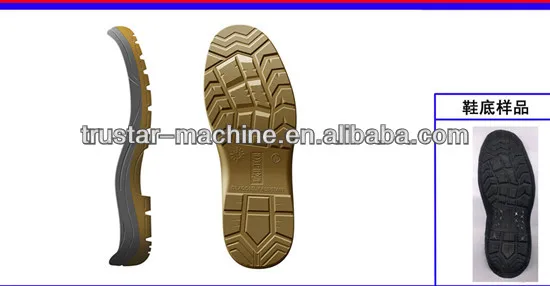

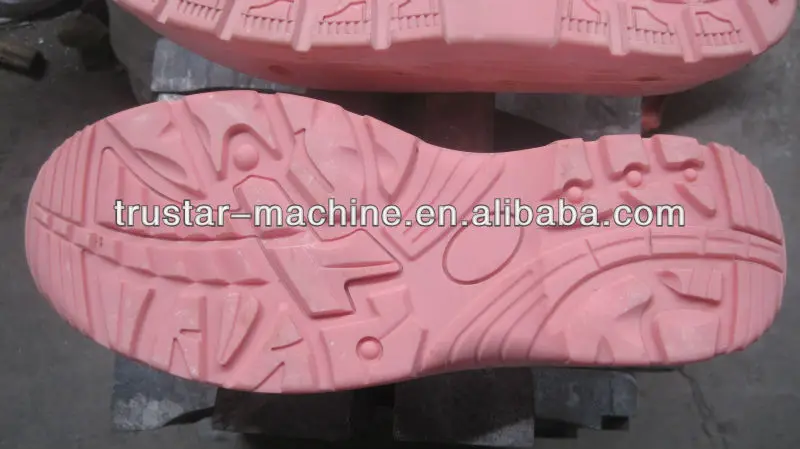

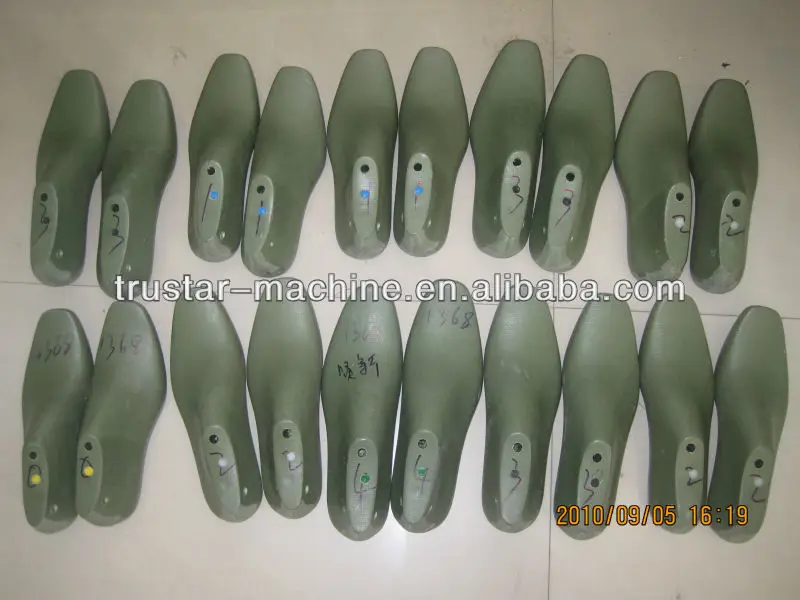

Dummy:

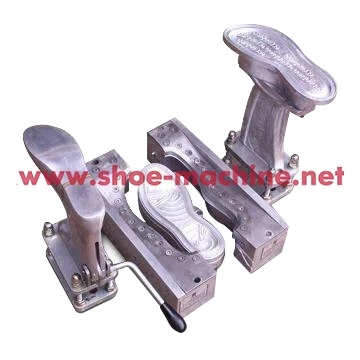

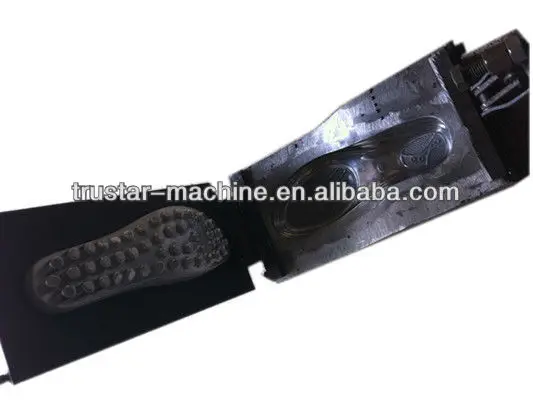

OTHER MOULD PICTURE:
