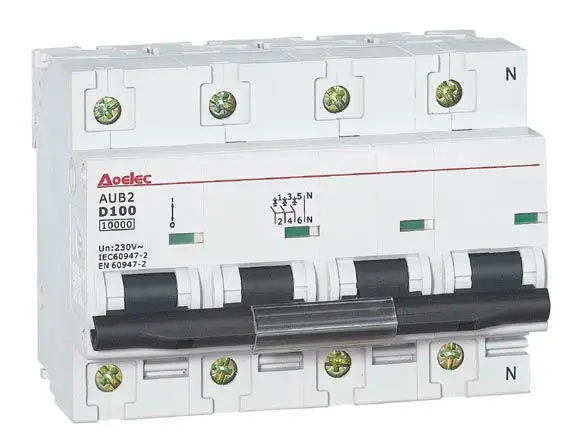

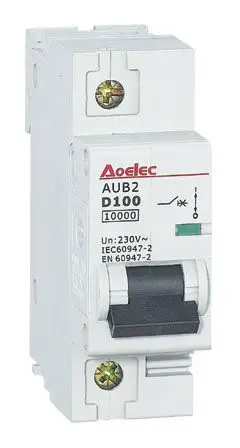

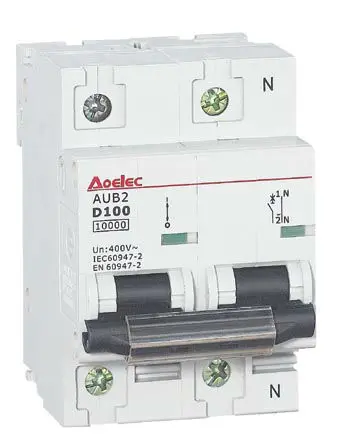

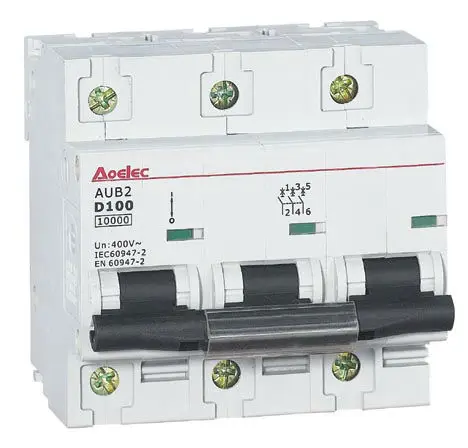

AUB2 High breaking capacity 10kA MCB
AUB2 High breaking capacity 10kA MCB

AUB2 High breaking capacity 10kA MCB

Share on (313304423):


Price:$3.00

Quantity:


Product Overview

Description



Function and Feature:


Protection against both overload and short circuit


High short circuit capacity


35mm DIN rail mounting and screw mounting


Used as main switch in household and similar installation





Technical data


Rated current(In):63,80,100,125A

Rate voltage(Un):230/240VAC,400/415VAC

Breaking capacity:10kA

Rated frequency:50/60Hz

Number of poles:1P,2P,3P,4P,1P+N,3P+N

Rated impulse withstand voltage(Uimp):4kV

Electrical endurance:10000cycles

Mechanical endurance:20000cycles

Terminal:pillar type

Cable termination:35mm2

Torque of screw:2.5Nm

IP degree:IP20

Standards:IEC/EN 60947-2

Certificate:Semko,CB and CE

Catalog No.                                                                                                                     CTN Size:44X33.5X18.5


































In(A)Model No.QTY/BoxQTY/CTN
63AAUB2 1P C612120
80AAUB2 1P C1012120
100AAUB2 1P C1612120
125AAUB2 1P C2012120
