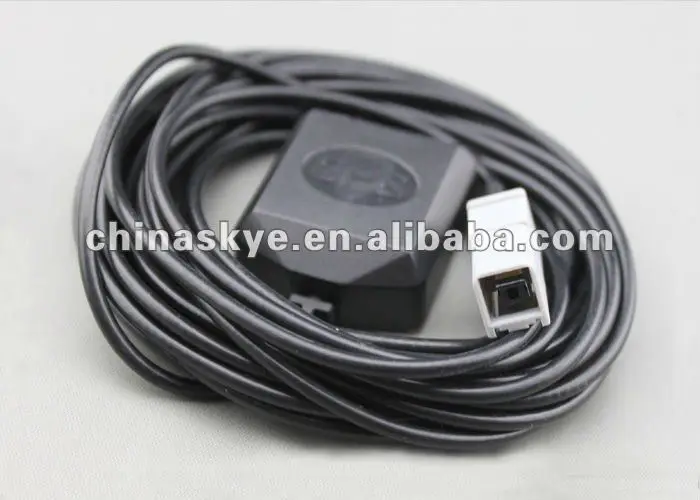

Gps Antenna Hrs Gt5 1S For Kenwood Dnx7020Ex Dnx6020Ex Dnx6000Ex

Product Overview

Description

GPS antenna

For Panasonic GPS Antenna
5M long



GPS antenna

1: Dieletric Antenna

Center Frequency: 1575.42MHz±3 MHz

V.S.W.R: 1.5:1

Band Width: ±5 MHz

Impendence: 50 ohm

Peak Gain: >3dBic Based on 7×7cm ground plane

Gain Coverage: >-4dBic at –90°<0<+90°(over 75% Volume)

Polarization RHCP



2: LNA/Filter

LNA Gain(Without cable): 28dB Typical

Noise Figure: 1.5dB

Filter Out Band Attenuation (f0=1575.42 MHZ): 7dB Min f0+/-20MHZ ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ

V.S.W.R: <2.0

DC Voltage: 3V , 5V, 3V to 5V

DC current: 5mA ,10mA Max



3: Mechanical

Weight: <105gram

Size: 36.8×33.9×14mm

Cable: RG174  3 or 5 meters

Connector: GT5 Gray

Mounting:Magnetic base/ stiking

Housing: Black



4: Environmental

Working Temp:  -40°C~+85°C

Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis

Humidity: 95%~100%RH

Weatherproof: 100%Waterproof
