Factory Supply Automobile WABCO Air Braking Valve Test Bench

Product Overview

Description

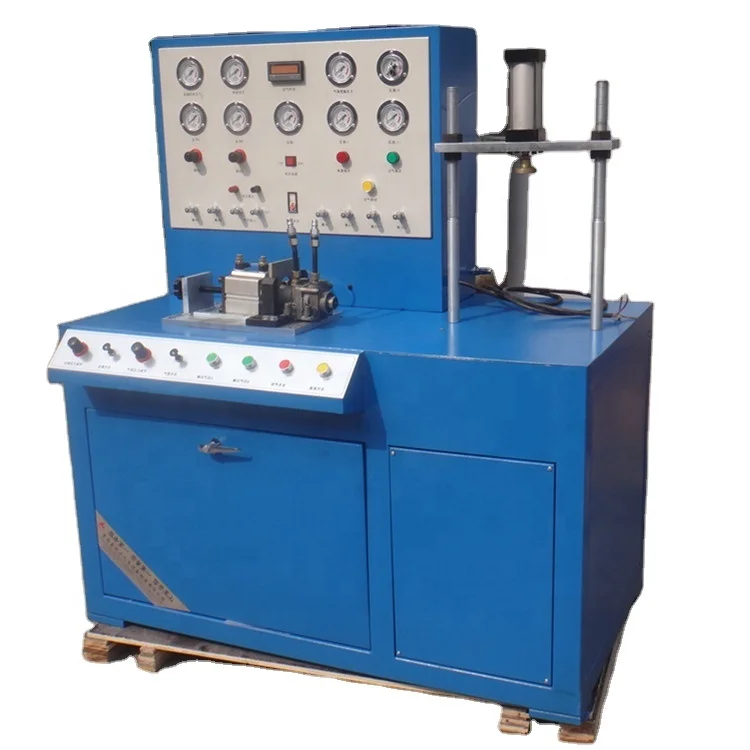

QYZ-3 model air brake valves test bench



General introduction

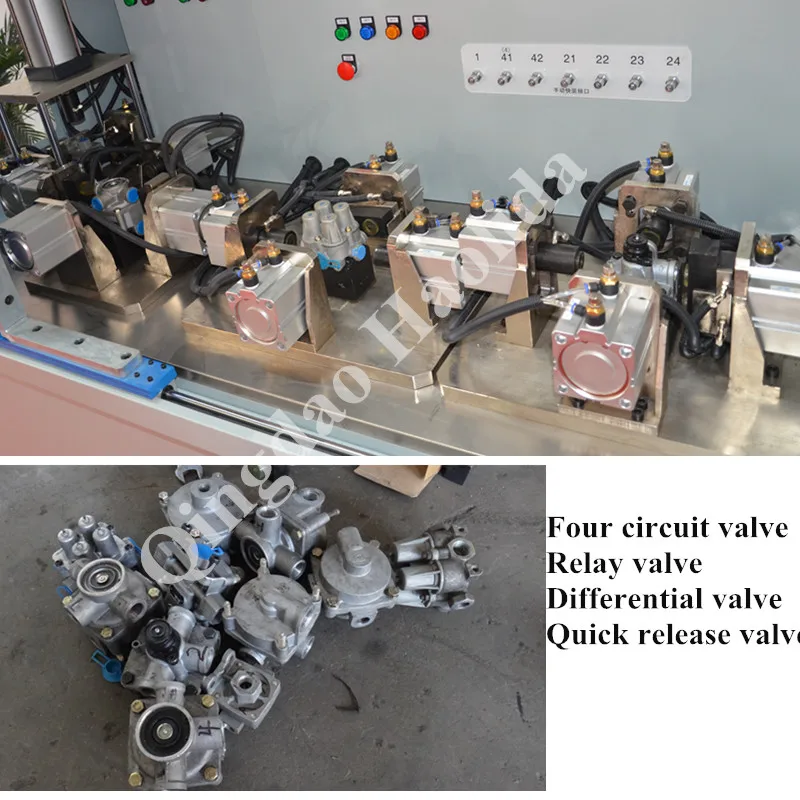

This brake valve test bench is used mainly for testing performance of brake master cylinder, brake cylinder, quick release valve and relay valve, differential valve, four circuit valve, etc in automobile brake system.

It equips with quick coupler, uses high-precision air pressure adjusting valve and pressure gage, with the features of sensitive operation, convenient reading the data , safe and reliable.



Advantages:

1.      It is with indicator lamp following each step and warn you the problems.

2.      It possesses high control sensitivity and strong controllability.

3.      It is easy to learn and operate.

4.      It is with high precision air pressure regulation valve and pressure gauge

5.      It is with quick coupler, improve the working efficiency

6.      It is suitable for repair and test passenger cars, with air braking system.



Test items:

l  resistance to air loss of brake master cylinder,and the time needs to inflate air from main air tank to air chamber through brake master cyliner ( air-in and air pass time)

l  resistance to air loss of brake cylinder: the main air tank inflate air to air chamber, when reaches the rated pressure, maintain the pressure

l  resistance to air loss and quick release of quick release valve

l  On-off and resistance of air loss of relay valve

l  On-off, resistance to air loss and quick release of differential valve

l  Opening pressure and resistance to air loss of four circuit valve

l  Performance of solenoid valve of braking system



Technical parameter:



Model no	QYZ-3
Language	English
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	AC 220V 50Hz
Input air source	0-1.0Mpa
Tested pressure range	0-1.0Mpa (adjustable)
Test precision grade:	±1%
DC input	12V  24V
Current	5A
Accessories:
Accessory wires, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	30 days after receiving downpayment
HS code	90312000.90
Packing sizes	1700*950*1680=2.71CBM

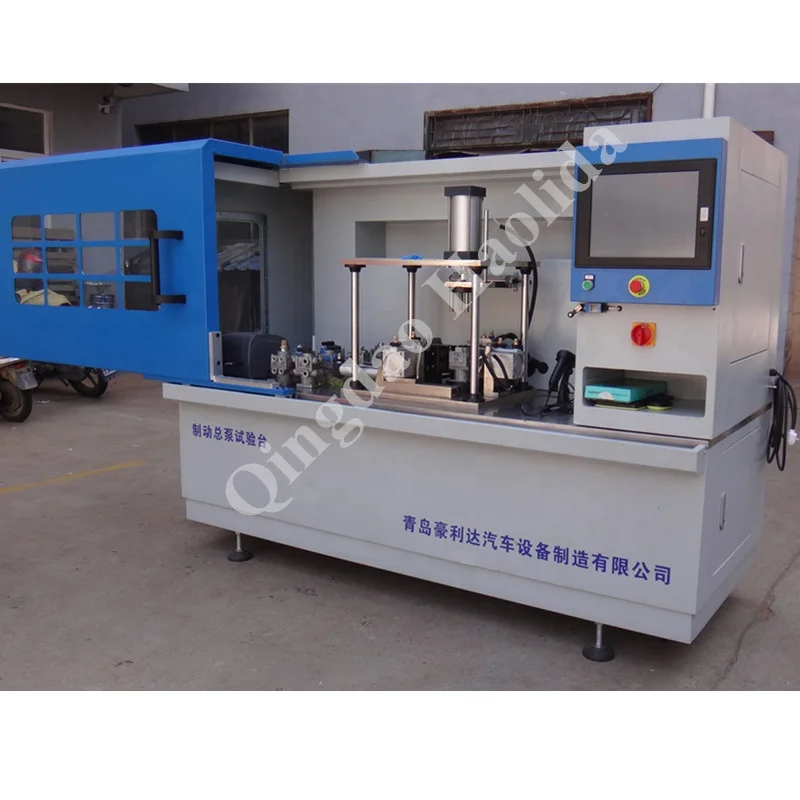

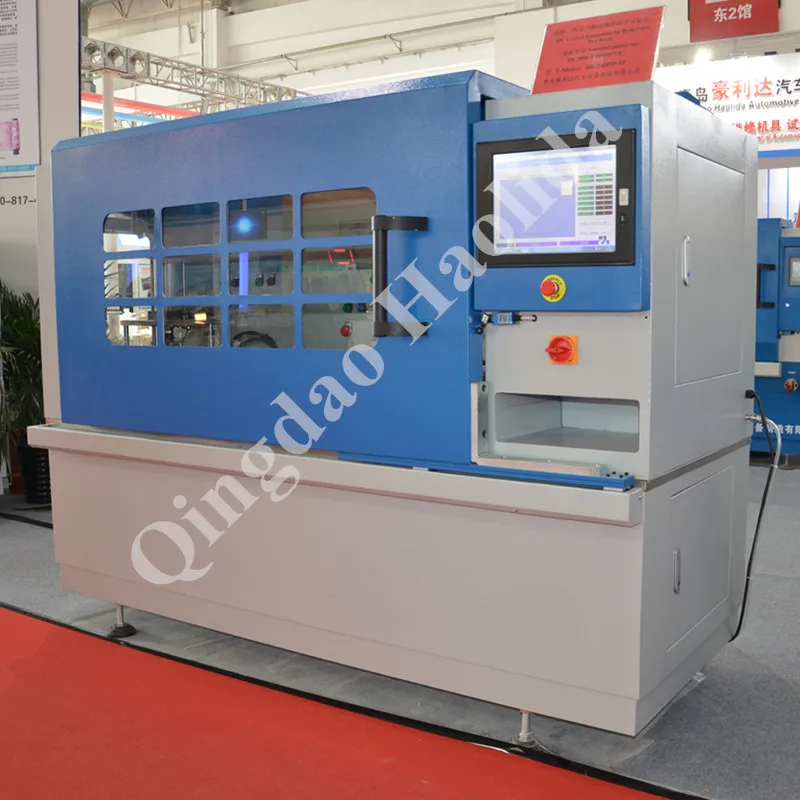

Other similar kinds test benches for air braking valve and air compressor:

Why Choose us:

1.      32 years’ design,development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
