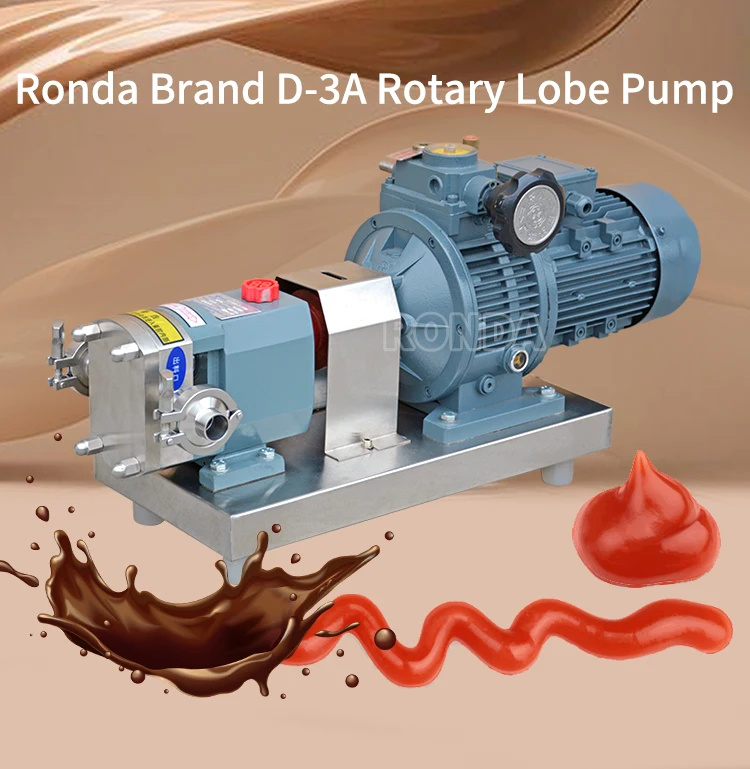

D 3A Stainless Steel Food Grade Sanitary Lobe pump For High Viscosity Molasses Tomato Sauce

Product Overview

Description

D-3A Stainless Steel Food Grade Sanitary Lobe pump For High Viscosity Molasses Tomato Sauce





Product introduction:

D-3A Stainless Steel Food Grade Sanitary Lobe pump For High Viscosity Molasses Tomato Sauce

1. Made of by stainless steel 304 or 316 which conformed to the sanitary standard.

2. Used to transfer high viscosity liquids in various industrial fields:

    Foodstuff: molasses, honey, yoghourt, chocolate, tomato sauce, syrup, fruit juice, cooking oil, edible oil, vegetable oil, cheese, protein, ketchup, sesame paste, mashed garlic, peanut butter, chilli sauce, etc.

    Cosmetics: facial cleanser, shampoo, toothpaste, lotions, creams, liquid soap, shower gel, hairspray, etc.

    Others: medicine, fertilizer solution, ceramic glaze, paint coating, etc.

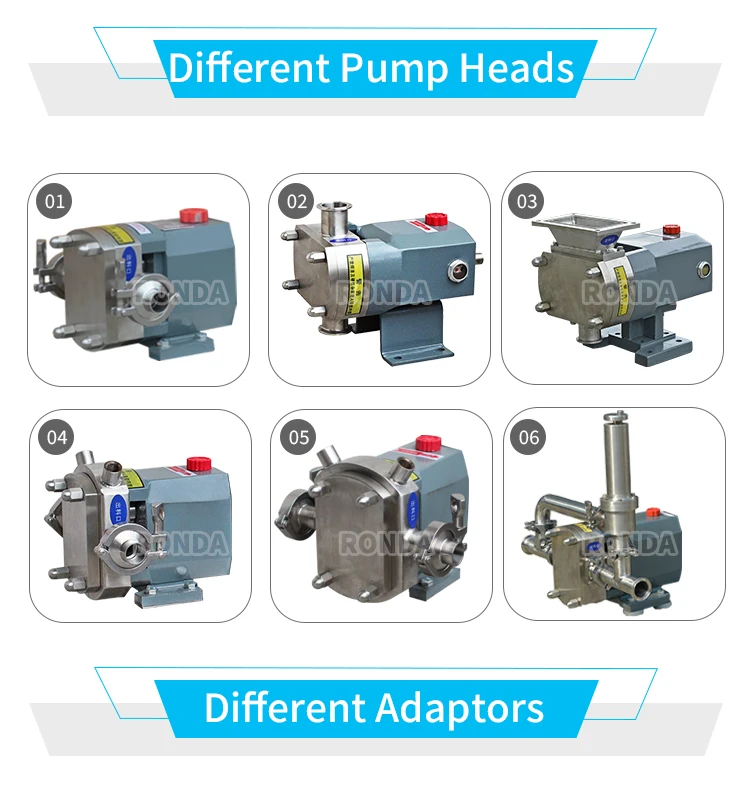

3. Pump could be customized according to customers' requirements:

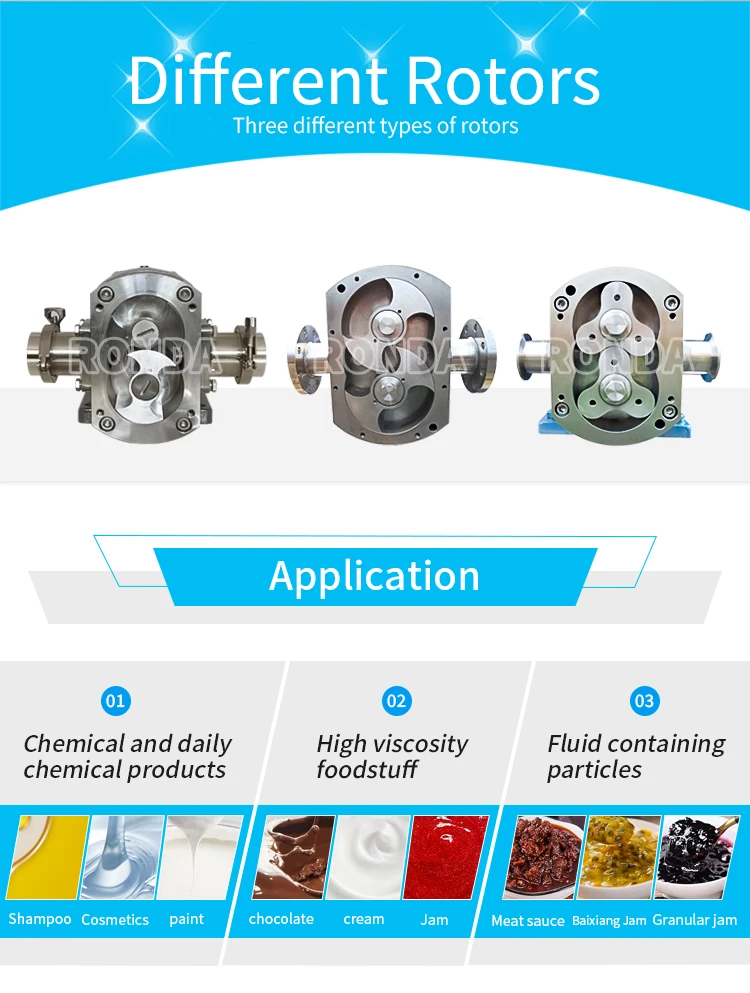

     Vane type: single vane, double vane type, three vane type.

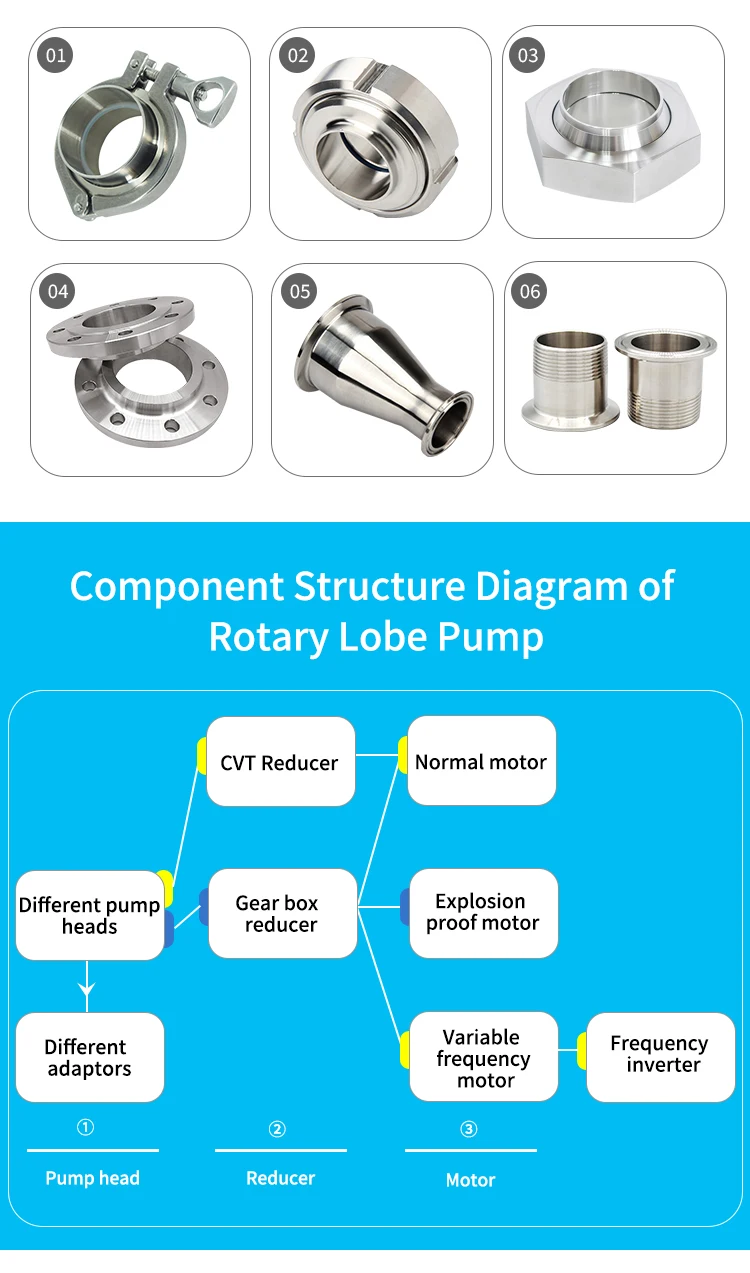

     Connection mode: clamp, flange, thread, etc.

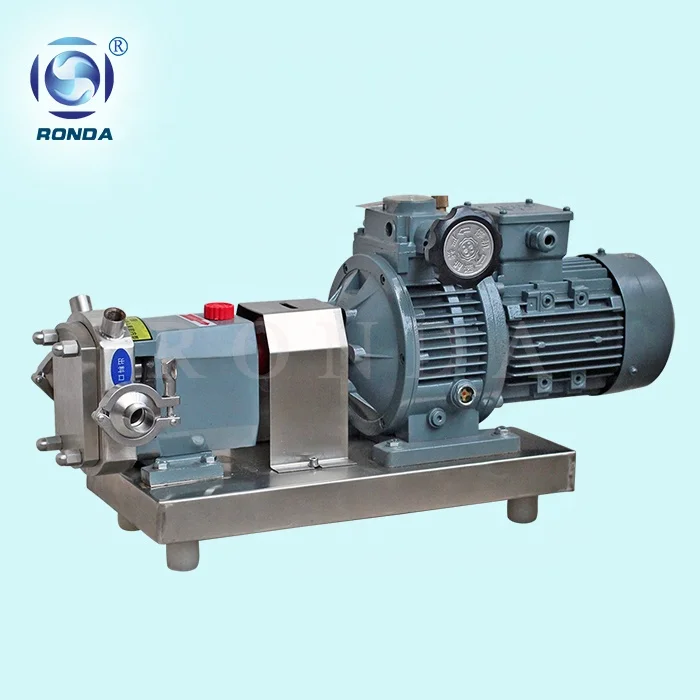

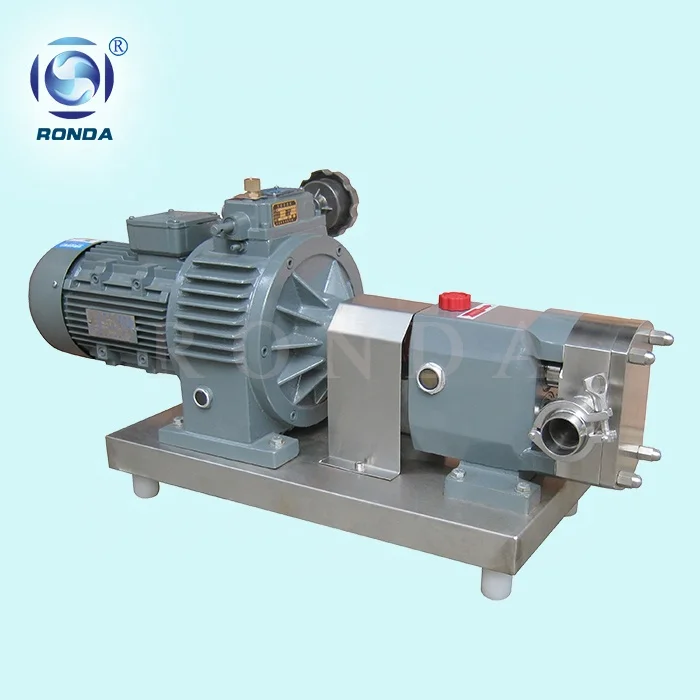

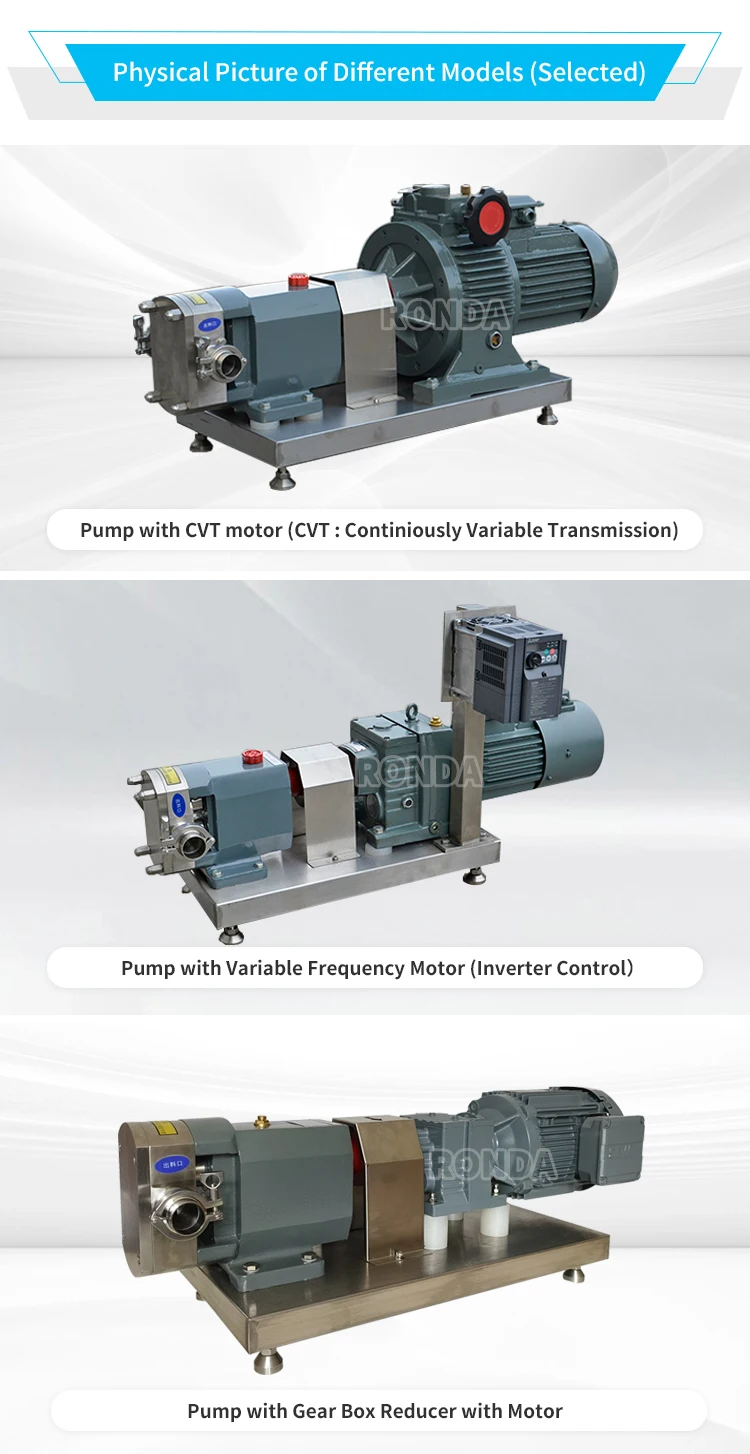

     Motor type: CVT(Continuously Variable Transmission) motor, variable frequency motor, gear box motor, electromagnetic adjustable-speed motor, EX-motor, etc.

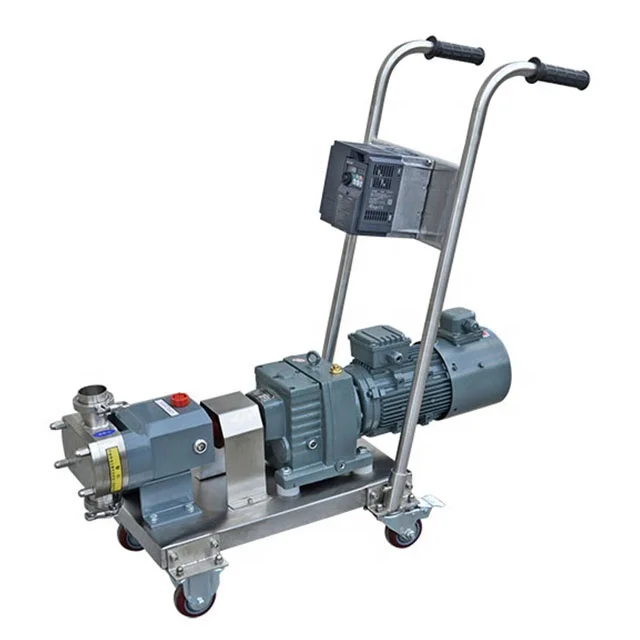

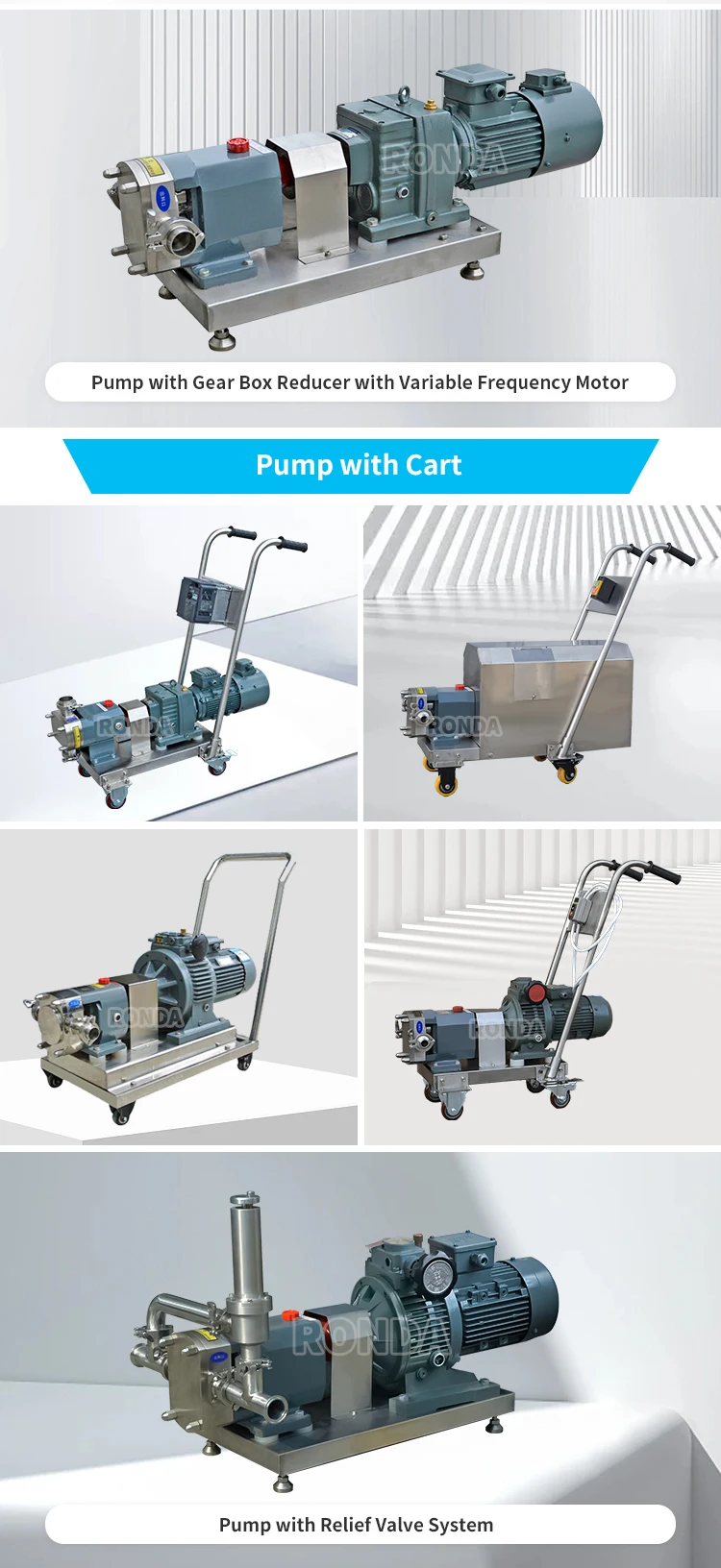

     Moveable trolley for small model pumps.

     Mechanical sealing water cooling device for high temperature liquids.

     Heat preservation jacket for some mdeiums which needs to be heated.

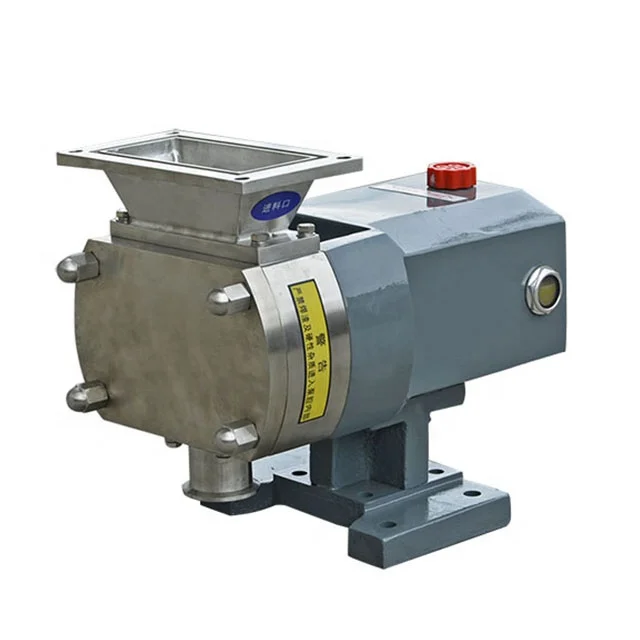

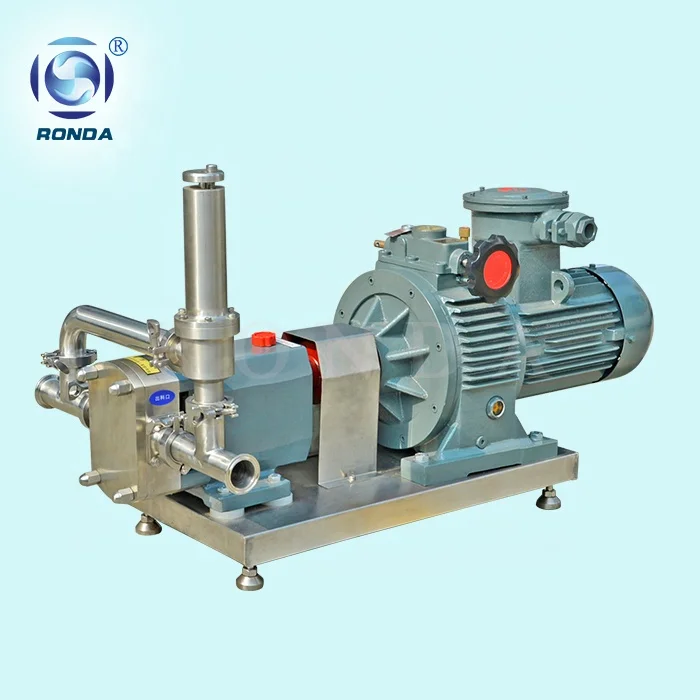

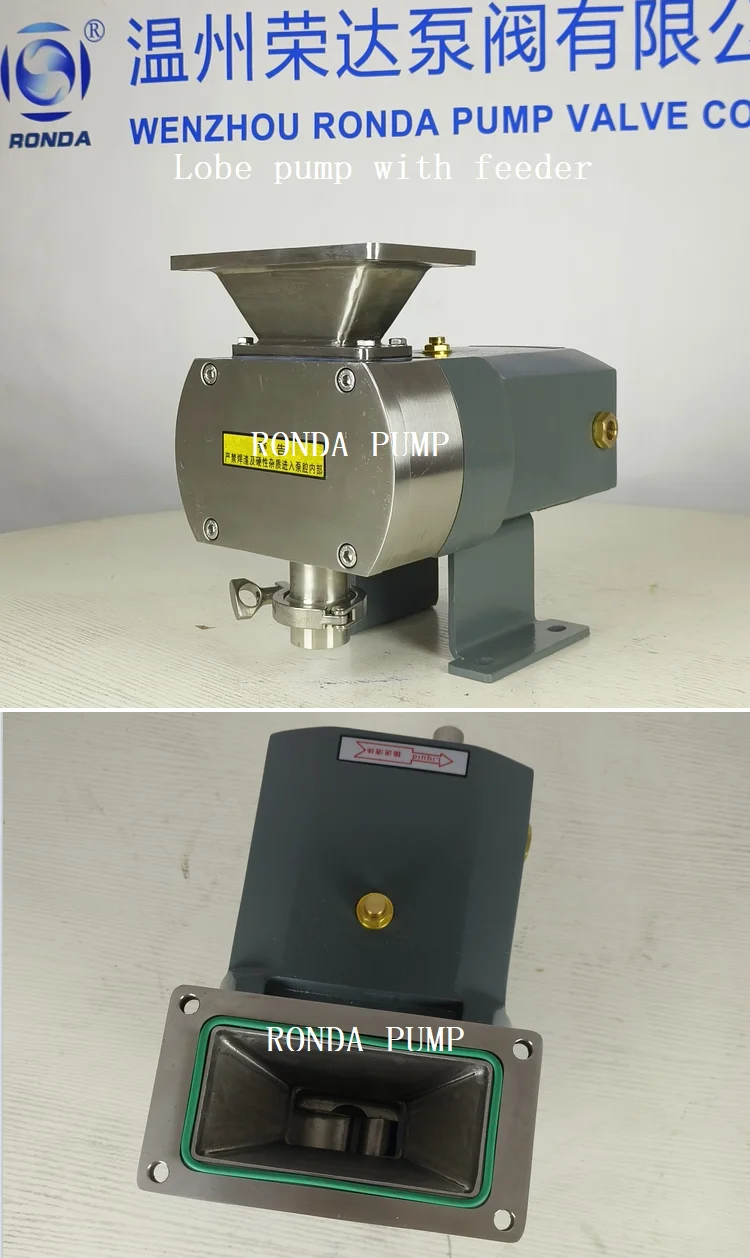

     Re-flow device, hopper, different caliber direction for different installation designs.





Performance data:

Model	Capacity  of per100r	Speed  range	Capacity	Motor		Caliber	Max  Viscosity	Connection
	(L)	(r/min)	(L/h)	Power(KW)	Type	(mm)	(c.s.t)
D-3A-3	3	200-500	300-800	0.55	CVT Gearbox fixed  speed ratio VFD	Φ25/DN25	1-1000000	Clamp Flange Thread SMS Barb Square port
D-3A-6	6	200-500	650-1600	0.75
D-3A-8	8	200-500	850-2160	1.5		Φ38/DN40
D-3A-12	12	200-500	1300-3200	2.2
D-3A-20	20	200-500	2100-5400	3		Φ51/DN50
D-3A-30	30	200-400	3200-6400	4
D-3A-36	36	200-400	3800-7600	5.5		Φ63/DN65
D-3A-52	52	200-400	5600-11000	5.5		Φ76/DN80
D-3A-66	66	200-400	7100-14000	7.5
D-3A-78	78	200-400	9000-18000	7.5
D-3A-100	100	100-400	5500-22000	11	Gearbox fixed speed ratio   VFD	Φ89/DN80
D-3A-135	135	100-400	7500-30000	11
D-3A-160	160	100-300	8500-34000	15
D-3A-200	200	100-300	10800-43000	18.5
D-3A-300	300	100-300	15800-63000	22		Φ102/DN100
D-3A-400	400	100-300	21000-72000	30		Φ129/DN125

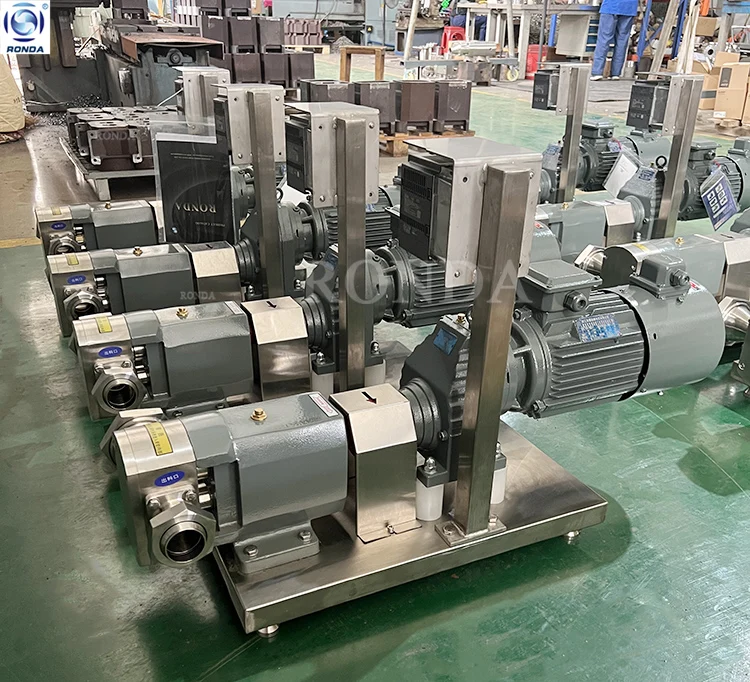

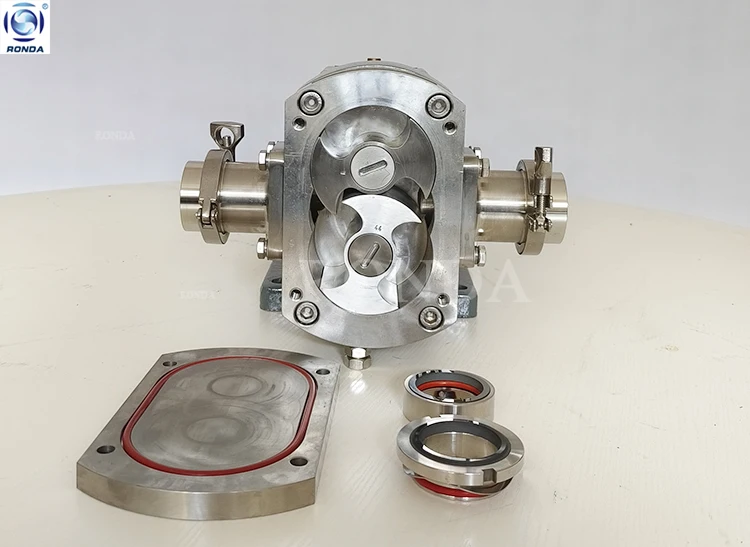

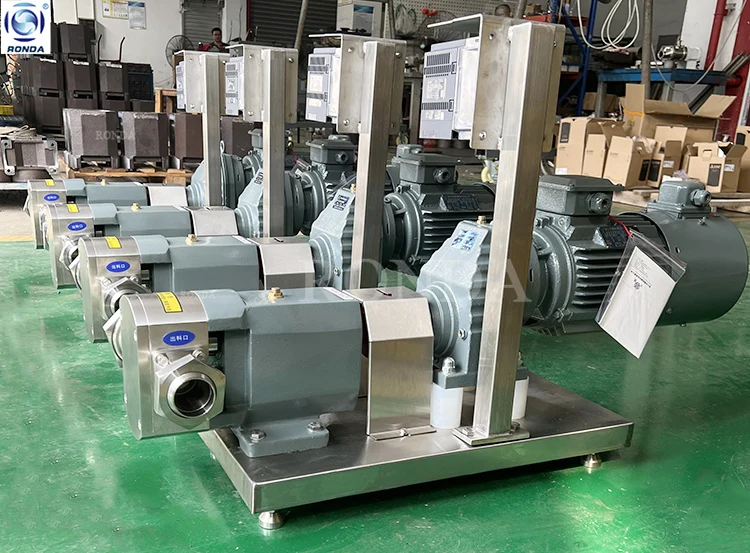

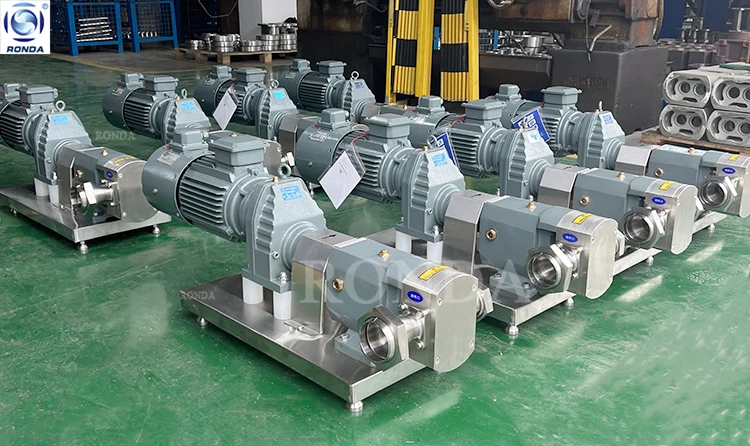

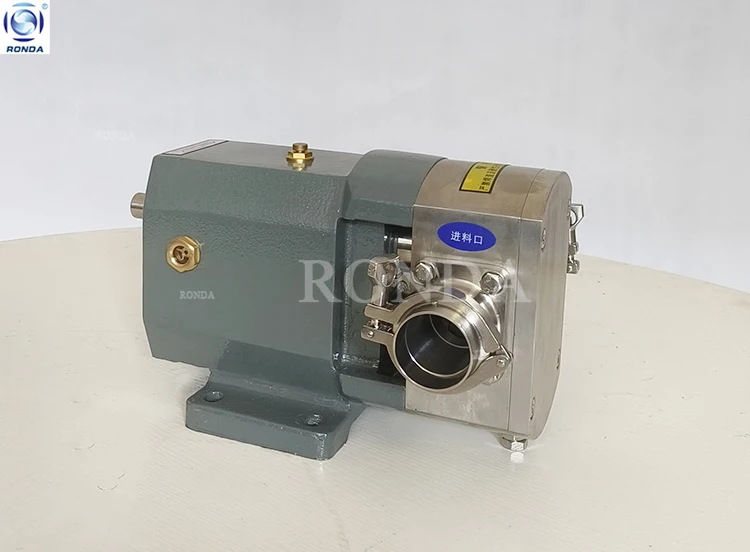

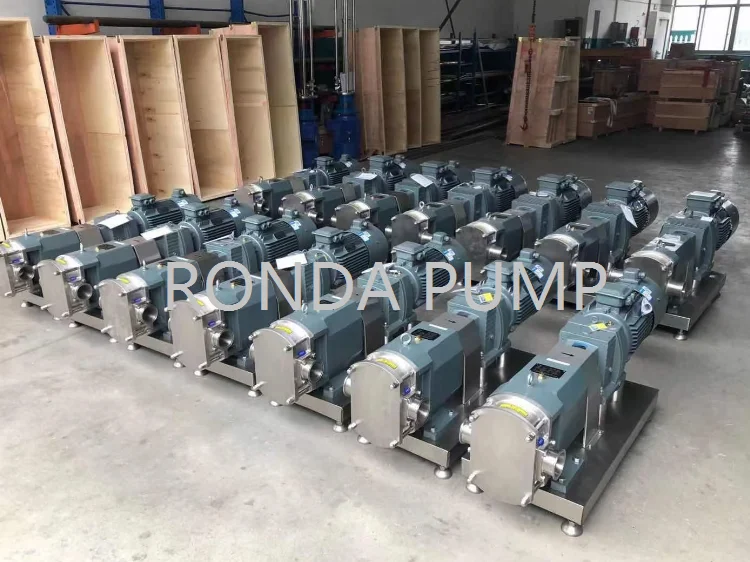

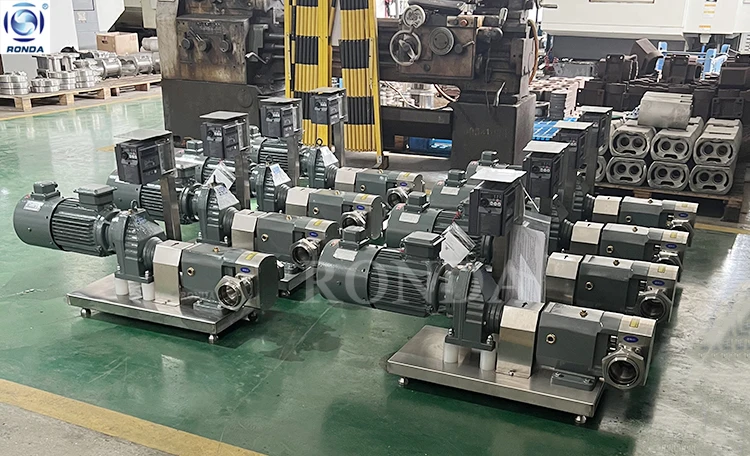

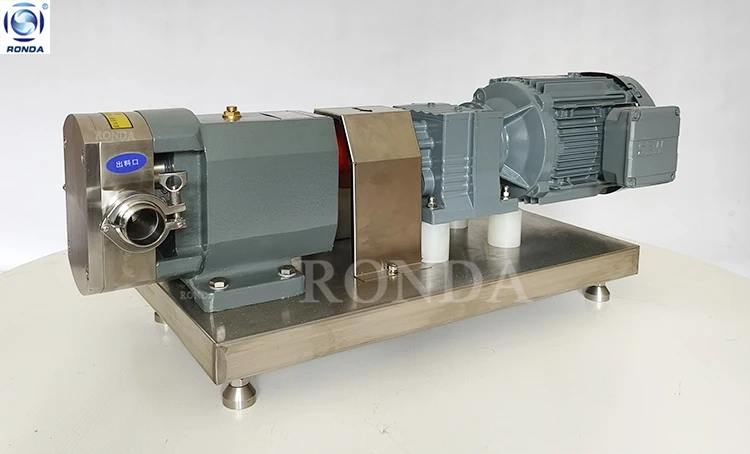

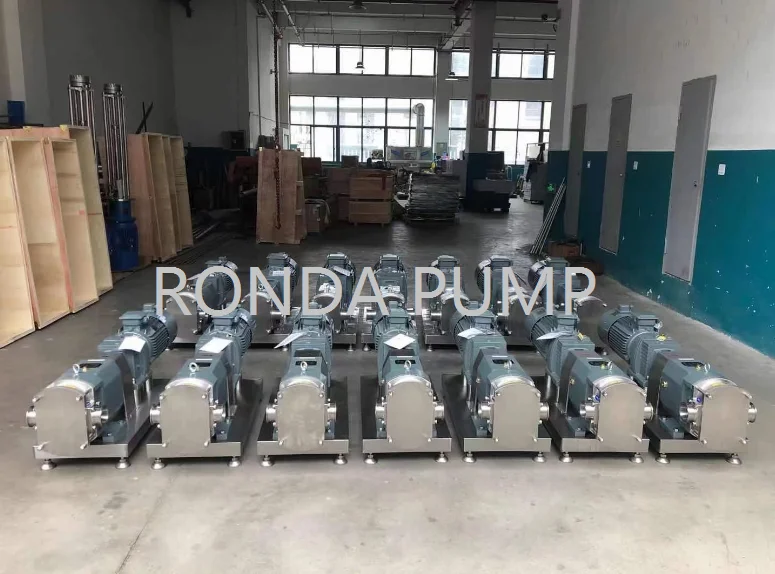

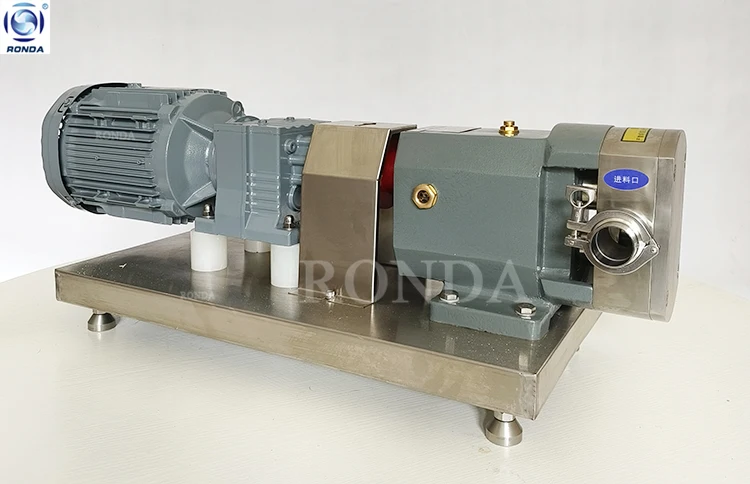

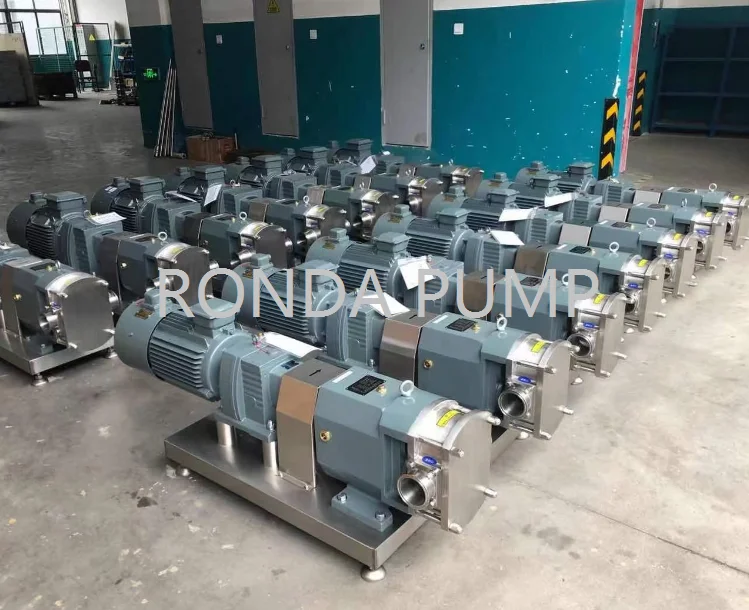

More Pictures:
