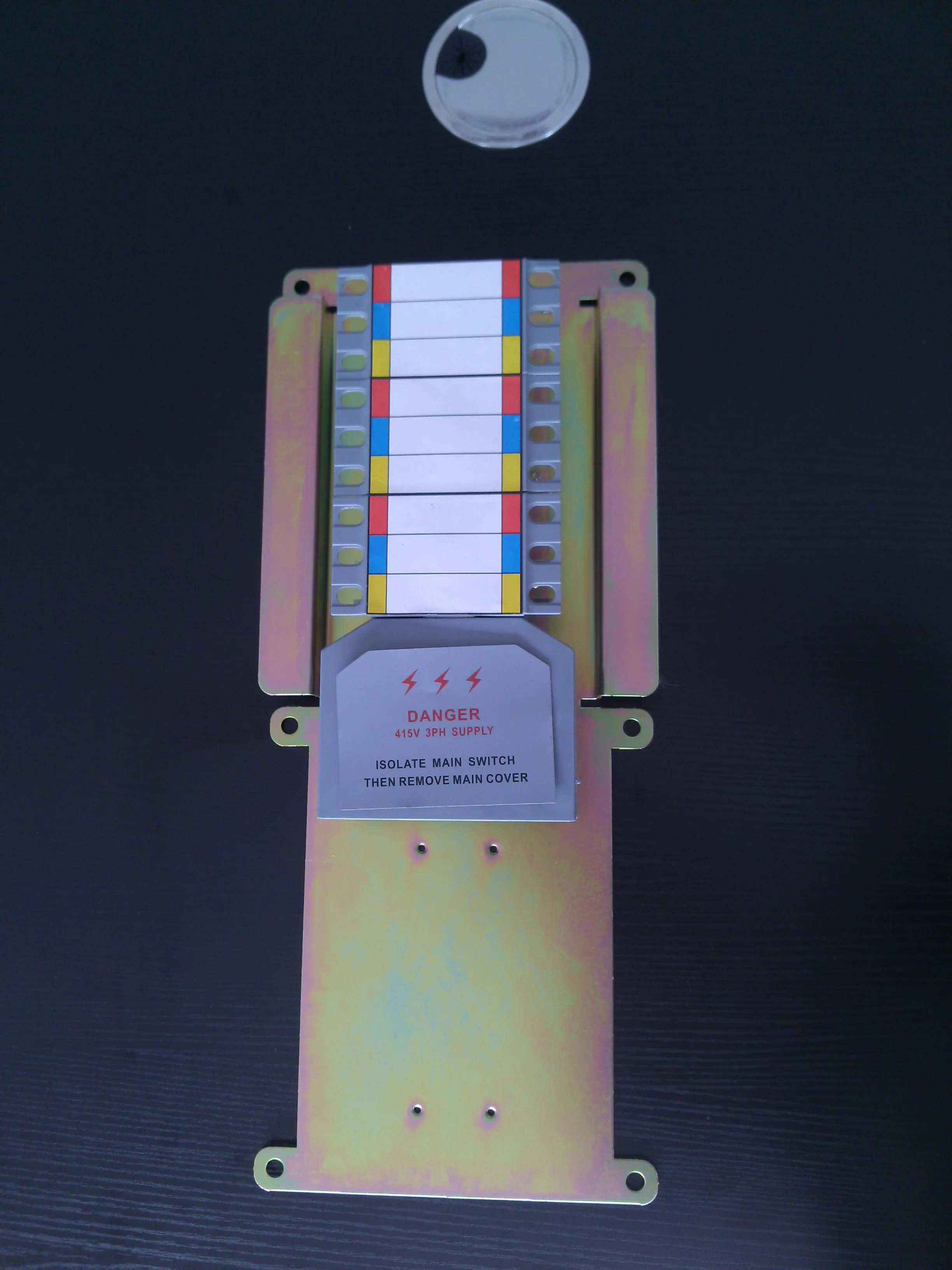

AT MCCB main 250A Pan assembly busbar

Product Overview

Description

AT MCCB main 250A Pan assembly busbar



Model: ETB02 250A Din rail Pan assembly

Rated current:  125; 200; 250A

Compact design



AT MCCB main 250A Pan assembly busbar  is a kind of busbar with shrouded, designed for simple, quick and complete integration into custom built enclosures.



They are highly welcome by the panel builder, and electrician in the electric power distribution.



Feature

Standards: IEC 61439 -2

Rating current: this model was divided into 3 frames by different thickness copper used.

250A 3.0 mm;

200A 2.0mm;

125A 1.5mm

Operating Voltage: 400/415V

Frequency: 50/ 60Hz

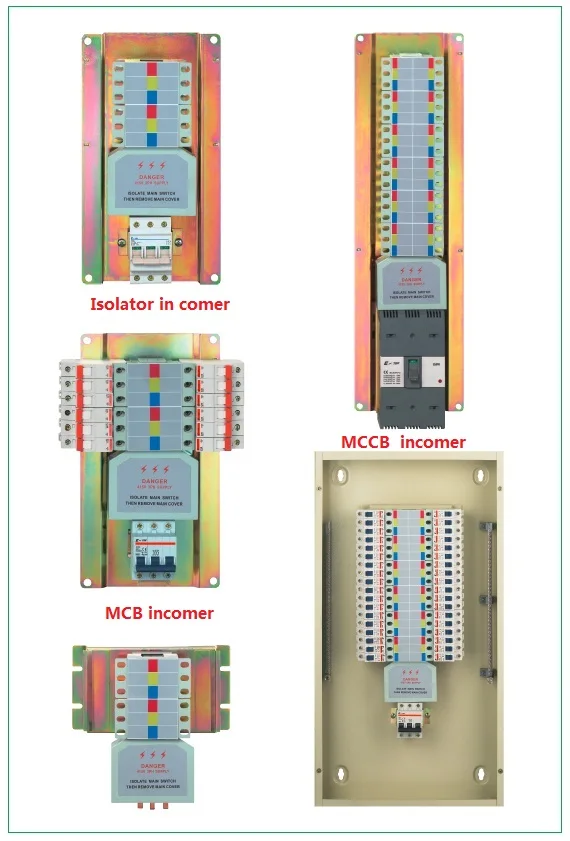

Incomers:  Free be designed/can be MCB, ISOLAOTR, MCCB, WIRING

Outgoing:  branch mounted on the rail of the base.  The rail of the base can be designed according customer’s inquiring,

Suitable for mounting in separate enclosure

No. of ways: 4,6,8,10,12,14,16, 18,20,22,24W

No. of phase:  this model Pan assembly busbar also can make in single phase, and two phase.

Fully shrouded continuously rated copper busbar



One piece (no welds or rivets) phase busbars to eliminate the risk of hot spots

Accepts 6kA, 10kA and 15kA MCBs and flying lead RCBOs
