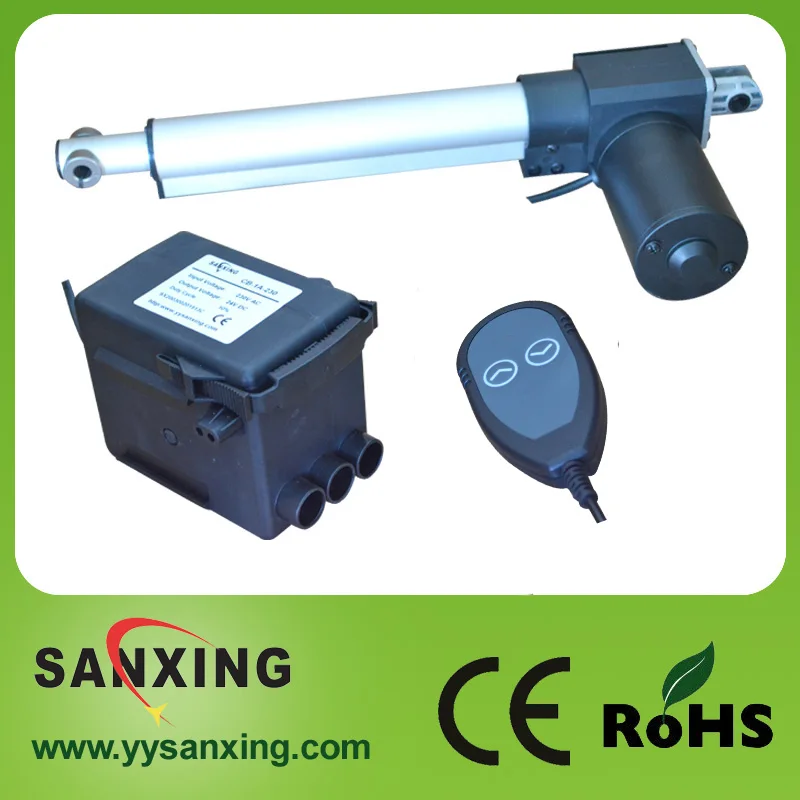

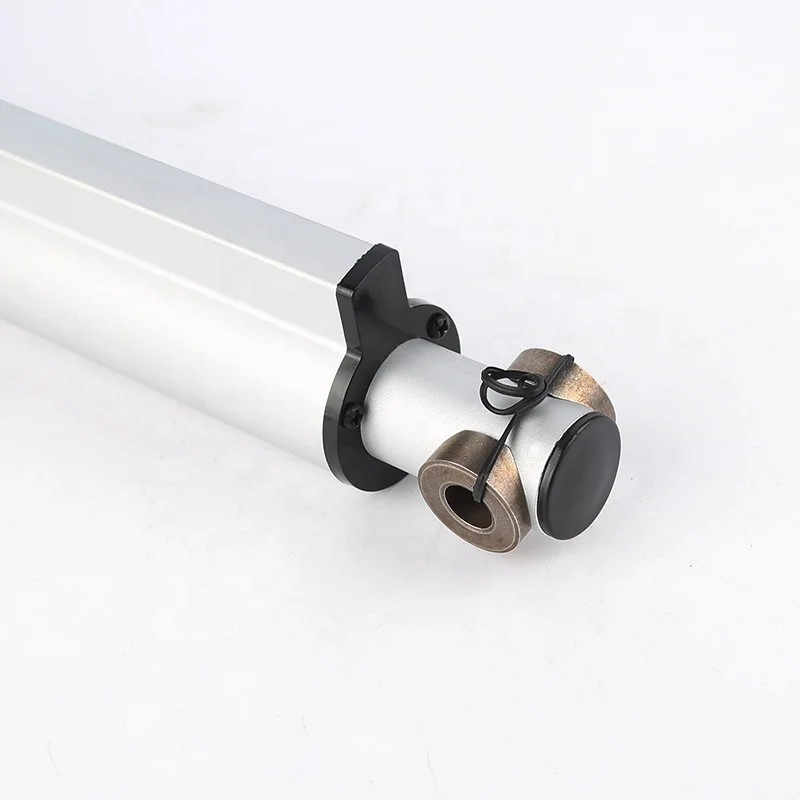

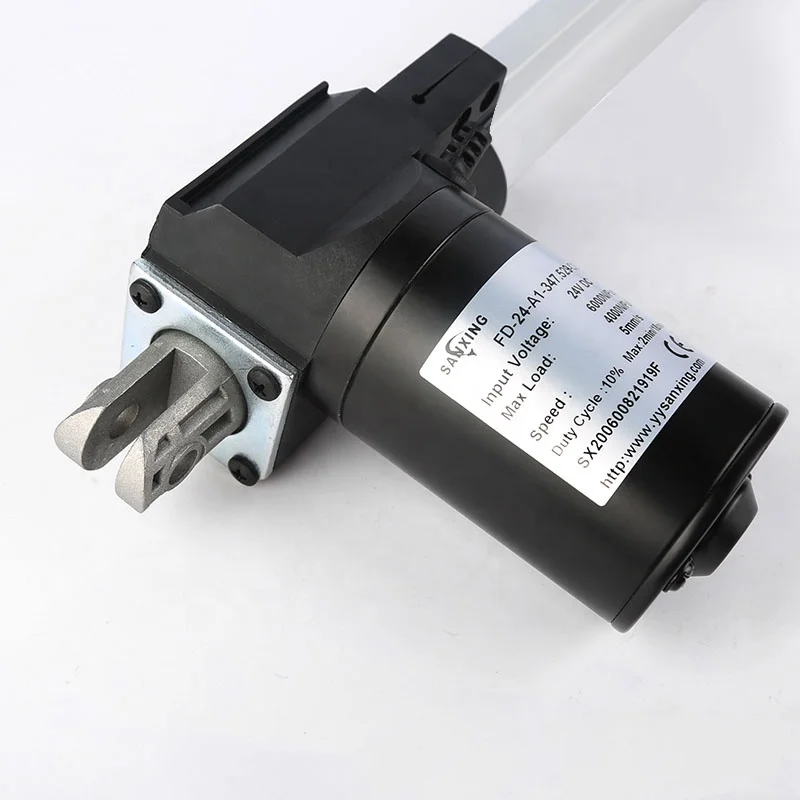

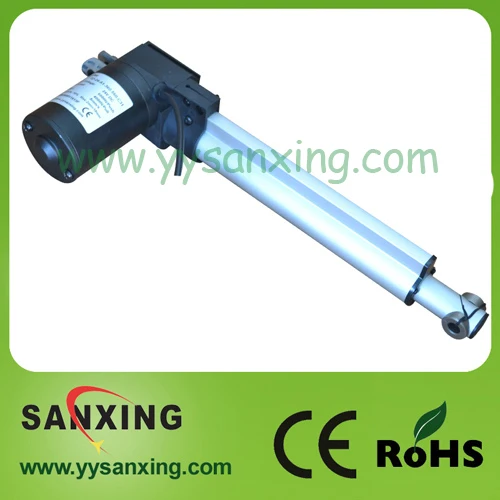

12V/24V electric linear actuator

Product Overview

Description



12V/24V electric linear actuator

The  linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, furniture and other movements.



Specifications

Model	FD1
Input voltage	12V/24V/110V DC
Load capacity	Max 6000N (push) / 4000N (pull)
Speed	4 ~ 40mm/s (no load)
Stroke	26mm ~ 1000mm (Customized Stroke Available)
Duty cycle	10%
Limit switches	Built-in, factory preset
Operation temperature	-20°C~ +40°C
Noise decibel	≤48 dB
Protection class	IP44
Minimum installation distance	≥stroke+160mm







Drawing:





You may like their accessories.

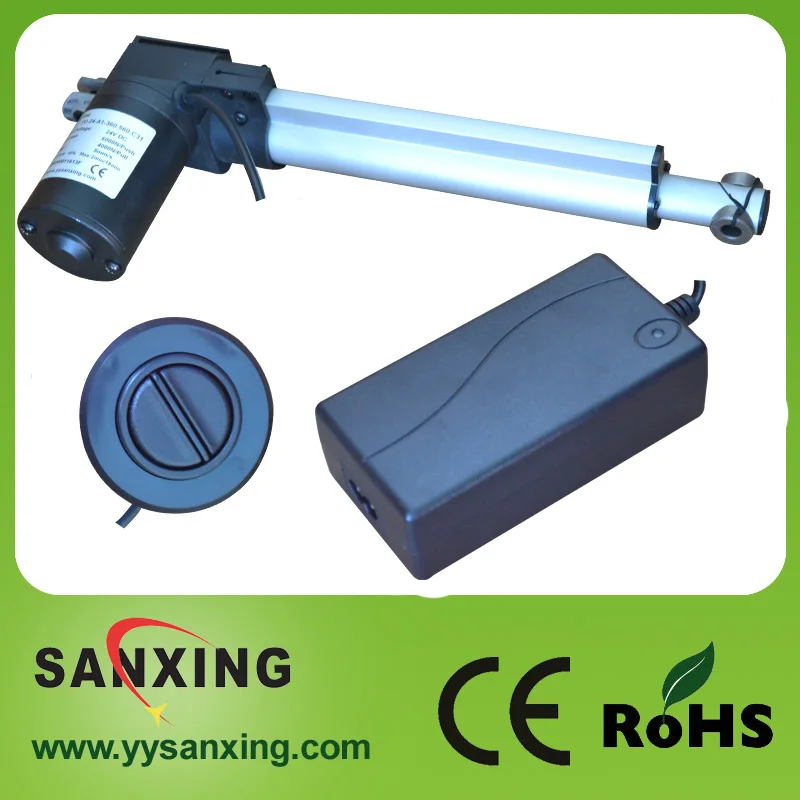

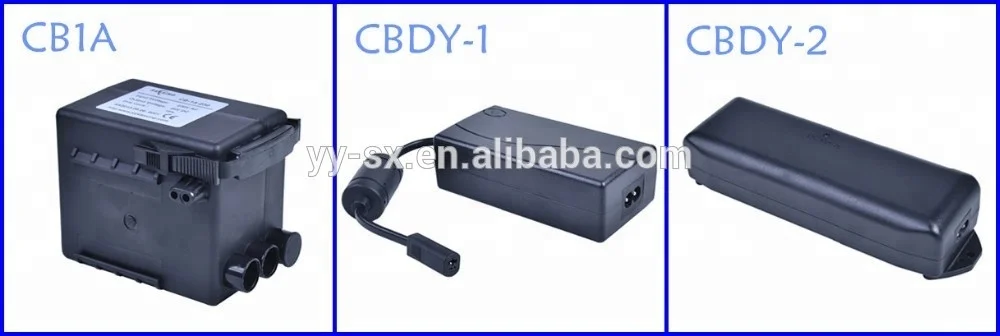

Control box and power supply:

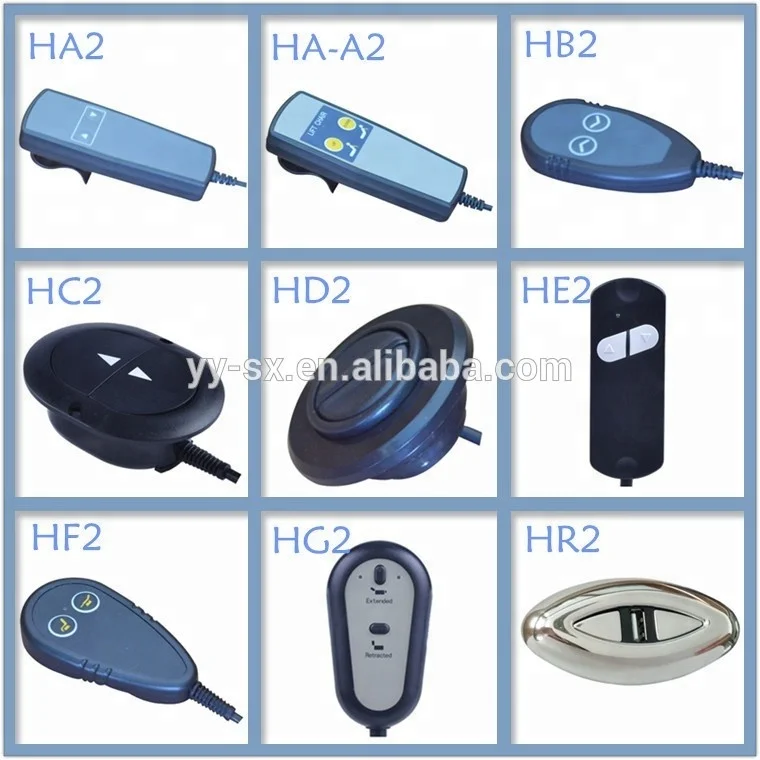

Remote control:





Other linear actuators you may like:





Application:
