Heidenhain BE211 Monitor Replacement.

Product Overview

Description

BE211 Heidenhain Monitor



CNC Monitor Converter uses the latest technology to replace your old or damaged industrial CRT monitor with a common LCD monitor. It brings you very good images in a very low price. Replacement solution:



GBS8219+LCDs









BE211 series Heidenhain Monitor, with a Heidenhain system number of 22691701 is a TNC 1xx generation Heidenhain monitor, that was fitted on the Heidenhain system series TNC 155 controls. The BE211 is a 12" amber display. The replacement for this is apptly named the  GBS8219. The replacement, GBS8219+LCDs, is a complete replacing the Heidenhain BE211 monitor, and will physically and electronically work in all Heidenahin controls, that were originally fitted with the BE-211. The  GBS8219 retails @ US$310.00, plus any additional charges, such as delivery and packaging. The GBS8219  is available now, and ready to ship anywhere in the world.





GONBES

8219

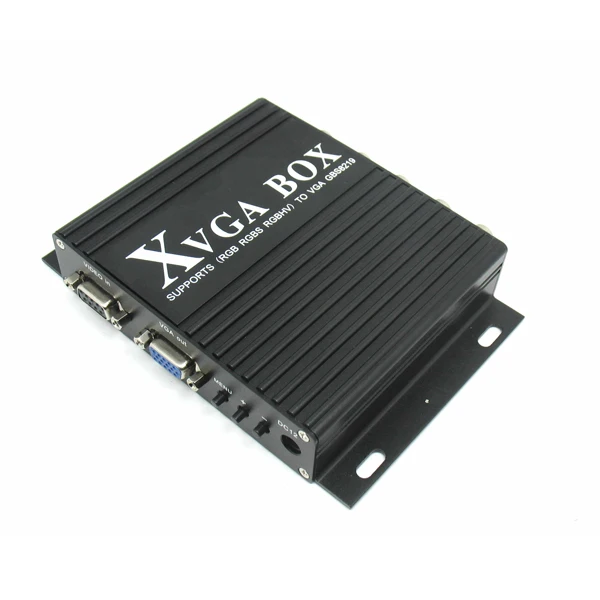

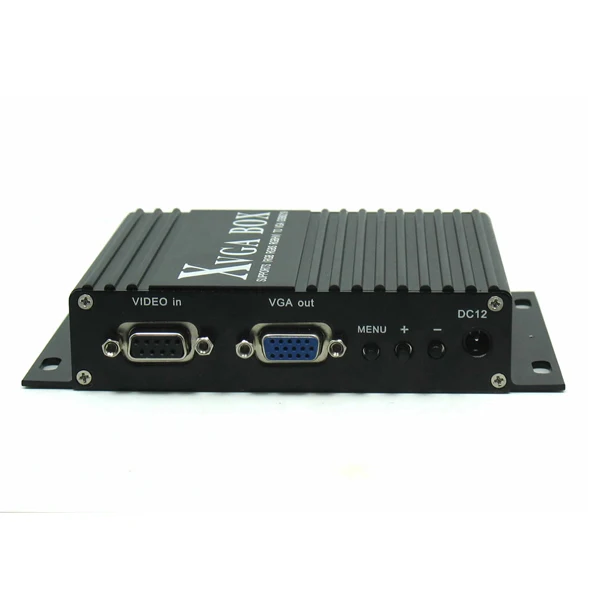

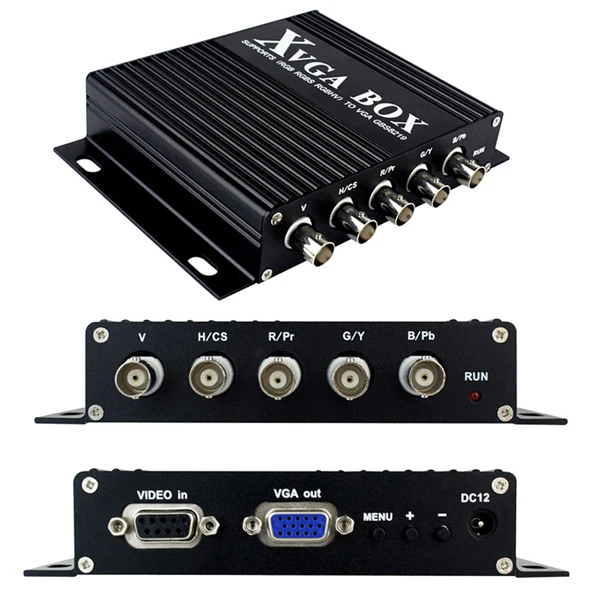

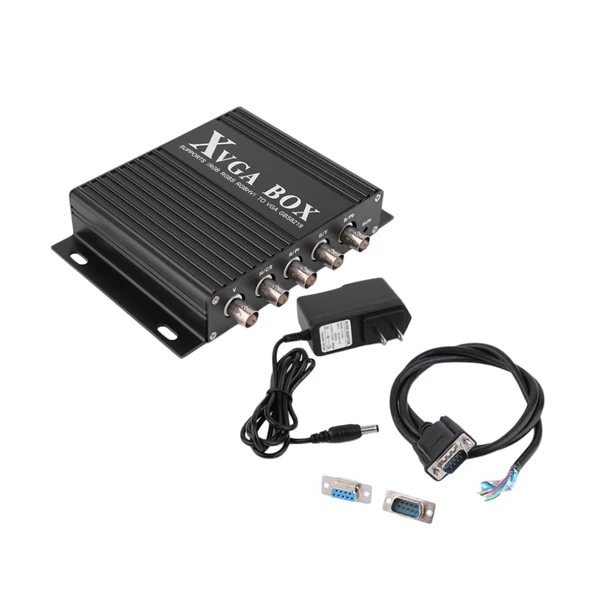

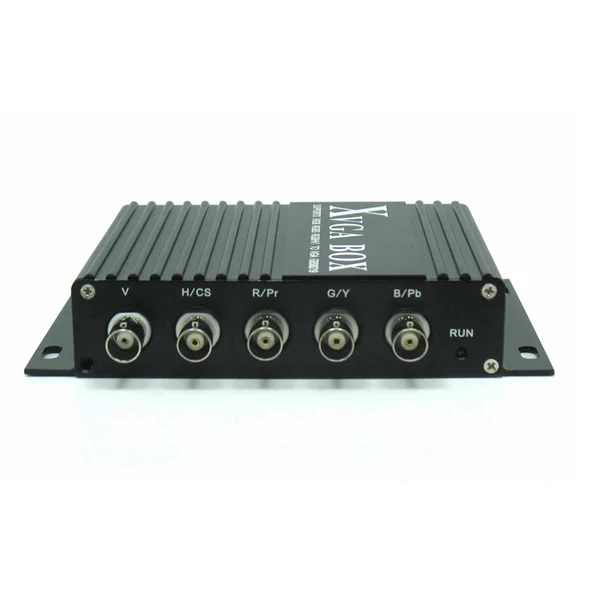

 Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display, Specialized Display of imported PSP, Bowling and other recreational facilities, etc.

Input	Signals	MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr
	Interface	5BNC, 9pin,3pin,6pin,14pin,20pin,25pin
	Horizontal Frequency Rate(H)	12kHz to 40kHz automatically recognized
Output	Supports	D-15pin standard VGA/SVGA,Resolution:800*600/60HZ, 640*480/60hz
	Interface	D-Sub 15 PIN standard VGA port
Power	DC 12V 1.0A



Note: 1.YPbPr = YUV  2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.  3.Support RGB and YPbPr  4.Support Interlaced Scanning and Line by Line Scanning.  5.Support Vertical Resolution from line200 to line 600 automatically recognized.  6.Support variable Horizontal Resolution automatically recognized.  7.Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized  8.Output resolution: 800*600/60Hz standard VGA or custom-resolution.
