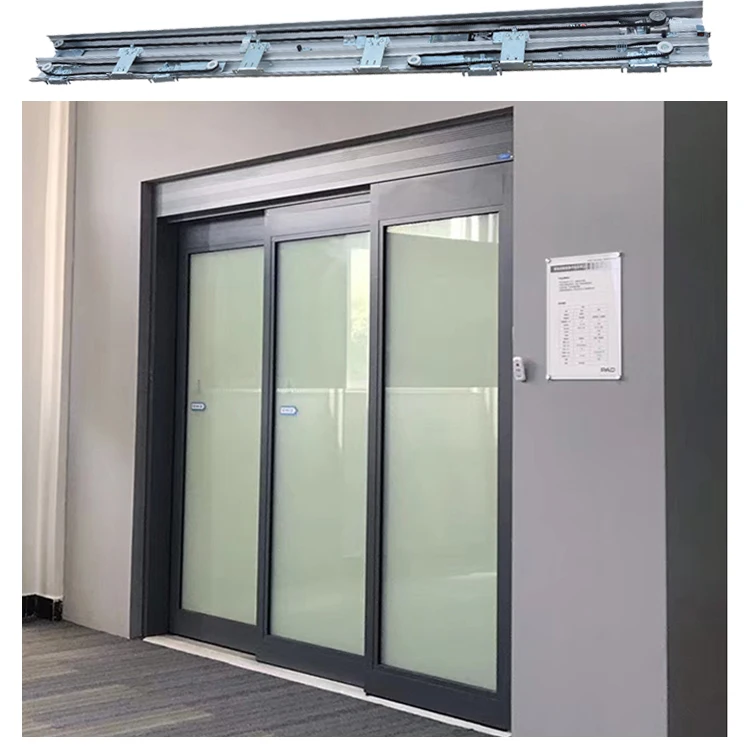

automatic telescopic door operators

Product Overview

Description

automatic sliding door control unit telescopic door operators with CE certificate



Production Information:

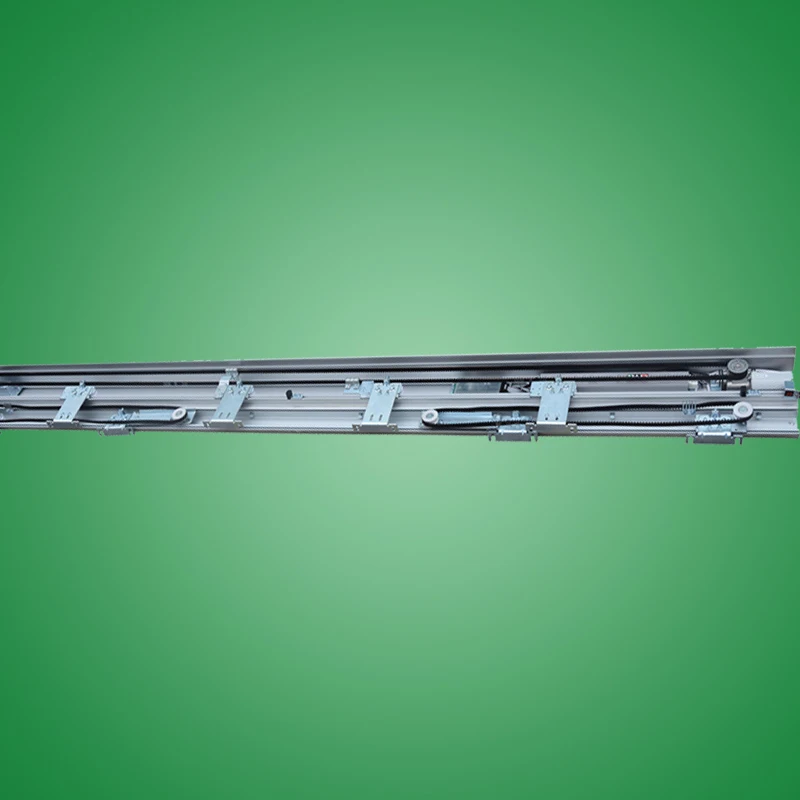

type	PAD 2006 Automatic Telescopic Sliding Door Operator

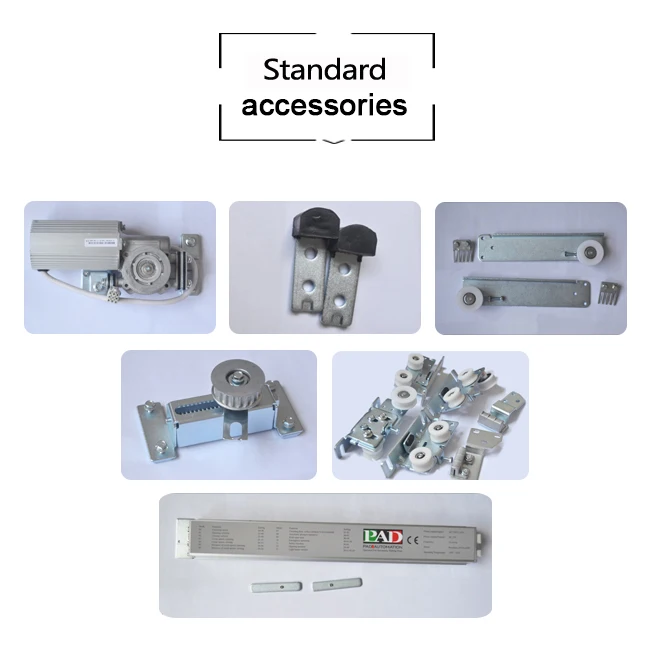

Compoments	1.motor,2.control moudule,3.pulley,4.bando belt ,5. carriers  6.belt connectors, 7.end stopper, 8. big track  9. small track
color	aluminum color
track length	4200mm,6000mm



Technicial data:

range of the door	double/four leaf
Door leaf max weight	125Kg*2 leaf, 125KG*4 leaves
Power Supply	AC 110v-260v, 50-60 Hz
Opening Speed	100-500mm/s (adjustable)
Closing Speed	100-500mm/s (adjustable)
Creep speed	30-100mm/s (adjustable)
Hold-open time	0-9s (adjustable)
Hold-Close Force	70N<f<250N
Manual Pushing Force	<100N
Power consumption	80W
ambient temperature	-20-+50 C

Why Choose Our Products and Our Advantage?

1) Wide voltage range(AC110-260v)

2) low power consumption when at work(80W), energy saving when at leisure(3w).

3) Intelligent design, easy to install and adjust.

4) Digital programs, running parameters can be revised easily.

5) Specially designed noise-reduction track rail produces less noise, ensures the rollers to run smoothly.

6) Advanced brushless DC motor and the geared worm are integrated together, which has advantages such as higher efficiency, larger torque and longer life span, no need for mechanical lock.

7) Different triggering modes are available,such as dire waring , safety beam sensor, handle button, etc.

8) The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast. (with power on)

9) .CE,SGS,ISO9000:2008 certificated.

10) 6013 aluminum mouting  profiles.

11) 1 millions times of tests passed.

 12)   30% extra clear ebtrance than normal sliding door.
