Lifting Magnet for Steel Scrap

Product Overview

Description

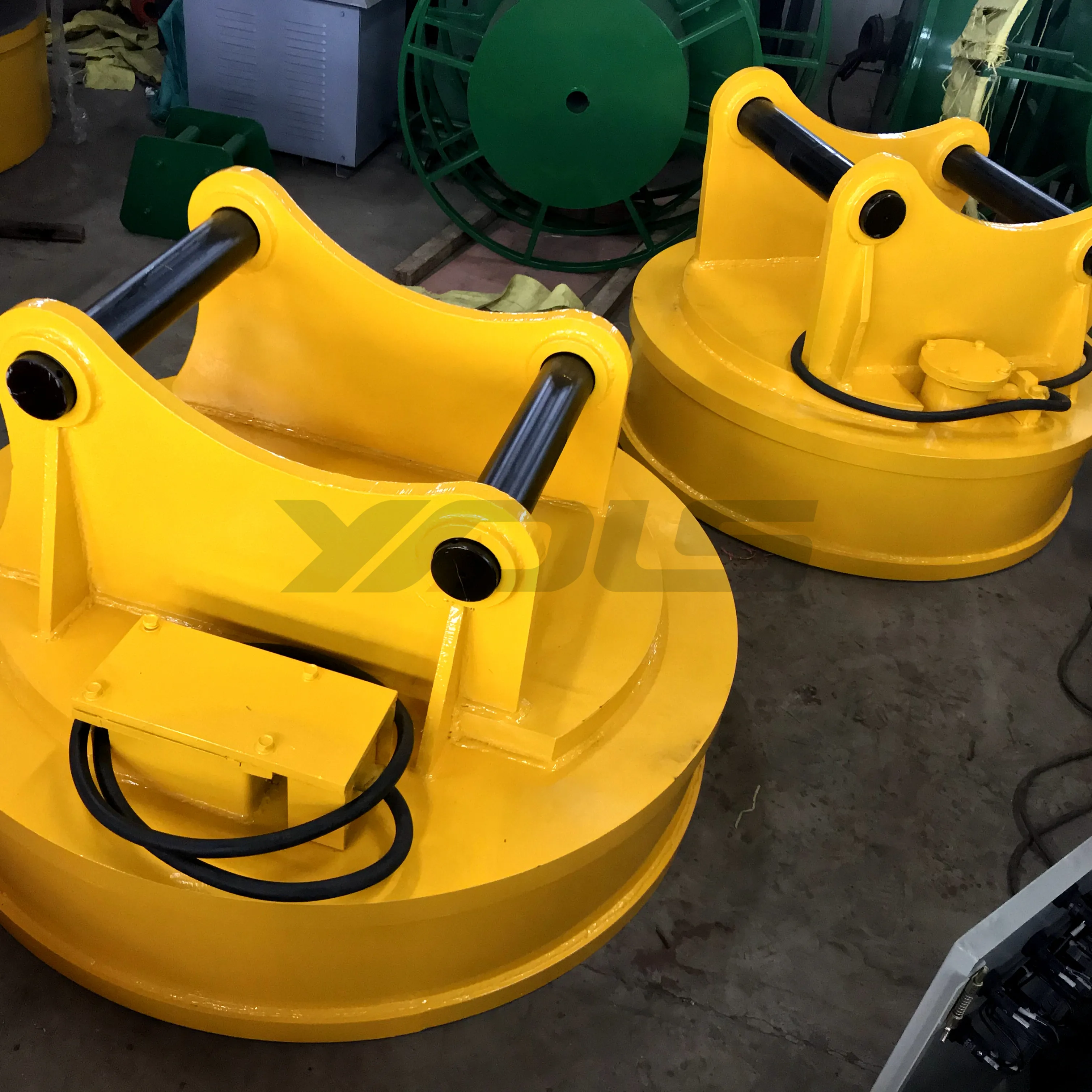

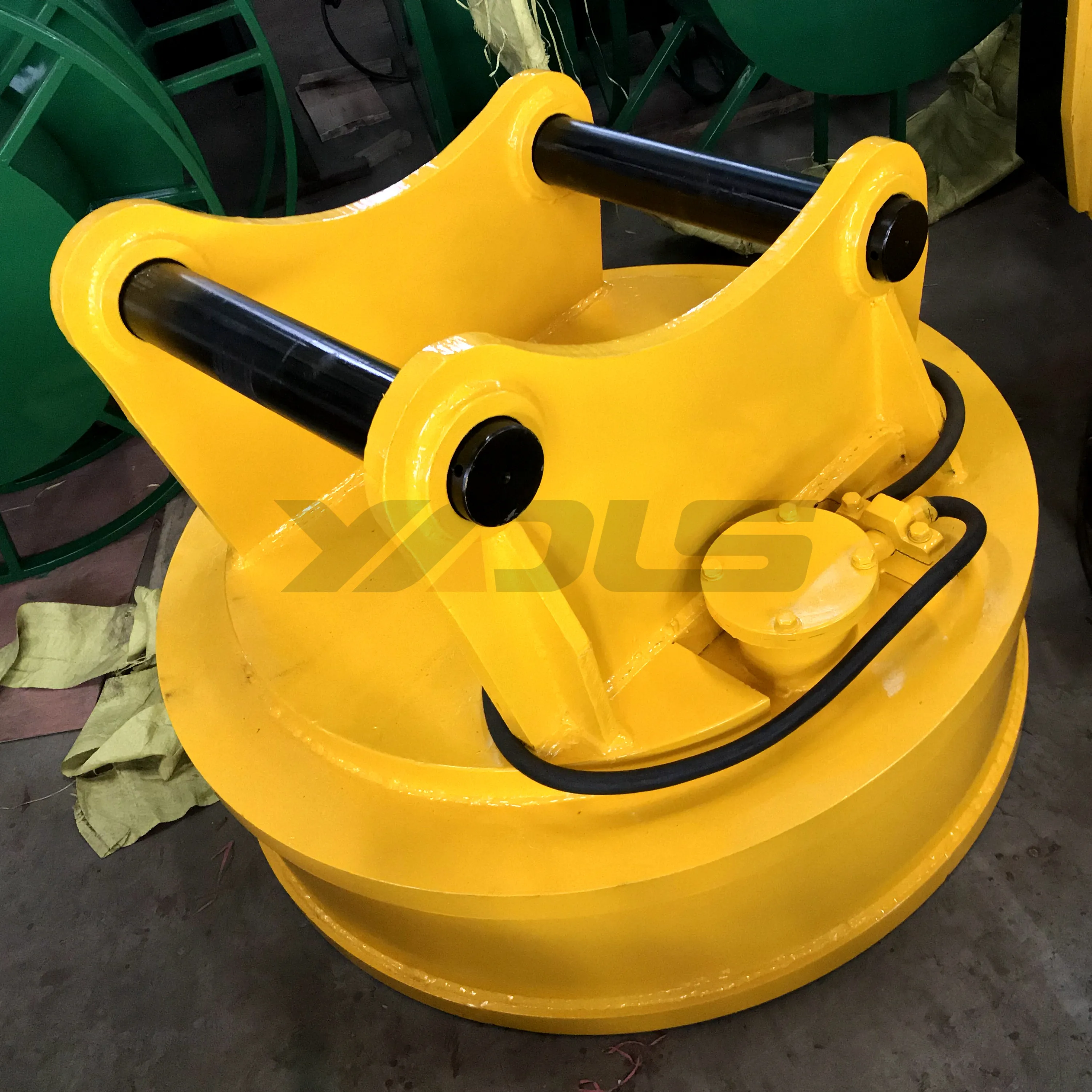

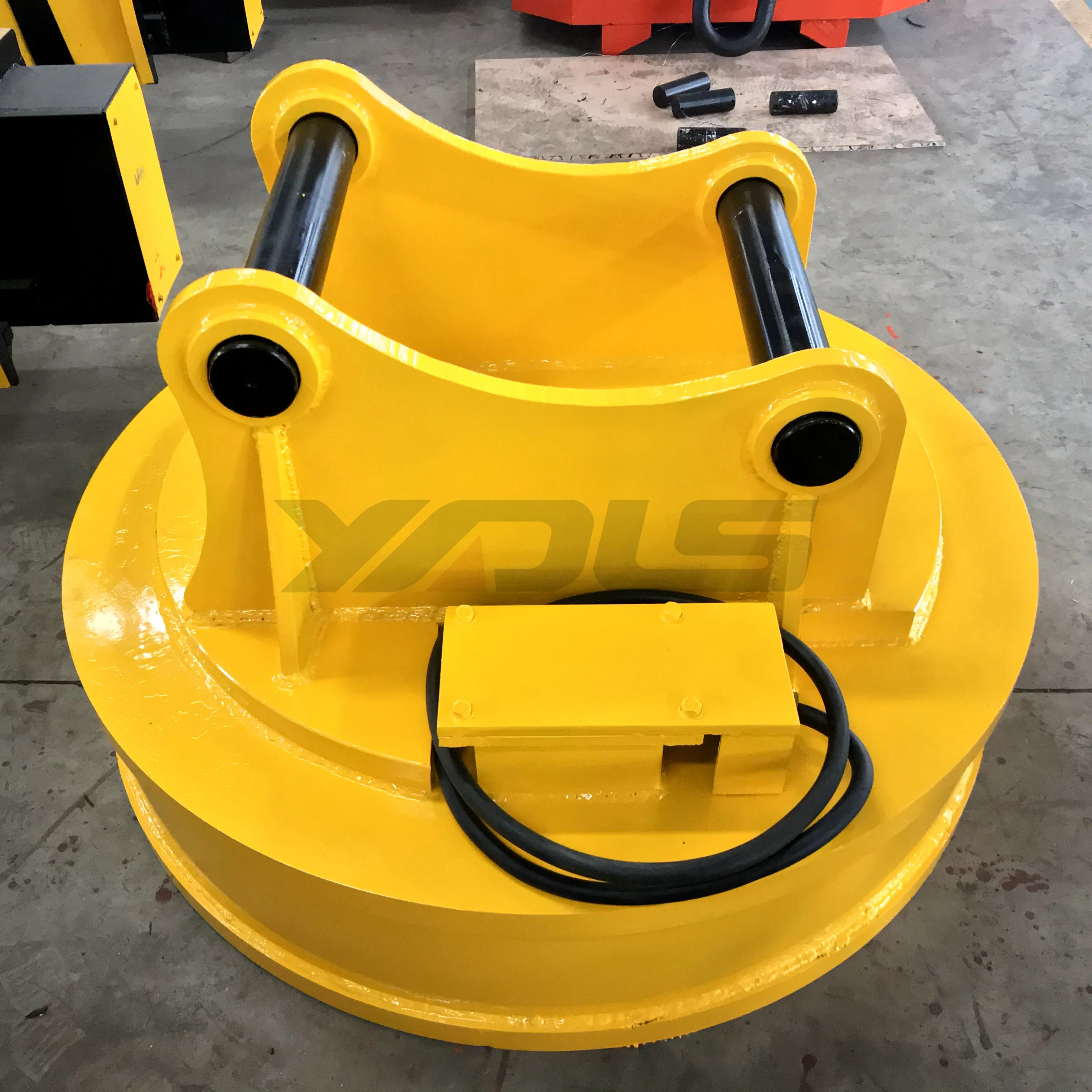

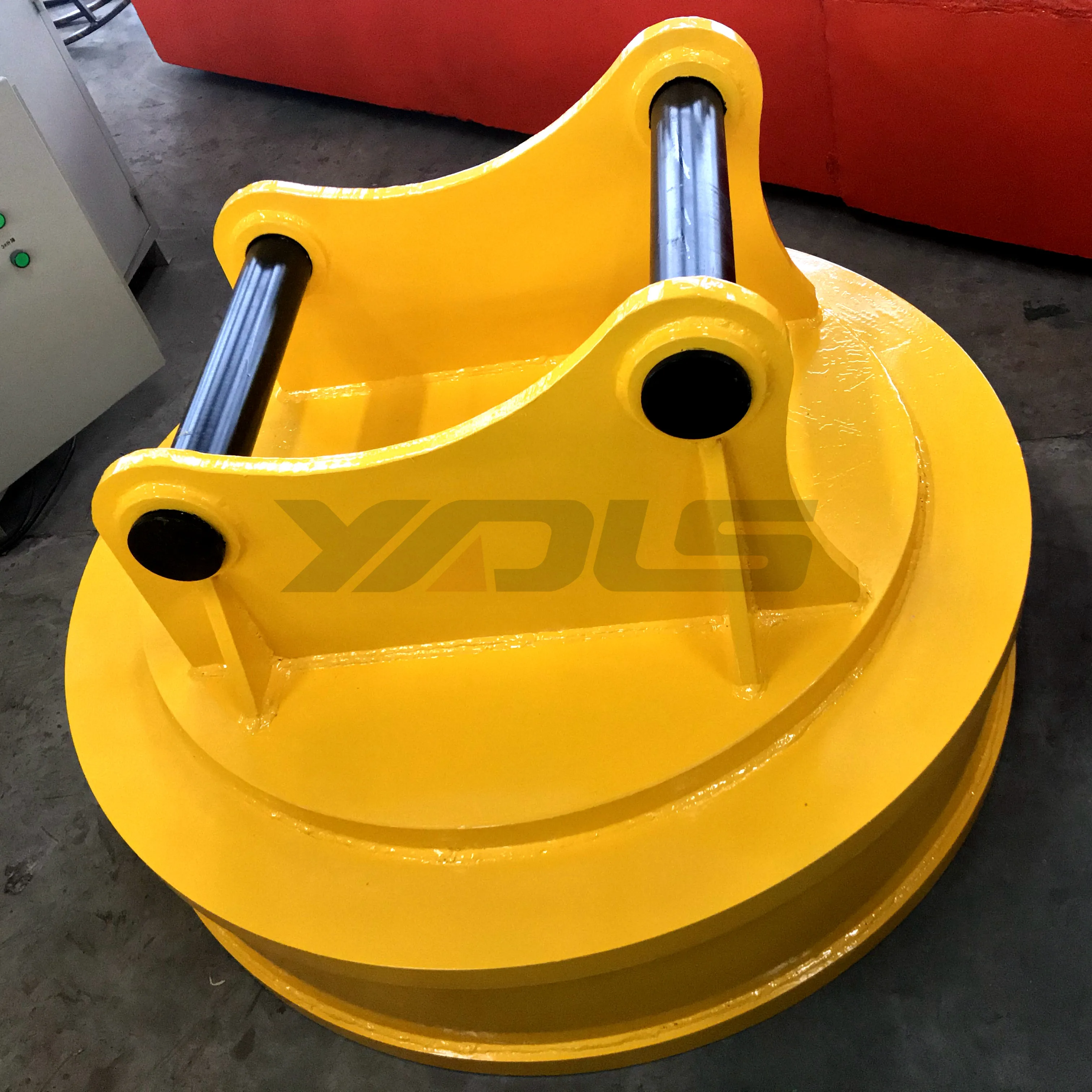

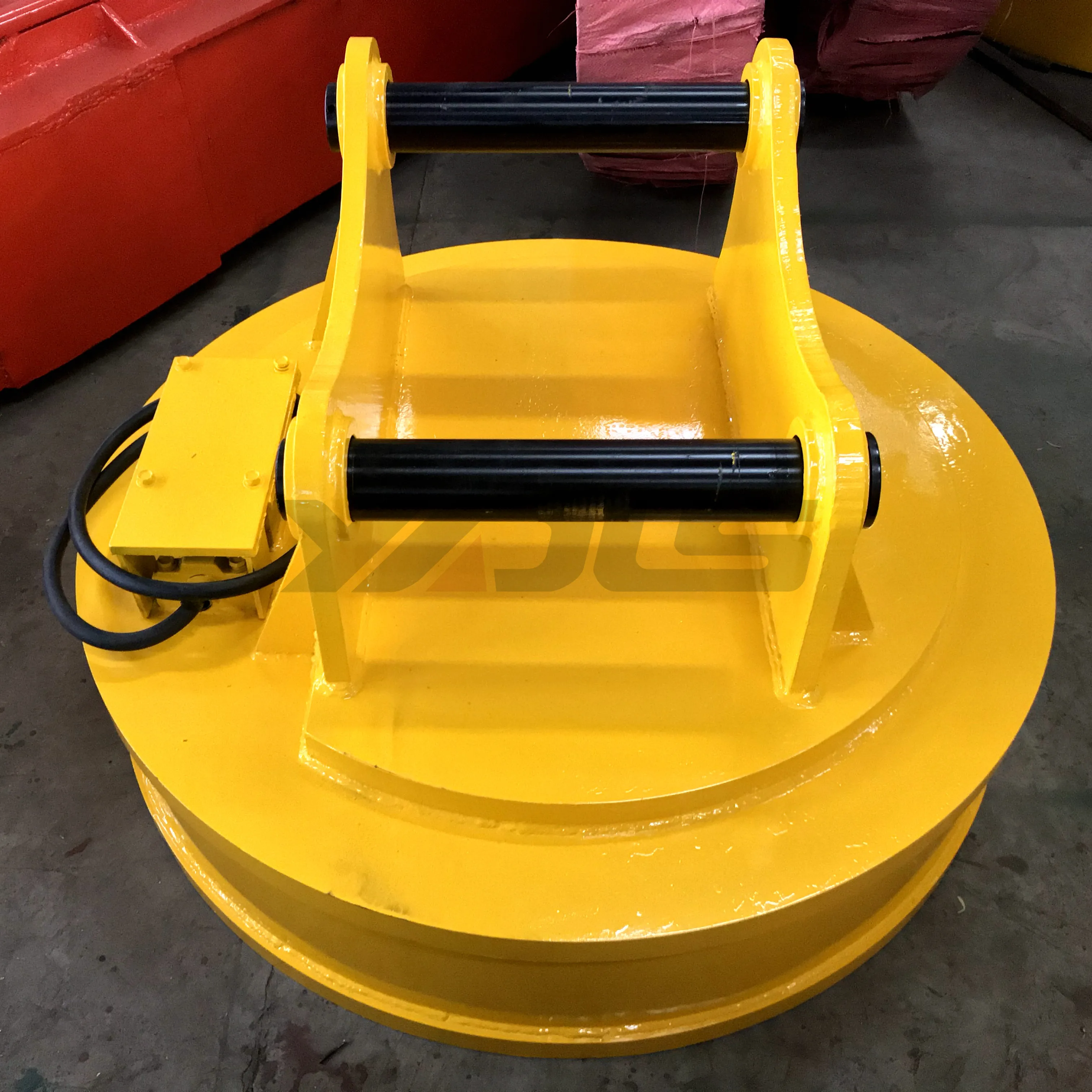

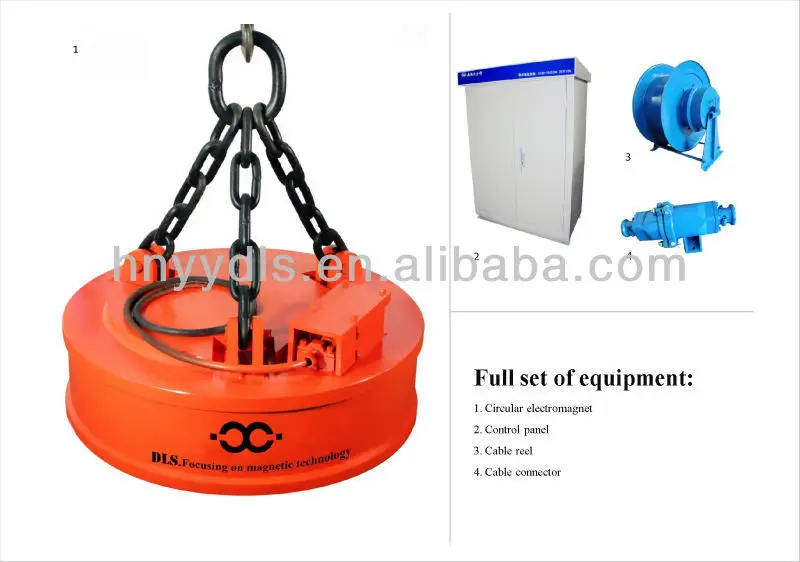

Circular electromagnet for lifting scrap MW5 Series

Lifting Magnet





l Applications

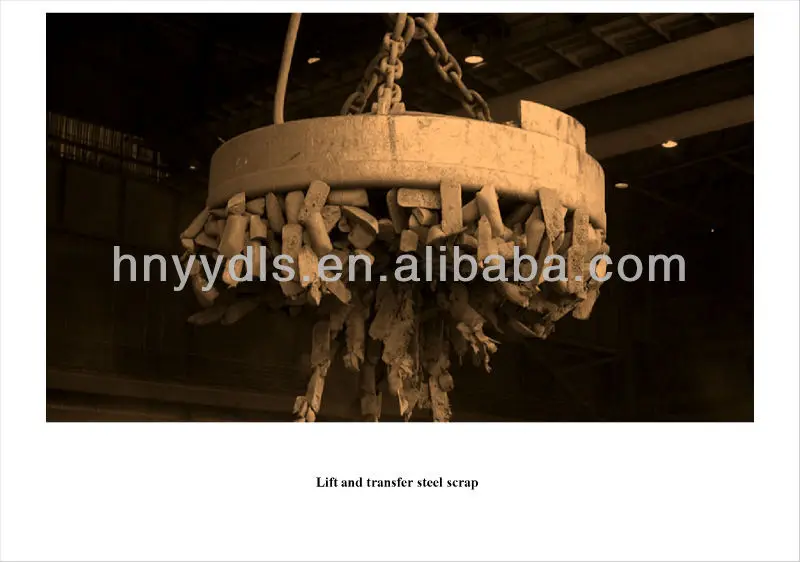

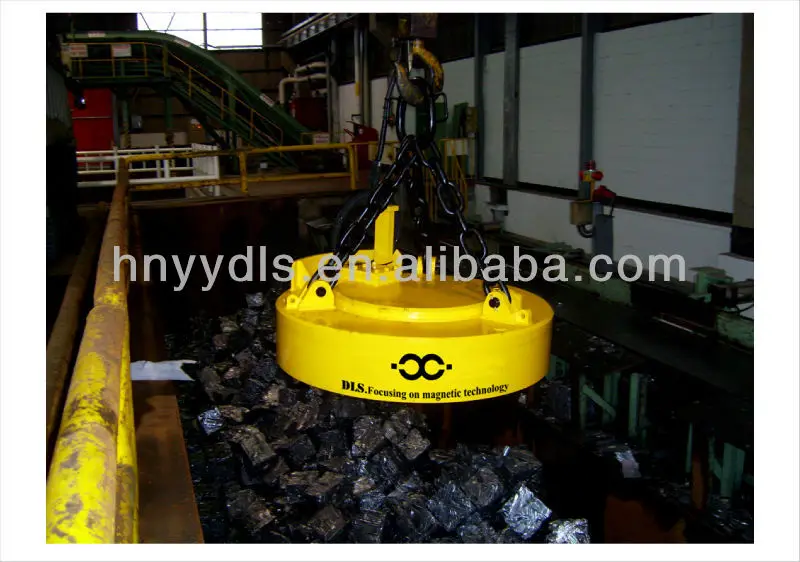

This kind of lifting magnet is suitable for transferring cast ingots, steel balls, metal and steel scraps.

The electromagnet can be fitted on excavator or crane.

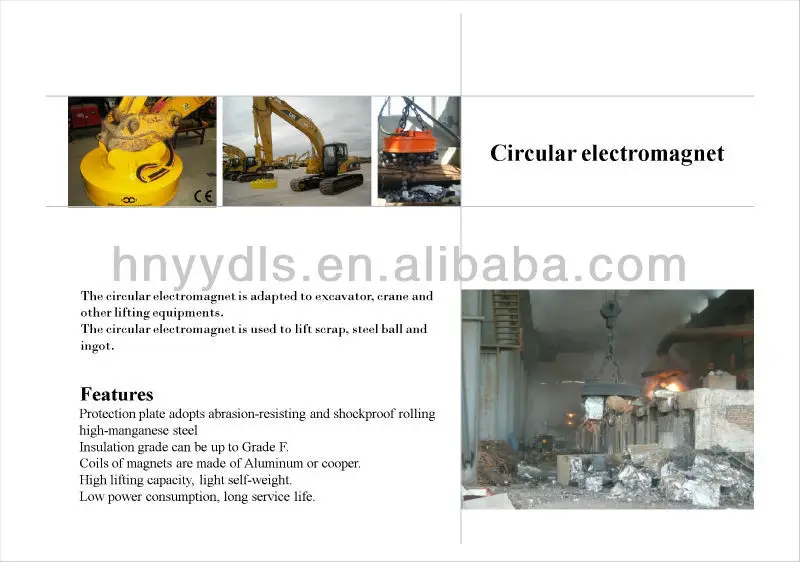

l Features

The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.

The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.

Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.

High lifting capacity, light self-weight.

Low power consumption, long service life.



l Technical data

Three types of lifting magnet for option:

1. Normal temperature type (DC-220V TD-60%)

2. High frequency type (DC-220V TD-75%)

3. High temperature type (DC-220V TD-60)

Model	Diameter (mm)	Current (A)	Power (kW)	Lifting capacity (cold/hot state) (kgs)
				Steel ball	Steel ingot	Steel scrap
MW5-70L/1	700	15	3.3	2500	380/200	120/100
MW5-80L/1	800	18	3.96	3000	480/250	150/130
MW5-90L/1	900	26.6	5.85	4500	600/400	250/200
MW5-110L/1	1100	35	7.7	6500	1000/800	450/400
MW5-120L/1	1200	45.5	10	7500	1300/1000	600/500
MW5-130L/1	1300	54	11.9	8500	1400/1100	700/600
MW5-150L/1	1500	71.2	15.6	11000	1900/1500	1100/900
MW5-165L/1	1650	75	16.5	12500	2300/1800	1300/1100
MW5-180L/1	1800	102.4	22.5	14500	2750/2100	1600/1350
MW5-210L/1	2100	129	28.4	21000	3500/2800	2200/1850
MW5-240L/1	2400	154	33.9	26000	4800/3800	2850/2250

 More details, please contact us directly.
