Automatic car door window frame roll forming machine

Product Overview

Description

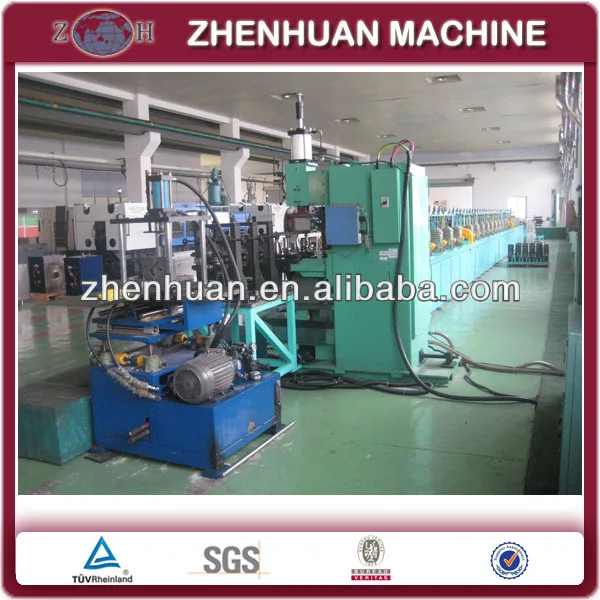

Car Door Window Frame Roll Forming Machine



I Description of car door frame roll forming machine

This machine is specially designed for producing straight car door/window frame, together with seam welding.

car door frame roll forming machine | car door frame rollformer

II Main technical data of car door frame roll forming machine

2.1 Main driving motor power: 15kW x 2

2.2 Center height: 1200mm

2.3 Max. roller stations: 36 steps

2.4 Forming speed: 0~16m/min (excluding cutting)

2.5 Machine dimension: 13500 x 1000 x 1500mm

2.6 Every station is equipped with cooling nozzle.

2.7 Shaft is designed for quick roller changeable.

2.8 Shaft diameter: 40mm

2.9 Suitable max. strip width: 280mm

2.10 Suitable strip thickness: 0-2mm

2.11 Formed profile section precision: +/-0.2mm

car door frame roll forming machine | car door frame rollformer

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 14 years. We can provide you good quality car door window frame roll forming machines as well as good services. We can also provide rollformer for any rails, safety humper bar, etc.
