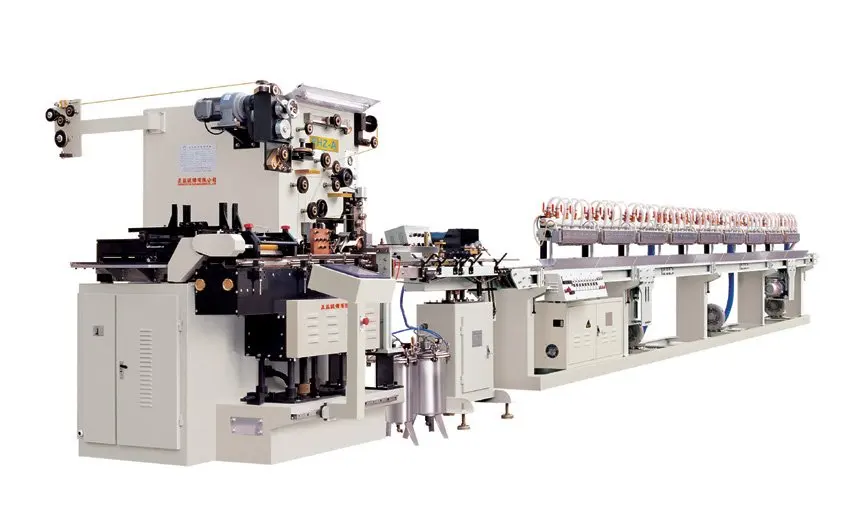

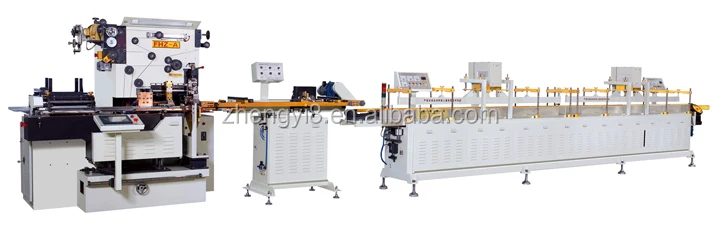

Canned Food Box Making Machine

Product Overview

Description

canned food box making machine

detail:

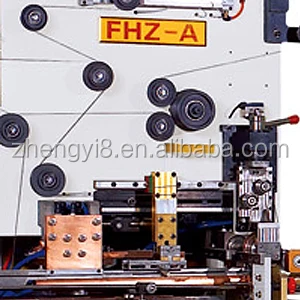

Model	FHZ-A
Applicable can diameter	Φ52-105mm
Applicable can height	H70-250mm
Production capability	80-150cans/min
Seam welding landing	0.4mm 0.6mm
Linear rate of welding	6-24m/min
Sealing point distance	0.5-0.9mm
Material	Tinplate Ni plate
Sheet thickness	0.16-0.3mm
Sheet hardness	T2-DR8
Copper diameter	Φ1.38mm Φ1.5mm
Cooling water	0.4 Mpa 12-18°C 20L/min
Compressed air	0.5 Mpa
Volume of compressed air	800L/min
Coating capacity	6-30m/min
Coating manner	by rotaing wheel (Automatic glue-feeding)
Coating width	10-14mm
Drying capability	6-30m/min
Drying manner	Drying by electric heating
Size of seam welder	1730×1695×1920mm
Sizoof intemal and extemal coating	2100×650×1300mm
Size of drier	9600×680×1460mm
Input power three-phase	AC380V 50Hz
Total power of the producing line	50KVA
Total weight of machine set	4600Kg







Chromeplate device could be assembled specially.
    If any advanced performance for the listed devices required, welcome to contact us for discussion.
    If the structure should be modified, we wont hold the responsibility of informing you.
    GNWT-Z internal and external seam coating machine uses automatic glue feeding device which avoids the trouble of stoping the machine to add glue. Manual feeding of glue can lead to uneven and total miss coating. GNWT-Z has many advantages over other machines of its kind because it coats the can by rotating the wheel. This also prevents the coating nozzle from blockage. GNWT-Z is indeed economical.
    GHG-Z can body heat air drying machine applys reliable mutual-restraint controlling device, so it is easy to operate. Its temperature is controlled by 9-degree heating machine , so the exchange rate of heating is high and temperature can be changed from 250 to 400 continuously.
