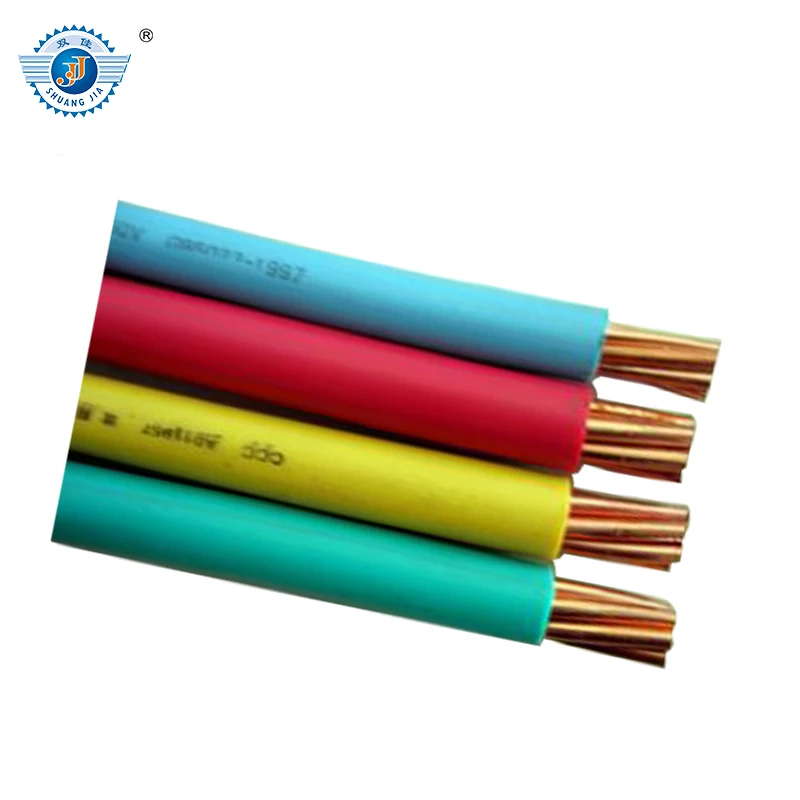

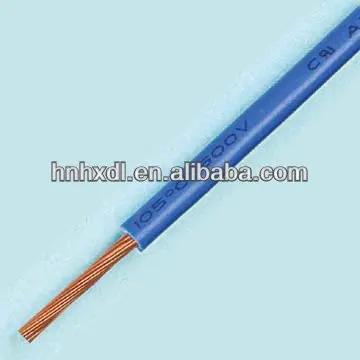

450/750V copper building wire

Product Overview

Description

450/750v copper building wire Include:

1)      Copper (aluminium) conductor PVC insulated wires (BV)

2)      Copper conductor PVC insulated flexible wires (BVR)

3)      Copper (aluminium) conductor PVC insulated PVC sheathed round wires

4)      Copper (aluminium) conductor PVC insulated PVC sheathed flat wires

5)      Copper conductor PVC insulated flat and flexible connectors

6)      Copper conductor PVC insulated PVC sheathed round and flexible connectors



Size: 0.5-240 mm²



Usage:

This prodcut is widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects.



450/750v Copper building wire with below technical data

Nominal   sectional area   mm 2	Conductor   No/Dia.   mm	Nominal Insulated thick   mm	Max overall   Dia.   mm	Condcutor   Resistance at   20	Min insulated   resistance at   70Mohm/km	Weight   Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0



MOQ, Capacity& Payment method

For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.



For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.



Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight

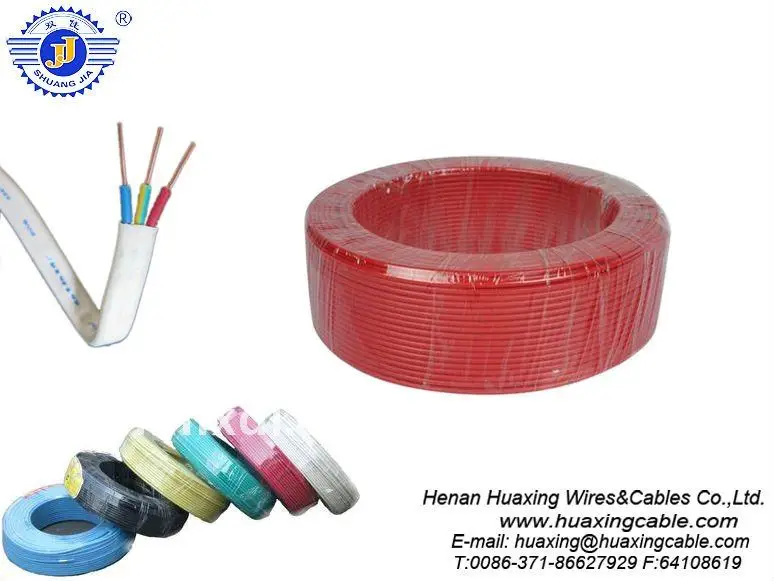

Packing Pictures:











if you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage
