CE float glass cutting machine from China 3800x2600mm laminated glass cutting machine

Product Overview

Description

CE Float glass CNC Automatic Glass Cutting machine 3800x2600mm



1. Features

This automatic CNC-shaped glass cutting machine allows users to cut out any shape of glass with

high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the cutting

data fully computer controlled. The operator can edit the glass size for cutting with computer.

The computer can optimize the cutting size, and give out the data for processing, driven the machine

to cut glass sheet automatically in high speed and high precision.



a. Use professional computer software equipped professional cutting and optimized composing system.

   It features easy operation, high accuracy and fast speed. Cutting speed can be adjustable.



b. Cutting beam was imported from German high precision rack and rail. It features high accuracy.



c. Main parts were imported from brand products. It features high quality and long life.



d. Maintain and operation were easy for the machine. Edit the glass size for cutting with computer.

   The computer can optimize the cutting size, and give out the data for processing, driven the machine

   to cut  glass sheet automatically in high speed and high precision.



2. Technical data:

Max Cutting Size (mm)                     3800*2600mm

Max Cutting Speed (m/min)              0-120 (adjustable)

Cutting Accuracy (mm/m)                 ≤ ±0.15

Glass Cutting Thickness(mm)            2-19mm

Voltage (V)                                       220V/380V (Three Phases)

Dimension (LWH) (mm)                  4700*3100*900mm

Weight:                                              2600Kg

Power:                                               9Kw



Transmission System: Axis X, Y and Z adopts servo motor made in Japan, and accurate gauge cutter device.

Cutting Holder: Air pressure and spring together, cutter head can rotate 360 degree, cut up and down. It can cut any shapes glass (line, round and shapes, etc)

Fuel System: Automatic oiling system, the oil pressure can be adjusted freely.

Conveyer System: air float and synchronous automatic transmission device is convenient for glass movement.

Locating System: It is composed of mechanical locating system and optoelectronic scanning system.

The optoelectronic scanning and cutting is automatically finished in the process of stream line operation, not need locating by operators.

Staff Requirement: 1 Person (Be familiar with knowledge of glass cutting and computer)

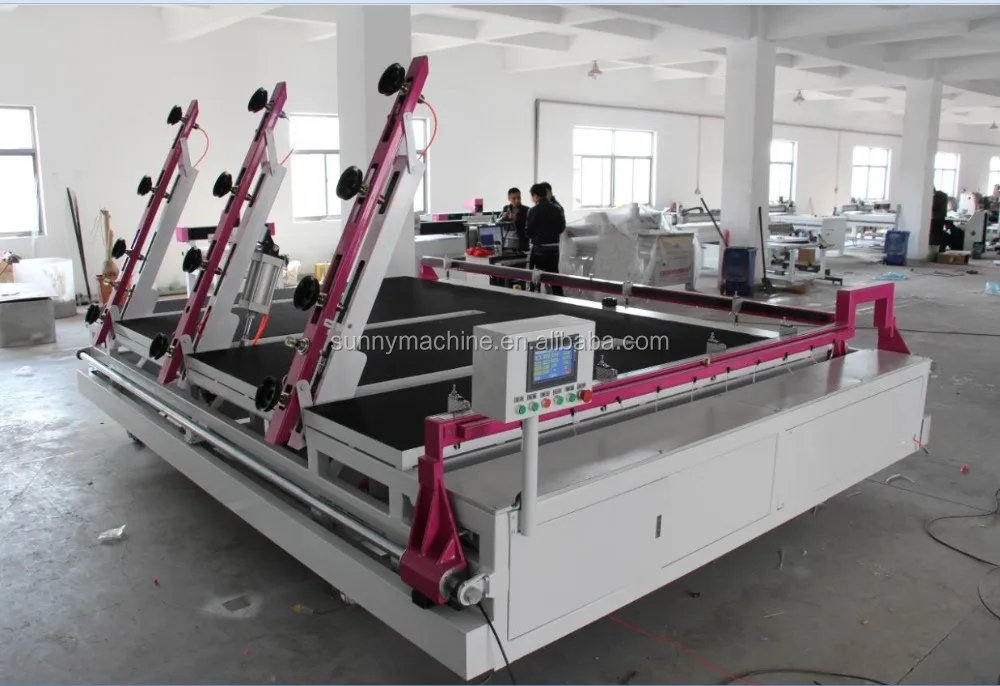

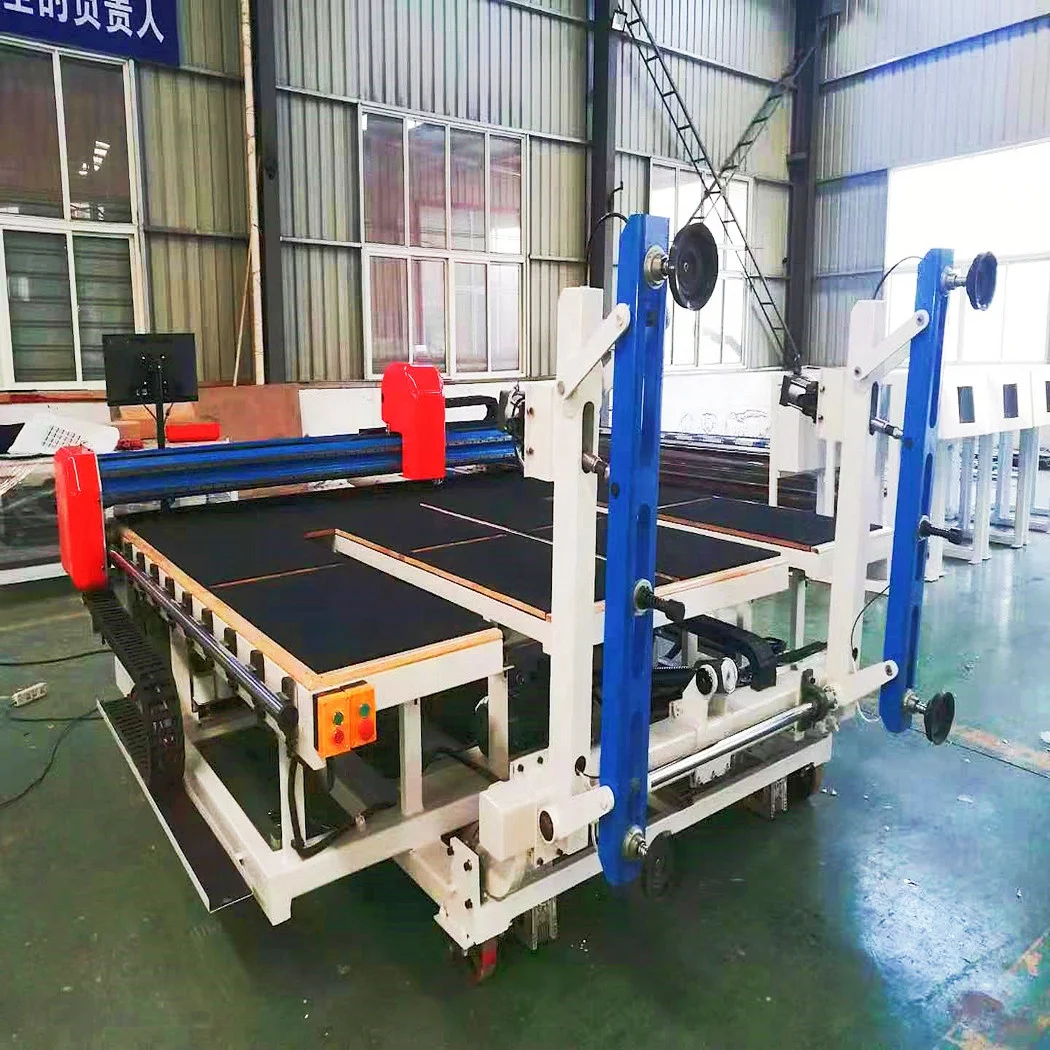

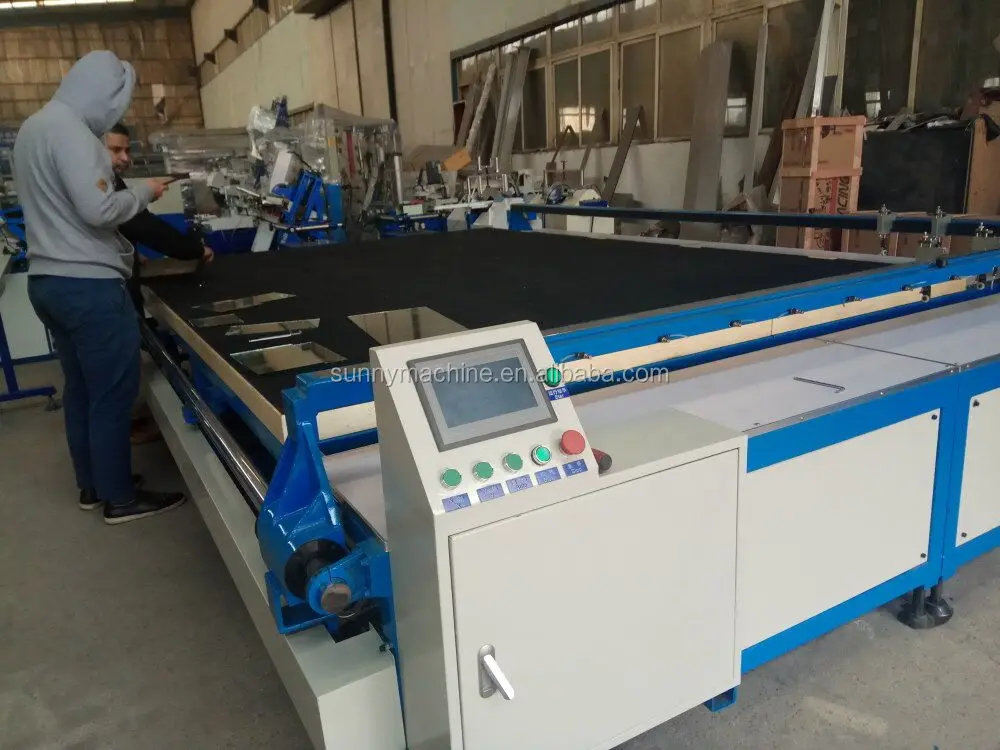

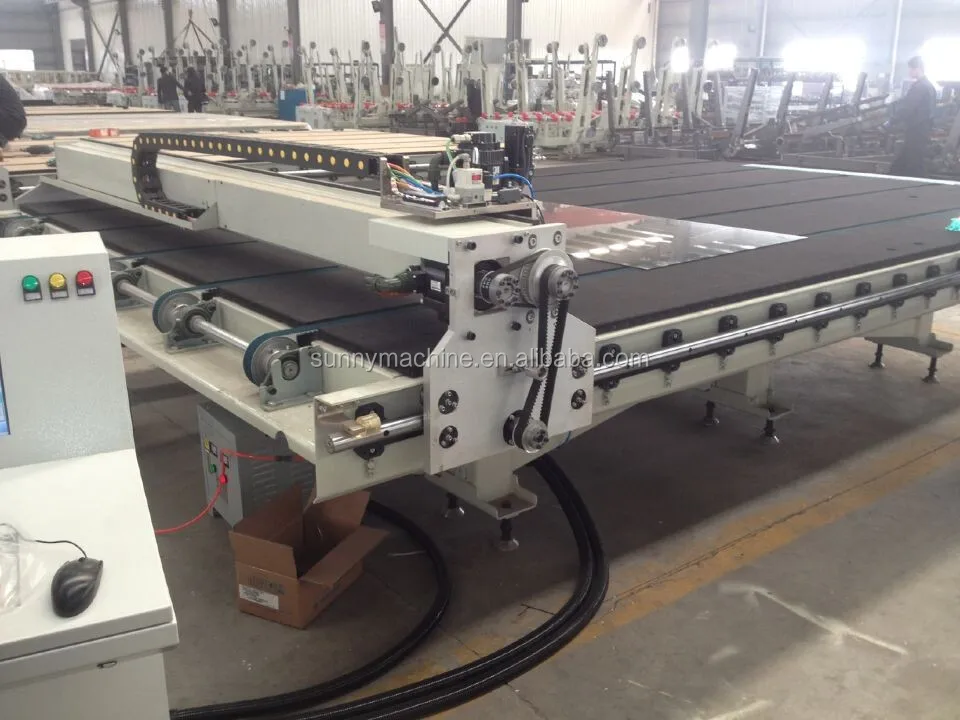

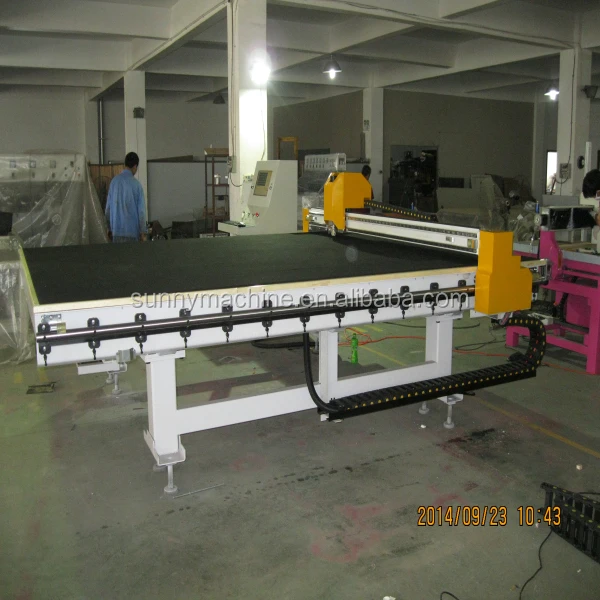

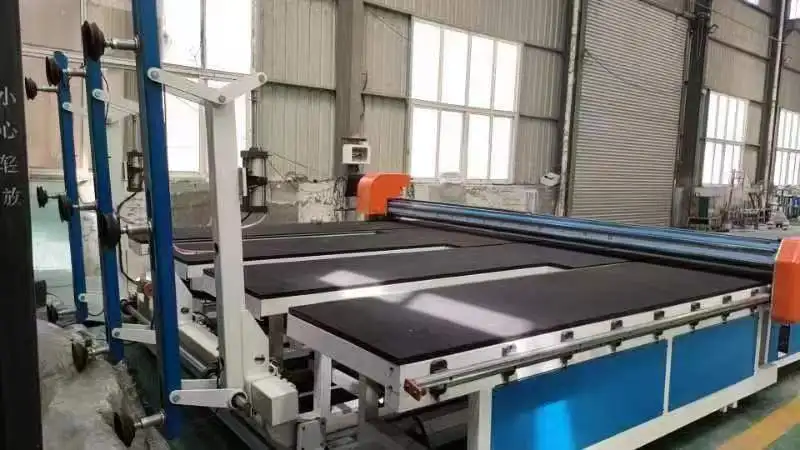

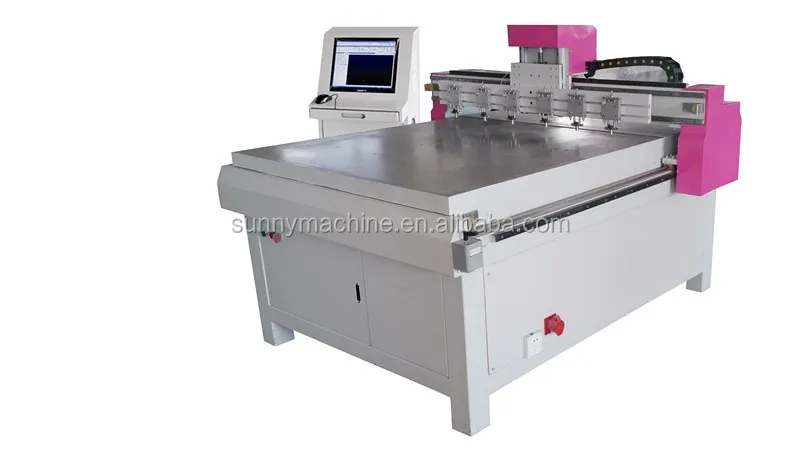

 2. Real Photos





4.Remarks

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive the deposit

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods



5. Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
